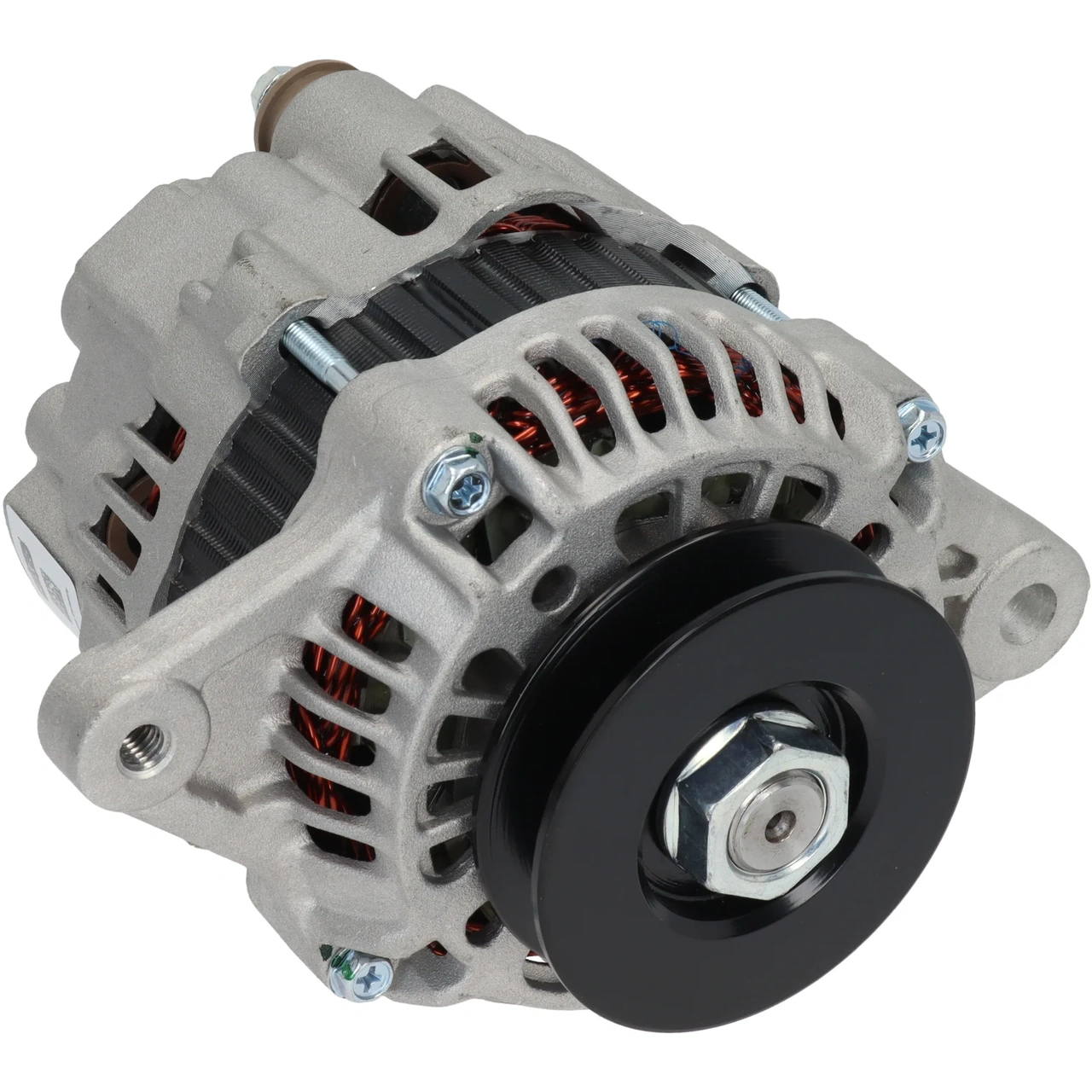

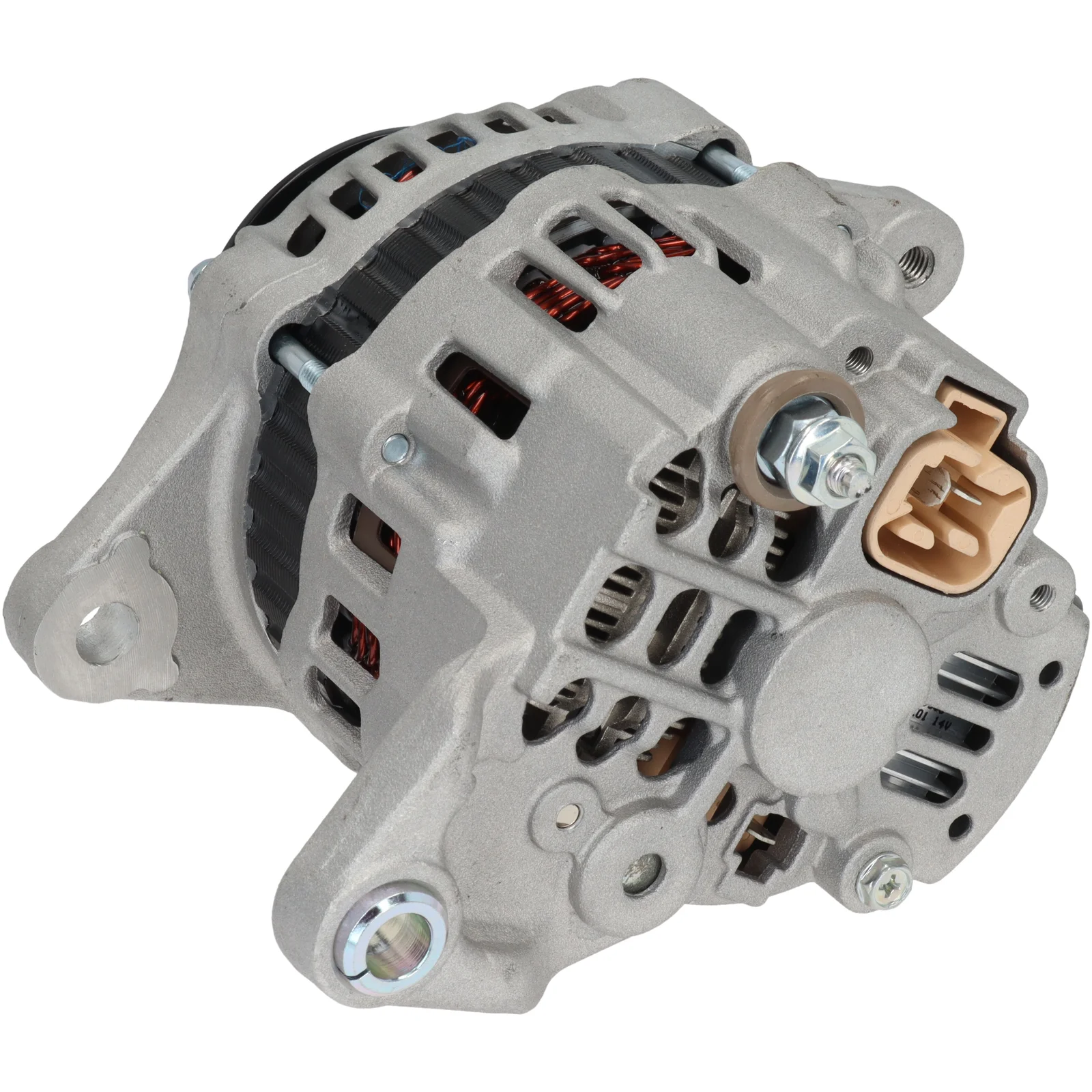

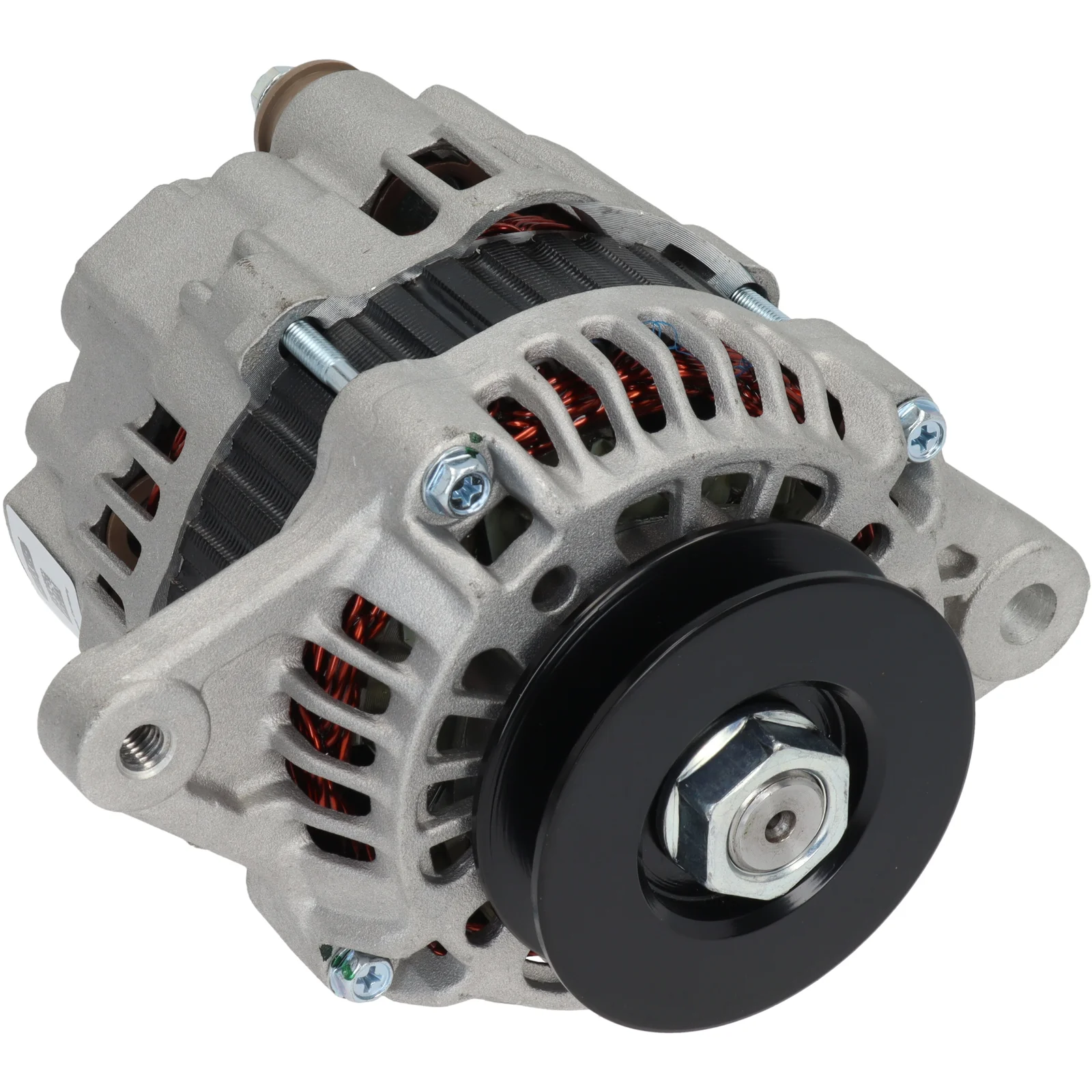

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116529

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Monteringsbeslag afstand: 80.00

Beskrivelse

Spænding: 14
Amp: 50
Bæltehjul, dist.: 42,00
Bredde/holderarm: 13,00
Monteringsbeslagets afstanden: 80,00
Beslagshul: 10,50
Bæltejusteringsbeslagshul pos.: 12
Bæltejusteringsbeslagshul 1: M8
Bæltehjuls diameter: 74,00
Riller/bæltehjul: 1
Radie: 78,00
Radie 2: 78,00
B+: M6
Position/B+ i min.: 45
Rotation: med uret
Stiknummer: PL194
Terminaltype: L-R
Bæltehjul: P
Ventilator: IF
Regulator-typen: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 12
Plug no. PL194
Bracket hole 10.50
Position/B+ in min. 45
Pulley P
Pulley dia. 74.00
Pulley dist. 42.00
Radius 78.00
Radius 2 78.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 1
Terminal type L-R
Voltage 14
Width/holder arm 13.00
Amp 50

  • OEM
    A007TA0483, A007TA0483A, A7TA0483, A7TA0483A, F032116529, 32A68-00400

  • Konkurrentreferens
    ADR0310, CAL35356, 705.507.050, 12561N, 111242

  • NormaliseratArtNr
    a007ta0483, a007ta0483a, a7ta0483, a7ta0483a, adr0310, cal35356, f032116529, 32a6800400, 12561n, 111242, 705507050

  • Passar modeller
    Caterpillar Model: DP40K Model series: DP40K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40K, DP40KL, DP45K & DP50K Model series: DP40K, DP40KL, DP45K & DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40N Model series: DP40N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40NM1 MEXICO Model series: DP40NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45K Model series: DP45K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45N Model series: DP45N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45NM1 MEXICO Model series: DP45NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50CN Model series: DP50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50CNM1 MEXICO Model series: DP50CNM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50K Model series: DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50N Model series: DP50N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50NM1 MEXICO Model series: DP50NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP55N Model series: DP55N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP55NM1 MEXICO Model series: DP55NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP70 Model series: DP70 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD10000 Model series: PD10000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD11000 Model series: PD11000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD12000 Model series: PD12000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD8000 Model series: PD8000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD9000 Model series: PD9000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: TH336 Model series: TH336 Model type: Rough Terrain Forklifts Brand of engine: C4.4TA Approved: Yes
    Caterpillar Model: TH337 Model series: TH337 Model type: Rough Terrain Forklifts Brand of engine: C4.4TA Approved: Yes
    Caterpillar Model: TH406 Model series: TH406 Model type: Rough Terrain Forklifts Brand of engine: C4.4TA Approved: Yes
    Caterpillar Model: TH407 Model series: TH407 Model type: Rough Terrain Forklifts Brand of engine: C4.4TA Approved: Yes
    Caterpillar Model: TH414 Model series: TH414 Model type: Rough Terrain Forklifts Brand of engine: C4.4TA Approved: Yes
    Caterpillar Model: TH514 Model series: TH514 Model type: Rough Terrain Forklifts Brand of engine: C4.4TA Approved: Yes
    Mitsubishi Model: FD35 Model series: FD35 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40 Model series: FD40 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40K Model series: FD40K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40KL Model series: FD40KL Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40N Model series: FD40N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45 Model series: FD45 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45K Model series: FD45K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45N Model series: FD45N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50(C) Model series: FD50(C) Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50CN Model series: FD50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50K Model series: FD50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50N Model series: FD50N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD55N Model series: FD55N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD60 - FD70 Model series: FD60 - FD70 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: PG87QX Model series: PG87QX Model type: Generator Sets Brand of engine: S6S Approved: Yes
    Nissan Model: JPD100Y Model series: JPD100Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD110H Model series: JPD110H Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD80Y Model series: JPD80Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD90Y Model series: JPD90Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD35T9 & FD40T9 Model series: FD35T9 & FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD40T9 Model series: FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD45T9 Model series: FD45T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
