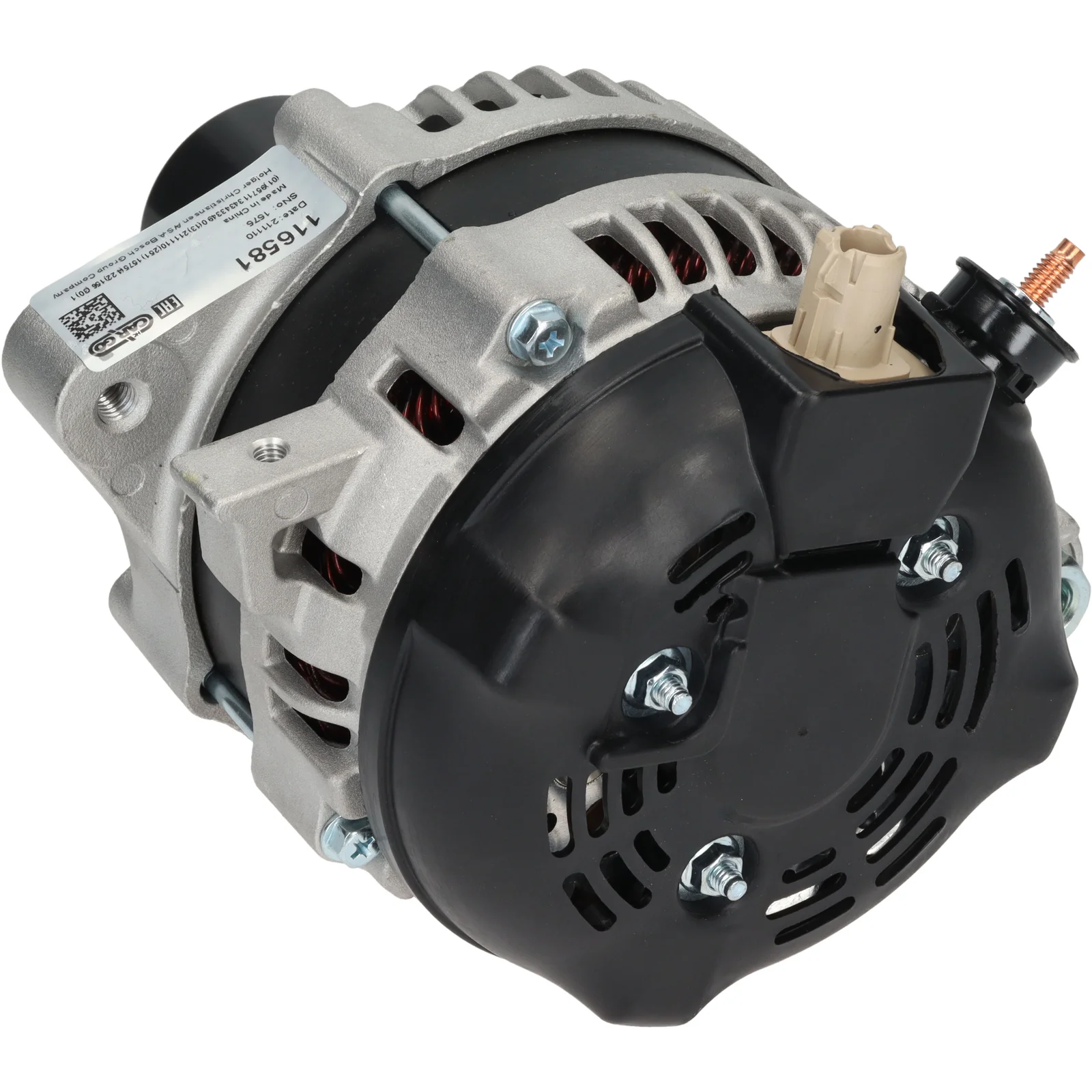

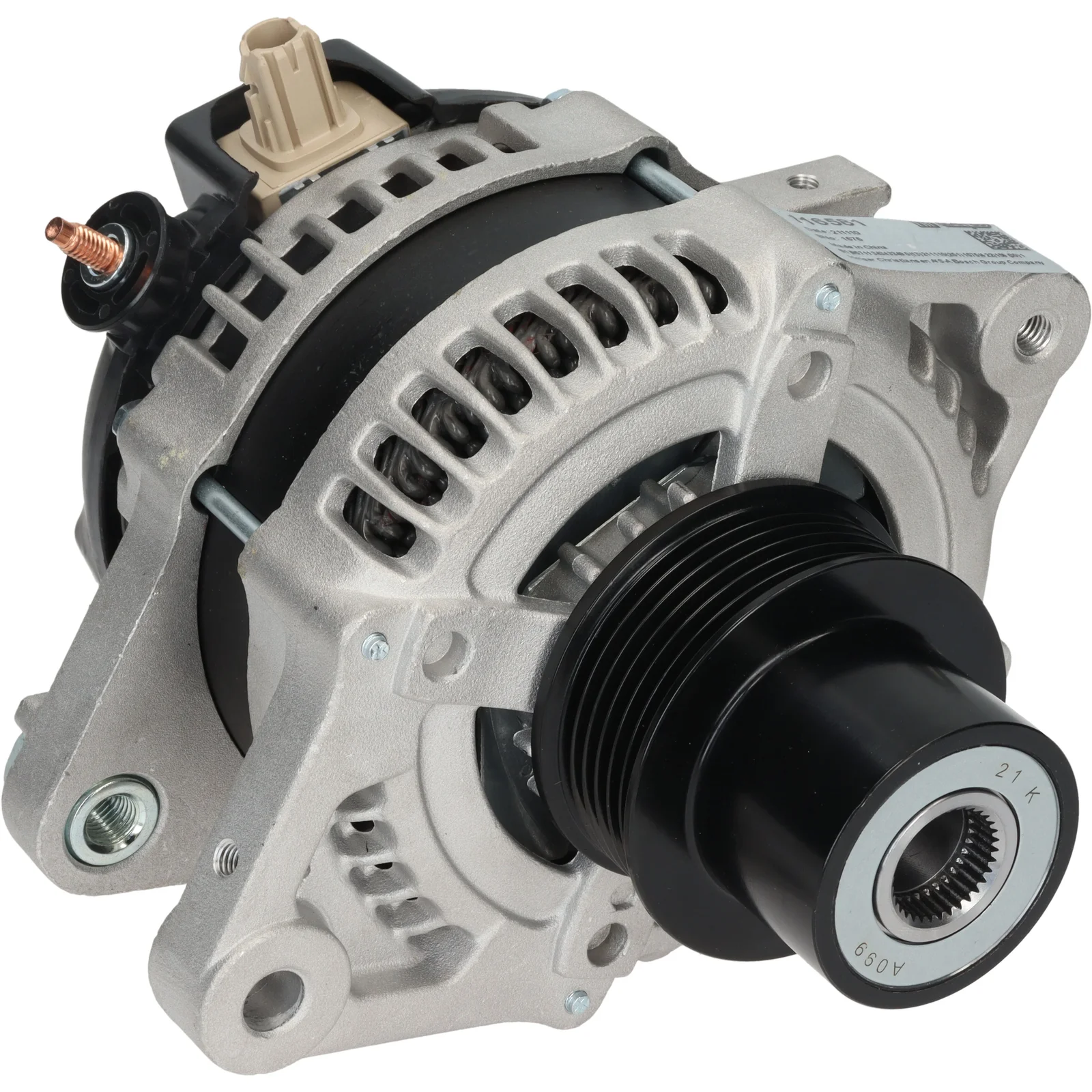

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116581

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Mount. bøjle forstyrring: 35,50

Beskrivelse

Spænding: 14
Amp: 100
Remskive montering: 30,20
Bredde/fæstearm: 19,00
monteringsbeslag afstand: 35,50
Beslag hul: 11,00
Bæltejustering beslag hul position: 58
Bæltejustering beslag hul 1: M8
Remskive dia.: 67,50
Hulriller/remskive: 6
radius: 89,00
Radius 2: 82,50
B+: M6
Position/B+ i min.: 20
Rotation: CW
Stik nr.: PL204
Samlet længde mm: 190,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har et COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 35.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 58
Plug no. PL204
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 67.50
Pulley dist. 30.20
Radius 89.00
Radius 2 82.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 19.00
Amp 100

  • OEM
    F032116581, 1986A01658, 27060-0q150, 27060-0Q151, 104211-3010, 104211-3011, 104211-3012

  • Konkurrentreferens
    A6683S, CAL40434, DAN1315, DRA1093, LRA03538, 28-6648, 210972, 210972A, 554424RI, 12061216, 0986086510

  • NormaliseratArtNr
    a6683s, cal40434, dan1315, dra1093, f032116581, lra03538, 1986a01658, 210972, 210972a, 270600q150, 270600q151, 286648, 554424ri, 12061216, 0986086510, 1042113010, 1042113011, 1042113012

  • Passar modeller
    Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 100
    Remskive montering: 30,20
    Bredde/fæstearm: 19,00
    monteringsbeslag afstand: 35,50
    Beslag hul: 11,00
    Bæltejustering beslag hul position: 58
    Bæltejustering beslag hul 1: M8
    Remskive dia.: 67,50
    Hulriller/remskive: 6
    radius: 89,00
    Radius 2: 82,50
    B+: M6
    Position/B+ i min.: 20
    Rotation: CW
    Stik nr.: PL204
    Samlet længde mm: 190,00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP/FW
    blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har et COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M6
    Communication LIN
    Mount. bracket dist. 35.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 58
    Plug no. PL204
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 67.50
    Pulley dist. 30.20
    Radius 89.00
    Radius 2 82.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 19.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032116581, 1986A01658, 27060-0q150, 27060-0Q151, 104211-3010, 104211-3011, 104211-3012

    • Konkurrentreferens
      A6683S, CAL40434, DAN1315, DRA1093, LRA03538, 28-6648, 210972, 210972A, 554424RI, 12061216, 0986086510

    • NormaliseratArtNr
      a6683s, cal40434, dan1315, dra1093, f032116581, lra03538, 1986a01658, 210972, 210972a, 270600q150, 270600q151, 286648, 554424ri, 12061216, 0986086510, 1042113010, 1042113011, 1042113012

    • Passar modeller
      Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
