HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116583

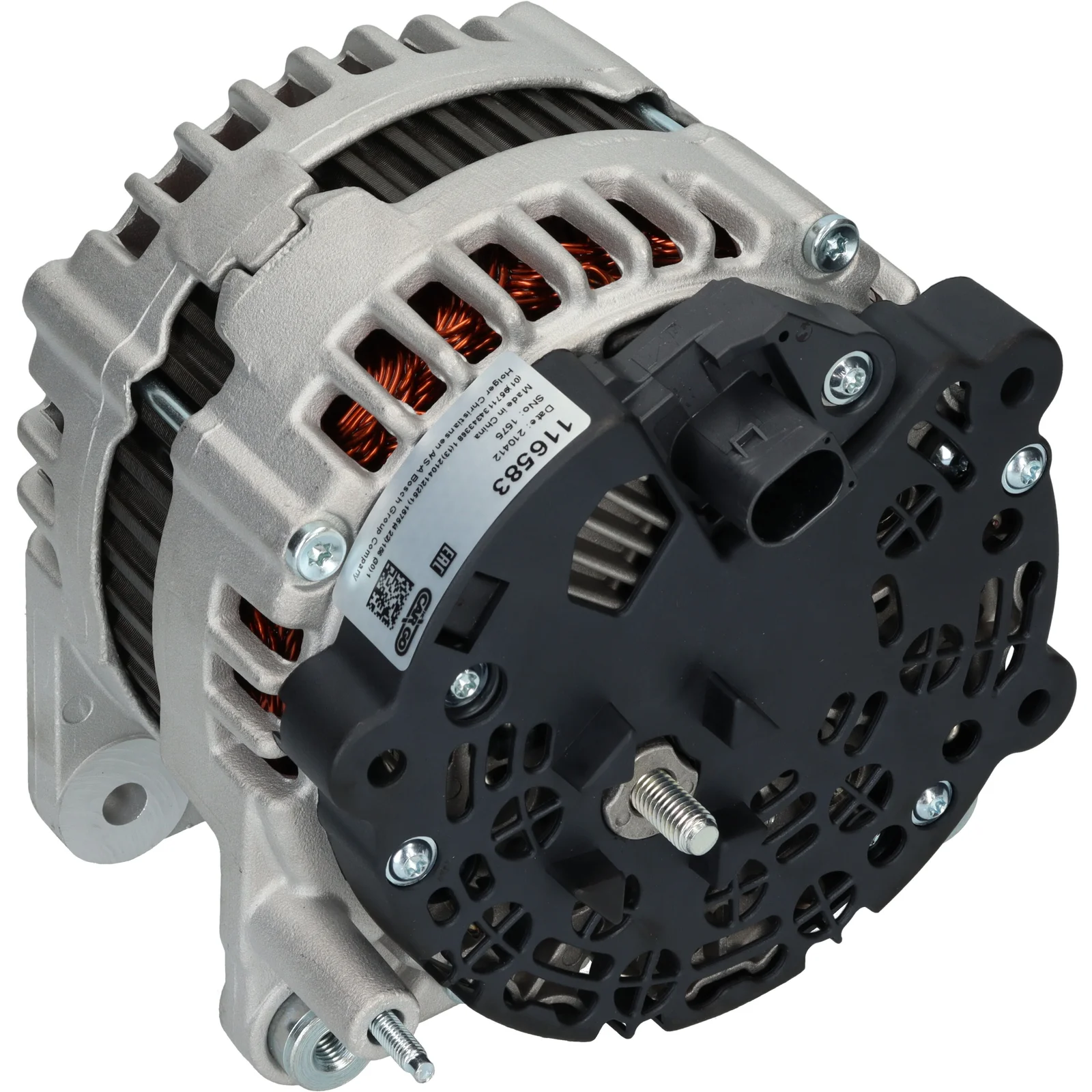

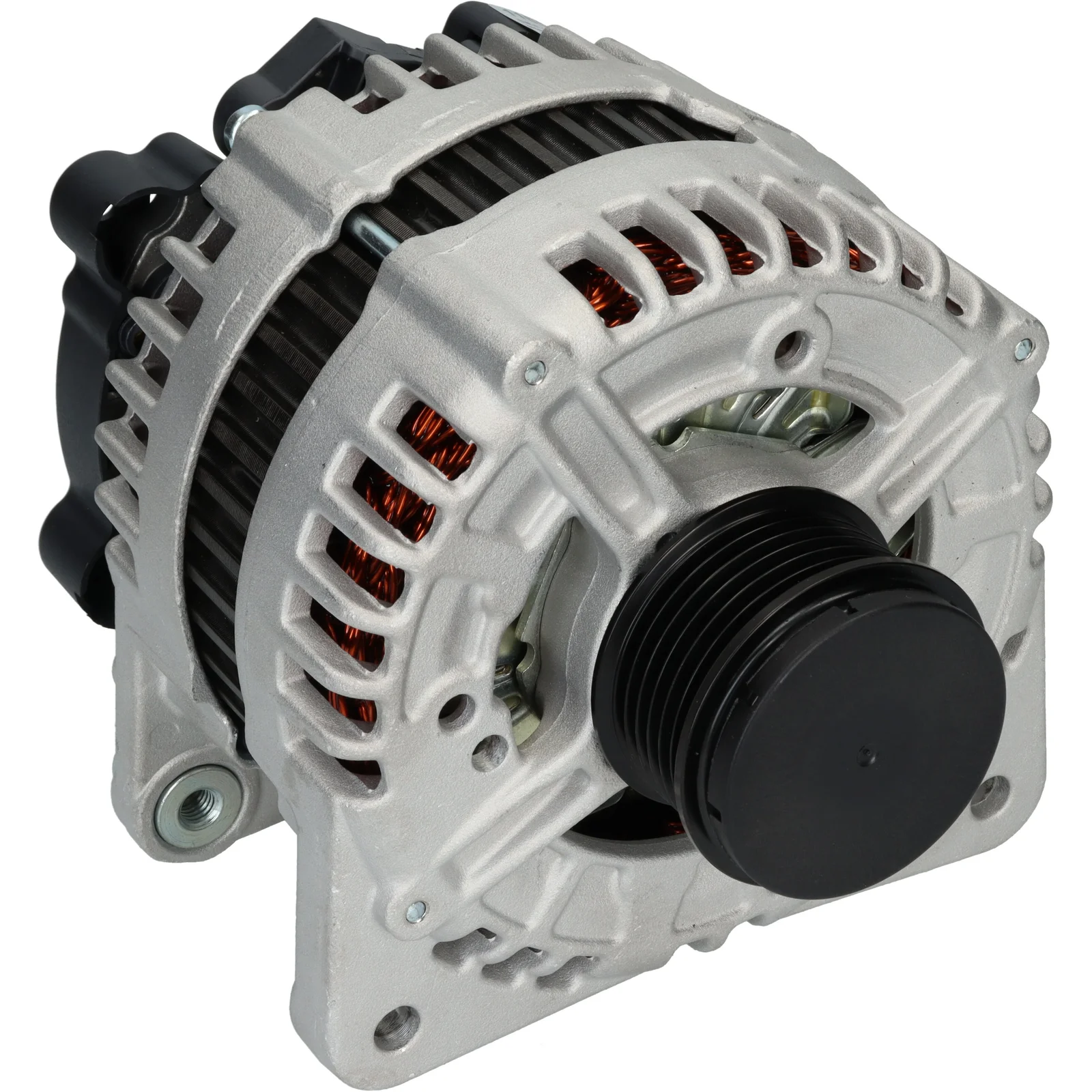

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag for fordeling: 62.00

Beskrivelse

HC-Cargo Generator 14V - 180A, 6gr

Spenning: 14
Ampere: 180
Dykselafstand: 30.00
Bredde/håndtagsarm: 14.20
Monteringsbeslag afstand: 62.00
Beslagshul: 8.50
Bæltespændingsbeslags hul pos.: 45
Bæltespændingsbeslags hul 1: 8.50
Bæltespændingsbeslags hul 2: M8
Dyske diameter: 56.00
Riller/disk: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 35
Rotation: CW
Stik nr.: PL86
Samlet længde mm: 180.00
Terminaltype: COM
Kommunikation: LIN
Dysk: SP/FW
Vifte: IF
Regulatortype: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 62.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.50
Position/B+ in min. 35
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 14.20
Amp 180

  • OEM
    F032116583, 059 903 018K, 0121 715 080, 0121 715 180, 116583, 059903018k, 059903018KX, 0121715080, 0121715180

  • Konkurrentreferens
    A0409, DRA0899, LRA04075, 28-7684, 205.579.180, 443303, 444205, 12090905

  • Bilmärken
    Audi

  • NormaliseratArtNr
    a0409, dra0899, f032116583, lra04075, 116583, 287684, 443303, 444205, 12090905, 059903018k, 059903018kx, 0121715080, 0121715180, 205579180

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CAPA Type description: 8K2 From date: 01-11-2007 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CAPA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-03-2012 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCLA Type description: 8K2 From date: 01-11-2007 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCLA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-03-2012 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCWA Type description: 8K2 From date: 01-11-2007 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCWA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-03-2012 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Series: A4 B8 Avant Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CAPA/CCLA/CCWA Year: 04.08-03.12
    Audi Series: A4 B8 Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CAPA/CCLA/CCWA Year: 11.07-03.12
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJGC/CJMA Year: 05.10-08.15
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJGD/CLZB/CRCA Year: 05.11-08.15
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CASA/CCMA/CJGA/CNRB Year: 11.07-08.15
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CASA/CCMA/CJGA Year: 11.07-05.12
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJMA Year: 11.10-08.15
