HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116586

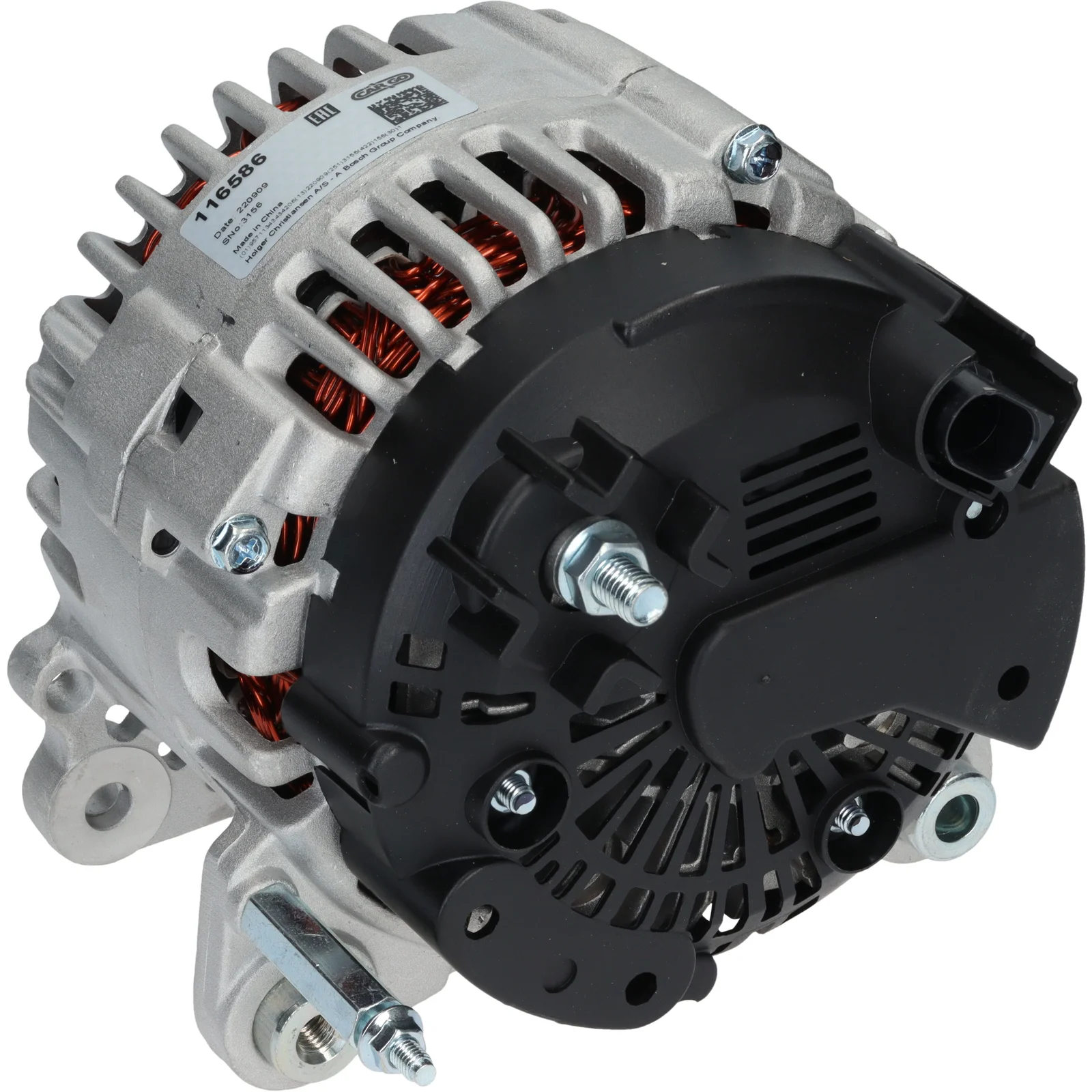

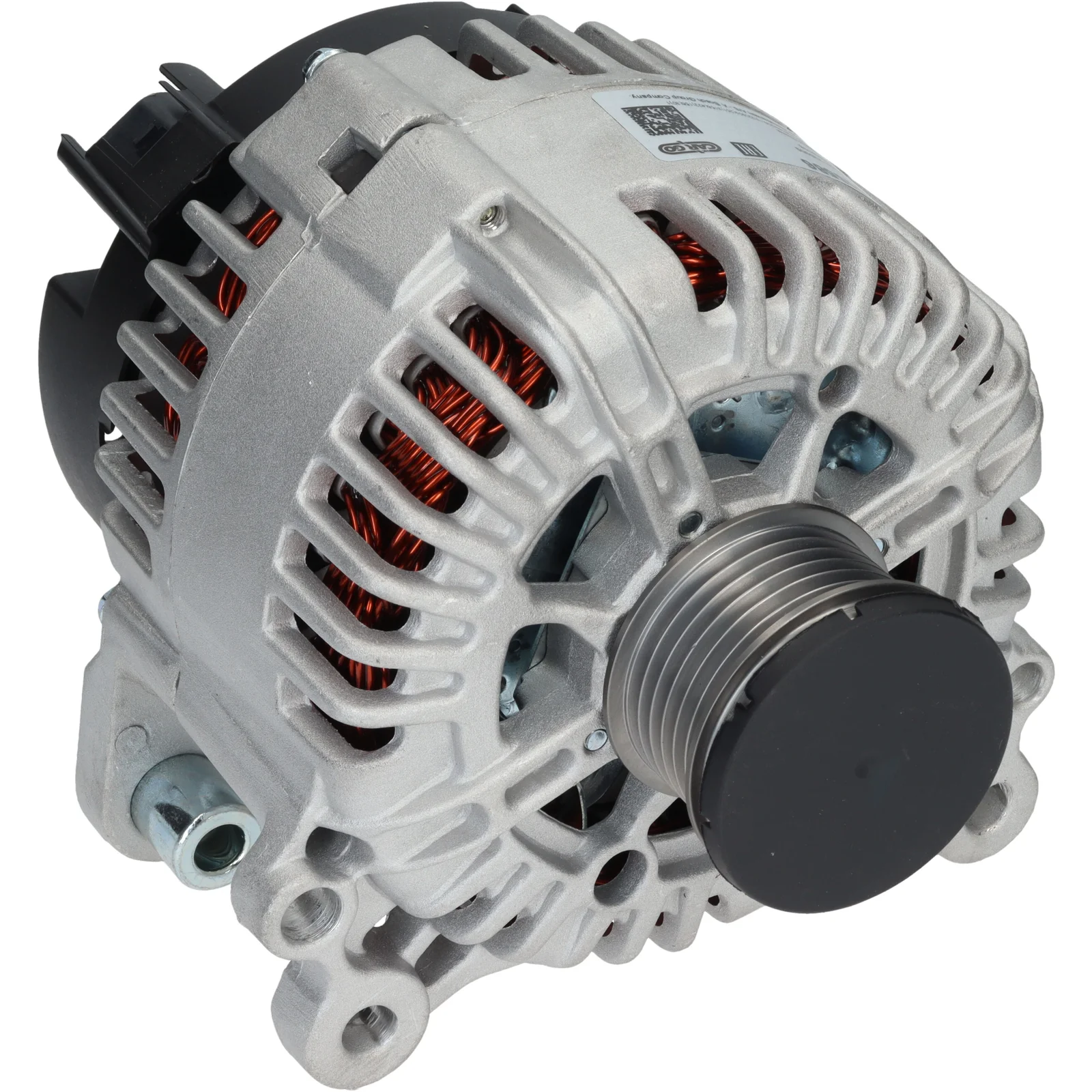

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag dist.: 61.00

Beskrivelse

Spænding: 14 Amp: 140 Remskive afstand: 30.00 Bredde/holderarm: 14.00 monteringsbeslag afstand: 61.00 Beslagshul: 8.50 Bæltejusteringsbeslag hul pos.: 45 Bæltejusteringsbeslag hul 1: 8.50 Remskive dia.: 49.50 Riller/remskive: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ i min.: 45 Rotation: CW Stik nr.: PL125 Total længde mm: 190.00 Terminaltype: COM ID-kode: 25 Kommunikation: LIN Remskive: SP/FW Andedam: IF Regulator type: IR Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    A0009060304, CG25S020, CG25S036, F032116586, TG14C054, 03C903024F, 03C903024FX, 2617851A, 0009060304

  • Konkurrentreferens
    A0468PR, A3309PR, CAL15498, CAL15577, DRA1294, 305.920.250, 209228, 209228A, 439850, 440590, 440921, 442298, 553840RI, 12090588

  • NormaliseratArtNr
    a0009060304, a0468pr, a3309pr, cal15498, cal15577, cg25s020, cg25s036, dra1294, f032116586, tg14c054, 03c903024f, 03c903024fx, 209228, 209228a, 439850, 440590, 440921, 442298, 553840ri, 2617851a, 0009060304, 12090588, 305920250

  • Passar modeller
    VW Model: CC Model series: CC Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TSI Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 362 From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 365 Body: Estate From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Touran Model series: Touran Model type: EcoFuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: MPV From date: 01-05-2010 To date: 01-05-2015 Fuel: Gas Approved: Yes
    VW Model: Touran Model series: Touran Van Model type: Ecofuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: Van From date: 01-05-2010 To date: 01-05-2015 Fuel: Petrol/Compressed Na Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14 Amp: 140 Remskive afstand: 30.00 Bredde/holderarm: 14.00 monteringsbeslag afstand: 61.00 Beslagshul: 8.50 Bæltejusteringsbeslag hul pos.: 45 Bæltejusteringsbeslag hul 1: 8.50 Remskive dia.: 49.50 Riller/remskive: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ i min.: 45 Rotation: CW Stik nr.: PL125 Total længde mm: 190.00 Terminaltype: COM ID-kode: 25 Kommunikation: LIN Remskive: SP/FW Andedam: IF Regulator type: IR Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 49.50
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 25
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 14.00
    Amp 140
  • Køretøjsmatchning

    • OEM
      A0009060304, CG25S020, CG25S036, F032116586, TG14C054, 03C903024F, 03C903024FX, 2617851A, 0009060304

    • Konkurrentreferens
      A0468PR, A3309PR, CAL15498, CAL15577, DRA1294, 305.920.250, 209228, 209228A, 439850, 440590, 440921, 442298, 553840RI, 12090588

    • NormaliseratArtNr
      a0009060304, a0468pr, a3309pr, cal15498, cal15577, cg25s020, cg25s036, dra1294, f032116586, tg14c054, 03c903024f, 03c903024fx, 209228, 209228a, 439850, 440590, 440921, 442298, 553840ri, 2617851a, 0009060304, 12090588, 305920250

    • Passar modeller
      VW Model: CC Model series: CC Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: CC Model series: CC Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TSI Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 362 From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 365 Body: Estate From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Touran Model series: Touran Model type: EcoFuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: MPV From date: 01-05-2010 To date: 01-05-2015 Fuel: Gas Approved: Yes
      VW Model: Touran Model series: Touran Van Model type: Ecofuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: Van From date: 01-05-2010 To date: 01-05-2015 Fuel: Petrol/Compressed Na Approved: Yes
