HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116591

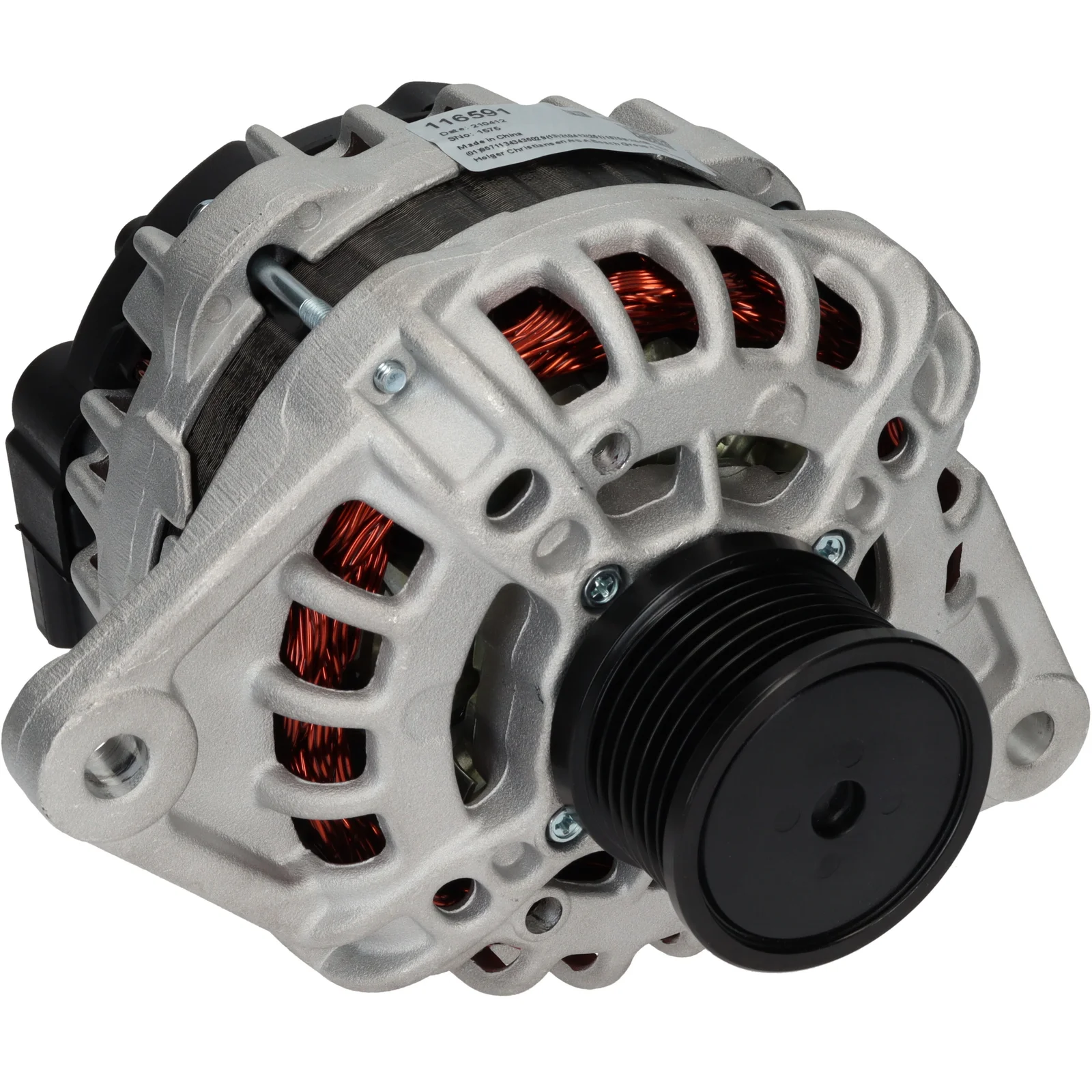

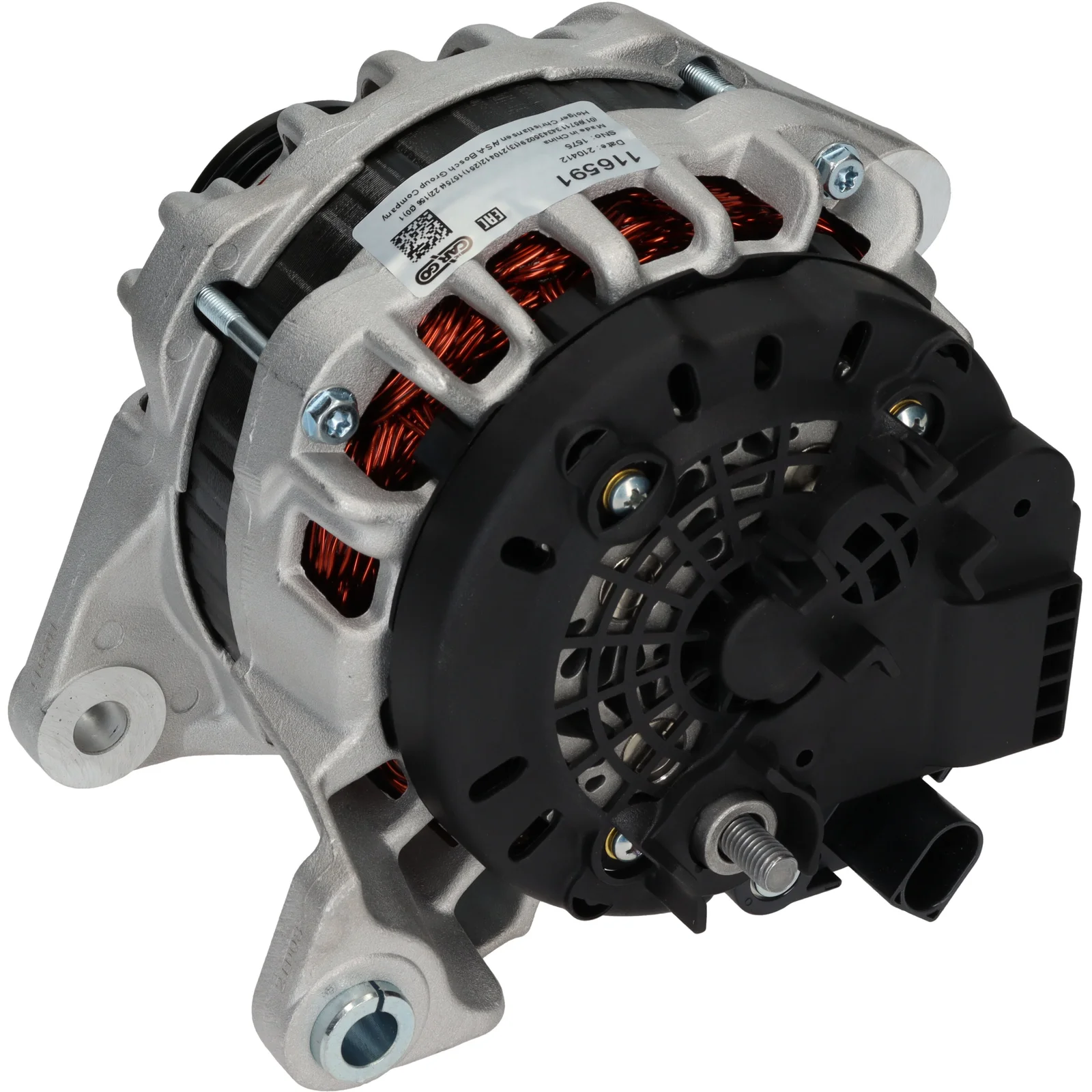

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Monteringsbeslag dist.: 83,50, Skive diameter: 55,00

Beskrivelse

Spænding: 14
Amp: 150
Remskive dist.: 41,50
Bredde/holderarm: 14,00
Monteringsbeslag dist.: 83,50
Beslagshul: 10,50
Bælte just. beslagshul pos.: 56
Bælte just. beslagshul 1: 10,50
Remskive dia.: 55,00
Riller/remskive: 7
Radie: 94,00
Radie 2: 95,50
B+: M8
Position/B+ i min.: 22
Kabelno.: PL174
Samlet længde mm: 184,00
Terminaltype: COM
ID-Kode: 24
Kommunikation: LIN
Remskive: SP/FW
Ventilator: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 56
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 22
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 41.50
Radius 94.00
Radius 2 95.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Fan IF
Grooves/pulley 7
ID Code 24
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

  • Konkurrentreferens
    A0826S, CAL10024, LRA04476, 28-8585, 505.906.150, 443396, 444279, 554856RIB, 12090984, 32446540

  • NormaliseratArtNr
    a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842

  • Passar modeller
    Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive dist.: 41,50
    Bredde/holderarm: 14,00
    Monteringsbeslag dist.: 83,50
    Beslagshul: 10,50
    Bælte just. beslagshul pos.: 56
    Bælte just. beslagshul 1: 10,50
    Remskive dia.: 55,00
    Riller/remskive: 7
    Radie: 94,00
    Radie 2: 95,50
    B+: M8
    Position/B+ i min.: 22
    Kabelno.: PL174
    Samlet længde mm: 184,00
    Terminaltype: COM
    ID-Kode: 24
    Kommunikation: LIN
    Remskive: SP/FW
    Ventilator: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 83.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 56
    Plug no. PL174
    Bracket hole 10.50
    Position/B+ in min. 22
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 41.50
    Radius 94.00
    Radius 2 95.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Fan IF
    Grooves/pulley 7
    ID Code 24
    Terminal type COM
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 14.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

    • Konkurrentreferens
      A0826S, CAL10024, LRA04476, 28-8585, 505.906.150, 443396, 444279, 554856RIB, 12090984, 32446540

    • NormaliseratArtNr
      a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842

    • Passar modeller
      Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
