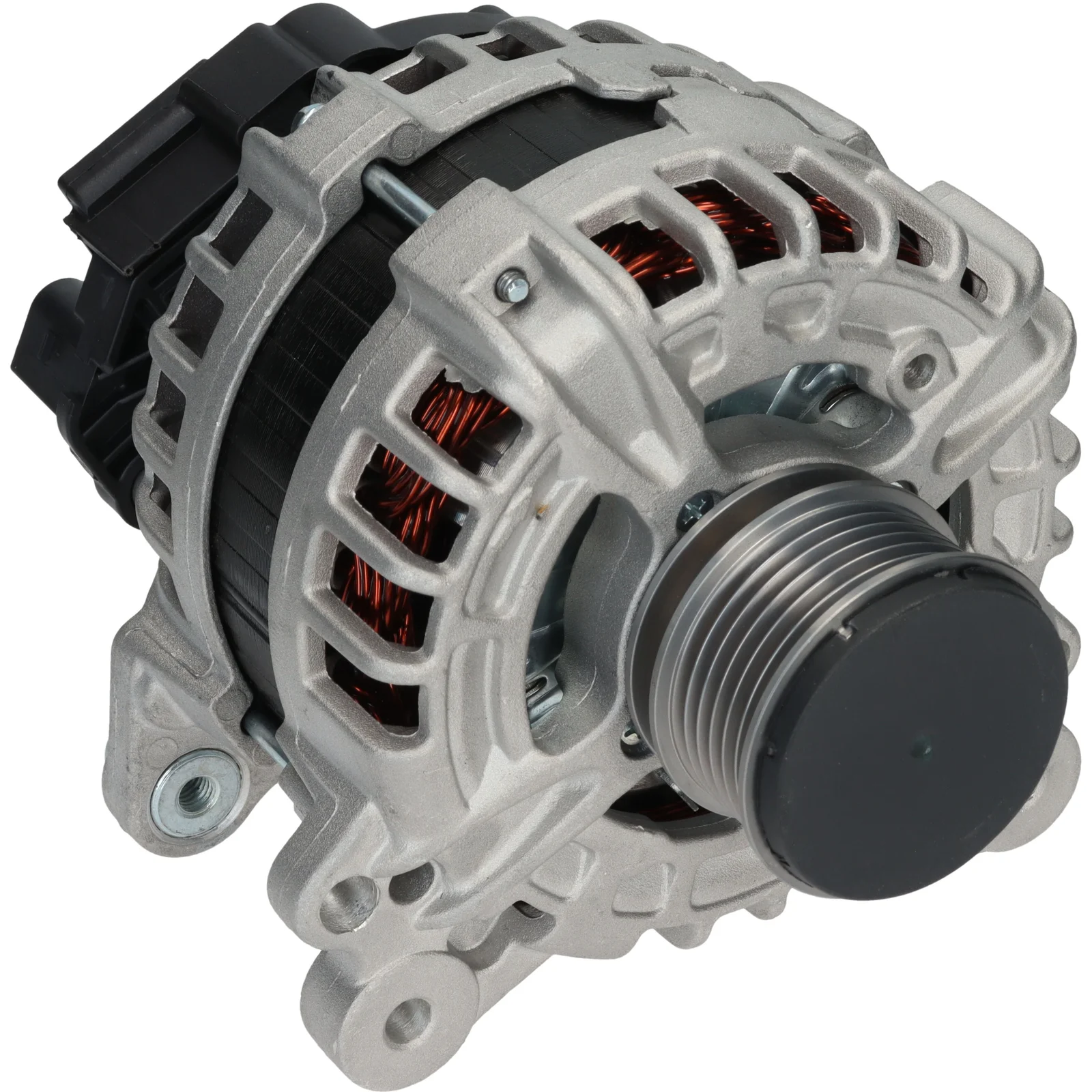

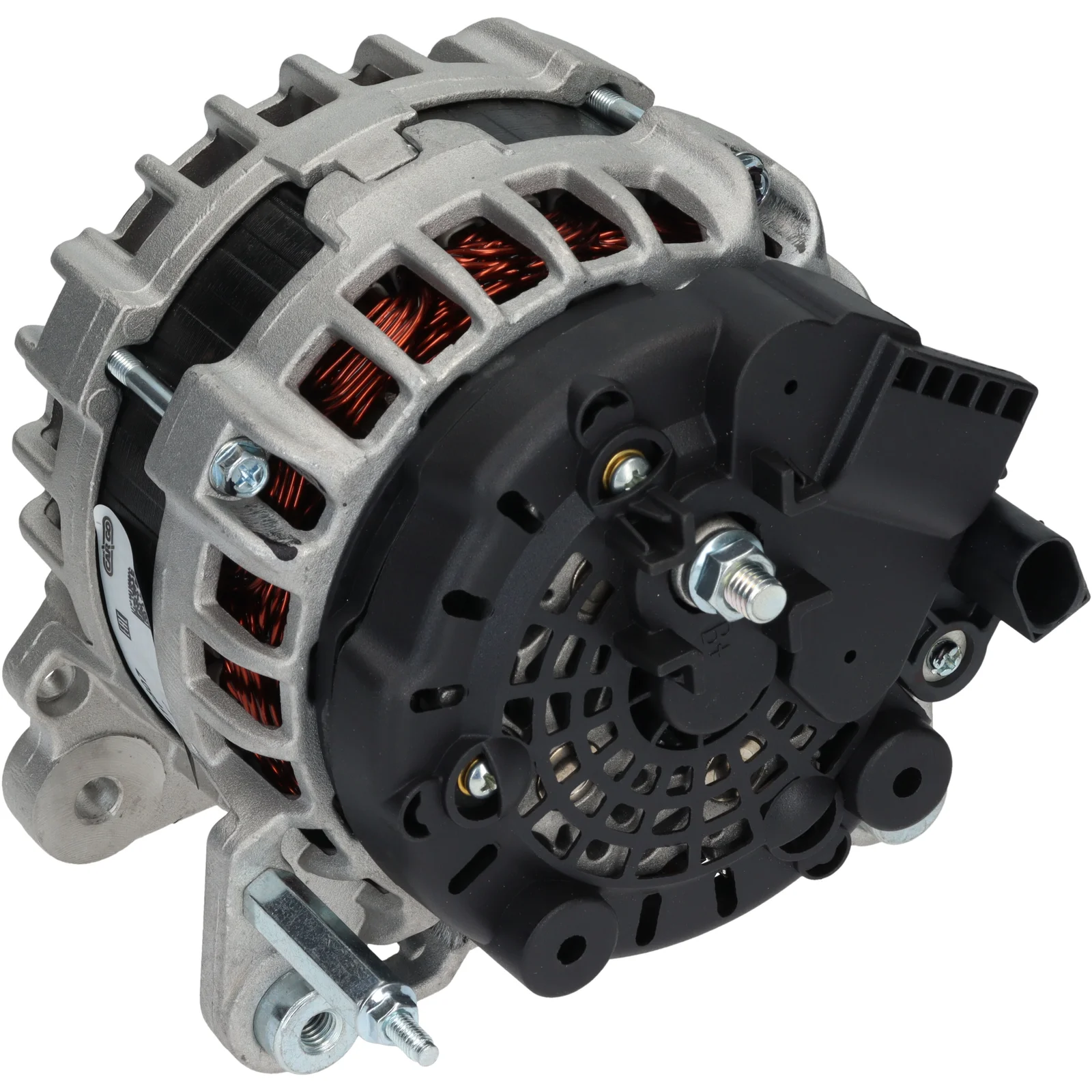

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116607

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag afstand: 61,50

Beskrivelse

Spænding: 14
Amp: 140
Remskive fordeling: 39,50
Bredde/holdearm: 14,00
Montagebeslag afstand: 61,50
Beslagshul: 8,50
Bæltejusteringsbeslagshul pos.: 45
Bæltejusteringsbeslagshul 1: 8,50
Remskive diameter: 56,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 52
Rotation: med uret
Stiknummer: PL125
Samlet længde mm: 191,00
Terminaltype: COM
Kommunikation: LIN
Ventilator: IF
Reguleringstype: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 52
Pulley dia. 56.00
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F000BL08E1, f000bl08e2, F000BL08F7, F000BL08F8, F000BL08S6, F032116607, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 06K903026B, 1986A00634, 1986A01248

  • Konkurrentreferens
    305.940.140, 305.950.140, 32085040, 0986085040

  • NormaliseratArtNr
    f000bl08e1, f000bl08e2, f000bl08f7, f000bl08f8, f000bl08s6, f032116607, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 06k903026b, 1986a00634, 1986a01248, 32085040, 305940140, 305950140, 0986085040

  • Passar modeller
    Audi Model: A1 Model series: A1 Model type: Sportback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8XA, 8XK Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Audi Model: A1 Model series: A1 Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8X1, 8XF Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ3 Body: Hatchback From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ5 Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Rapid Model series: Rapid Model type: Spaceback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH1 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    Skoda Model: Rapid Model series: Rapid Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH3 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    VW Model: Jetta Model series: Jetta Model type: GLI Size of motor: 2.0 Brand of engine: DKFA, DXSA Type description: BU3, BU4 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    VW Model: Polo Model series: Polo Van Model type: TDI Type of engine: TDI Size of motor: 1.4 Brand of engine: CUTA Type description: 6R Body: Hatchback Van From date: 01-03-2014 To date: 01-10-2017 Fuel: Diesel Approved: Yes
