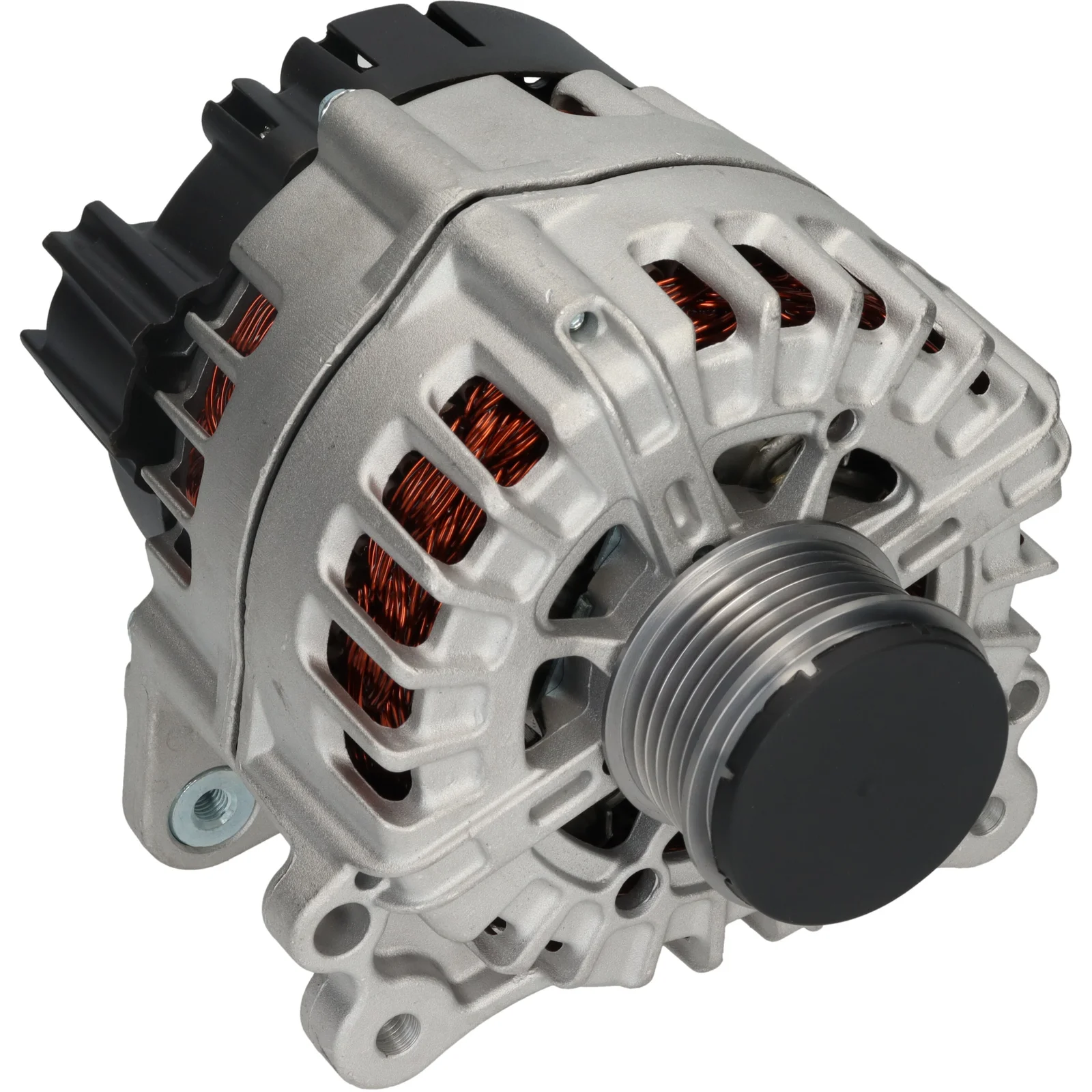

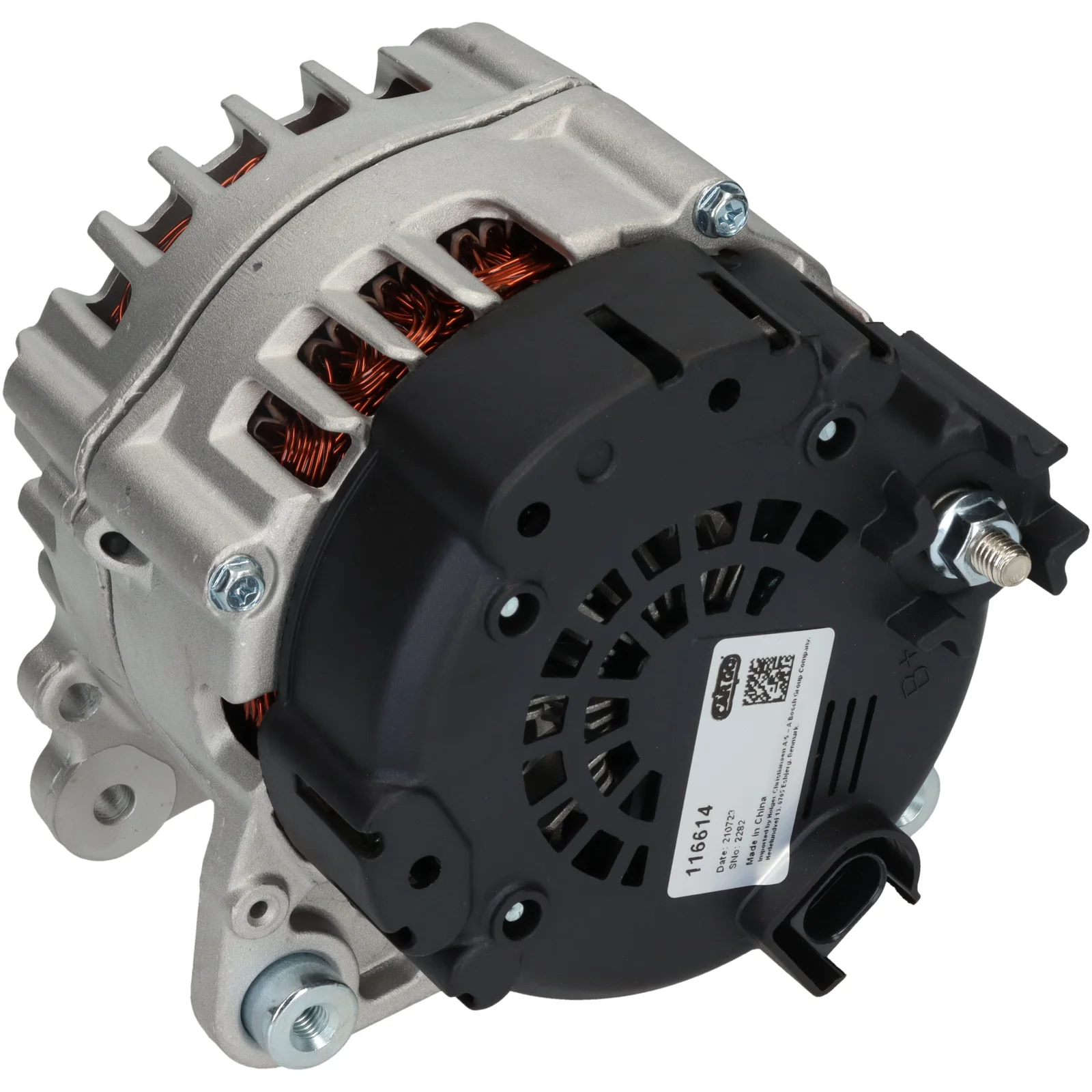

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116614

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 200, Rotation: CW, Montagebeslag afstand: 60,60

Beskrivelse

Spænding: 14
Amp: 200
Remskive ford.: 30.50
Bredde/førende arm: 14.00
Monteringsbeslag afstand.: 60.60
Beslagshul: 8.50
Bæltejustering beslagshul pos.: 45
Bæltejustering beslagshul 1: 8.50
Remskive dia.: 56.00
Skårer/remskive: 6
Rækkevidde: 90.00
Rækkevidde 2: 90.00
B+: M8
Position/B+ i min.: 20
Rotation: med uret
Stik nr.: PL125
Samlet længde mm: 188.00
Terminaltype: COM
ID-kode: 41
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før der bestilles.

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.60
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 188.00 mm
Width/holder arm 14.00
Amp 200

  • OEM
    F032116614, FG20S011, FGN20S011, 2608773A, 059903018T, 59903018QX

  • Konkurrentreferens
    A3493S, A3510S, CAL15396, CAL20234, DRA0672, DRA1164, LRA03434, 28-6546, 205.546.200, 205.546.200.500, 113449, 439781, 440413, 553576RI, 553576RIV, 9090814

  • NormaliseratArtNr
    a3493s, a3510s, cal15396, cal20234, dra0672, dra1164, f032116614, fg20s011, fgn20s011, lra03434, 113449, 286546, 439781, 440413, 553576ri, 553576riv, 2608773a, 9090814, 059903018t, 59903018qx, 205546200, 205546200500

  • Passar modeller
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDTA Type description: 4H_ From date: 01-07-2010 To date: 01-01-2018 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDTB Type description: 4H_ From date: 01-08-2010 To date: 01-11-2015 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDTC Type description: 4H_ From date: 01-07-2010 To date: 01-01-2018 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CMHA Type description: 4H_ From date: 01-07-2010 To date: 01-01-2018 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CPNA Type description: 4H_ From date: 01-11-2012 To date: 01-06-2016 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CTBA Type description: 4H_ From date: 01-10-2013 To date: 01-01-2018 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CTBD Type description: 4H_ From date: 01-05-2015 To date: 01-01-2018 Fuel: Diesel Approved: Yes
    Audi Model: A8 Model series: A8 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLAB Type description: 4H_ From date: 01-09-2011 To date: 01-09-2013 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Model type: Quattro SQ5 Type of engine: TDi Size of motor: 3.0 Brand of engine: CGQB Type description: 8RB Body: Box Body / Estate From date: 01-12-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Model type: Quattro SQ5 Type of engine: TDi Size of motor: 3.0 Brand of engine: CVUB Type description: 8RB Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Model type: Quattro SQ5 Type of engine: TDi Size of motor: 3.0 Brand of engine: DEHA Type description: 8RB Body: Box Body / Estate From date: 01-11-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDUD Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CTBA Type description: 8RB Body: Box Body / Estate From date: 01-11-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 200
    Remskive ford.: 30.50
    Bredde/førende arm: 14.00
    Monteringsbeslag afstand.: 60.60
    Beslagshul: 8.50
    Bæltejustering beslagshul pos.: 45
    Bæltejustering beslagshul 1: 8.50
    Remskive dia.: 56.00
    Skårer/remskive: 6
    Rækkevidde: 90.00
    Rækkevidde 2: 90.00
    B+: M8
    Position/B+ i min.: 20
    Rotation: med uret
    Stik nr.: PL125
    Samlet længde mm: 188.00
    Terminaltype: COM
    ID-kode: 41
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.60
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 41
    Terminal type COM
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 14.00
    Amp 200
  • Køretøjsmatchning

    • OEM
      F032116614, FG20S011, FGN20S011, 2608773A, 059903018T, 59903018QX

    • Konkurrentreferens
      A3493S, A3510S, CAL15396, CAL20234, DRA0672, DRA1164, LRA03434, 28-6546, 205.546.200, 205.546.200.500, 113449, 439781, 440413, 553576RI, 553576RIV, 9090814

    • NormaliseratArtNr
      a3493s, a3510s, cal15396, cal20234, dra0672, dra1164, f032116614, fg20s011, fgn20s011, lra03434, 113449, 286546, 439781, 440413, 553576ri, 553576riv, 2608773a, 9090814, 059903018t, 59903018qx, 205546200, 205546200500

    • Passar modeller
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDTA Type description: 4H_ From date: 01-07-2010 To date: 01-01-2018 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDTB Type description: 4H_ From date: 01-08-2010 To date: 01-11-2015 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDTC Type description: 4H_ From date: 01-07-2010 To date: 01-01-2018 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CMHA Type description: 4H_ From date: 01-07-2010 To date: 01-01-2018 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CPNA Type description: 4H_ From date: 01-11-2012 To date: 01-06-2016 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CTBA Type description: 4H_ From date: 01-10-2013 To date: 01-01-2018 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CTBD Type description: 4H_ From date: 01-05-2015 To date: 01-01-2018 Fuel: Diesel Approved: Yes
      Audi Model: A8 Model series: A8 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLAB Type description: 4H_ From date: 01-09-2011 To date: 01-09-2013 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Model type: Quattro SQ5 Type of engine: TDi Size of motor: 3.0 Brand of engine: CGQB Type description: 8RB Body: Box Body / Estate From date: 01-12-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Model type: Quattro SQ5 Type of engine: TDi Size of motor: 3.0 Brand of engine: CVUB Type description: 8RB Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Model type: Quattro SQ5 Type of engine: TDi Size of motor: 3.0 Brand of engine: DEHA Type description: 8RB Body: Box Body / Estate From date: 01-11-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDUD Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CTBA Type description: 8RB Body: Box Body / Estate From date: 01-11-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
