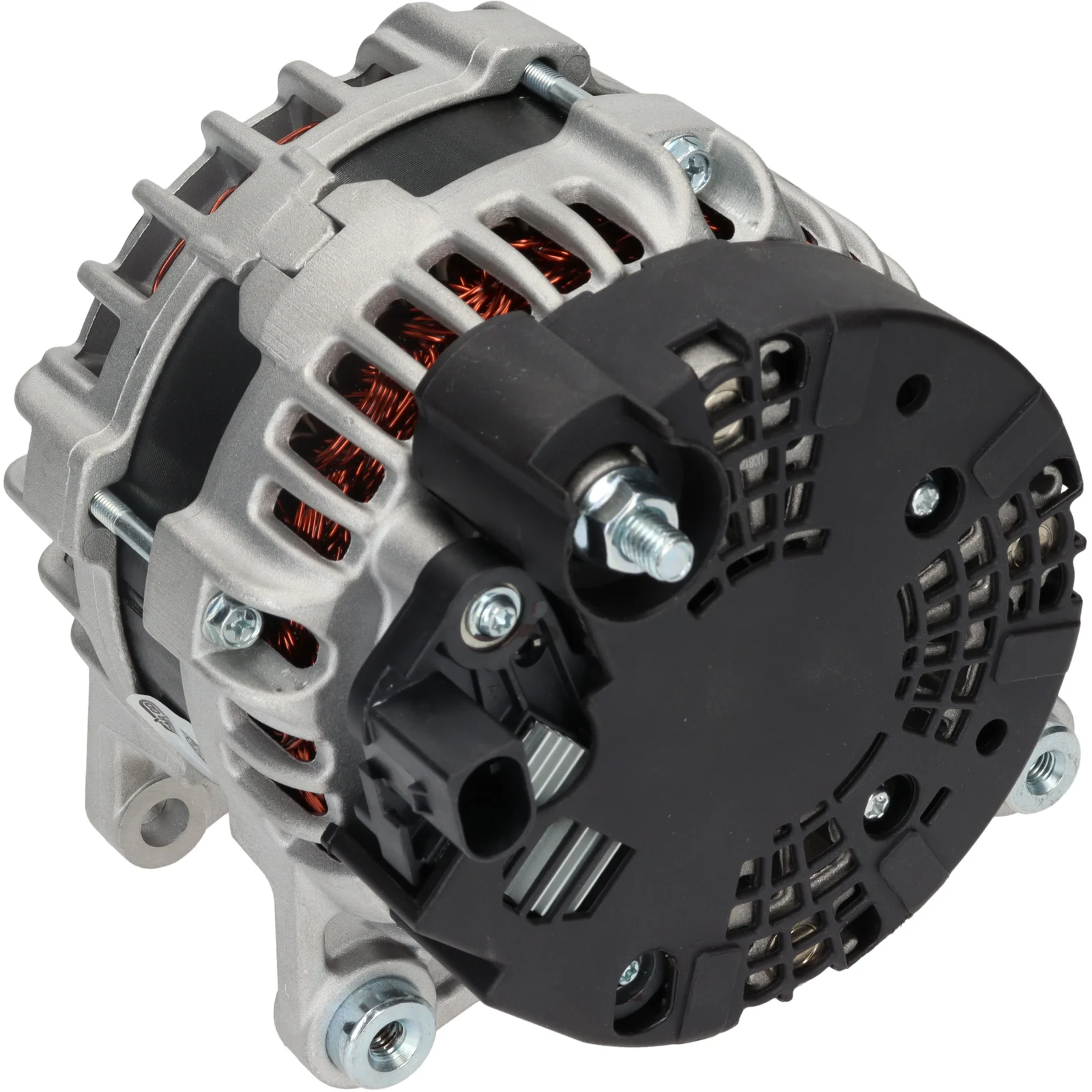

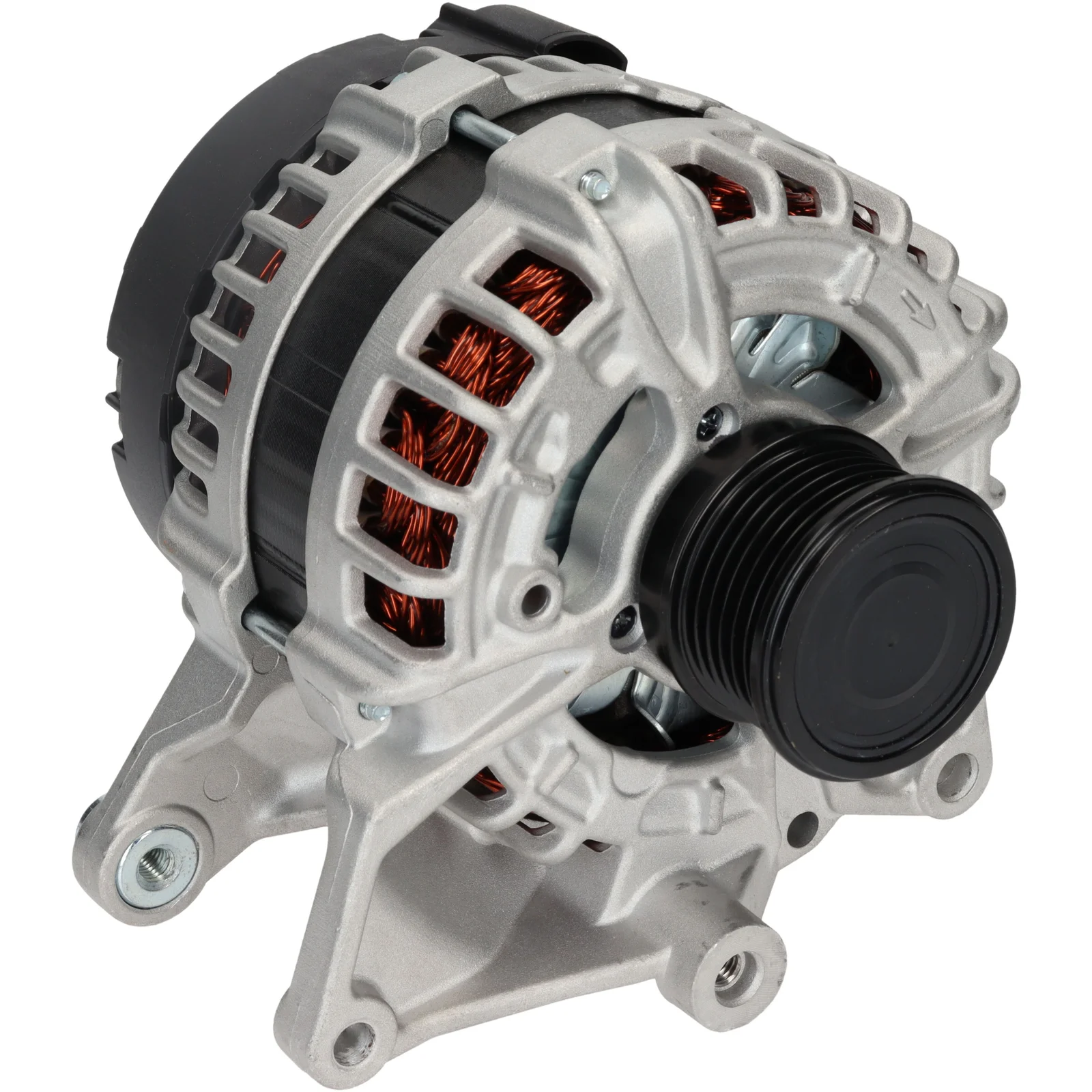

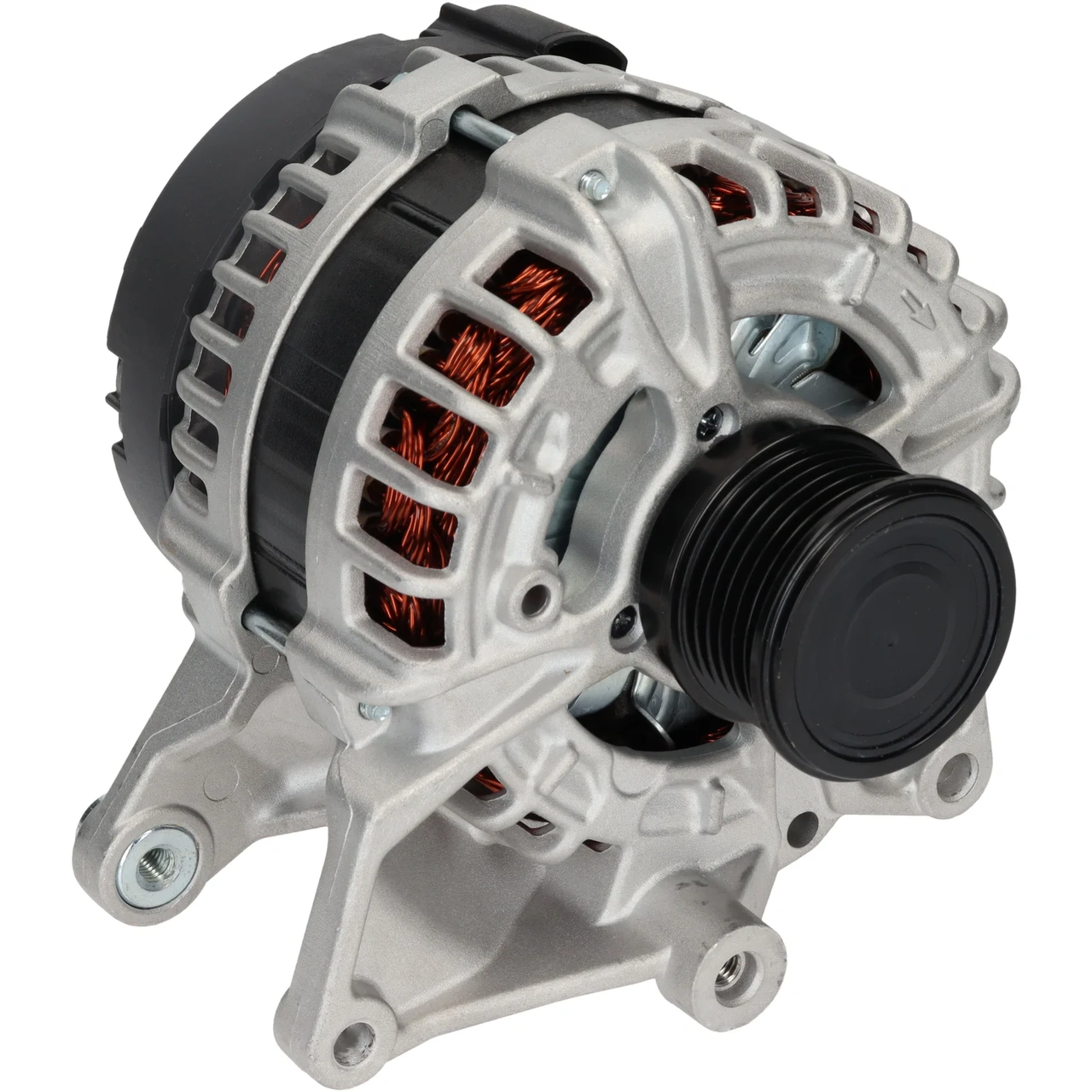

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116632

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordeling: 60,00

Beskrivelse

Spænding: 14
Amp: 150
Bøsning for remskive: 32,50
Bredde/bærerarm: 14,00
Monteringsbeslag afstand: 60,00
Beslagshul: 8,50
Remjusteringsbeslags hul position: 45
Remjusteringsbeslags hul 1: 8,50
Remskivens diameter: 52,50
Riller/remskive: 6
Radius: 115,00
Radius 2: 86,50
B+: M8
Position/B+ i min.: 47
Rotation: Uret
Stik nr.: PL125
Samlet længde mm: 191,00
Terminaltype: COM
ID-kode: 24
Kommunikation: LIN
Remskive: SP/FW
Ventilator: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 47
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 32.50
Radius 115.00
Radius 2 86.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 24
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    A0009061822, A0009062003, A00090620030080, A000906200380, F032116632, 23100-4HH3ACI, 23100-4HH3AEM, 0009061822, 0009062003, 0009065501, 0125711032, 0125711080, 000906200380, 00090620030080

  • Konkurrentreferens
    A0536S, CAL10008, DRA1383, DRA1389, 28-6950, 555.942.150, 440930, 443278, 554435RI, 12090534, 12090704, 32081730, 32711113, 0986081730, 0986081733

  • NormaliseratArtNr
    a0009061822, a0009062003, a00090620030080, a000906200380, a0536s, cal10008, dra1383, dra1389, f032116632, 231004hh3aci, 231004hh3aem, 286950, 440930, 443278, 554435ri, 0009061822, 0009062003, 0009065501, 12090534, 12090704, 32081730, 32711113, 0125711032, 0125711080, 555942150, 000906200380, 0986081730, 0986081733, 00090620030080

  • Passar modeller
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: C204 Body: Coupe From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: S204 Body: Estate From date: 01-02-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: W204 From date: 01-01-2008 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: A207 Body: Convertible From date: 01-03-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: C207 Body: Coupe From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: GLK 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: A207 Body: Convertible From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: C207 Body: Coupe From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: GLK 250 Model type: 4 Matic Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: GLK 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
