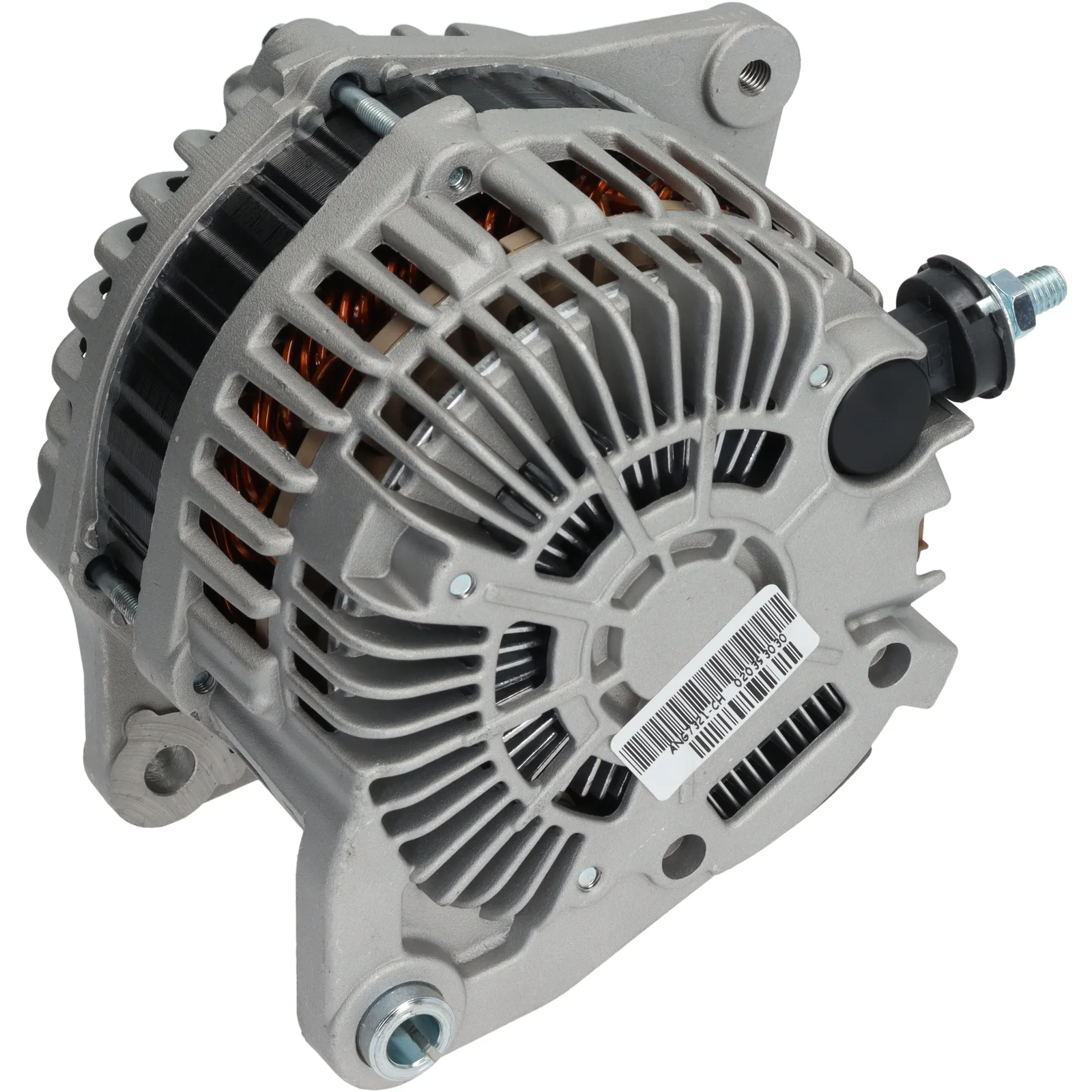

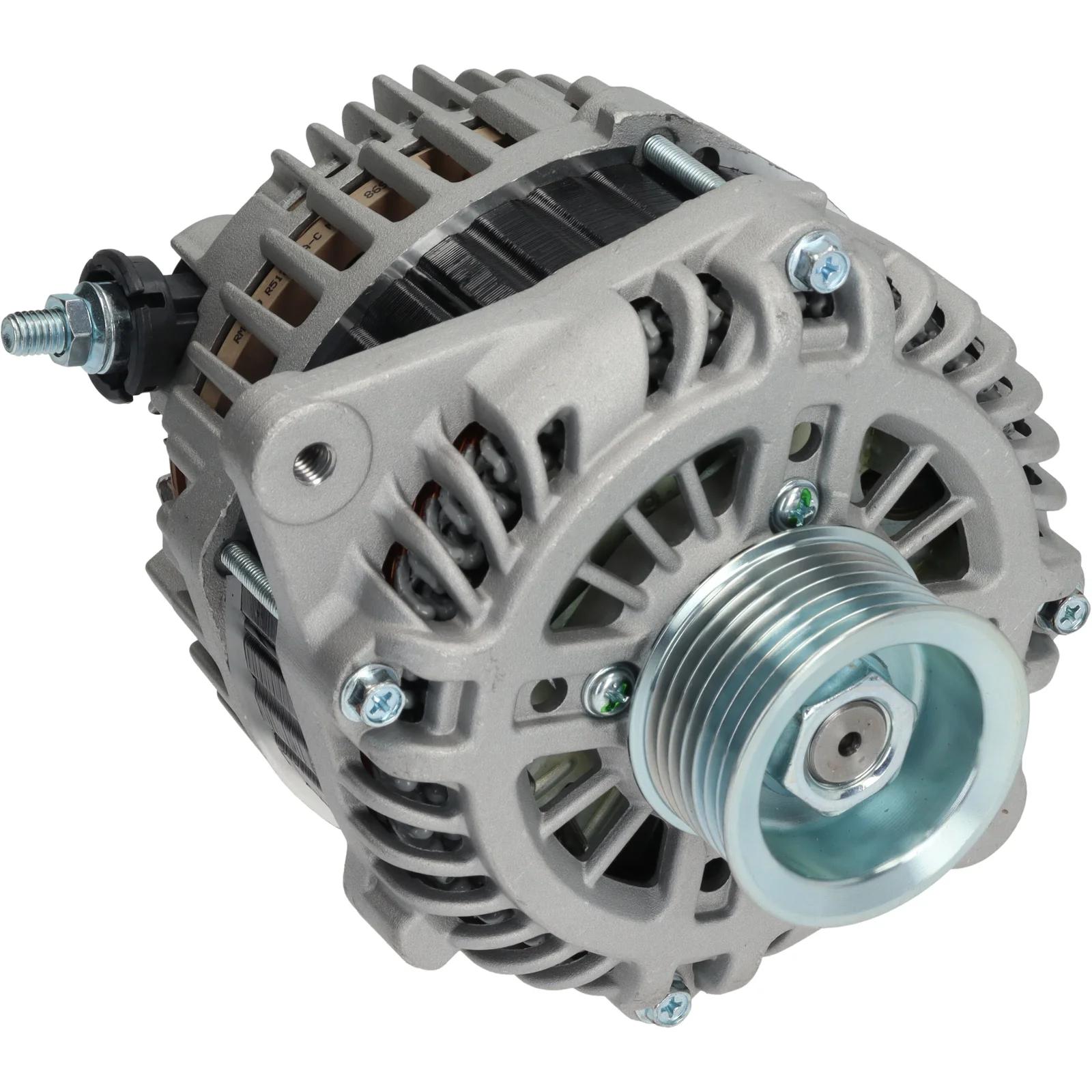

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116646

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 130, Rotation: CW, Monteringsbøjle fordelingsdæksel: 75.00

Beskrivelse

Spænding: 14
Amp: 130
Remskive afstand: 39.00
Bredde / holder arm: 13.00
Fastgørelsesbeslag afstand: 75.00
Bøsning til beslag: 10.50
Bæltejustering beslag hulpos.: 57
Bæltejustering beslag hul 1: M8
Remskive diameter: 55.00
Spor / remskive: 7
Radius: 85.00
Radius 2: 88.00
B+: M8
Position / B+ i min.: 3
D+ Størrelse: Stik
Rotation: HØJREGÅENDE
Stik nr.: PL163
Samlet længde mm: 155.00
Terminaltype: L-S-C
Pære type: Inaktiv
Remskive: SP
Ovn: IF
Regulators type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Plug no. PL163
Bracket hole 10.50
Position/B+ in min. 3
Pulley SP
Pulley dia. 55.00
Pulley dist. 39.00
Radius 85.00
D+ Size Plug
Radius 2 88.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Lamp type Inactive
Terminal type L-S-C
Voltage 14
Total length 155.00 mm
Width/holder arm 13.00
Amp 130

  • OEM
    A003TJ1791, A003TJ1791A, A003TJ1791B, A003TJ1791ZC, A3TJ1791, A3TJ1791A, A3TJ1791B, A3TJ1791ZC, F032116646, 23100-1AA1A, 23100-1AA1B, 23100-JA11A

  • Konkurrentreferens
    A5409S, ALT31292, CAL35289, CAL35289AS, DRA1322, 28-7806, 165.576.130, 227.339.1302, 553738RI, 12061031

  • NormaliseratArtNr
    a003tj1791, a003tj1791a, a003tj1791b, a003tj1791zc, a3tj1791, a3tj1791a, a3tj1791b, a3tj1791zc, a5409s, alt31292, cal35289, cal35289as, dra1322, f032116646, 23100ja11a, 231001aa1a, 231001aa1b, 287806, 553738ri, 12061031, 165576130, 2273391302

  • Passar modeller
    Dongfeng (DFL) Model: Teana Model series: Teana Size of motor: 3.5 Brand of engine: VQ35DE From date: 01-06-2008 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Nissan (Dongfeng) Model: Teana Model series: Teana Size of motor: 2.5 Brand of engine: VQ25DE Type description: J32 From date: 01-11-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Elgrand Model series: Elgrand Size of motor: 3.5 Brand of engine: VQ35DE Type description: E52 Body: MPV From date: 01-09-2010 Fuel: Petrol Approved: Yes
    Nissan Model: Maxima Model series: Maxima Size of motor: 2.5 Brand of engine: VQ25DE Type description: J32 From date: 01-08-2013 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: Box Body / Estate From date: 01-03-2013 To date: 01-09-2014 Fuel: Petrol Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-09-2008 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4x4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-10-2008 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4x4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-11-2007 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-12-2010 To date: 01-09-2014 Fuel: Petrol Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: AWD Size of motor: 3.5 Brand of engine: VQ35 Type description: Z51 From date: 01-12-2009 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Size of motor: 3.5 Brand of engine: VQ35 Type description: Z51 From date: 01-01-2011 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-11-2007 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Quest Model series: Quest Size of motor: 3.5 Type description: V42 Body: MPV From date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Nissan Model: Teana Model series: Teana Size of motor: 2.5 Brand of engine: VQ25DE Type description: J32 From date: 01-07-2008 To date: 01-09-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Teana Model series: Teana Size of motor: 3.5 Brand of engine: VQ35DE Type description: J32 From date: 01-07-2008 To date: 01-09-2013 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 130
    Remskive afstand: 39.00
    Bredde / holder arm: 13.00
    Fastgørelsesbeslag afstand: 75.00
    Bøsning til beslag: 10.50
    Bæltejustering beslag hulpos.: 57
    Bæltejustering beslag hul 1: M8
    Remskive diameter: 55.00
    Spor / remskive: 7
    Radius: 85.00
    Radius 2: 88.00
    B+: M8
    Position / B+ i min.: 3
    D+ Størrelse: Stik
    Rotation: HØJREGÅENDE
    Stik nr.: PL163
    Samlet længde mm: 155.00
    Terminaltype: L-S-C
    Pære type: Inaktiv
    Remskive: SP
    Ovn: IF
    Regulators type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 57
    Plug no. PL163
    Bracket hole 10.50
    Position/B+ in min. 3
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 39.00
    Radius 85.00
    D+ Size Plug
    Radius 2 88.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Lamp type Inactive
    Terminal type L-S-C
    Voltage 14
    Total length 155.00 mm
    Width/holder arm 13.00
    Amp 130
  • Køretøjsmatchning

    • OEM
      A003TJ1791, A003TJ1791A, A003TJ1791B, A003TJ1791ZC, A3TJ1791, A3TJ1791A, A3TJ1791B, A3TJ1791ZC, F032116646, 23100-1AA1A, 23100-1AA1B, 23100-JA11A

    • Konkurrentreferens
      A5409S, ALT31292, CAL35289, CAL35289AS, DRA1322, 28-7806, 165.576.130, 227.339.1302, 553738RI, 12061031

    • NormaliseratArtNr
      a003tj1791, a003tj1791a, a003tj1791b, a003tj1791zc, a3tj1791, a3tj1791a, a3tj1791b, a3tj1791zc, a5409s, alt31292, cal35289, cal35289as, dra1322, f032116646, 23100ja11a, 231001aa1a, 231001aa1b, 287806, 553738ri, 12061031, 165576130, 2273391302

    • Passar modeller
      Dongfeng (DFL) Model: Teana Model series: Teana Size of motor: 3.5 Brand of engine: VQ35DE From date: 01-06-2008 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Nissan (Dongfeng) Model: Teana Model series: Teana Size of motor: 2.5 Brand of engine: VQ25DE Type description: J32 From date: 01-11-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: Elgrand Model series: Elgrand Size of motor: 3.5 Brand of engine: VQ35DE Type description: E52 Body: MPV From date: 01-09-2010 Fuel: Petrol Approved: Yes
      Nissan Model: Maxima Model series: Maxima Size of motor: 2.5 Brand of engine: VQ25DE Type description: J32 From date: 01-08-2013 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: Box Body / Estate From date: 01-03-2013 To date: 01-09-2014 Fuel: Petrol Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-09-2008 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4x4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-10-2008 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4x4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-11-2007 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-12-2010 To date: 01-09-2014 Fuel: Petrol Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: AWD Size of motor: 3.5 Brand of engine: VQ35 Type description: Z51 From date: 01-12-2009 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Size of motor: 3.5 Brand of engine: VQ35 Type description: Z51 From date: 01-01-2011 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z51 Body: SUV From date: 01-11-2007 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Quest Model series: Quest Size of motor: 3.5 Type description: V42 Body: MPV From date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Nissan Model: Teana Model series: Teana Size of motor: 2.5 Brand of engine: VQ25DE Type description: J32 From date: 01-07-2008 To date: 01-09-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: Teana Model series: Teana Size of motor: 3.5 Brand of engine: VQ35DE Type description: J32 From date: 01-07-2008 To date: 01-09-2013 Fuel: Gasoline Approved: Yes
