HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116665

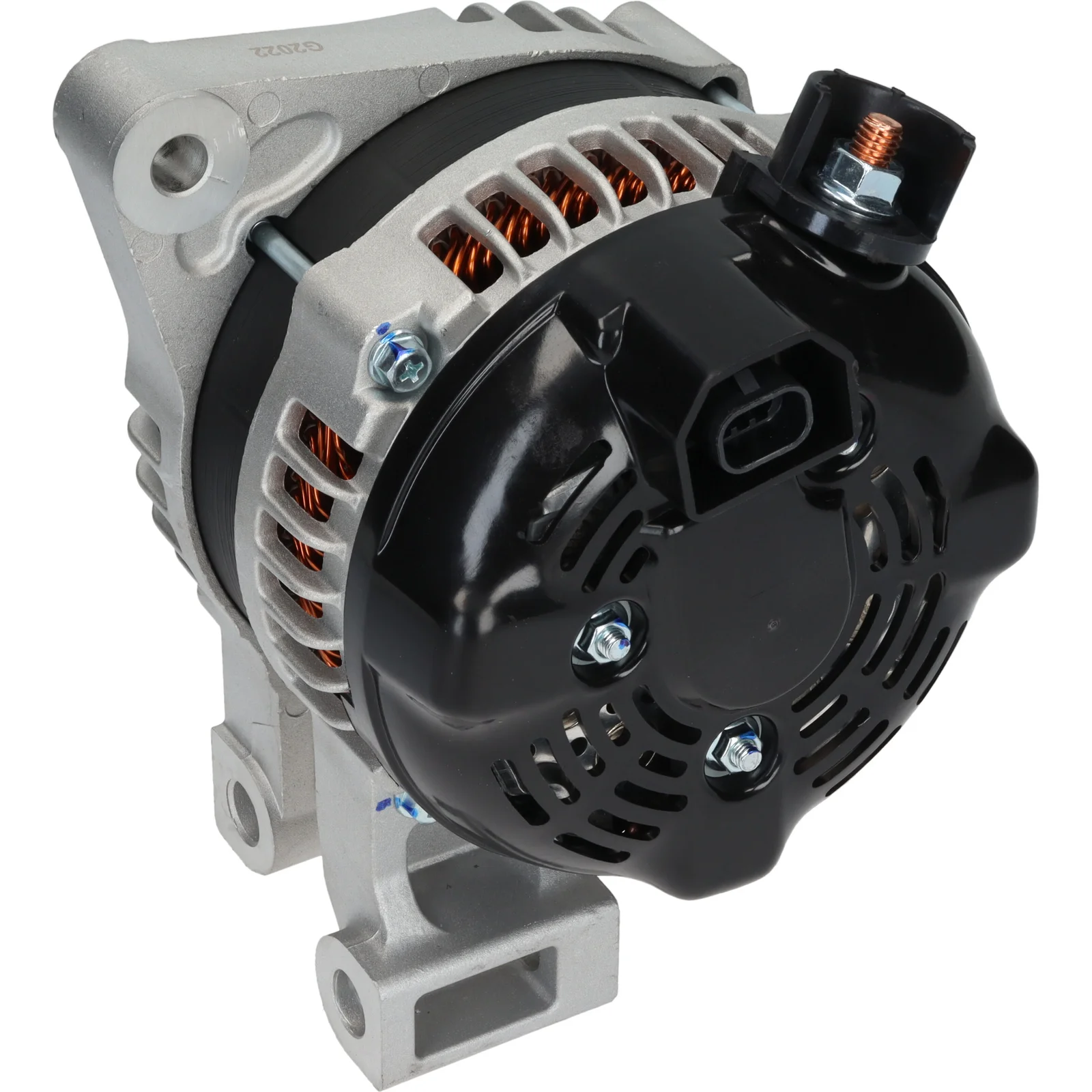

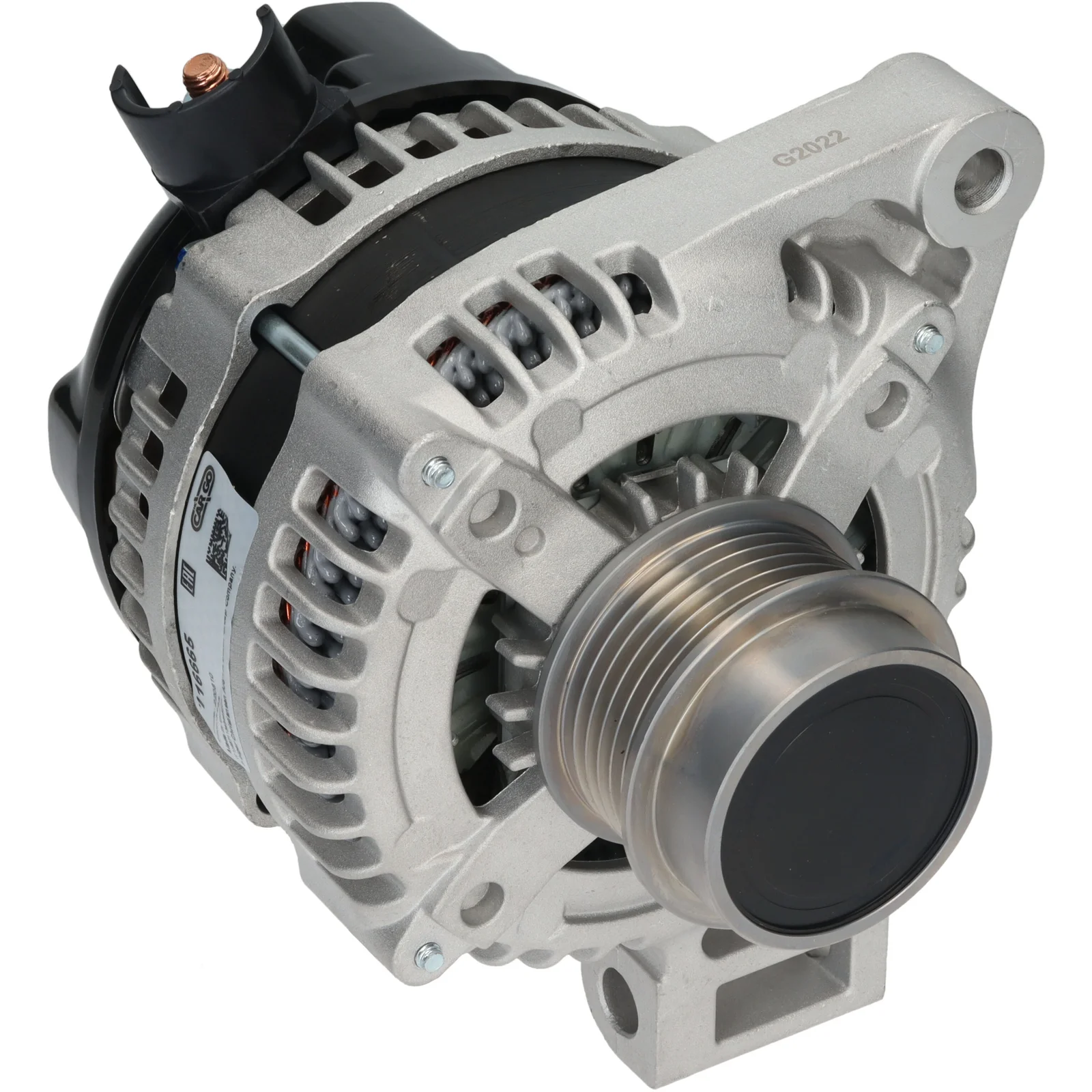

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag fordeler: 59.00

Beskrivelse

Spænding: 14
Ampere: 150
Skive afstand: 32,00
Bredde/holder arm: 50,00
Monteringsbeslag afstand: 59,00
Beslagshul: 12,00
Bæltejustering beslaghul position: 8
Bæltejustering beslag hul 1: 10,00
Skive dia.: 57,00
Riller/skive: 6
Radius: 91,00
Radius 2: 88,00
B+: M8
Position/B+ i min.: 4
Rotation: med uret
Stiknummer: PL180
Total længde mm: 180,00
Terminaltype: L-F
Kommunikation: PWM
Skive: SP/FW
Vifte: IF
Regulator type: IR
Bemærkninger: Denne Generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden du bestiller.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 8
Plug no. PL180
Bracket hole 12.00
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 32.00
Radius 91.00
Radius 2 88.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 180.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    F032116665, 104210-2170, 104210-2172, 1204645, 13502584

  • Konkurrentreferens
    A6488S, CAL40502, DRA1237, LRA04136, 28-7745, 135.921.150, 228.312.1502, 40328, 440716, 555346RI, 12090903

  • NormaliseratArtNr
    a6488s, cal40502, dra1237, f032116665, lra04136, 40328, 287745, 440716, 555346ri, 1204645, 12090903, 13502584, 135921150, 1042102170, 1042102172, 2283121502

  • Passar modeller
    Cadillac Model: SRX Model series: SRX Model type: AWD Size of motor: 2.8 Brand of engine: LAU From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER Body: Estate From date: 01-07-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sportstour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER From date: 01-07-2009 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Model type: XWD Type of engine: V6 Size of motor: 2.8 Brand of engine: A28NER From date: 01-05-2010 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 150
    Skive afstand: 32,00
    Bredde/holder arm: 50,00
    Monteringsbeslag afstand: 59,00
    Beslagshul: 12,00
    Bæltejustering beslaghul position: 8
    Bæltejustering beslag hul 1: 10,00
    Skive dia.: 57,00
    Riller/skive: 6
    Radius: 91,00
    Radius 2: 88,00
    B+: M8
    Position/B+ i min.: 4
    Rotation: med uret
    Stiknummer: PL180
    Total længde mm: 180,00
    Terminaltype: L-F
    Kommunikation: PWM
    Skive: SP/FW
    Vifte: IF
    Regulator type: IR
    Bemærkninger: Denne Generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden du bestiller.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 59.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 8
    Plug no. PL180
    Bracket hole 12.00
    Position/B+ in min. 4
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 32.00
    Radius 91.00
    Radius 2 88.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 50.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032116665, 104210-2170, 104210-2172, 1204645, 13502584

    • Konkurrentreferens
      A6488S, CAL40502, DRA1237, LRA04136, 28-7745, 135.921.150, 228.312.1502, 40328, 440716, 555346RI, 12090903

    • NormaliseratArtNr
      a6488s, cal40502, dra1237, f032116665, lra04136, 40328, 287745, 440716, 555346ri, 1204645, 12090903, 13502584, 135921150, 1042102170, 1042102172, 2283121502

    • Passar modeller
      Cadillac Model: SRX Model series: SRX Model type: AWD Size of motor: 2.8 Brand of engine: LAU From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER Body: Estate From date: 01-07-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sportstour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER From date: 01-07-2009 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Model type: XWD Type of engine: V6 Size of motor: 2.8 Brand of engine: A28NER From date: 01-05-2010 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
