HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116670

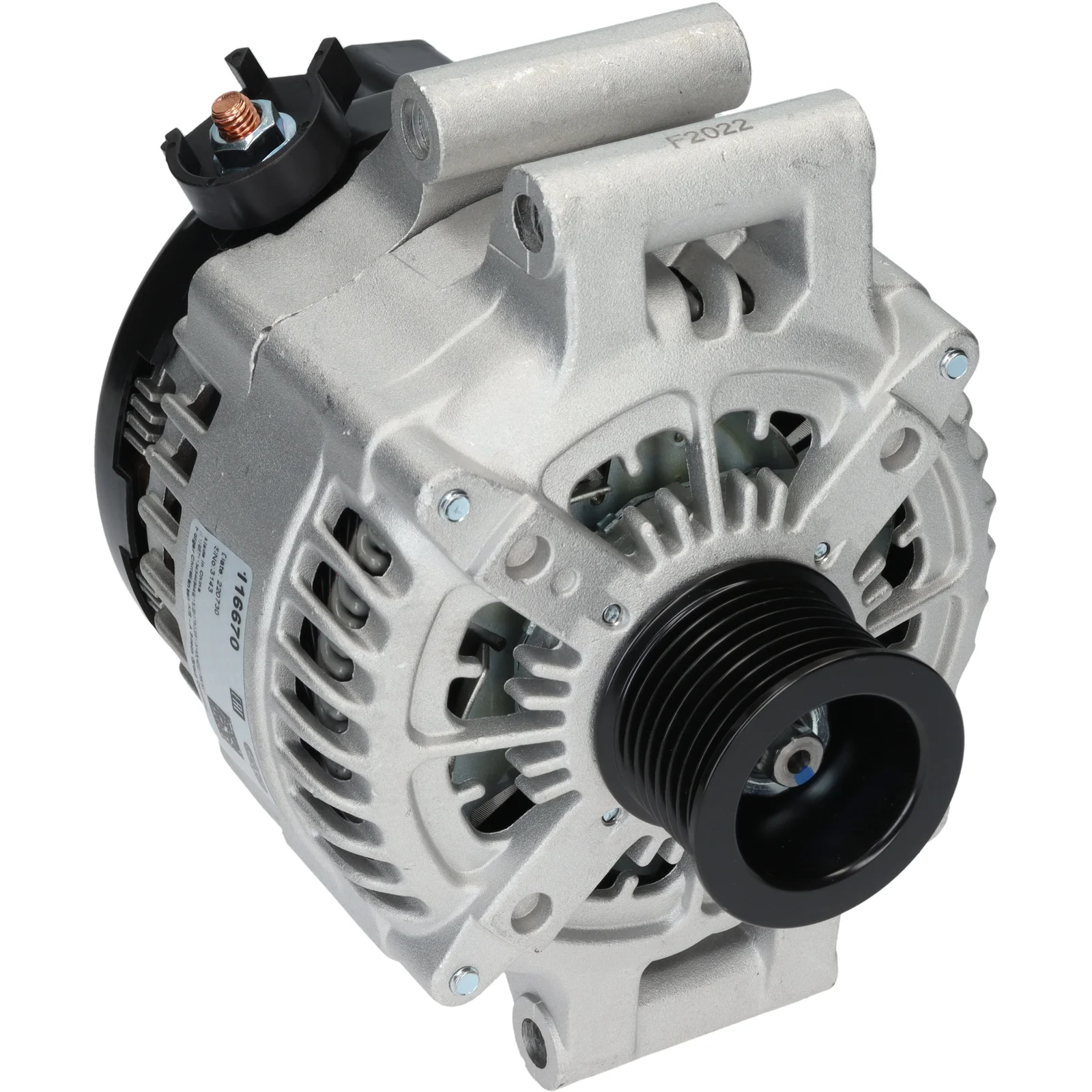

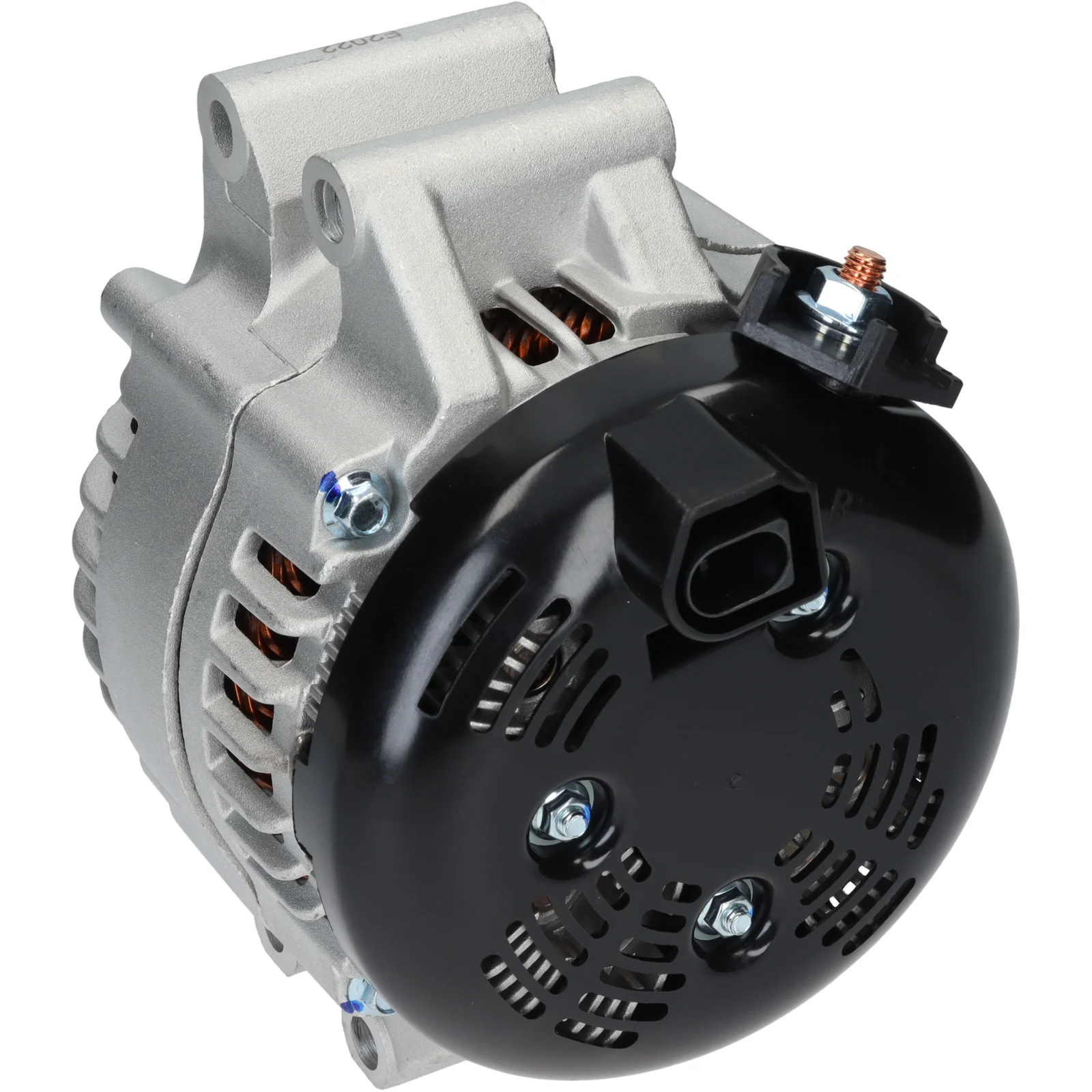

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 210, Rotation: med uret, Monteringsbeslag afstand: 40,50

Beskrivelse

Spænding: 14
Ampere: 210
Remskive afstand: 30.00
Bredde/holderarm: 62.50
Montagebeslag afstand: 40.50
Beslagshul: 8.00
Bæltejustering beslagshul 1: 8.00x9.50
Remskive dia.: 49.00
Rossingere/remskive: 8
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ i min.: 5
Rotation: med uret
Stik nr.: PL125
Total længde mm: 183.00
Terminaltype: COM
Kommunikation: BSS
Remskive: SP
Blæser: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 40.50
Belt. adj. bracket hole 1 8.00x9.50
Plug no. PL125
Bracket hole 8.00
Position/B+ in min. 5
Pulley SP
Pulley dia. 49.00
Pulley dist. 30.00
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 8
Terminal type COM
Voltage 14
Total length 183.00 mm
Width/holder arm 62.50
Amp 210

  • OEM
    F032116670, 104210-6070, 104210-6071, 104210-6072, 7591529, 7591530, 12317591529, 12317591530

  • Konkurrentreferens
    A6378, CAL40455, DRA1779, LRA03667, 28-6807, 215.301.2102, 215.572.210, 11496, 40456, 443426, 554842RIR, 12090691, 89215822

  • NormaliseratArtNr
    a6378, cal40455, dra1779, f032116670, lra03667, 11496, 40456, 286807, 443426, 554842rir, 7591529, 7591530, 12090691, 89215822, 215572210, 1042106070, 1042106071, 1042106072, 2153012102, 12317591529, 12317591530

  • Passar modeller
    BMW Model: 1 Model series: 135 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F20, F21 Body: Hatchback From date: 01-07-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: M 135 Size of motor: 3.0 Brand of engine: N55B30A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 4 Model series: 435 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F33 Body: Convertible From date: 01-11-2013 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 535 Model type: Gran Turismo Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F07 Body: Hatchback From date: 01-01-2009 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 535 Model type: xDrive Size of motor: 3.0 Brand of engine: N55B30A Type description: F07GT Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F10 From date: 01-03-2011 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F10 From date: 01-01-2010 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F11 Body: Estate From date: 01-06-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 6 Model series: 640 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F12 Body: Convertible From date: 01-09-2011 To date: 01-06-2018 Fuel: Gasoline Approved: Yes
    BMW Model: 6 Model series: 640 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F13 Body: Coupe From date: 01-07-2011 To date: 01-10-2017 Fuel: Gasoline Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 35i Size of motor: 3.0 Brand of engine: N55B30A Type description: F25 From date: 01-09-2010 To date: 01-08-2017 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 35 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E70 Body: SUV From date: 01-02-2012 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive35i Size of motor: 3.0 Brand of engine: N55B30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: xDrive 40 i Model type: xDrive 40 i Size of motor: 3.0 Brand of engine: N55B30A Type description: E70 Body: SUV From date: 01-01-2012 To date: 01-06-2013 Fuel: Petrol Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive 35 i Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
    BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
    BMW Model: X6 Model series: xDrive 35 i Model type: xDrive 35 i Size of motor: 3.0 Brand of engine: N54B30A Type description: E71, E72 Body: SUV From date: 01-01-2008 To date: 01-06-2014 Fuel: Petrol Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Ampere: 210
    Remskive afstand: 30.00
    Bredde/holderarm: 62.50
    Montagebeslag afstand: 40.50
    Beslagshul: 8.00
    Bæltejustering beslagshul 1: 8.00x9.50
    Remskive dia.: 49.00
    Rossingere/remskive: 8
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ i min.: 5
    Rotation: med uret
    Stik nr.: PL125
    Total længde mm: 183.00
    Terminaltype: COM
    Kommunikation: BSS
    Remskive: SP
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 40.50
    Belt. adj. bracket hole 1 8.00x9.50
    Plug no. PL125
    Bracket hole 8.00
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 30.00
    Radius 87.00
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 8
    Terminal type COM
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 62.50
    Amp 210
  • Køretøjsmatchning

    • OEM
      F032116670, 104210-6070, 104210-6071, 104210-6072, 7591529, 7591530, 12317591529, 12317591530

    • Konkurrentreferens
      A6378, CAL40455, DRA1779, LRA03667, 28-6807, 215.301.2102, 215.572.210, 11496, 40456, 443426, 554842RIR, 12090691, 89215822

    • NormaliseratArtNr
      a6378, cal40455, dra1779, f032116670, lra03667, 11496, 40456, 286807, 443426, 554842rir, 7591529, 7591530, 12090691, 89215822, 215572210, 1042106070, 1042106071, 1042106072, 2153012102, 12317591529, 12317591530

    • Passar modeller
      BMW Model: 1 Model series: 135 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F20, F21 Body: Hatchback From date: 01-07-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: M 135 Size of motor: 3.0 Brand of engine: N55B30A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 4 Model series: 435 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F33 Body: Convertible From date: 01-11-2013 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 535 Model type: Gran Turismo Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F07 Body: Hatchback From date: 01-01-2009 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 535 Model type: xDrive Size of motor: 3.0 Brand of engine: N55B30A Type description: F07GT Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F10 From date: 01-03-2011 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 535 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F10 From date: 01-01-2010 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 535 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F11 Body: Estate From date: 01-06-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: 6 Model series: 640 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F12 Body: Convertible From date: 01-09-2011 To date: 01-06-2018 Fuel: Gasoline Approved: Yes
      BMW Model: 6 Model series: 640 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: F13 Body: Coupe From date: 01-07-2011 To date: 01-10-2017 Fuel: Gasoline Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 35i Size of motor: 3.0 Brand of engine: N55B30A Type description: F25 From date: 01-09-2010 To date: 01-08-2017 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: X5 Model type: xDrive 35 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E70 Body: SUV From date: 01-02-2012 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: X5 Model type: xDrive35i Size of motor: 3.0 Brand of engine: N55B30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: xDrive 40 i Model type: xDrive 40 i Size of motor: 3.0 Brand of engine: N55B30A Type description: E70 Body: SUV From date: 01-01-2012 To date: 01-06-2013 Fuel: Petrol Approved: Yes
      BMW Model: X6 Model series: X6 Model type: xDrive 35 i Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
      BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
      BMW Model: X6 Model series: xDrive 35 i Model type: xDrive 35 i Size of motor: 3.0 Brand of engine: N54B30A Type description: E71, E72 Body: SUV From date: 01-01-2008 To date: 01-06-2014 Fuel: Petrol Approved: Yes
