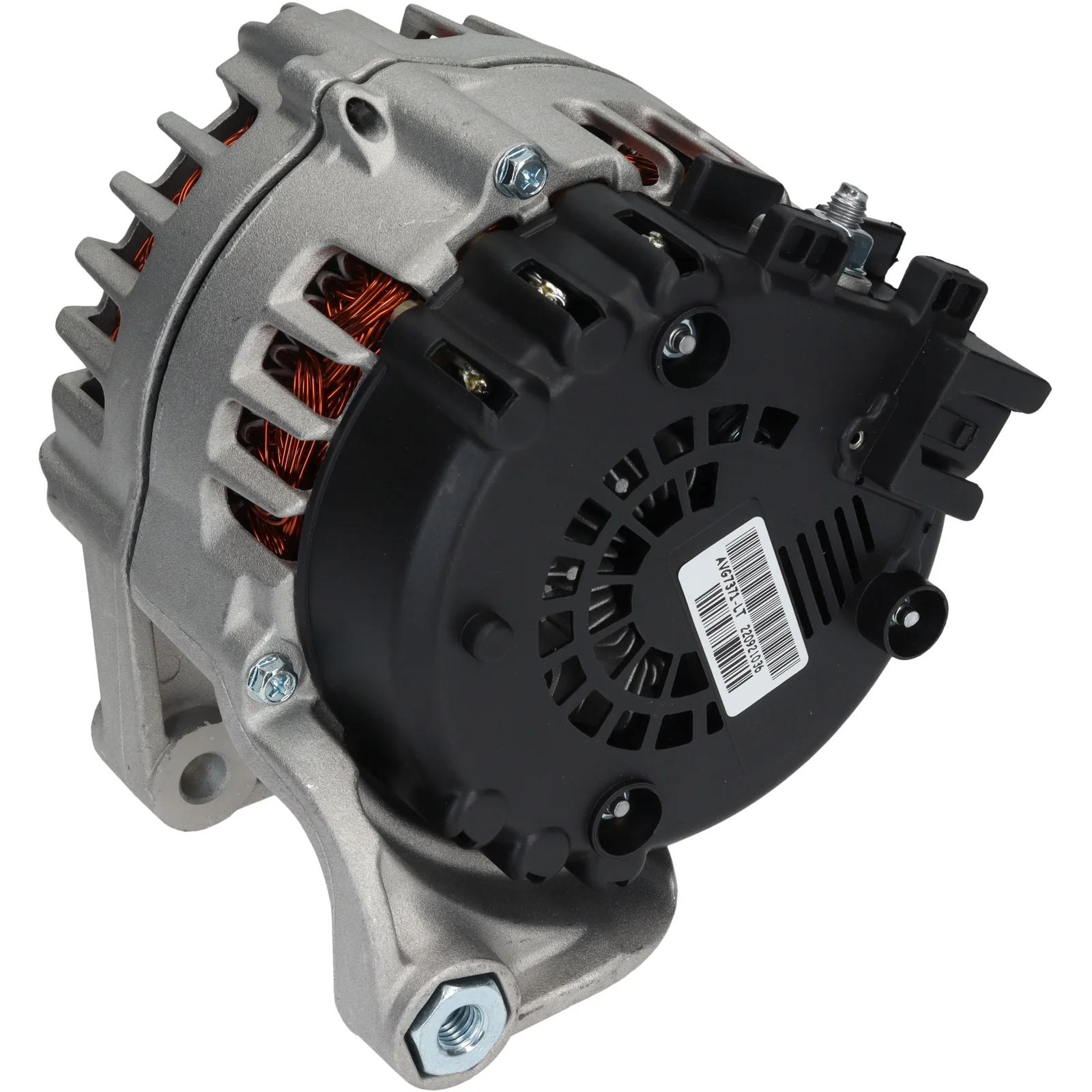

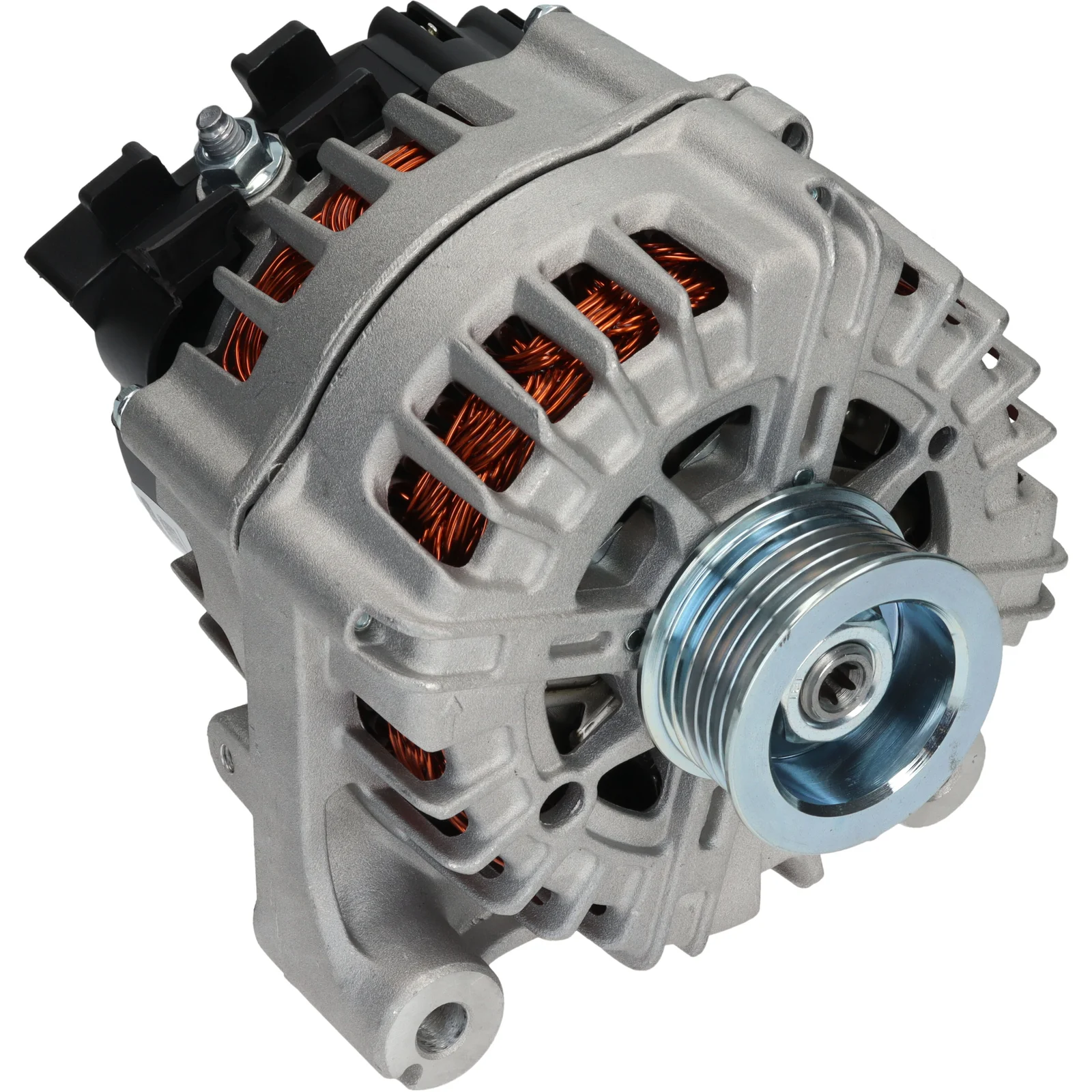

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116676

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: med uret, Monteringsbeslag fordeler: 75,50

Beskrivelse

HC-Cargo Generator 14V - 180A, 6gr

Spenning: 14
Amp: 180
Bøsning af spændingsregulator: 57.50
Bredde/hyadestang: 28.00
Monteringsbeslag afstand: 75.50
Beslaghul: 10.50
Bæltejusteringsbeslag hul position: 43
Bæltejusteringsbeslag hul 1: 10.50
Bæltehjul dia.: 53.00
Riller/bæltehjul: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ i min.: 59
Rotation: CW
Stik no.: PL125
Samlet længde mm: 180.00
Terminaltype: COM
ID-kode: 52
Kommunikation: BSS
Bæltehjul: SP
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 43
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 59
Pulley SP
Pulley dia. 53.00
Pulley dist. 57.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 52
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032116676, FG18D024, 1231 7805432, 116676, 2605773, 2605773A, 2605773B, 7805432, 12317805432, 12317808073

  • Konkurrentreferens
    CAL15378, DRA0429, LRA03124, 28-5736, 215.182.1802, 215.553.175, 210815, 210815A, 439652, 440237, 554208RI, 9090574, 12090561, 32001000

  • Bilmärken
    BMW

  • NormaliseratArtNr
    cal15378, dra0429, f032116676, fg18d024, lra03124, 116676, 210815, 210815a, 285736, 439652, 440237, 554208ri, 2605773, 2605773a, 2605773b, 7805432, 9090574, 12090561, 32001000, 215553175, 2151821802, 12317805432, 12317808073

  • Passar modeller
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30306D3 Type description: E93 Body: Convertible From date: 01-09-2009 To date: 01-09-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E91 Body: Estate From date: 01-02-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E92 Body: Coupe From date: 01-09-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E90 From date: 01-03-2010 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E91 Body: Estate From date: 01-02-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-09-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E93 Body: Convertible From date: 01-09-2009 To date: 01-09-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E92 Body: Coupe From date: 01-03-2008 To date: 01-02-2010 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E91 Body: Estate From date: 01-01-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-02-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-03-2008 To date: 01-02-2010 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E91 Body: Estate From date: 01-02-2008 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E92 Body: Coupe From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E91 Body: Estate From date: 01-02-2008 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E93 Body: Convertible From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57N306D3 Type description: E93 Body: Convertible From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 Body: SUV From date: 01-04-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 Body: SUV From date: 01-09-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 Body: SUV From date: 01-09-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive20d Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 From date: 01-09-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    BMW Series: 3 (E90) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 03.10-10.11
    BMW Series: 3 (E90) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-10.11
    BMW Series: 3 (E90) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-10.11
    BMW Series: 3 Cabriolet (E93) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.09-09.12
    BMW Series: 3 Cabriolet (E93) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-09.13
    BMW Series: 3 Coupé (E92) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.09-06.13
    BMW Series: 3 Coupé (E92) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-06.13
    BMW Series: 3 Coupé (E92) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 02.10-06.13
    BMW Series: 3 Coupé (E92) Model: 330 xd Engine volume: 3.0 Engine type: N57 D30 A Year: 03.08-02.10
    BMW Series: 3 Touring (E91) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 02.10-06.12
    BMW Series: 3 Touring (E91) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 02.08-05.12
    BMW Series: 3 Touring (E91) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-06.12
    BMW Series: X3 (E83) Model: xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 04.09-12.11
    BMW Series: X3 (E83) Model: xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-12.11
    BMW Series: X3 (E83) Model: xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-08.10
    1 / 8
  • Beskrivelse
    HC-Cargo Generator 14V - 180A, 6gr

    Spenning: 14
    Amp: 180
    Bøsning af spændingsregulator: 57.50
    Bredde/hyadestang: 28.00
    Monteringsbeslag afstand: 75.50
    Beslaghul: 10.50
    Bæltejusteringsbeslag hul position: 43
    Bæltejusteringsbeslag hul 1: 10.50
    Bæltehjul dia.: 53.00
    Riller/bæltehjul: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ i min.: 59
    Rotation: CW
    Stik no.: PL125
    Samlet længde mm: 180.00
    Terminaltype: COM
    ID-kode: 52
    Kommunikation: BSS
    Bæltehjul: SP
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 43
    Plug no. PL125
    Bracket hole 10.50
    Position/B+ in min. 59
    Pulley SP
    Pulley dia. 53.00
    Pulley dist. 57.50
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 52
    Terminal type COM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 28.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032116676, FG18D024, 1231 7805432, 116676, 2605773, 2605773A, 2605773B, 7805432, 12317805432, 12317808073

    • Konkurrentreferens
      CAL15378, DRA0429, LRA03124, 28-5736, 215.182.1802, 215.553.175, 210815, 210815A, 439652, 440237, 554208RI, 9090574, 12090561, 32001000

    • Bilmärken
      BMW

    • NormaliseratArtNr
      cal15378, dra0429, f032116676, fg18d024, lra03124, 116676, 210815, 210815a, 285736, 439652, 440237, 554208ri, 2605773, 2605773a, 2605773b, 7805432, 9090574, 12090561, 32001000, 215553175, 2151821802, 12317805432, 12317808073

    • Passar modeller
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30306D3 Type description: E93 Body: Convertible From date: 01-09-2009 To date: 01-09-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E91 Body: Estate From date: 01-02-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E92 Body: Coupe From date: 01-09-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E90 From date: 01-03-2010 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E91 Body: Estate From date: 01-02-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-09-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E93 Body: Convertible From date: 01-09-2009 To date: 01-09-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E92 Body: Coupe From date: 01-03-2008 To date: 01-02-2010 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E91 Body: Estate From date: 01-01-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-02-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-03-2008 To date: 01-02-2010 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E91 Body: Estate From date: 01-02-2008 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D3 Type description: E92 Body: Coupe From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E91 Body: Estate From date: 01-02-2008 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E92 Body: Coupe From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E93 Body: Convertible From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57N306D3 Type description: E93 Body: Convertible From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 Body: SUV From date: 01-04-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 Body: SUV From date: 01-09-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 Body: SUV From date: 01-09-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive20d Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E83 From date: 01-09-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      BMW Series: 3 (E90) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 03.10-10.11
      BMW Series: 3 (E90) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-10.11
      BMW Series: 3 (E90) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-10.11
      BMW Series: 3 Cabriolet (E93) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.09-09.12
      BMW Series: 3 Cabriolet (E93) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-09.13
      BMW Series: 3 Coupé (E92) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.09-06.13
      BMW Series: 3 Coupé (E92) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-06.13
      BMW Series: 3 Coupé (E92) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 02.10-06.13
      BMW Series: 3 Coupé (E92) Model: 330 xd Engine volume: 3.0 Engine type: N57 D30 A Year: 03.08-02.10
      BMW Series: 3 Touring (E91) Model: 325 d Engine volume: 3.0 Engine type: N57 D30 A Year: 02.10-06.12
      BMW Series: 3 Touring (E91) Model: 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 02.08-05.12
      BMW Series: 3 Touring (E91) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-06.12
      BMW Series: X3 (E83) Model: xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 04.09-12.11
      BMW Series: X3 (E83) Model: xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-12.11
      BMW Series: X3 (E83) Model: xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-08.10
      1 / 8
