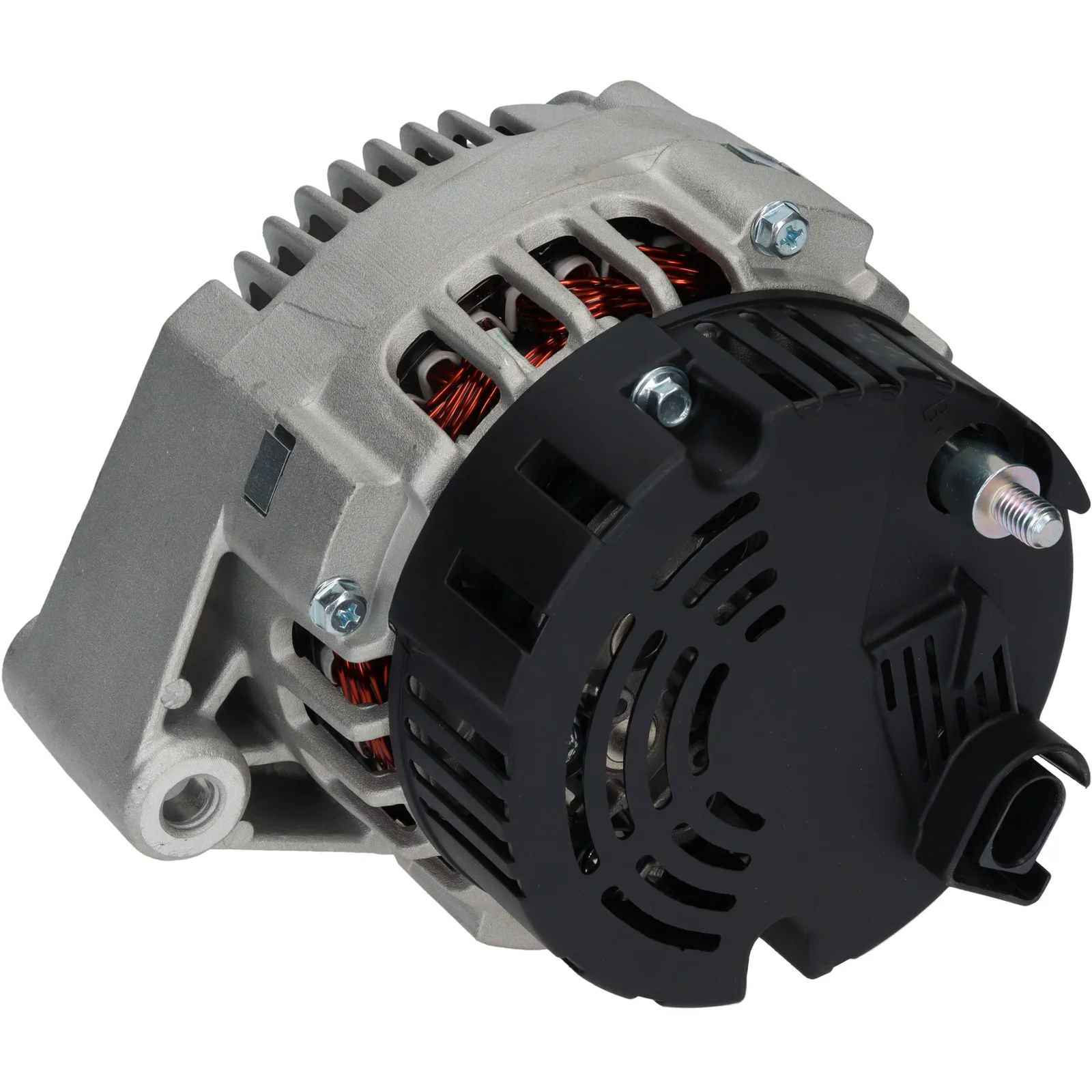

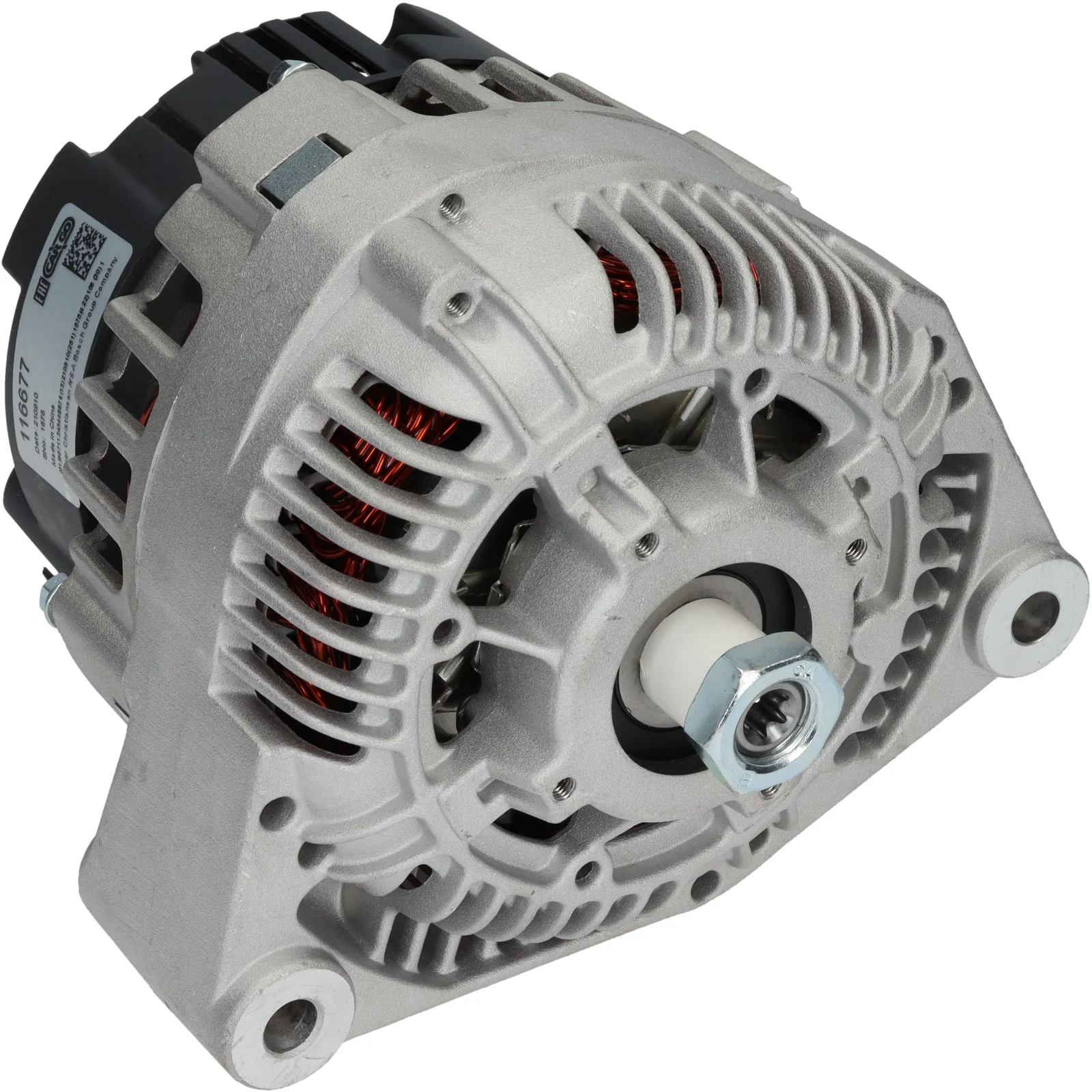

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116677

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Radius: 90,00, Radius 2: 90,00

Beskrivelse

Spænding: 14
Amp: 120
Bredde/holderarm: 56.00
Bøjlehul: 10.20
Bæltejustering bøjlehul pos.: 50
Bæltejustering bøjlehul 1: 10.20
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 55
D+ Størrelse: Stik
Stiknummer: PL61
Total længde mm: 175.00
Pære type: Aktiv
Skive: uden
Ventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 50
Plug no. PL61
Bracket hole 10.20
Position/B+ in min. 55
Pulley w/o
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Fan IF
Lamp type Active
Voltage 14
Total length 175.00 mm
Width/holder arm 56.00
Amp 120

  • OEM
    F032116677, SG10B067, 4357550M3

  • Konkurrentreferens
    CAL15052, DRA1687, LRA04064, 28-7673, 565.506.120, 2628, 439947, 554944RIV

  • NormaliseratArtNr
    cal15052, dra1687, f032116677, lra04064, sg10b067, 2628, 287673, 439947, 554944riv, 4357550m3, 565506120

  • Passar modeller
    Massey Ferguson Model: MF 5600 Model series: 5608, 5609 Size of motor: 3.3 Body: Tractor From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 5600 Model series: 5610 Size of motor: 3.3 Body: Tractor From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 5600 Model series: 5611, 5612 Size of motor: 4.4 Body: Tractor From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 5600 Model series: 5613 Size of motor: 4.4 Body: Tractor Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6600 Model series: 6614, 6615 Size of motor: 4.9 Body: Tractor From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6600 Model series: 6616 Size of motor: 4.9 Body: Tractor From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 7600 Model series: 7622 Size of motor: 6.6 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 7600 Model series: 7624 Size of motor: 6.6 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8700 Model series: 8727 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8700 Model series: 8730 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8700 Model series: 8732 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8700 Model series: 8735 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8700 Model series: 8737 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Valtra Model: S Series Model series: S274 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Valtra Model: S Series Model series: S294 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Valtra Model: S Series Model series: S324 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Valtra Model: S Series Model series: S374 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Bredde/holderarm: 56.00
    Bøjlehul: 10.20
    Bæltejustering bøjlehul pos.: 50
    Bæltejustering bøjlehul 1: 10.20
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 55
    D+ Størrelse: Stik
    Stiknummer: PL61
    Total længde mm: 175.00
    Pære type: Aktiv
    Skive: uden
    Ventilator: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 50
    Plug no. PL61
    Bracket hole 10.20
    Position/B+ in min. 55
    Pulley w/o
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Fan IF
    Lamp type Active
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 56.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032116677, SG10B067, 4357550M3

    • Konkurrentreferens
      CAL15052, DRA1687, LRA04064, 28-7673, 565.506.120, 2628, 439947, 554944RIV

    • NormaliseratArtNr
      cal15052, dra1687, f032116677, lra04064, sg10b067, 2628, 287673, 439947, 554944riv, 4357550m3, 565506120

    • Passar modeller
      Massey Ferguson Model: MF 5600 Model series: 5608, 5609 Size of motor: 3.3 Body: Tractor From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 5600 Model series: 5610 Size of motor: 3.3 Body: Tractor From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 5600 Model series: 5611, 5612 Size of motor: 4.4 Body: Tractor From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 5600 Model series: 5613 Size of motor: 4.4 Body: Tractor Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 6600 Model series: 6614, 6615 Size of motor: 4.9 Body: Tractor From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 6600 Model series: 6616 Size of motor: 4.9 Body: Tractor From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 7600 Model series: 7622 Size of motor: 6.6 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 7600 Model series: 7624 Size of motor: 6.6 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 8700 Model series: 8727 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 8700 Model series: 8730 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 8700 Model series: 8732 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 8700 Model series: 8735 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 8700 Model series: 8737 Size of motor: 8.4 Body: Tractor From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Valtra Model: S Series Model series: S274 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Valtra Model: S Series Model series: S294 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Valtra Model: S Series Model series: S324 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Valtra Model: S Series Model series: S374 Size of motor: 8.4 Body: Tractor From date: 01-01-2014 Fuel: Diesel Approved: Yes
