HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116678

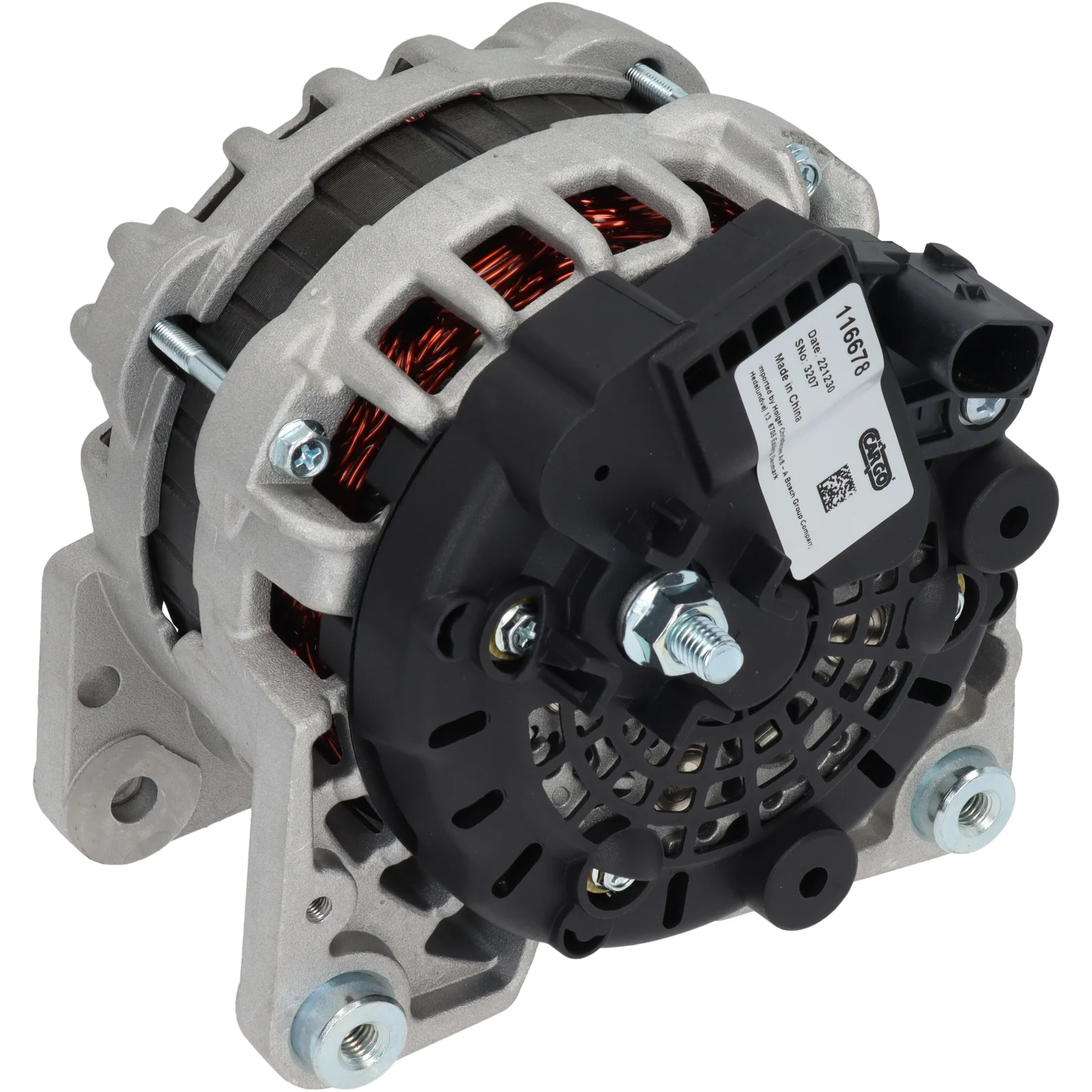

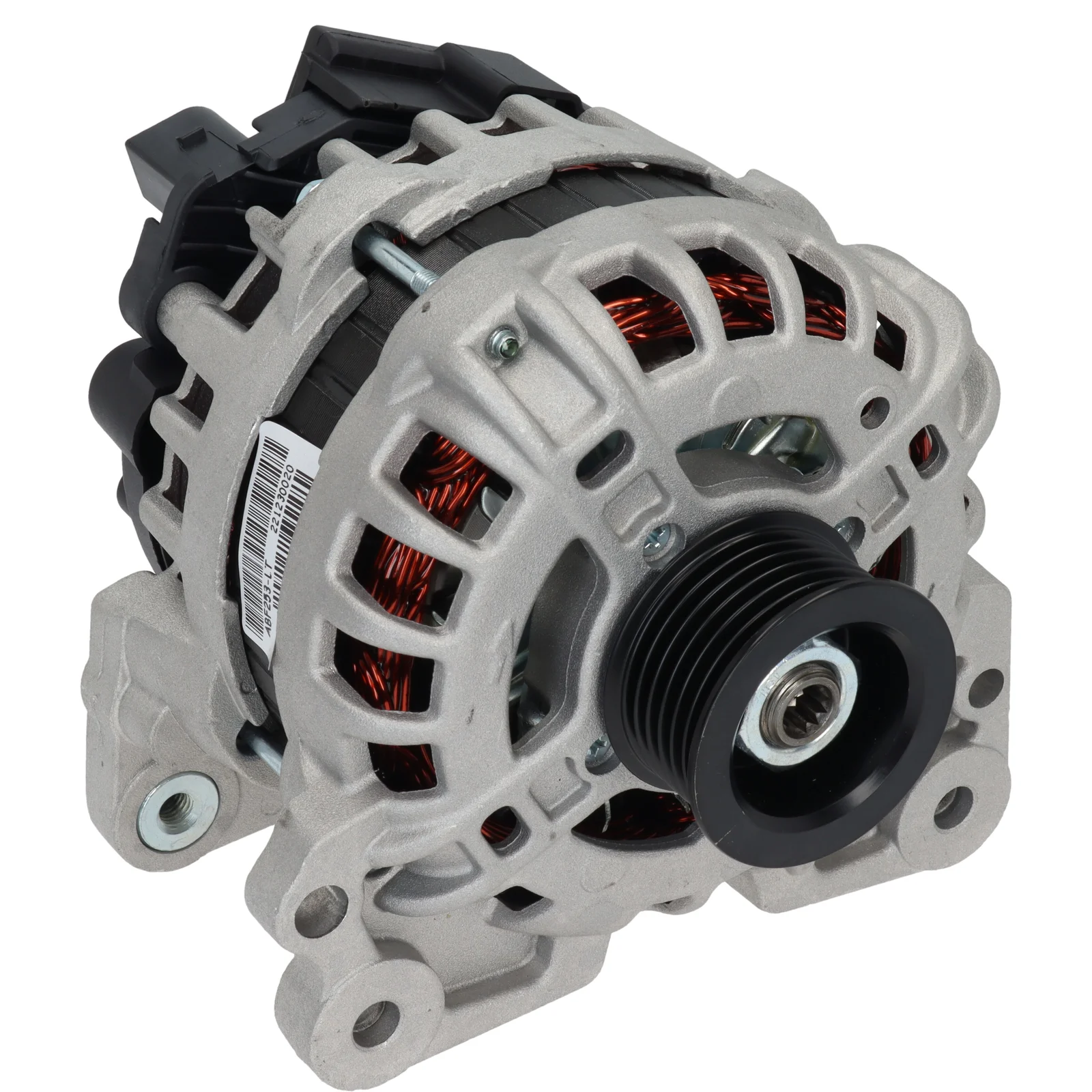

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Aflastning: 90, Rotation: CW, Monteringsbeslag afstand: 61,00

Beskrivelse

Føls: 14
Amp: 90
Bælteudlæg.: 30,00
Bredde/holderarm: 14,00
Monteringsbeslag udlæg.: 61,00
Beslagshul: 8,50
Bæltejusteringsbeslagshul position.: 45
Bæltejusteringsbeslagshul 1: 8,50
Poullediameter: 49,20
Riller/poulley: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 44
Rotation: CW
Stik nr.: PL125
Samlet længde mm: 166,00
Terminaltype: COM
Kommunikation: LIN
Poulley: SP
Ventilator: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 44
Pulley SP
Pulley dia. 49.20
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 166.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F000BL04D3, F000BL04D4, F032116678, 04C903023E, 04C903023EX, 1986A01525

  • Konkurrentreferens
    DRA1585, 28-7888, 211.530.902, 445.515.090, 40125, 12090986, 32084750, 0986084750

  • NormaliseratArtNr
    dra1585, f000bl04d3, f000bl04d4, f032116678, 04c903023e, 04c903023ex, 1986a01525, 40125, 287888, 12090986, 32084750, 211530902, 445515090, 0986084750

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
