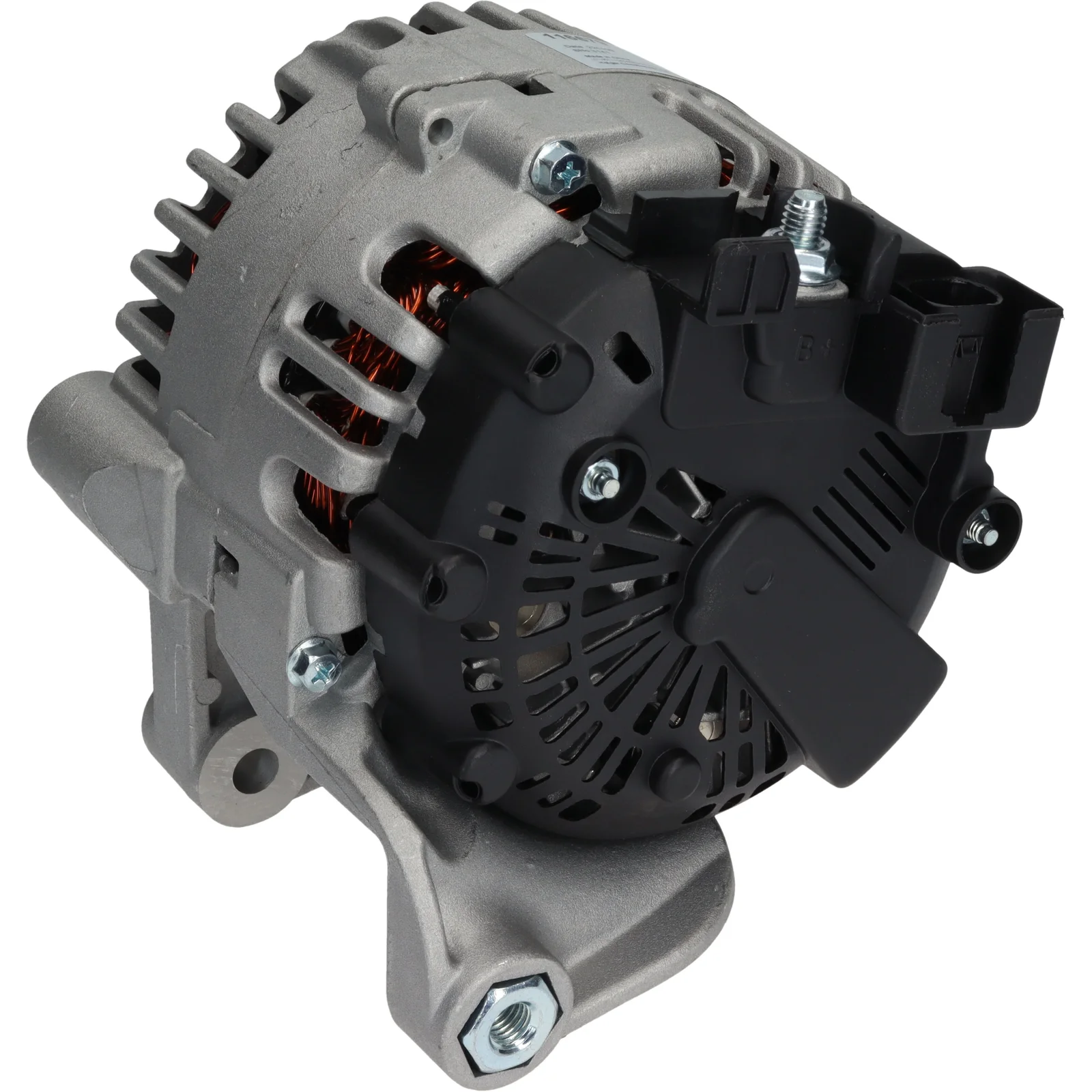

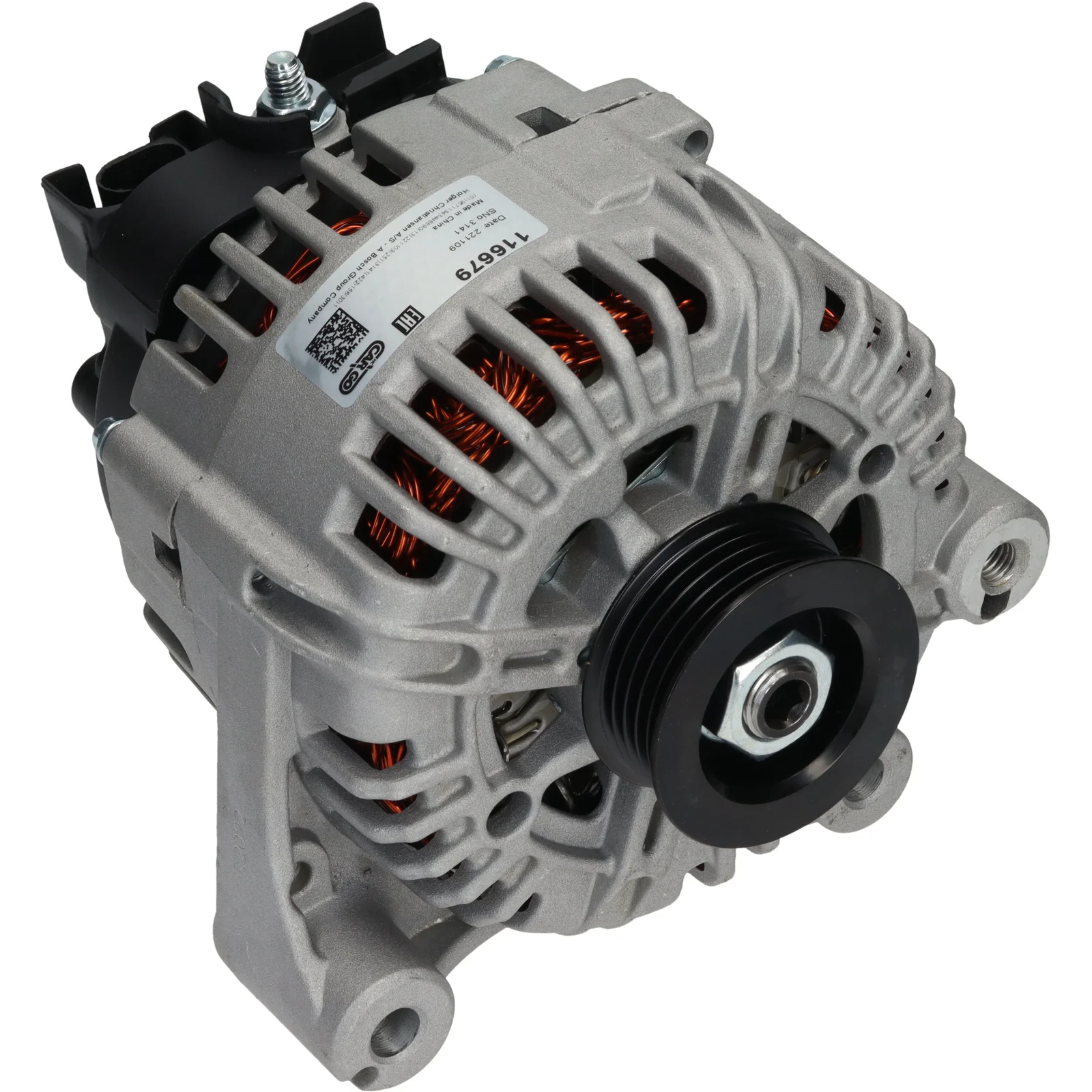

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116679

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag dist.: 75,50

Beskrivelse

Spænding: 14
Amp: 150
Remskive ford. : 56.00
Bredde/beslagarm: 28.00
Monteringsbeslagets afstand: 75.50
Beslagshuls: 10.50
Bæltejusteringsbeslagshuls position: 44
Bæltejusteringsbeslagshuls 1: 10.50
Remskivens diameter: 53.50
Riller/remskive: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Rotation: CW
Stik nr.: PL181
Samlet længde mm: 173.00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP
Fan: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 44
Plug no. PL181
Bracket hole 10.50
Pulley SP
Pulley dia. 53.50
Pulley dist. 56.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 173.00 mm
Width/holder arm 28.00
Amp 150

  • OEM
    F032116679, TG15C200, 27060-YV040, 8574045, 12318574045

  • Konkurrentreferens
    A3564(VALEO), A3564S, CAL15051, DRA2065, LRA04139, 28-7748, 195.945.150, 21013-OS, 40332, 439887, 440633, 554663RIV, 12061163, 89216264

  • NormaliseratArtNr
    a3564s, a3564valeo, cal15051, dra2065, f032116679, lra04139, tg15c200, 21013os, 27060yv040, 40332, 287748, 439887, 440633, 554663riv, 8574045, 12061163, 89216264, 195945150, 12318574045

  • Passar modeller
    Toyota Model: Rav 4 Model series: Rav 4 Type of engine: D-4D Size of motor: 2.0 Brand of engine: 2WW Type description: _A4_ Body: Box Body / Estate From date: 01-10-2015 To date: 01-11-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 1.6 Brand of engine: 1WW Type description: _R2_ Body: Van From date: 01-11-2013 To date: 01-08-2018 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive ford. : 56.00
    Bredde/beslagarm: 28.00
    Monteringsbeslagets afstand: 75.50
    Beslagshuls: 10.50
    Bæltejusteringsbeslagshuls position: 44
    Bæltejusteringsbeslagshuls 1: 10.50
    Remskivens diameter: 53.50
    Riller/remskive: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Rotation: CW
    Stik nr.: PL181
    Samlet længde mm: 173.00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP
    Fan: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 75.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 44
    Plug no. PL181
    Bracket hole 10.50
    Pulley SP
    Pulley dia. 53.50
    Pulley dist. 56.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 28.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032116679, TG15C200, 27060-YV040, 8574045, 12318574045

    • Konkurrentreferens
      A3564(VALEO), A3564S, CAL15051, DRA2065, LRA04139, 28-7748, 195.945.150, 21013-OS, 40332, 439887, 440633, 554663RIV, 12061163, 89216264

    • NormaliseratArtNr
      a3564s, a3564valeo, cal15051, dra2065, f032116679, lra04139, tg15c200, 21013os, 27060yv040, 40332, 287748, 439887, 440633, 554663riv, 8574045, 12061163, 89216264, 195945150, 12318574045

    • Passar modeller
      Toyota Model: Rav 4 Model series: Rav 4 Type of engine: D-4D Size of motor: 2.0 Brand of engine: 2WW Type description: _A4_ Body: Box Body / Estate From date: 01-10-2015 To date: 01-11-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Verso Van Model series: Verso Van Size of motor: 1.6 Brand of engine: 1WW Type description: _R2_ Body: Van From date: 01-11-2013 To date: 01-08-2018 Fuel: Diesel Approved: Yes
