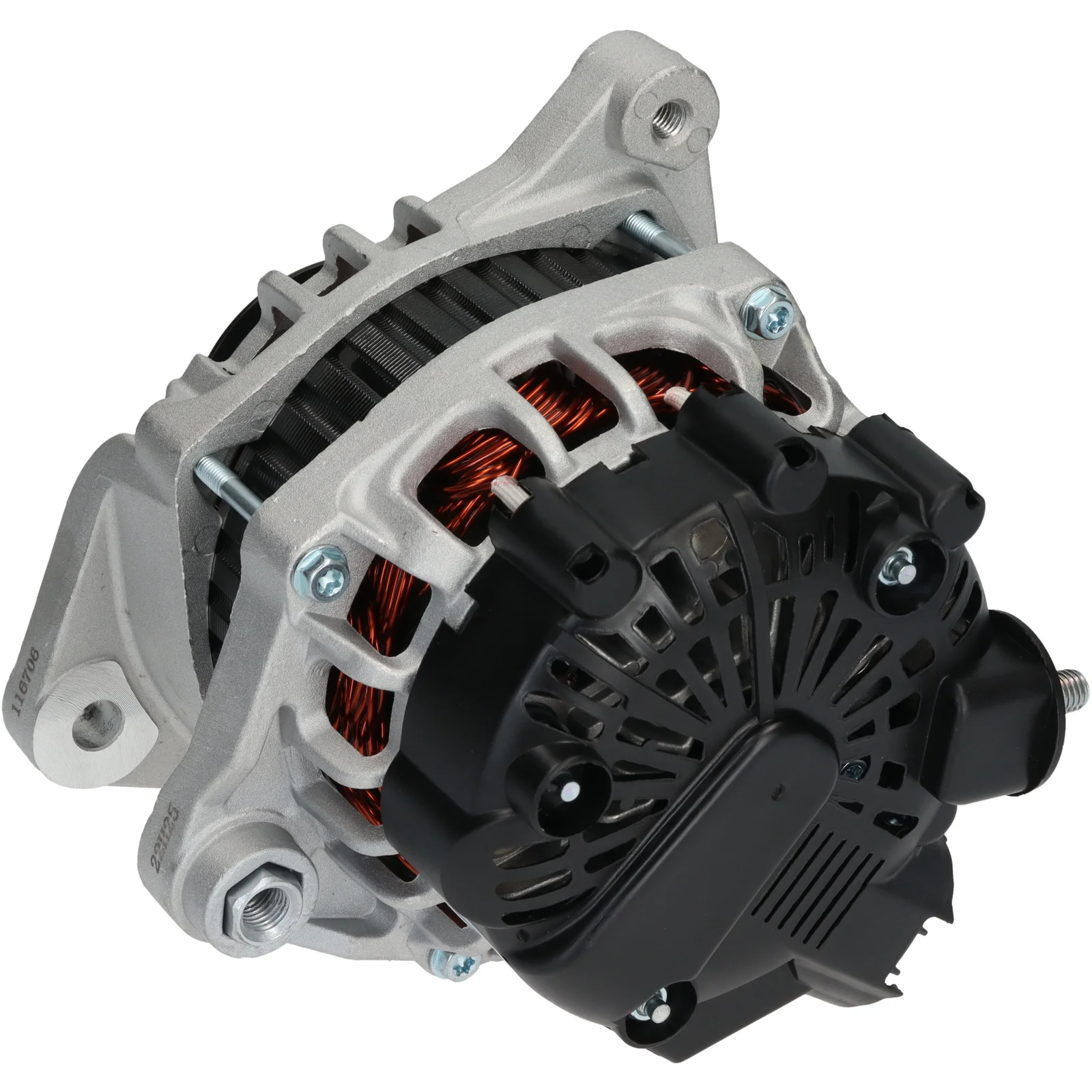

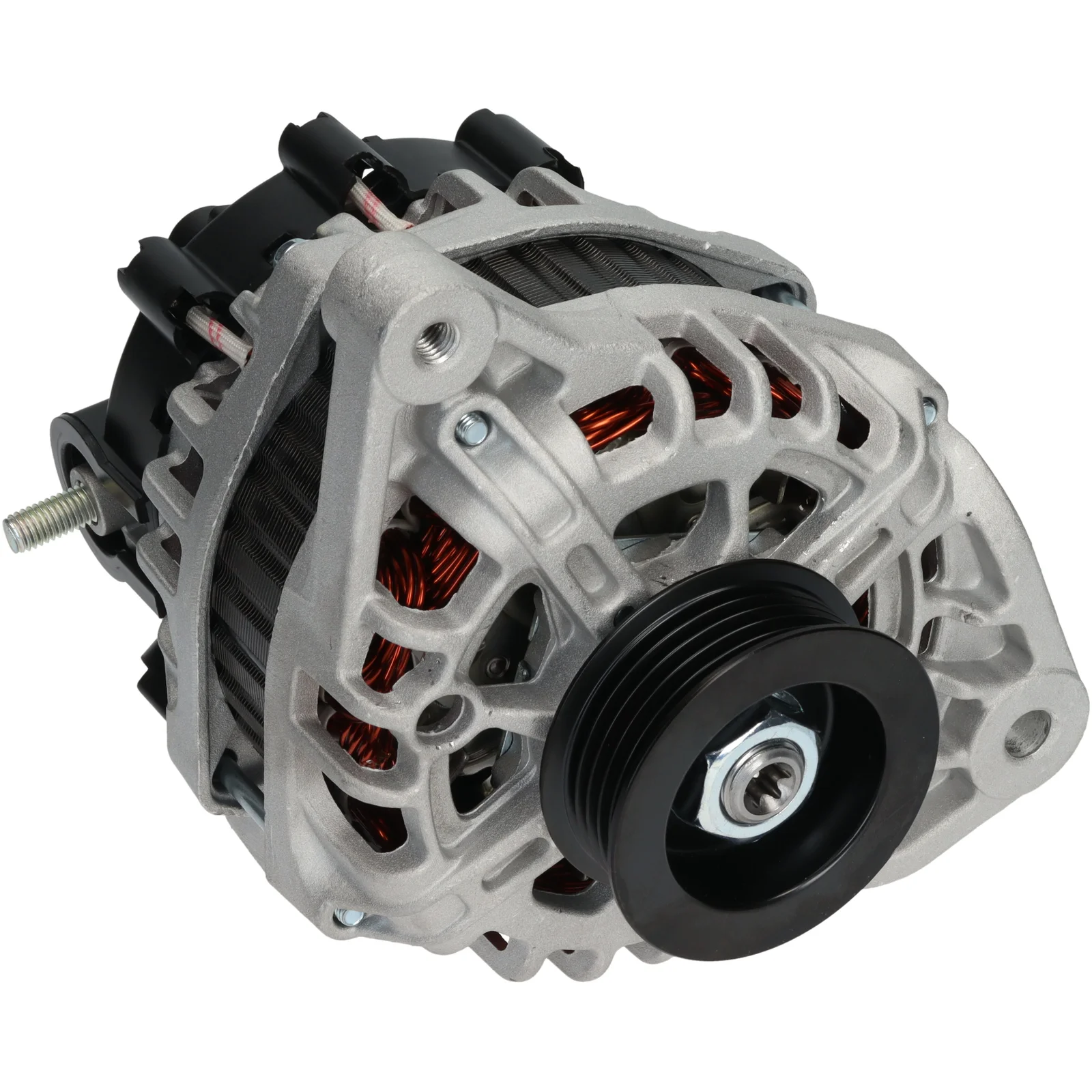

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116706

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Mount. bøsning dist.: 42.50

Beskrivelse

Spænding: 14
Ampere: 90
Drevskive dist.: 20.00
Bredde/holderarm: 15.00
Montagebeslag dist.: 42.50
Beslagshul: 10.00
Bæltejust. beslagshul pos.: 7
Bæltejust. beslagshul 1: M8
Drevskivens dia.: 58.00
Riller/drevskive: 5
Radius: 78.00
Radius 2: 86.00
B+: M8
Pos. B+ i min.: 5
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL176
Total længde mm: 165.00
Drevskive: SP
Blæser: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 42.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL176
Bracket hole 10.00
Position/B+ in min. 5
Pulley SP
Pulley dia. 58.00
Pulley dist. 20.00
Radius 78.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Voltage 14
Total length 165.00 mm
Width/holder arm 15.00
Amp 90

  • OEM
    F032116706, 37300-04610, 2609518

  • Konkurrentreferens
    DRA1335, LRA03621, 28-6731, 255.515.090, 9204, 209125, 209125A, 554217RI, 608368, 89215873, 0986084050

  • NormaliseratArtNr
    dra1335, f032116706, lra03621, 9204, 209125, 209125a, 286731, 554217ri, 608368, 2609518, 89215873, 255515090, 0986084050, 3730004610

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Body: Hatchback From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 90
    Drevskive dist.: 20.00
    Bredde/holderarm: 15.00
    Montagebeslag dist.: 42.50
    Beslagshul: 10.00
    Bæltejust. beslagshul pos.: 7
    Bæltejust. beslagshul 1: M8
    Drevskivens dia.: 58.00
    Riller/drevskive: 5
    Radius: 78.00
    Radius 2: 86.00
    B+: M8
    Pos. B+ i min.: 5
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL176
    Total længde mm: 165.00
    Drevskive: SP
    Blæser: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 42.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL176
    Bracket hole 10.00
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 58.00
    Pulley dist. 20.00
    Radius 78.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 15.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032116706, 37300-04610, 2609518

    • Konkurrentreferens
      DRA1335, LRA03621, 28-6731, 255.515.090, 9204, 209125, 209125A, 554217RI, 608368, 89215873, 0986084050

    • NormaliseratArtNr
      dra1335, f032116706, lra03621, 9204, 209125, 209125a, 286731, 554217ri, 608368, 2609518, 89215873, 255515090, 0986084050, 3730004610

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Body: Hatchback From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
