HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116716

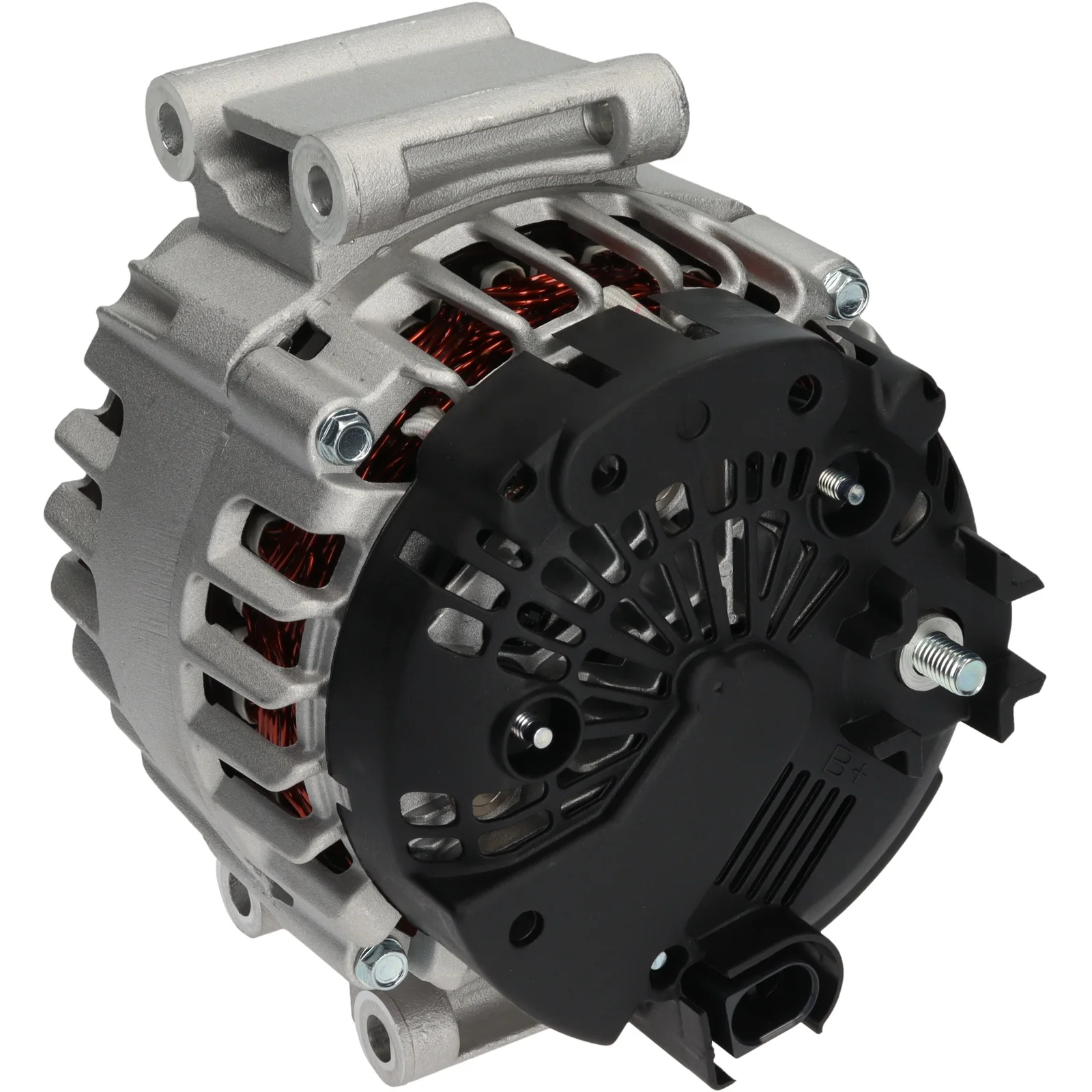

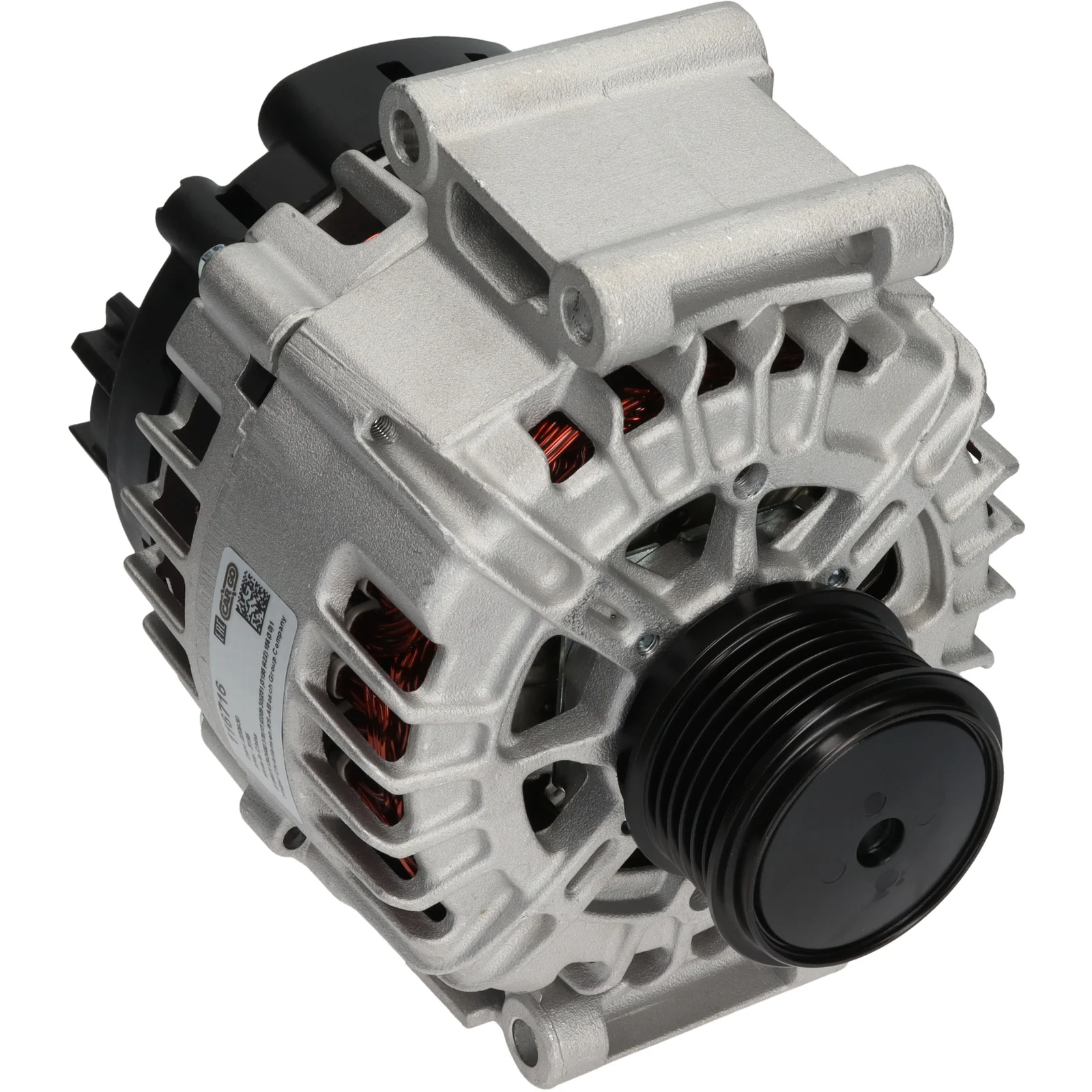

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag afstand: 56.00

Beskrivelse

Spænding: 14
Amp: 140
Remskive afstand: 29,50
Bredde/holderarm: 70,00
Monteringsbeslag afstand: 56,00
Beslag hul: 9,00
Kjedeanslag beslag hul 1: 8,50
Remskive dia.: 56,00
Riller/remskive: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 45
Rotation: med uret
Stik nr.: PL181
Samlet længde mm: 191,00
Terminaltype: COM
ID-kode: 25
Kommunikation: LIN
Remskive: SP/FW
Fan: IF
Regulator-typ: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 70.00
Amp 140

  • OEM
    F032116716, TG14C056, 06J903023R

  • Konkurrentreferens
    CAL15486, 305.911.140, 439831, 440556, 553578RIV, 12090586

  • NormaliseratArtNr
    cal15486, f032116716, tg14c056, 06j903023r, 439831, 440556, 553578riv, 12090586, 305911140

  • Passar modeller
    Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Audi (FAW) Model: Q3 Model series: Q3 Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CCTA Type description: 8UB, 8UG Body: SUV From date: 01-09-2014 To date: 01-10-2018 Fuel: Petrol Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CCZC From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CPSA From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J3 Body: Coupe From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J9 Body: Convertible From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 140
    Remskive afstand: 29,50
    Bredde/holderarm: 70,00
    Monteringsbeslag afstand: 56,00
    Beslag hul: 9,00
    Kjedeanslag beslag hul 1: 8,50
    Remskive dia.: 56,00
    Riller/remskive: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Position/B+ i min.: 45
    Rotation: med uret
    Stik nr.: PL181
    Samlet længde mm: 191,00
    Terminaltype: COM
    ID-kode: 25
    Kommunikation: LIN
    Remskive: SP/FW
    Fan: IF
    Regulator-typ: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.50
    Plug no. PL181
    Bracket hole 9.00
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 29.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 25
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 70.00
    Amp 140
  • Køretøjsmatchning

    • OEM
      F032116716, TG14C056, 06J903023R

    • Konkurrentreferens
      CAL15486, 305.911.140, 439831, 440556, 553578RIV, 12090586

    • NormaliseratArtNr
      cal15486, f032116716, tg14c056, 06j903023r, 439831, 440556, 553578riv, 12090586, 305911140

    • Passar modeller
      Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
      Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Audi (FAW) Model: Q3 Model series: Q3 Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
      Audi Model: Q3 Model series: Q3 Model type: quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CCTA Type description: 8UB, 8UG Body: SUV From date: 01-09-2014 To date: 01-10-2018 Fuel: Petrol Approved: Yes
      Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CCZC From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CPSA From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J3 Body: Coupe From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J9 Body: Convertible From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      VW Model: CC Model series: CC Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: CC Model series: CC Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant
