- Generator
-

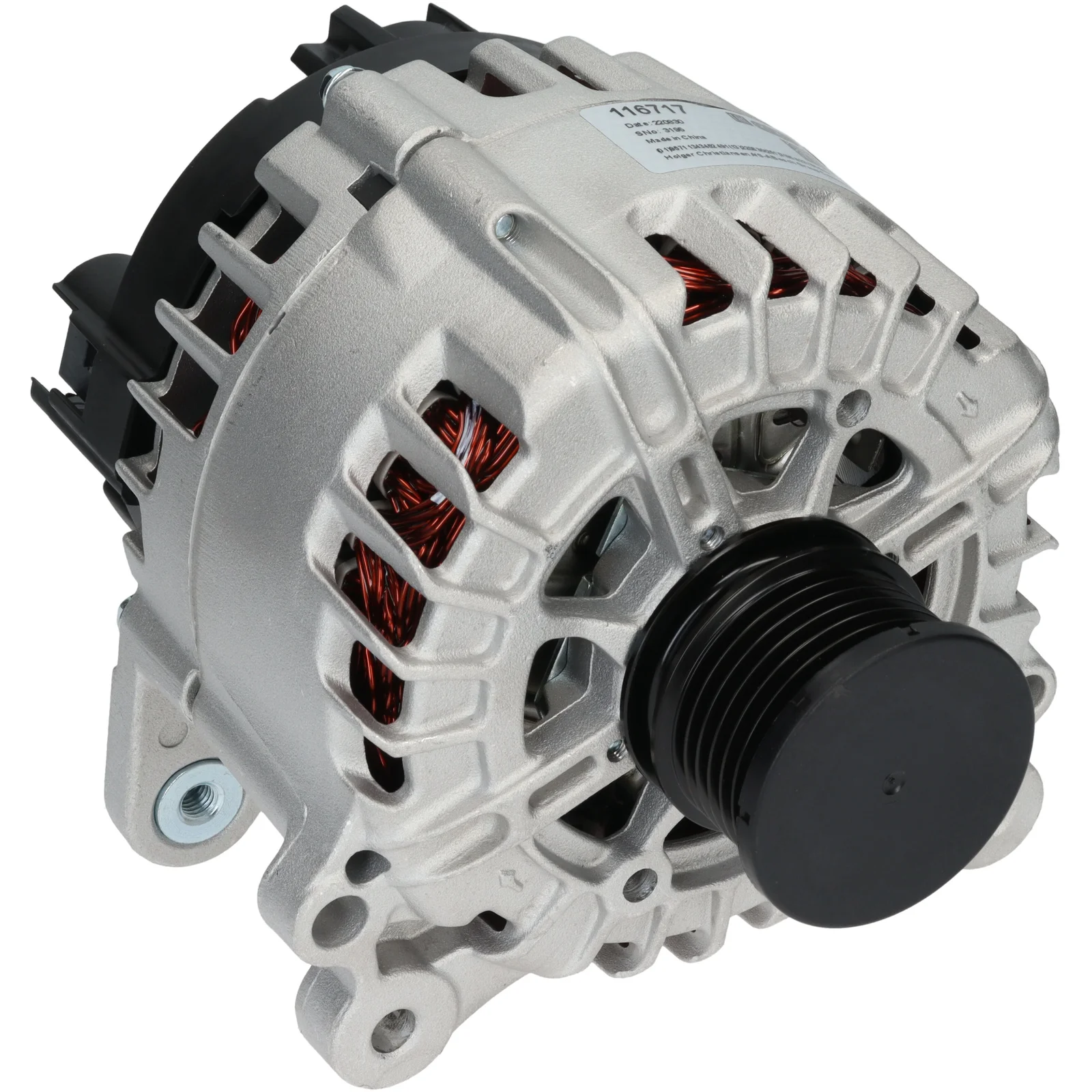

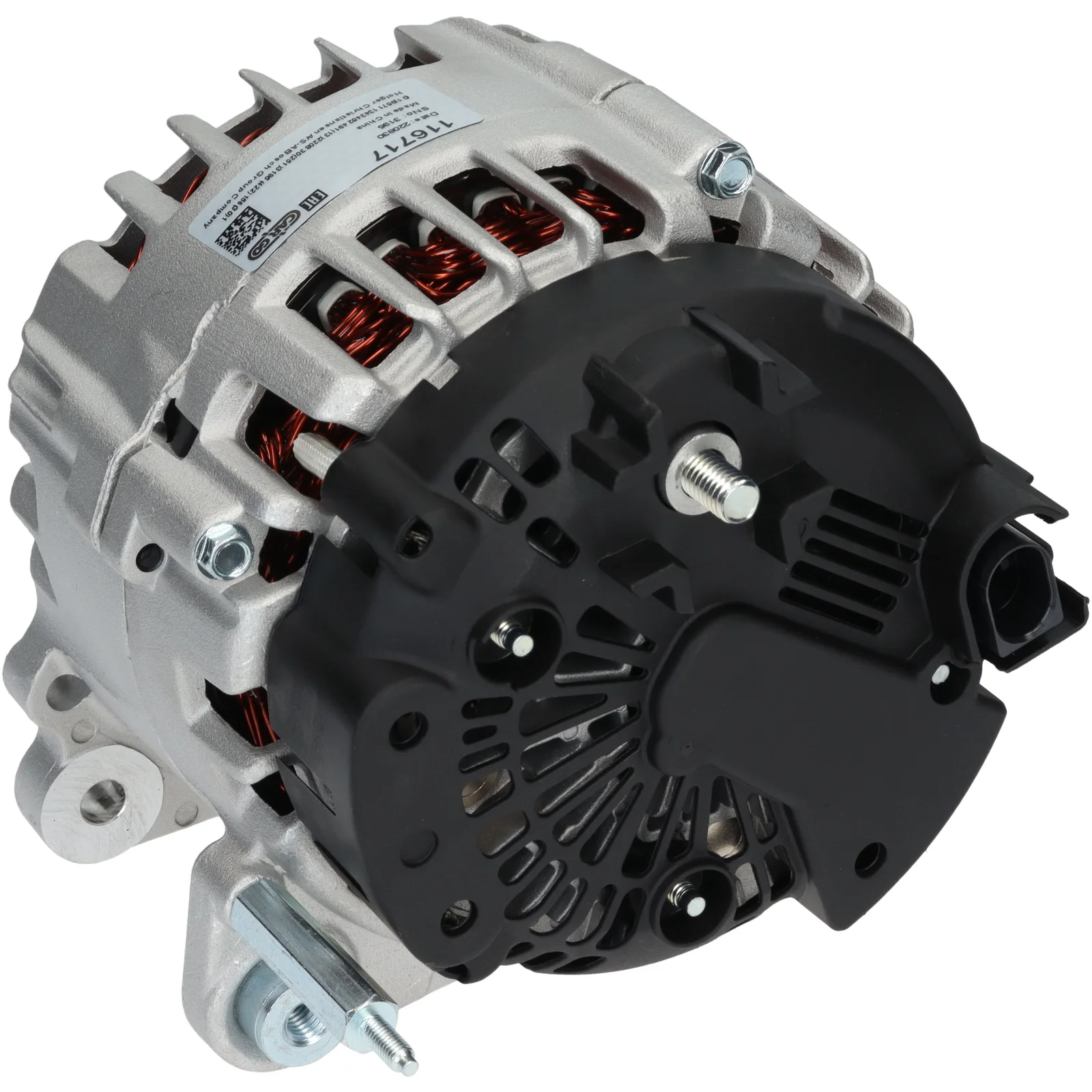

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Vare nr.: F032116717
HC-Cargo Generator
Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag dist.: 61.00
Beskrivelse
HC-Cargo Generator 14V - 140A, 6gr
Spænding: 14
Amp: 140
Remskive fordeling: 40,00
Bredde/beslag arm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,50
Bæltespændingsjustering beslag hul position: 45
Bæltespændingsjustering beslag hul 1: 8,50
Remskive diameter: 50,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 8
Rotation: CW
Stiknummer: PL181
Samlet længde mm: 195,00
Terminaltype: COM
ID-kode: 25
Kommunikation: LIN
Remskive: SP/FW
Kølevifte: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.
Spænding: 14
Amp: 140
Remskive fordeling: 40,00
Bredde/beslag arm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,50
Bæltespændingsjustering beslag hul position: 45
Bæltespændingsjustering beslag hul 1: 8,50
Remskive diameter: 50,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 8
Rotation: CW
Stiknummer: PL181
Samlet længde mm: 195,00
Terminaltype: COM
ID-kode: 25
Kommunikation: LIN
Remskive: SP/FW
Kølevifte: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.
Filer
Specifikation
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 61.00 |
| Belt. adj. bracket hole 1 | 8.50 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL181 |
| Bracket hole | 8.50 |
| Position/B+ in min. | 8 |
| Pulley | SP/FW |
| Pulley dia. | 50.00 |
| Pulley dist. | 40.00 |
| Radius | 90.00 |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Fan | IF |
| Grooves/pulley | 6 |
| ID Code | 25 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 195.00 mm |
| Width/holder arm | 14.00 |
| Amp | 140 |
-
OEM
F032116717, TG14C067, 03G 903 016B, 03G 903 016E, 03G903016B, 03G903016BX, 03G903016E, 03L 903 024T, 03L903024T, 03L903024TX, 116717 -
Konkurrentreferens
DRA1297, 305.944.140, 12090600 -
Bilmärken
Audi, Seat, Skoda, VW -
NormaliseratArtNr
dra1297, f032116717, tg14c067, 03g903016b, 03g903016bx, 03g903016e, 03l903024t, 03l903024tx, 116717, 12090600, 305944140 -
Passar modeller
Audi Series: A1 (8X1, 8XK) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 11.14-10.18 Audi Series: A3 (8V1, 8VK) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/ CXXB/ DBKA Year: 09.13-12.17 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.13-12.17 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CUNA/DGCA Year: 12.12-12.17 Audi Series: A3 Cabriolet Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA Year: 04.17-10.20 Audi Series: A3 (8V1, 8VK) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 10.12-05.15 Audi Series: A3 (8V1, 8VK) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 02.17-10.20 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRBD/CRLC Year: 05.13-08.16 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFA Year: 01.13-08.16 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFC Year: 09.12-10.20 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA Year: 10.12-12.17 Audi Series: A3 Cabriolet Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB Year: 02.14-10.20 Audi Series: A3 Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLB/DCYA Year: 10.13-10.20 Audi Series: A3 Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLC Year: 10.13-07.16 Audi Series: A3 Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-07.16 Audi Series: A3 Cabriolet Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CRLB/DCYA Year: 03.14-10.20 Audi Series: A3 Cabriolet Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-10.20 Audi Series: A3 Limousine Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 09.13-05.15 Audi Series: A3 Limousine Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.14-10.20 Audi Series: A3 Limousine Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA Year: 03.17-10.20 Audi Series: A3 Limousine Model: 1.6 TDI quattro Engine volume: 1.6 Engine type: CXXB Year: 05.15-08.16 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CRBD/CRLC Year: 09.13-08.16 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFA/DEJB Year: 05.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFC Year: 10.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-07.18 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 05.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA Year: 10.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-07.18 Seat Series: ALHAMBRA (710, 711) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFE,CUVA,DFLD,DLTC Year: 05.11-12.22 Seat Series: ALHAMBRA Model: 2.0 TDI 4DRIVE Engine volume: 2.0 Engine type: DFMA Year: 05.16-08.18 Seat Series: ALHAMBRA Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC/DFLA/DLTA Year: 05.15-12.22 Seat Series: ALHAMBRA Model: 2.0 TDI Engine volume: 2.0 Engine type: CUWA/DFMA Year: 05.15-08.18 Seat Series: ARONA (KJ7, KJP) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTA Year: 07.17- Seat Series: Arona Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTD Year: 11.17- Seat Series: ATECA (KH7, KHP) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 04.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: DFFA/DTTC Year: 04.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: DFHA Year: 06.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVA Year: 10.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 10.16- Seat Series: ATECA Model: 2.0 TDI Engine volume: 2.0 Engine type: DFFA/DTTA/DTTC/DXRB Year: 04.16- Seat Series: IBIZA V (KJ1, KJG) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTA Year: 12.17- Seat Series: IBIZA V (KJ1, KJG) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTC Year: 11.17- Seat Series: IBIZA V (KJ1, KJG) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTD Year: 09.17- Seat Series: Leon (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 09.12-08.20 Seat Series: Leon (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/ CXXA/DDYB Year: 11.12-08.18 Seat Series: Leon (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 09.13-08.20 Seat Series: LEON (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/ DGTE Year: 11.16-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFC/CRMB/DFFA Year: 10.12-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLD/CRVA Year: 05.13-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 05.13-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUPA / CUNA / DJGA Year: 09.12-08.20 Seat Series: Leon SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 02.13-08.18 Seat Series: Leon SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/ CXXA/DDYB Year: 02.13-08.18 Seat Series: Leon SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 09.13-11.16 Seat Series: LEON SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA Year: 11.16-08.18 Seat Series: Leon SC (5F5) Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFC/ CRMB Year: 02.13-08.18 Seat Series: Leon SC (5F5) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 05.13-08.18 Seat Series: Leon SC (5F5) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/CUPA Year: 03.13-08.18 Seat Series: LEON Skåp (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 09.12-10.16 Seat Series: LEON Skåp (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB Year: 11.12-10.16 Seat Series: LEON Skåp (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFC/ CRMB Year: 10.12-08.18 Seat Series: Leon ST (5F8) Model: 1.6 TDI 4Drive Engine volume: 1.6 Engine type: CLHA Year: 04.14-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI 4Drive Engine volume: 1.6 Engine type: CXXB Year: 11.14-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 10.13-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/ CXXA/ DDYB Year: 11.13-08.18 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 09.13-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 11.16-08.20 Seat Series: Leon ST (5F8) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CUNA/DJGA Year: 11.14-08.18 Seat Series: Leon ST (5F8) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: Samtliga Year: 04.14-08.20 Seat Series: Leon ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLD/ CRVA Year: 02.13-12.16 Seat Series: Leon ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 10.13-08.18 Seat Series: Leon ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/ CUPA/DJGA Year: 08.13-08.20 Seat Series: LEON ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 10.13-08.20 Seat Series: TOLEDO IV (KG3) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-04.19 Skoda Series: KAROQ (NU7, ND7) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 07.17- Skoda Series: KAROQ (NU7, ND7) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DFFA, DTTC, DXRB Year: 07.17- Skoda Series: KODIAQ I (NS6/7,NV7) Model: 1.4 TSI 4x4 Engine volume: 1.4 Engine type: CZDA/CZEA Year: 10.16- Skoda Series: KODIAQ I (NS6/7,NV7) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZCA/CZDB Year: 10.16- Skoda Series: KODIAQ I (NS6/S7/V7) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DBGC/DFGA/DTSB Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DFHA Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TDI Engine volume: 2.0 Engine type: DBGC/DFGA/DTSB Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TSI 4x4 Engine volume: 2.0 Engine type: CZPA Year: 10.16- Skoda Series: Octavia III Combi Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CLHA Year: 11.12-05.15 Skoda Series: OCTAVIA III Combi Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CRKB, CXXB, DBKA Year: 05.15-02.17 Skoda Series: OCTAVIA III Combi Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 11.12-05.15 Skoda Series: Octavia III Combi Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CXXA/DDYB Year: 11.12-10.20 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI / TDI RS 4x4 Engine volume: 2.0 Engine type: CUNA/CUPA/DJGA Year: 05.13-10.20 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CKFC/CRMB/DCYA/DFFA Year: 11.12-10.20 Skoda Series: Octavia III Combi Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFB/ CRVC Year: 11.12-02.17 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 11.12-10.20 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI RS Engine volume: 2.0 Engine type: CUNA/CUPA/DJGA Year: 05.13-10.20 Skoda Series: OCTAVIA III Kombi Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.13-02.17 Skoda Series: OCTAVIA III Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CLHA Year: 05.13-05.15 Skoda Series: OCTAVIA III Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CRKB/CXXB Year: 05.15-02.17 Skoda Series: OCTAVIA III Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 11.12-05.15 Skoda Series: OCTAVIA III Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CXXA/DDYB Year: 11.12-10.20 Skoda Series: OCTAVIA III Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.13-02.17 Skoda Series: OCTAVIA III Model: 2.0 TDI / TDI RS 4x4 Engine volume: 2.0 Engine type: CUNA, CUPA, DJGA Year: 05.13-10.20 Skoda Series: OCTAVIA III Model: 2.0 TDI 4X4 Engine volume: 2.0 Engine type: CKFC/CRMB/DCYA/DFFA Year: 05.13-10.20 Skoda Series: Octavia III Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFB/CRVC Year: 11.12-02.17 Skoda Series: OCTAVIA III Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 11.12-10.20 Skoda Series: OCTAVIA III Model: 2.0 TDI RS Engine volume: 2.0 Engine type: CUNA, CUPA, DJGA Year: 05.13-10.20 Skoda Series: RAPID (NH3, NK3,NK6) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19 Skoda Series: RAPID Spaceback(NH1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19 Skoda Series: SUPERB III (3V3) Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA, DCZA Year: 03.15-06.24 Skoda Series: SUPERB III (3V3) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CRLB, DFEA, DFGA Year: 03.15-06.24 Skoda Series: SUPERB III (3V3) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: Superb III (3V3) Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: SUPERB III (3V3) Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 03.15-06.24 Skoda Series: SUPERB III Komb(3V5) Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA, DCZA Year: 03.15-06.24 Skoda Series: SUPERB III Komb(3V5) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: SUPERB III Komb(3V5) Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: Superb III Kombi Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CRLB, DFEA, DFGA Year: 03.15-06.24 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBDB/CFHC/CLCB Year: 05.09-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CEGA/CFJA Year: 11.09-05.15 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CFHF/DFSA/CUUA Year: 11.09-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFHA/CLCA/DFSA/CUUA Year: 11.09-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFHC/CLCB Year: 11.11-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-12.17 VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 09.11-07.19 VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CNEA, CSHA Year: 05.12-10.16 VW Series: AMAROK Flak/chassi Model: 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16 VW Series: AMAROK Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 11.11-05.22 VW Series: AMAROK Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CDBA/CNFA Year: 09.10-10.13 VW Series: AMAROK Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CNFB Year: 06.12-05.22 VW Series: AMAROK Model: 2.0 TDI Engine volume: 2.0 Engine type: CDBA/CNFA Year: 09.10-10.13 VW Series: AMAROK Model: 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 07.12-05.22 VW Series: ARTEON Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 03.17-07.20 VW Series: ARTEON Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFHA Year: 05.17-06.20 VW Series: ARTEON Model: 2.0 TDI Engine volume: 2.0 Engine type: DFHA Year: 05.17-06.20 VW Series: ARTEON Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 03.17- VW Series: BEETLE Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUA Year: 06.14-09.18 VW Series: BEETLE CABRIOLET Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB, CVCA, DELA Year: 09.14-09.18 VW Series: BEETLE Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUA Year: 06.14-09.18 VW Series: BEETLE Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/ CVCA/ DELA Year: 07.14-09.18 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUUE/DFSE Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSB Year: 11.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB, DFSB Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUD/DFSD Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/DFSC/DFSF Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/DFSF Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUUE/DFSE Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSB Year: 11.15-09.20 VW Series: CADDY IV Minibus Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUD/DFSD Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/ DFSF Year: 05.15-09.20 VW Series: CADDY IV SKÅP Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CUUE/DFSE Year: 05.15-09.20 VW Series: CADDY IV Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSB Year: 11.15-09.20 VW Series: CADDY IV Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSC Year: 11.15-07.19 VW Series: CADDY IV SKÅP Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-09.20 VW Series: CADDY IV SKÅP Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUD/DFSD Year: 05.15-09.20 VW Series: CADDY IV Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/DFSC/DFSF Year: 05.15-09.20 VW Series: CC B7 Model: 2.0 TD Engine volume: 2.0 Engine type: CUWA Year: 05.15-12.16 VW Series: CC B7 Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC Year: 05.15-12.16 VW Series: CC B7 Model: 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 11.11-12.16 VW Series: CRAFTER 30-35 Buss Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CKUB/CSNA Year: 11.11-12.16 VW Series: CRAFTER 30-35 BUSS Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16 VW Series: CRAFTER 30-50 Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CKUB/CSNA Year: 11.11-12.16 VW Series: CRAFTER 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16 VW Series: CRAFTER 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLC Year: 11.15-12.16 VW Series: CRAFTER 30-50 SKÅP Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 07.11-12.16 VW Series: CRAFTER 30-50 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16 VW Series: CRAFTER 30-50 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16 VW Series: CRAFTER 30-50 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLC Year: 11.15-12.16 VW Series: CRAFTER Buss Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUA/DNAE Year: 09.16- VW Series: CRAFTER Buss Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUB/DNAD Year: 10.16-06.24 VW Series: CRAFTER Buss Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAVA/DMZB Year: 09.16- VW Series: CRAFTER Flak/chassi Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUA/DMZE/DNAE Year: 11.16- VW Series: CRAFTER Flak/chassi Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUB/DNAD Year: 11.16-06.24 VW Series: CRAFTER Flak/chassi Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAVA/DMZB Year: 11.16- VW Series: CRAFTER Flak/chassi Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DASA Year: 08.17-12.21 VW Series: CRAFTER Flak/chassi Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DAWA Year: 07.17-06.24 VW Series: CRAFTER Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DAUA/DMZE/DNAE Year: 04.17- VW Series: CRAFTER Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DAVA/DMZB Year: 03.17- VW Series: CRAFTER Skåp Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUA/DMZE/DNAE Year: 09.16- VW Series: CRAFTER Skåp Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUB/DNAD Year: 09.16-06.24 VW Series: CRAFTER Skåp Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAVA/DMZB Year: 09.16- VW Series: CRAFTER Skåp Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DASA Year: 08.17-12.21 VW Series: CRAFTER Skåp Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DAWA Year: 05.17-06.24 VW Series: CRAFTER30-35 BUSS Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16 VW Series: GOLF ALLTRACK VII Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CRKB/CXXB Year: 12.14-03.17 VW Series: GOLF ALLTRACK VII Va Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA/ DFGA Year: 12.14-08.20 VW Series: GOLF ALLTRACK VII Va Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUNA/DGCA/DJGA Year: 12.14-08.20 VW Series: GOLF SPORTSVAN VII Model: 1.0 TSI Engine volume: 1.0 Engine type: CHZD, DKRF Year: 05.15-08.20 VW Series: GOLF SPORTSVAN VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKA, CXXA, DDYB Year: 02.14-07.18 VW Series: GOLF SPORTSVAN VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 02.14-11.16 VW Series: GOLF SPORTSVAN VII Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 11.16-08.20 VW Series: Golf Sportsvan VII Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLB/DCYA/DFGA Year: 02.14-08.20 VW Series: Golf Sportsvan VII Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLD/CRVA/DCYB Year: 05.14-11.17 VW Series: GOLF VAN VII Variant Model: 1.6 TDi BlueMotion Engine volume: 1.6 Engine type: CRKB/CXXB Year: 05.13-03.17 VW Series: GOLF VI CABRIOLET Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB Year: 11.13-05.16 VW Series: Golf VII Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CLHA Year: 11.12-03.17 VW Series: Golf VII Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CRKB/CXXB Year: 01.13-03.17 VW Series: GOLF VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 08.12-03.17 VW Series: GOLF VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CRKA/CXXA/DDYB Year: 04.13-07.18 VW Series: Golf VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 01.13-03.17 VW Series: GOLF VII Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA, DGTE Year: 11.16-08.20 VW Series: Golf VII Model: 2.0 GTD Engine volume: 2.0 Engine type: CUNA/DGCA/DJGA Year: 04.13-08.20 VW Series: GOLF VII Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: Samtliga Year: 11.12-08.20 VW Series: Golf VII Model: 2.0 TDI Engine volume: 2.0 Engine type: CRBB/CRVC Year: 08.12-08.20 VW Series: GOLF VII Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 08.12-08.20 VW Series: Golf VII Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 11.12-08.20 VW Series: GOLF VII VAN Model: 1.6 TDi BLUEMOTION Engine volume: 1.6 Engine type: CLHA Year: 08.12-03.17 VW Series: GOLF VII VAN Model: 1.6 TDi BLUEMOTION Engine volume: 1.6 Engine type: CRKB/CXXB Year: 11.13-03.17 VW Series: GOLF VII VAN Model: 2.0 TDi BLUEMOTION Engine volume: 2.0 Engine type: SAMTLIGA Year: 05.13-05.14 VW Series: Golf VII VARIANT Model: 1.6 TDI 4MOTION Engine volume: 1.6 Engine type: CLHA Year: 05.13-03.17 VW Series: GOLF VII Variant Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CRKB, CXXB Year: 05.13-03.17 VW Series: Golf VII Variant Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 05.13-03.17 VW Series: Golf VII VARIANT Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CRKA/CXXA/DDYB Year: 05.13-07.18 VW Series: Golf VII Variant Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.13-03.17 VW Series: GOLF VII VARIANT Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 11.16-08.20 VW Series: GOLF VII VARIANT Model: 2.0 GTD Engine volume: 2.0 Engine type: CUNA/DGCA/DJGA Year: 01.15-07.19 VW Series: Golf VII VARIANT Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA/DFGA Year: 04.13-08.20 VW Series: Golf VII Variant Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 04.13-08.20 VW Series: Golf VII Variant Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 05.13-08.20 VW Series: JETTA IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CLCA/CUUA Year: 10.10-12.17 VW Series: JETTA IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/CVCA/DELA/DGMA Year: 07.14-12.17 VW Series: MULTIVAN T5 Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: MULTIVAN T5 Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: MULTIVAN T5 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15 VW Series: Multivan T5 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CAAE / CCHB Year: 05.10-08.15 VW Series: MULTIVAN T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15 VW Series: Multivan T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Series: MULTIVAN T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC/CCHA Year: 09.09-08.15 VW Series: Multivan T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15 VW Series: Multivan T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: Multivan T6 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CAAC Year: 06.15-12.19 VW Series: Multivan T6 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-12.19 VW Series: MULTIVAN T6 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CXEB, DMZA Year: 06.15-08.24 VW Series: MULTIVAN T6 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CXFA/CXHA/DNAA Year: 08.15-08.24 VW Series: Multivan T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA / CXGA Year: 04.15-07.19 VW Series: Multivan T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB/CXGB Year: 04.15-12.19 VW Series: Multivan T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-12.19 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-12.19 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CXEB, DMZA Year: 06.15-08.24 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CXFA/CXHA/DNAA Year: 04.15-08.24 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CXHB Year: 05.16-08.19 VW Series: PASSAT ALLTRACK B8 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 05.15-11.20 VW Series: PASSAT ALLTRACK B8 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUPA Year: 07.15-05.16 VW Series: PASSAT ALLTRACK B8 V Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CRLB, DFEA, DFGA Year: 05.15-11.17 VW Series: PASSAT ALLTRACK B8 V Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 05.15-03.24 VW Series: PASSAT B6 Model: 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-07.10 VW Series: PASSAT B6 Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-07.10 VW Series: PASSAT B6 Variant Model: 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-11.10 VW Series: PASSAT B6 Variant Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-11.10 VW Series: PASSAT B7 Model: 3.6 FSI 4MOTION Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW Series: PASSAT B7 Variant Model: 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW Series: PASSAT B8 (3G2, CB2) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUPA Year: 07.15-05.16 VW Series: Passat B8 Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA/DCZA Year: 08.14-11.20 VW Series: PASSAT B8 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CRLB/DFEA/DFGA/DTSA Year: 08.14-03.24 VW Series: Passat B8 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 08.14-11.20 VW Series: Passat B8 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: DDAA/DFCA/DFHA Year: 11.14-03.24 VW Series: Passat B8 Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA/DFCA/DFHA Year: 11.14-03.24 VW Series: PASSAT B8 Model: 2.0 TDI Engine volume: 2.0 Engine type: SAMTLIGA Year: 11.14-03.24 VW Series: PASSAT B8 Variant Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA/DCZA Year: 08.14-11.20 VW Series: PASSAT B8 VARIANT Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CRLB/DFEA/DFGA/DTSA Year: 08.14-03.24 VW Series: PASSAT B8 Variant Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 08.14-11.20 VW Series: PASSAT B8 Variant Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 11.14-03.24 VW Series: PASSAT B8 VARIANT Model: 2.0 TDI Engine volume: 2.0 Engine type: CUPA Year: 07.15-05.16 VW Series: PASSAT B8 Variant Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA/DFCA/DFHA Year: 11.14-03.24 VW Series: Passat B8 VARIANT Model: 2.0 TDI Engine volume: 2.0 Engine type: SAMTLIGA Year: 11.14-03.24 VW Series: PASSAT CC B6 Model: 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 02.08-12.11 VW Series: POLO VI Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTC Year: 11.17-07.19 VW Series: POLO VI Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTD Year: 11.17-02.21 VW Series: SCIROCCO III(137/38) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUWA, CUXA Year: 05.14-11.17 VW Series: SCIROCCO III-137/138 Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB Year: 11.13-11.17 VW Series: SHARAN (7N1, 7N2) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFMA Year: 05.16-07.18 VW Series: SHARAN (7N1, 7N2) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFE/CUVA/DFLD/DLTC Year: 05.11-07.19 VW Series: SHARAN (7N1, 7N2) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUWA/DFMA Year: 05.15-07.18 VW Series: SHARAN Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CUVC/DFLA/DLTA Year: 05.15-07.19 VW Series: SHARAN Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC/DFLA/DLTA Year: 05.15-10.20 VW Series: TIGUAN (5N_) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 05.15-07.18 VW Series: TIGUAN (5N_) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZDB Year: 05.15-07.18 VW Series: TIGUAN (5N_) Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CUVC Year: 05.15-07.18 VW Series: Tiguan (5N_) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUWA Year: 05.15-07.18 VW Series: TIGUAN (5N_) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFD/CUVE Year: 05.10-07.18 VW Series: TIGUAN (5N_) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC Year: 05.15-07.18 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 05.16-07.20 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DBGC/DFGA/DTSA/DTSB Year: 01.16-04.24 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFHA Year: 04.16-07.20 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI Engine volume: 2.0 Engine type: DFGA, DTSA, DTSB Year: 01.16-04.24 VW Series: TIGUAN ALLSPACE Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DBGC/DFGA/DTSA/DTSB Year: 06.17- VW Series: TIGUAN ALLSPACE Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFHA Year: 06.17-07.21 VW Series: TIGUAN ALLSPACE Model: 2.0 TDI Engine volume: 2.0 Engine type: DFGA/DTSA/DTSB Year: 06.17- VW Series: TIGUAN Model: 1.6 TDI Engine volume: 1.6 Engine type: DGDB Year: 05.16-06.20 VW Series: TIGUAN Model: 2.0 TDI Engine volume: 2.0 Engine type: CYKC Year: 08.16-07.20 VW Series: TIGUAN Model: 2.0 TDI Engine volume: 2.0 Engine type: DFGC Year: 05.16-07.19 VW Series: TOURAN (5T1) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGDA Year: 05.16-07.19 VW Series: TOURAN (5T1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVA/CYKB/DFEB/DFGB Year: 11.15-07.19 VW Series: TOURAN (5T1) Model: 2.0 TDI Engine volume: 2.0 Engine type: DFEA/DFGA/ DTSB/DXPA Year: 05.15- VW Series: Touran (5T1) Model: 2.0 TDI Engine volume: 2.0 Engine type: DFHA Year: 11.15-07.19 VW Series: TOURAN Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB Year: 05.15-05.16 VW Series: TRANSPORTER T5 Buss Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC/CCHA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Series: TRANSPORTER T5 FLAK Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAE Year: 05.10-08.15 VW Series: TRANSPORTER T5 Skåp Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Skåp Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.0 VW Series: VI Cabriolet (517) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUA Year: 11.13-05.16 1 / 63
-
Beskrivelse
HC-Cargo Generator 14V - 140A, 6gr
Spænding: 14
Amp: 140
Remskive fordeling: 40,00
Bredde/beslag arm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,50
Bæltespændingsjustering beslag hul position: 45
Bæltespændingsjustering beslag hul 1: 8,50
Remskive diameter: 50,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 8
Rotation: CW
Stiknummer: PL181
Samlet længde mm: 195,00
Terminaltype: COM
ID-kode: 25
Kommunikation: LIN
Remskive: SP/FW
Kølevifte: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.Filer
-
Specifikation
B+ M8 Communication LIN Mount. bracket dist. 61.00 Belt. adj. bracket hole 1 8.50 Belt. adj. brackethole pos. 45 Plug no. PL181 Bracket hole 8.50 Position/B+ in min. 8 Pulley SP/FW Pulley dia. 50.00 Pulley dist. 40.00 Radius 90.00 Radius 2 90.00 Regulator type IR Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. Rotation CW Fan IF Grooves/pulley 6 ID Code 25 Terminal type COM Voltage 14 Total length 195.00 mm Width/holder arm 14.00 Amp 140 -
Køretøjsmatchning
-
OEM
F032116717, TG14C067, 03G 903 016B, 03G 903 016E, 03G903016B, 03G903016BX, 03G903016E, 03L 903 024T, 03L903024T, 03L903024TX, 116717 -
Konkurrentreferens
DRA1297, 305.944.140, 12090600 -
Bilmärken
Audi, Seat, Skoda, VW -
NormaliseratArtNr
dra1297, f032116717, tg14c067, 03g903016b, 03g903016bx, 03g903016e, 03l903024t, 03l903024tx, 116717, 12090600, 305944140 -
Passar modeller
Audi Series: A1 (8X1, 8XK) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 11.14-10.18 Audi Series: A3 (8V1, 8VK) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/ CXXB/ DBKA Year: 09.13-12.17 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.13-12.17 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CUNA/DGCA Year: 12.12-12.17 Audi Series: A3 Cabriolet Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA Year: 04.17-10.20 Audi Series: A3 (8V1, 8VK) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 10.12-05.15 Audi Series: A3 (8V1, 8VK) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 02.17-10.20 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRBD/CRLC Year: 05.13-08.16 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFA Year: 01.13-08.16 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFC Year: 09.12-10.20 Audi Series: A3 (8V1, 8VK) Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA Year: 10.12-12.17 Audi Series: A3 Cabriolet Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB Year: 02.14-10.20 Audi Series: A3 Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLB/DCYA Year: 10.13-10.20 Audi Series: A3 Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLC Year: 10.13-07.16 Audi Series: A3 Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-07.16 Audi Series: A3 Cabriolet Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CRLB/DCYA Year: 03.14-10.20 Audi Series: A3 Cabriolet Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-10.20 Audi Series: A3 Limousine Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 09.13-05.15 Audi Series: A3 Limousine Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.14-10.20 Audi Series: A3 Limousine Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA Year: 03.17-10.20 Audi Series: A3 Limousine Model: 1.6 TDI quattro Engine volume: 1.6 Engine type: CXXB Year: 05.15-08.16 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CRBD/CRLC Year: 09.13-08.16 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFA/DEJB Year: 05.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CRFC Year: 10.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-07.18 Audi Series: A3 Limousine Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 05.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA Year: 10.13-10.20 Audi Series: A3 Limousine Model: 2.0 TDI quattro Engine volume: 2.0 Engine type: CUNA/DGCA Year: 05.14-07.18 Seat Series: ALHAMBRA (710, 711) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFE,CUVA,DFLD,DLTC Year: 05.11-12.22 Seat Series: ALHAMBRA Model: 2.0 TDI 4DRIVE Engine volume: 2.0 Engine type: DFMA Year: 05.16-08.18 Seat Series: ALHAMBRA Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC/DFLA/DLTA Year: 05.15-12.22 Seat Series: ALHAMBRA Model: 2.0 TDI Engine volume: 2.0 Engine type: CUWA/DFMA Year: 05.15-08.18 Seat Series: ARONA (KJ7, KJP) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTA Year: 07.17- Seat Series: Arona Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTD Year: 11.17- Seat Series: ATECA (KH7, KHP) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 04.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: DFFA/DTTC Year: 04.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: DFHA Year: 06.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVA Year: 10.16- Seat Series: ATECA (KH7, KHP) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 10.16- Seat Series: ATECA Model: 2.0 TDI Engine volume: 2.0 Engine type: DFFA/DTTA/DTTC/DXRB Year: 04.16- Seat Series: IBIZA V (KJ1, KJG) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTA Year: 12.17- Seat Series: IBIZA V (KJ1, KJG) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTC Year: 11.17- Seat Series: IBIZA V (KJ1, KJG) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTD Year: 09.17- Seat Series: Leon (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 09.12-08.20 Seat Series: Leon (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/ CXXA/DDYB Year: 11.12-08.18 Seat Series: Leon (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 09.13-08.20 Seat Series: LEON (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/ DGTE Year: 11.16-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFC/CRMB/DFFA Year: 10.12-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLD/CRVA Year: 05.13-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 05.13-08.20 Seat Series: Leon (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUPA / CUNA / DJGA Year: 09.12-08.20 Seat Series: Leon SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 02.13-08.18 Seat Series: Leon SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/ CXXA/DDYB Year: 02.13-08.18 Seat Series: Leon SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 09.13-11.16 Seat Series: LEON SC (5F5) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA Year: 11.16-08.18 Seat Series: Leon SC (5F5) Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFC/ CRMB Year: 02.13-08.18 Seat Series: Leon SC (5F5) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 05.13-08.18 Seat Series: Leon SC (5F5) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/CUPA Year: 03.13-08.18 Seat Series: LEON Skåp (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 09.12-10.16 Seat Series: LEON Skåp (5F1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB Year: 11.12-10.16 Seat Series: LEON Skåp (5F1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFC/ CRMB Year: 10.12-08.18 Seat Series: Leon ST (5F8) Model: 1.6 TDI 4Drive Engine volume: 1.6 Engine type: CLHA Year: 04.14-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI 4Drive Engine volume: 1.6 Engine type: CXXB Year: 11.14-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 10.13-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/ CXXA/ DDYB Year: 11.13-08.18 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 09.13-08.20 Seat Series: Leon ST (5F8) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 11.16-08.20 Seat Series: Leon ST (5F8) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CUNA/DJGA Year: 11.14-08.18 Seat Series: Leon ST (5F8) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: Samtliga Year: 04.14-08.20 Seat Series: Leon ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLD/ CRVA Year: 02.13-12.16 Seat Series: Leon ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVC Year: 10.13-08.18 Seat Series: Leon ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUNA/ CUPA/DJGA Year: 08.13-08.20 Seat Series: LEON ST (5F8) Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 10.13-08.20 Seat Series: TOLEDO IV (KG3) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-04.19 Skoda Series: KAROQ (NU7, ND7) Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 07.17- Skoda Series: KAROQ (NU7, ND7) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DFFA, DTTC, DXRB Year: 07.17- Skoda Series: KODIAQ I (NS6/7,NV7) Model: 1.4 TSI 4x4 Engine volume: 1.4 Engine type: CZDA/CZEA Year: 10.16- Skoda Series: KODIAQ I (NS6/7,NV7) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZCA/CZDB Year: 10.16- Skoda Series: KODIAQ I (NS6/S7/V7) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DBGC/DFGA/DTSB Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DFHA Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TDI Engine volume: 2.0 Engine type: DBGC/DFGA/DTSB Year: 10.16- Skoda Series: KODIAQ I Model: 2.0 TSI 4x4 Engine volume: 2.0 Engine type: CZPA Year: 10.16- Skoda Series: Octavia III Combi Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CLHA Year: 11.12-05.15 Skoda Series: OCTAVIA III Combi Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CRKB, CXXB, DBKA Year: 05.15-02.17 Skoda Series: OCTAVIA III Combi Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 11.12-05.15 Skoda Series: Octavia III Combi Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CXXA/DDYB Year: 11.12-10.20 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI / TDI RS 4x4 Engine volume: 2.0 Engine type: CUNA/CUPA/DJGA Year: 05.13-10.20 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CKFC/CRMB/DCYA/DFFA Year: 11.12-10.20 Skoda Series: Octavia III Combi Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFB/ CRVC Year: 11.12-02.17 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 11.12-10.20 Skoda Series: OCTAVIA III Combi Model: 2.0 TDI RS Engine volume: 2.0 Engine type: CUNA/CUPA/DJGA Year: 05.13-10.20 Skoda Series: OCTAVIA III Kombi Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.13-02.17 Skoda Series: OCTAVIA III Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CLHA Year: 05.13-05.15 Skoda Series: OCTAVIA III Model: 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CRKB/CXXB Year: 05.15-02.17 Skoda Series: OCTAVIA III Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 11.12-05.15 Skoda Series: OCTAVIA III Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CXXA/DDYB Year: 11.12-10.20 Skoda Series: OCTAVIA III Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.13-02.17 Skoda Series: OCTAVIA III Model: 2.0 TDI / TDI RS 4x4 Engine volume: 2.0 Engine type: CUNA, CUPA, DJGA Year: 05.13-10.20 Skoda Series: OCTAVIA III Model: 2.0 TDI 4X4 Engine volume: 2.0 Engine type: CKFC/CRMB/DCYA/DFFA Year: 05.13-10.20 Skoda Series: Octavia III Model: 2.0 TDI Engine volume: 2.0 Engine type: CKFB/CRVC Year: 11.12-02.17 Skoda Series: OCTAVIA III Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 11.12-10.20 Skoda Series: OCTAVIA III Model: 2.0 TDI RS Engine volume: 2.0 Engine type: CUNA, CUPA, DJGA Year: 05.13-10.20 Skoda Series: RAPID (NH3, NK3,NK6) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19 Skoda Series: RAPID Spaceback(NH1) Model: 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19 Skoda Series: SUPERB III (3V3) Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA, DCZA Year: 03.15-06.24 Skoda Series: SUPERB III (3V3) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CRLB, DFEA, DFGA Year: 03.15-06.24 Skoda Series: SUPERB III (3V3) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: Superb III (3V3) Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: SUPERB III (3V3) Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 03.15-06.24 Skoda Series: SUPERB III Komb(3V5) Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA, DCZA Year: 03.15-06.24 Skoda Series: SUPERB III Komb(3V5) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: SUPERB III Komb(3V5) Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 03.15-06.24 Skoda Series: Superb III Kombi Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CRLB, DFEA, DFGA Year: 03.15-06.24 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBDB/CFHC/CLCB Year: 05.09-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CEGA/CFJA Year: 11.09-05.15 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CFHF/DFSA/CUUA Year: 11.09-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFHA/CLCA/DFSA/CUUA Year: 11.09-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFHC/CLCB Year: 11.11-12.17 Skoda Series: Yeti (5L) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-12.17 VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 09.11-07.19 VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CNEA, CSHA Year: 05.12-10.16 VW Series: AMAROK Flak/chassi Model: 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16 VW Series: AMAROK Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 11.11-05.22 VW Series: AMAROK Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CDBA/CNFA Year: 09.10-10.13 VW Series: AMAROK Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CNFB Year: 06.12-05.22 VW Series: AMAROK Model: 2.0 TDI Engine volume: 2.0 Engine type: CDBA/CNFA Year: 09.10-10.13 VW Series: AMAROK Model: 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 07.12-05.22 VW Series: ARTEON Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 03.17-07.20 VW Series: ARTEON Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFHA Year: 05.17-06.20 VW Series: ARTEON Model: 2.0 TDI Engine volume: 2.0 Engine type: DFHA Year: 05.17-06.20 VW Series: ARTEON Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 03.17- VW Series: BEETLE Cabriolet Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUA Year: 06.14-09.18 VW Series: BEETLE CABRIOLET Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB, CVCA, DELA Year: 09.14-09.18 VW Series: BEETLE Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUA Year: 06.14-09.18 VW Series: BEETLE Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/ CVCA/ DELA Year: 07.14-09.18 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUUE/DFSE Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSB Year: 11.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB, DFSB Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUD/DFSD Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/DFSC/DFSF Year: 05.15-09.20 VW Series: CADDY ALLTRACK IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/DFSF Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUUE/DFSE Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSB Year: 11.15-09.20 VW Series: CADDY IV Minibus Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUD/DFSD Year: 05.15-09.20 VW Series: Caddy IV Minibus Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/ DFSF Year: 05.15-09.20 VW Series: CADDY IV SKÅP Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CUUE/DFSE Year: 05.15-09.20 VW Series: CADDY IV Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSB Year: 11.15-09.20 VW Series: CADDY IV Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFSC Year: 11.15-07.19 VW Series: CADDY IV SKÅP Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/DFSB Year: 05.15-09.20 VW Series: CADDY IV SKÅP Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUD/DFSD Year: 05.15-09.20 VW Series: CADDY IV Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUF/DFSC/DFSF Year: 05.15-09.20 VW Series: CC B7 Model: 2.0 TD Engine volume: 2.0 Engine type: CUWA Year: 05.15-12.16 VW Series: CC B7 Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC Year: 05.15-12.16 VW Series: CC B7 Model: 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 11.11-12.16 VW Series: CRAFTER 30-35 Buss Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CKUB/CSNA Year: 11.11-12.16 VW Series: CRAFTER 30-35 BUSS Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16 VW Series: CRAFTER 30-50 Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CKUB/CSNA Year: 11.11-12.16 VW Series: CRAFTER 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16 VW Series: CRAFTER 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLC Year: 11.15-12.16 VW Series: CRAFTER 30-50 SKÅP Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 07.11-12.16 VW Series: CRAFTER 30-50 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16 VW Series: CRAFTER 30-50 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLB Year: 11.13-12.16 VW Series: CRAFTER 30-50 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CSLC Year: 11.15-12.16 VW Series: CRAFTER Buss Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUA/DNAE Year: 09.16- VW Series: CRAFTER Buss Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUB/DNAD Year: 10.16-06.24 VW Series: CRAFTER Buss Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAVA/DMZB Year: 09.16- VW Series: CRAFTER Flak/chassi Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUA/DMZE/DNAE Year: 11.16- VW Series: CRAFTER Flak/chassi Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUB/DNAD Year: 11.16-06.24 VW Series: CRAFTER Flak/chassi Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAVA/DMZB Year: 11.16- VW Series: CRAFTER Flak/chassi Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DASA Year: 08.17-12.21 VW Series: CRAFTER Flak/chassi Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DAWA Year: 07.17-06.24 VW Series: CRAFTER Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DAUA/DMZE/DNAE Year: 04.17- VW Series: CRAFTER Skåp Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DAVA/DMZB Year: 03.17- VW Series: CRAFTER Skåp Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUA/DMZE/DNAE Year: 09.16- VW Series: CRAFTER Skåp Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAUB/DNAD Year: 09.16-06.24 VW Series: CRAFTER Skåp Model: 2.0 TDI FWD Engine volume: 2.0 Engine type: DAVA/DMZB Year: 09.16- VW Series: CRAFTER Skåp Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DASA Year: 08.17-12.21 VW Series: CRAFTER Skåp Model: 2.0 TDI RWD Engine volume: 2.0 Engine type: DAWA Year: 05.17-06.24 VW Series: CRAFTER30-35 BUSS Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUC Year: 10.11-12.16 VW Series: GOLF ALLTRACK VII Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CRKB/CXXB Year: 12.14-03.17 VW Series: GOLF ALLTRACK VII Va Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA/ DFGA Year: 12.14-08.20 VW Series: GOLF ALLTRACK VII Va Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUNA/DGCA/DJGA Year: 12.14-08.20 VW Series: GOLF SPORTSVAN VII Model: 1.0 TSI Engine volume: 1.0 Engine type: CHZD, DKRF Year: 05.15-08.20 VW Series: GOLF SPORTSVAN VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKA, CXXA, DDYB Year: 02.14-07.18 VW Series: GOLF SPORTSVAN VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 02.14-11.16 VW Series: GOLF SPORTSVAN VII Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 11.16-08.20 VW Series: Golf Sportsvan VII Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLB/DCYA/DFGA Year: 02.14-08.20 VW Series: Golf Sportsvan VII Model: 2.0 TDI Engine volume: 2.0 Engine type: CRLD/CRVA/DCYB Year: 05.14-11.17 VW Series: GOLF VAN VII Variant Model: 1.6 TDi BlueMotion Engine volume: 1.6 Engine type: CRKB/CXXB Year: 05.13-03.17 VW Series: GOLF VI CABRIOLET Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB Year: 11.13-05.16 VW Series: Golf VII Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CLHA Year: 11.12-03.17 VW Series: Golf VII Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CRKB/CXXB Year: 01.13-03.17 VW Series: GOLF VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 08.12-03.17 VW Series: GOLF VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CRKA/CXXA/DDYB Year: 04.13-07.18 VW Series: Golf VII Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 01.13-03.17 VW Series: GOLF VII Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA, DGTE Year: 11.16-08.20 VW Series: Golf VII Model: 2.0 GTD Engine volume: 2.0 Engine type: CUNA/DGCA/DJGA Year: 04.13-08.20 VW Series: GOLF VII Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: Samtliga Year: 11.12-08.20 VW Series: Golf VII Model: 2.0 TDI Engine volume: 2.0 Engine type: CRBB/CRVC Year: 08.12-08.20 VW Series: GOLF VII Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 08.12-08.20 VW Series: Golf VII Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 11.12-08.20 VW Series: GOLF VII VAN Model: 1.6 TDi BLUEMOTION Engine volume: 1.6 Engine type: CLHA Year: 08.12-03.17 VW Series: GOLF VII VAN Model: 1.6 TDi BLUEMOTION Engine volume: 1.6 Engine type: CRKB/CXXB Year: 11.13-03.17 VW Series: GOLF VII VAN Model: 2.0 TDi BLUEMOTION Engine volume: 2.0 Engine type: SAMTLIGA Year: 05.13-05.14 VW Series: Golf VII VARIANT Model: 1.6 TDI 4MOTION Engine volume: 1.6 Engine type: CLHA Year: 05.13-03.17 VW Series: GOLF VII Variant Model: 1.6 TDI 4motion Engine volume: 1.6 Engine type: CRKB, CXXB Year: 05.13-03.17 VW Series: Golf VII Variant Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHA Year: 05.13-03.17 VW Series: Golf VII VARIANT Model: 1.6 TDI Engine volume: 1.6 Engine type: CLHB/CRKA/CXXA/DDYB Year: 05.13-07.18 VW Series: Golf VII Variant Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB/CXXB/DBKA Year: 05.13-03.17 VW Series: GOLF VII VARIANT Model: 1.6 TDI Engine volume: 1.6 Engine type: DDYA/DGTE Year: 11.16-08.20 VW Series: GOLF VII VARIANT Model: 2.0 GTD Engine volume: 2.0 Engine type: CUNA/DGCA/DJGA Year: 01.15-07.19 VW Series: Golf VII VARIANT Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CRBC/CRLB/DCYA/DFGA Year: 04.13-08.20 VW Series: Golf VII Variant Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 04.13-08.20 VW Series: Golf VII Variant Model: 2.0 TDI Engine volume: 2.0 Engine type: Samtliga Year: 05.13-08.20 VW Series: JETTA IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CLCA/CUUA Year: 10.10-12.17 VW Series: JETTA IV Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB/CVCA/DELA/DGMA Year: 07.14-12.17 VW Series: MULTIVAN T5 Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: MULTIVAN T5 Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: MULTIVAN T5 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC, CCHA Year: 09.09-08.15 VW Series: Multivan T5 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CAAE / CCHB Year: 05.10-08.15 VW Series: MULTIVAN T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15 VW Series: Multivan T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Series: MULTIVAN T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC/CCHA Year: 09.09-08.15 VW Series: Multivan T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15 VW Series: Multivan T5 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: Multivan T6 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CAAC Year: 06.15-12.19 VW Series: Multivan T6 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 06.15-12.19 VW Series: MULTIVAN T6 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CXEB, DMZA Year: 06.15-08.24 VW Series: MULTIVAN T6 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CXFA/CXHA/DNAA Year: 08.15-08.24 VW Series: Multivan T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA / CXGA Year: 04.15-07.19 VW Series: Multivan T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB/CXGB Year: 04.15-12.19 VW Series: Multivan T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAC Year: 04.15-12.19 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CFCA Year: 04.15-12.19 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CXEB, DMZA Year: 06.15-08.24 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CXFA/CXHA/DNAA Year: 04.15-08.24 VW Series: MULTIVAN T6 Model: 2.0 TDI Engine volume: 2.0 Engine type: CXHB Year: 05.16-08.19 VW Series: PASSAT ALLTRACK B8 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 05.15-11.20 VW Series: PASSAT ALLTRACK B8 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUPA Year: 07.15-05.16 VW Series: PASSAT ALLTRACK B8 V Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CRLB, DFEA, DFGA Year: 05.15-11.17 VW Series: PASSAT ALLTRACK B8 V Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 05.15-03.24 VW Series: PASSAT B6 Model: 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-07.10 VW Series: PASSAT B6 Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-07.10 VW Series: PASSAT B6 Variant Model: 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-11.10 VW Series: PASSAT B6 Variant Model: 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-11.10 VW Series: PASSAT B7 Model: 3.6 FSI 4MOTION Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW Series: PASSAT B7 Variant Model: 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW Series: PASSAT B8 (3G2, CB2) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUPA Year: 07.15-05.16 VW Series: Passat B8 Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA/DCZA Year: 08.14-11.20 VW Series: PASSAT B8 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CRLB/DFEA/DFGA/DTSA Year: 08.14-03.24 VW Series: Passat B8 Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 08.14-11.20 VW Series: Passat B8 Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: DDAA/DFCA/DFHA Year: 11.14-03.24 VW Series: Passat B8 Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA/DFCA/DFHA Year: 11.14-03.24 VW Series: PASSAT B8 Model: 2.0 TDI Engine volume: 2.0 Engine type: SAMTLIGA Year: 11.14-03.24 VW Series: PASSAT B8 Variant Model: 1.6 TDI Engine volume: 1.6 Engine type: DCXA/DCZA Year: 08.14-11.20 VW Series: PASSAT B8 VARIANT Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CRLB/DFEA/DFGA/DTSA Year: 08.14-03.24 VW Series: PASSAT B8 Variant Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 08.14-11.20 VW Series: PASSAT B8 Variant Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DDAA, DFCA, DFHA Year: 11.14-03.24 VW Series: PASSAT B8 VARIANT Model: 2.0 TDI Engine volume: 2.0 Engine type: CUPA Year: 07.15-05.16 VW Series: PASSAT B8 Variant Model: 2.0 TDI Engine volume: 2.0 Engine type: DDAA/DFCA/DFHA Year: 11.14-03.24 VW Series: Passat B8 VARIANT Model: 2.0 TDI Engine volume: 2.0 Engine type: SAMTLIGA Year: 11.14-03.24 VW Series: PASSAT CC B6 Model: 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 02.08-12.11 VW Series: POLO VI Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTC Year: 11.17-07.19 VW Series: POLO VI Model: 1.6 TDI Engine volume: 1.6 Engine type: DGTD Year: 11.17-02.21 VW Series: SCIROCCO III(137/38) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUWA, CUXA Year: 05.14-11.17 VW Series: SCIROCCO III-137/138 Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUB Year: 11.13-11.17 VW Series: SHARAN (7N1, 7N2) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFMA Year: 05.16-07.18 VW Series: SHARAN (7N1, 7N2) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFE/CUVA/DFLD/DLTC Year: 05.11-07.19 VW Series: SHARAN (7N1, 7N2) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUWA/DFMA Year: 05.15-07.18 VW Series: SHARAN Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CUVC/DFLA/DLTA Year: 05.15-07.19 VW Series: SHARAN Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC/DFLA/DLTA Year: 05.15-10.20 VW Series: TIGUAN (5N_) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 05.15-07.18 VW Series: TIGUAN (5N_) Model: 1.4 TSI Engine volume: 1.4 Engine type: CZDB Year: 05.15-07.18 VW Series: TIGUAN (5N_) Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CUVC Year: 05.15-07.18 VW Series: Tiguan (5N_) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUWA Year: 05.15-07.18 VW Series: TIGUAN (5N_) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFD/CUVE Year: 05.10-07.18 VW Series: TIGUAN (5N_) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUVC Year: 05.15-07.18 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUAA Year: 05.16-07.20 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DBGC/DFGA/DTSA/DTSB Year: 01.16-04.24 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFHA Year: 04.16-07.20 VW Series: TIGUAN (AD1, AX1) Model: 2.0 TDI Engine volume: 2.0 Engine type: DFGA, DTSA, DTSB Year: 01.16-04.24 VW Series: TIGUAN ALLSPACE Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DBGC/DFGA/DTSA/DTSB Year: 06.17- VW Series: TIGUAN ALLSPACE Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: DFHA Year: 06.17-07.21 VW Series: TIGUAN ALLSPACE Model: 2.0 TDI Engine volume: 2.0 Engine type: DFGA/DTSA/DTSB Year: 06.17- VW Series: TIGUAN Model: 1.6 TDI Engine volume: 1.6 Engine type: DGDB Year: 05.16-06.20 VW Series: TIGUAN Model: 2.0 TDI Engine volume: 2.0 Engine type: CYKC Year: 08.16-07.20 VW Series: TIGUAN Model: 2.0 TDI Engine volume: 2.0 Engine type: DFGC Year: 05.16-07.19 VW Series: TOURAN (5T1) Model: 1.6 TDI Engine volume: 1.6 Engine type: DGDA Year: 05.16-07.19 VW Series: TOURAN (5T1) Model: 2.0 TDI Engine volume: 2.0 Engine type: CRVA/CYKB/DFEB/DFGB Year: 11.15-07.19 VW Series: TOURAN (5T1) Model: 2.0 TDI Engine volume: 2.0 Engine type: DFEA/DFGA/ DTSB/DXPA Year: 05.15- VW Series: Touran (5T1) Model: 2.0 TDI Engine volume: 2.0 Engine type: DFHA Year: 11.15-07.19 VW Series: TOURAN Model: 1.6 TDI Engine volume: 1.6 Engine type: CRKB Year: 05.15-05.16 VW Series: TRANSPORTER T5 Buss Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15 VW Series: TRANSPORTER T5 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAC/CCHA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CAAE/CCHB Year: 05.10-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAB Year: 09.09-08.15 VW Series: TRANSPORTER T5 FLAK Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAD Year: 05.11-08.15 VW Series: TRANSPORTER T5 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAE Year: 05.10-08.15 VW Series: TRANSPORTER T5 Skåp Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Skåp Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CFCA Year: 09.09-08.15 VW Series: TRANSPORTER T5 Skåp Model: 2.0 TDI Engine volume: 2.0 Engine type: CAAA Year: 09.0 VW Series: VI Cabriolet (517) Model: 2.0 TDI Engine volume: 2.0 Engine type: CUUA Year: 11.13-05.16 1 / 63
-
