HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116718

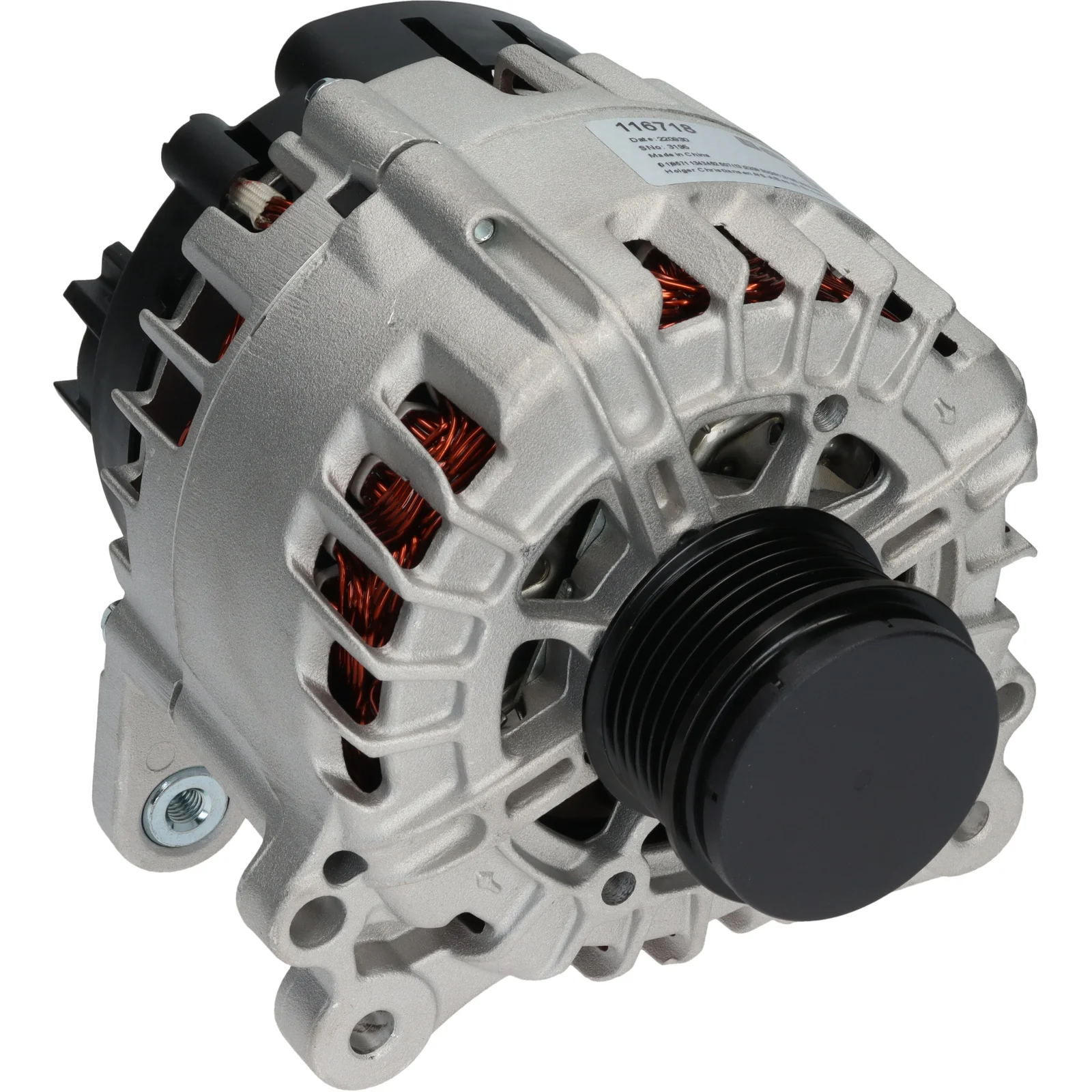

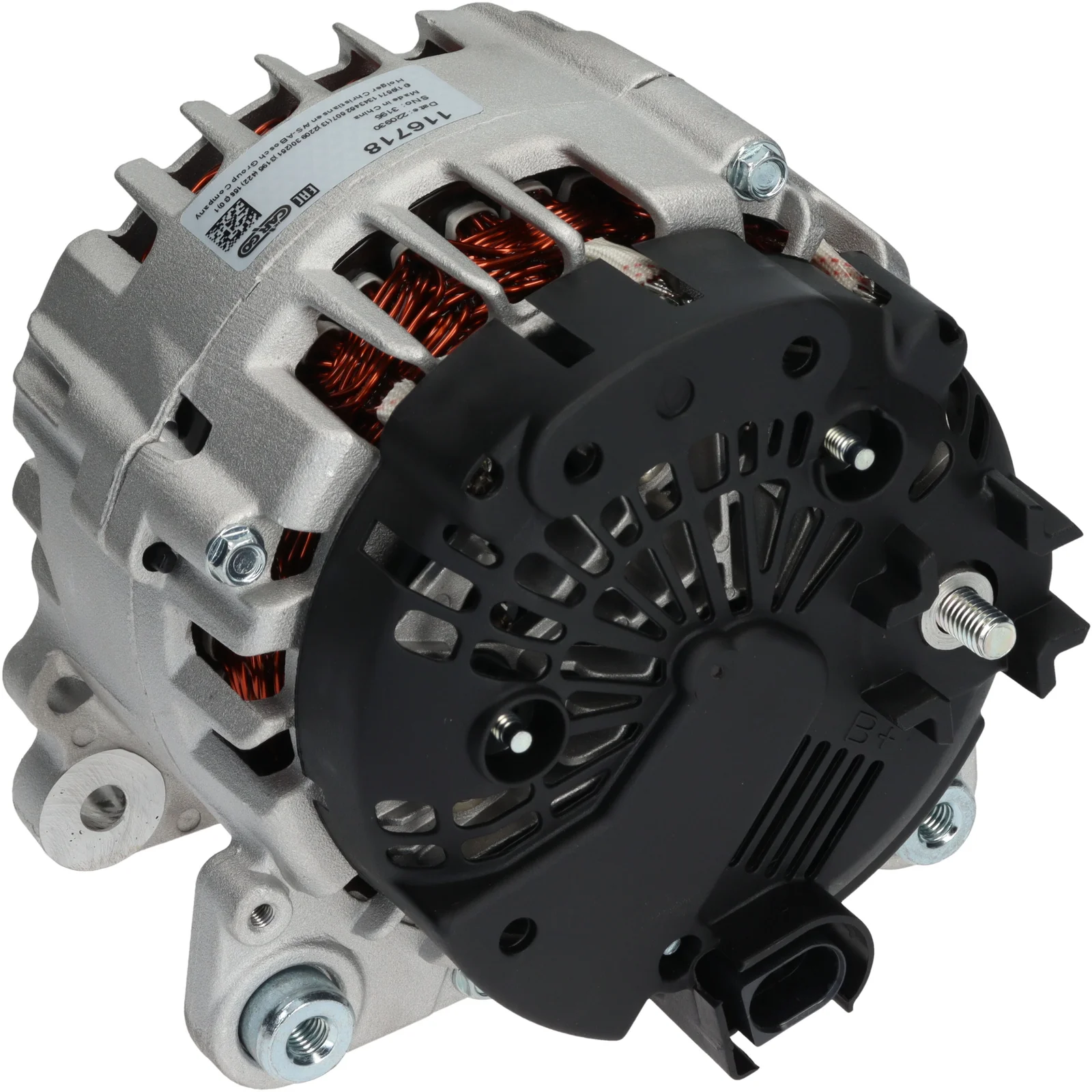

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag forfordelingsdæksel: 61,00

Beskrivelse

HC-Cargo Generator 14V - 180A, 6gr

Spændingsforsyning: 14
Amp: 180
Remskive afstand: 30,00
Bredde/holder arm: 14,00
Montagebeslag afstand: 61,00
Bøsning til beslag: 8,50
Kileremjustering beslagbøsning position: 45
Kileremjustering beslagbøsning 1: 8,50
Remskive dia.: 56,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 6
Rotation: CW
Stik nr.: PL181
Total længde mm: 187,00
Terminaltype: COM
ID-kode: 73
Kommunikation: LIN
Remskive: SP/FW
Ventilator: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 6
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 73
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 14.00
Amp 180

  • OEM
    F032116718, FG18T163, FG18T180, 059 903 023S, 059 903 023T, 116718, 2714247, 2714247B, 2714247C, 059903023S, 059903023T, 059903023TX

  • Konkurrentreferens
    CAL15026, DRA2057, LRA04157, 28-7766, 305.308.180, 305.974.180, 20829-OS, 40193, 440826, 443018, 554567RIV, 12090830, 12090831, 89215510

  • Bilmärken
    VW

  • NormaliseratArtNr
    cal15026, dra2057, f032116718, fg18t163, fg18t180, lra04157, 20829os, 40193, 116718, 287766, 440826, 443018, 554567riv, 2714247, 2714247b, 2714247c, 12090830, 12090831, 059903023s, 059903023t, 059903023tx, 89215510, 305308180, 305974180

  • Passar modeller
    VW Model: Amarok Model series: Amarok Model type: 4 Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXC Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXB Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4Motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXB Type description: S1B, S6B, S7B Body: Box Body / Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXE Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-05-2018 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXE Type description: S1B Body: Platform / Chassis From date: 01-05-2018 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pickup From date: 01-06-2016 To date: 01-08-2019 Fuel: Diesel Approved: Yes
    VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
    VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-05.22
    VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
    VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
    VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXC/DDXD Year: 06.16-05.22
    VW Series: Amarok Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-
    VW Series: AMAROK Model: 3.0 TDI Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
    1 / 3
  • Beskrivelse
    HC-Cargo Generator 14V - 180A, 6gr

    Spændingsforsyning: 14
    Amp: 180
    Remskive afstand: 30,00
    Bredde/holder arm: 14,00
    Montagebeslag afstand: 61,00
    Bøsning til beslag: 8,50
    Kileremjustering beslagbøsning position: 45
    Kileremjustering beslagbøsning 1: 8,50
    Remskive dia.: 56,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 6
    Rotation: CW
    Stik nr.: PL181
    Total længde mm: 187,00
    Terminaltype: COM
    ID-kode: 73
    Kommunikation: LIN
    Remskive: SP/FW
    Ventilator: IF
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 6
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 73
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 14.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032116718, FG18T163, FG18T180, 059 903 023S, 059 903 023T, 116718, 2714247, 2714247B, 2714247C, 059903023S, 059903023T, 059903023TX

    • Konkurrentreferens
      CAL15026, DRA2057, LRA04157, 28-7766, 305.308.180, 305.974.180, 20829-OS, 40193, 440826, 443018, 554567RIV, 12090830, 12090831, 89215510

    • Bilmärken
      VW

    • NormaliseratArtNr
      cal15026, dra2057, f032116718, fg18t163, fg18t180, lra04157, 20829os, 40193, 116718, 287766, 440826, 443018, 554567riv, 2714247, 2714247b, 2714247c, 12090830, 12090831, 059903023s, 059903023t, 059903023tx, 89215510, 305308180, 305974180

    • Passar modeller
      VW Model: Amarok Model series: Amarok Model type: 4 Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXC Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXB Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4Motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXB Type description: S1B, S6B, S7B Body: Box Body / Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXE Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-05-2018 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXE Type description: S1B Body: Platform / Chassis From date: 01-05-2018 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pickup From date: 01-06-2016 To date: 01-08-2019 Fuel: Diesel Approved: Yes
      VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
      VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-05.22
      VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
      VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
      VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXC/DDXD Year: 06.16-05.22
      VW Series: Amarok Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-
      VW Series: AMAROK Model: 3.0 TDI Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
