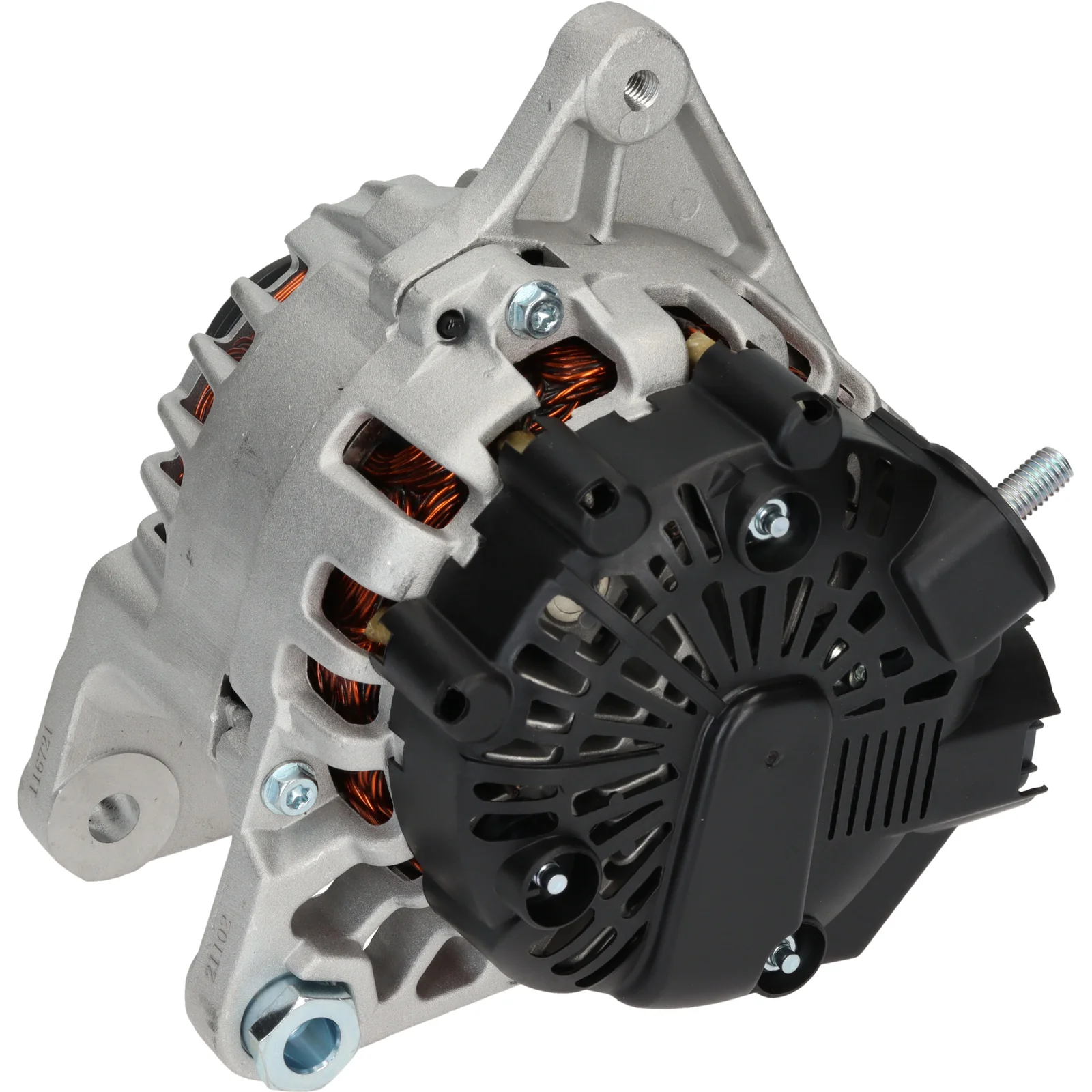

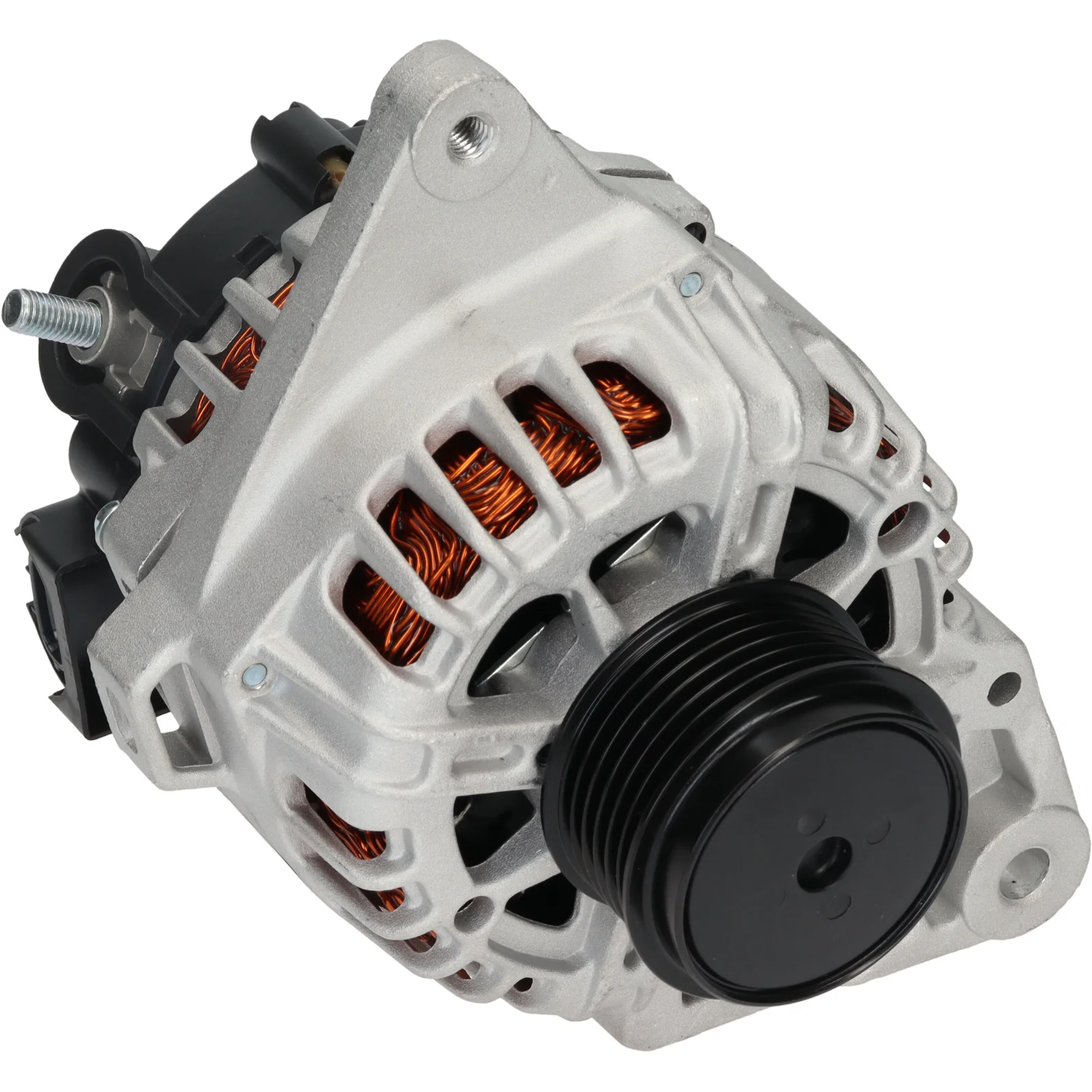

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116721

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Mount. bøjle fordeler: 58,00

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 21,00
Bredde/holderarm: 14,50
Monteringsbeslag dist.: 58,00
Beslagshul: 10,50
Bæltejuster. beslagshul pos.: 7
Bæltejuster. beslagshul 1: M8
Remskive dia.: 58,00
Groove/rimske: 6
Radius: 90,00
Radius 2: 93,00
B+: M8
Position/B+ i min.: 2
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL176
Samlet længde mm: 177,00
Lygte type: Inaktiv
Remskive: SP/FW
Blæser: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 58.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL176
Bracket hole 10.50
Position/B+ in min. 2
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 21.00
Radius 90.00
D+ Size Plug
Radius 2 93.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Inactive
Voltage 14
Total length 177.00 mm
Width/holder arm 14.50
Amp 120

  • OEM
    F032116721, 37300-2E300, 2610819, 52092133

  • Konkurrentreferens
    A3553S, CAL32181, DRA1191, 28-7559, 255.520.120, 0986UR6086, 11611R, 40208, 209005, 209005A, 443238, 554759RIV, 12061200, 89216361, 0986085190

  • NormaliseratArtNr
    a3553s, cal32181, dra1191, f032116721, 0986ur6086, 11611r, 40208, 209005, 209005a, 287559, 373002e300, 443238, 554759riv, 2610819, 12061200, 52092133, 89216361, 255520120, 0986085190

  • Passar modeller
    Hyundai (Beijing) Model: Sonata Model series: Sonata Size of motor: 2.0 Type description: YF From date: 01-06-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Hyundai (Beijing) Model: Sonata Model series: Sonata Size of motor: 2.0 Type description: YF From date: 01-12-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: i40 Model series: i40 CW Model type: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF Body: Estate From date: 01-10-2012 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Hyundai Model: i40 Model series: i40 CW Size of motor: 2.0 Brand of engine: G4NC Type description: VF Body: Estate From date: 01-03-2012 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Hyundai Model: I40 Model series: i40 CW Type of engine: CVVT Size of motor: 2.0 Type description: VF Body: Estate From date: 01-10-2012 Fuel: Gasoline Approved: Yes Manufacture type: CW
    Hyundai Model: I40 Model series: i40 CW Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NA Type description: VF Body: Estate From date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: CW
    Hyundai Model: I40 Model series: i40 CW Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC Body: Estate From date: 01-07-2011 Fuel: Gasoline Approved: Yes Manufacture type: CW
    Hyundai Model: i40 Model series: i40 Model type: GDI Size of motor: 2.0 Brand of engine: G4NC Type description: VF Body: Saloon From date: 01-03-2012 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Hyundai Model: i40 Model series: i40 Model type: GDi Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NC Type description: VF Body: Saloon Fuel: Petrol Approved: Yes
    Hyundai Model: i40 Model series: i40 Size of motor: 2.0 Brand of engine: G4NA Type description: VF From date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Hyundai Model: i40 Model series: i40 Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF Body: Estate From date: 01-07-2011 Fuel: Petrol Approved: Yes
    Hyundai Model: i40 Model series: i40 Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF From date: 01-03-2012 Fuel: Petrol Approved: Yes
    Hyundai Model: i40 Model series: i40 Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Hyundai Model: i40 Model series: i40 Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC Type description: LM, EL, ELH From date: 01-08-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: AWD Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: SUV From date: 01-11-2013 Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: Flex Type of engine: Flexfuel Size of motor: 2.0 Type description: LM, EL, ELH From date: 01-09-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: SUV From date: 01-11-2013 Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC Type description: LM, EL, ELH From date: 01-08-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Model type: 4WD Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Model type: Wd Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: Closed Off-Road Vehicle From date: 01-09-2014 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Carens Model series: Carens Model type: GDI Size of motor: 2.0 Brand of engine: G4NC Body: MPV From date: 01-06-2016 Fuel: Petrol Approved: Yes
    Kia Model: Carens Model series: Carens Model type: MPi Size of motor: 2.0 Brand of engine: G4NC Body: MPV From date: 01-03-2013 Fuel: Petrol Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: SL Body: SUV Fuel: Petrol Approved: Yes
    1 / 6
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive dist.: 21,00
    Bredde/holderarm: 14,50
    Monteringsbeslag dist.: 58,00
    Beslagshul: 10,50
    Bæltejuster. beslagshul pos.: 7
    Bæltejuster. beslagshul 1: M8
    Remskive dia.: 58,00
    Groove/rimske: 6
    Radius: 90,00
    Radius 2: 93,00
    B+: M8
    Position/B+ i min.: 2
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL176
    Samlet længde mm: 177,00
    Lygte type: Inaktiv
    Remskive: SP/FW
    Blæser: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 58.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL176
    Bracket hole 10.50
    Position/B+ in min. 2
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 21.00
    Radius 90.00
    D+ Size Plug
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 14.50
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032116721, 37300-2E300, 2610819, 52092133

    • Konkurrentreferens
      A3553S, CAL32181, DRA1191, 28-7559, 255.520.120, 0986UR6086, 11611R, 40208, 209005, 209005A, 443238, 554759RIV, 12061200, 89216361, 0986085190

    • NormaliseratArtNr
      a3553s, cal32181, dra1191, f032116721, 0986ur6086, 11611r, 40208, 209005, 209005a, 287559, 373002e300, 443238, 554759riv, 2610819, 12061200, 52092133, 89216361, 255520120, 0986085190

    • Passar modeller
      Hyundai (Beijing) Model: Sonata Model series: Sonata Size of motor: 2.0 Type description: YF From date: 01-06-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Hyundai (Beijing) Model: Sonata Model series: Sonata Size of motor: 2.0 Type description: YF From date: 01-12-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: i40 Model series: i40 CW Model type: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF Body: Estate From date: 01-10-2012 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Hyundai Model: i40 Model series: i40 CW Size of motor: 2.0 Brand of engine: G4NC Type description: VF Body: Estate From date: 01-03-2012 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Hyundai Model: I40 Model series: i40 CW Type of engine: CVVT Size of motor: 2.0 Type description: VF Body: Estate From date: 01-10-2012 Fuel: Gasoline Approved: Yes Manufacture type: CW
      Hyundai Model: I40 Model series: i40 CW Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NA Type description: VF Body: Estate From date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: CW
      Hyundai Model: I40 Model series: i40 CW Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC Body: Estate From date: 01-07-2011 Fuel: Gasoline Approved: Yes Manufacture type: CW
      Hyundai Model: i40 Model series: i40 Model type: GDI Size of motor: 2.0 Brand of engine: G4NC Type description: VF Body: Saloon From date: 01-03-2012 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Hyundai Model: i40 Model series: i40 Model type: GDi Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NC Type description: VF Body: Saloon Fuel: Petrol Approved: Yes
      Hyundai Model: i40 Model series: i40 Size of motor: 2.0 Brand of engine: G4NA Type description: VF From date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Hyundai Model: i40 Model series: i40 Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF Body: Estate From date: 01-07-2011 Fuel: Petrol Approved: Yes
      Hyundai Model: i40 Model series: i40 Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF From date: 01-03-2012 Fuel: Petrol Approved: Yes
      Hyundai Model: i40 Model series: i40 Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: VF From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Hyundai Model: i40 Model series: i40 Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC From date: 01-03-2012 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC Type description: LM, EL, ELH From date: 01-08-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: AWD Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: SUV From date: 01-11-2013 Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: Flex Type of engine: Flexfuel Size of motor: 2.0 Type description: LM, EL, ELH From date: 01-09-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: SUV From date: 01-11-2013 Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: GDi Size of motor: 2.0 Brand of engine: G4NC Type description: LM, EL, ELH From date: 01-08-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Model type: 4WD Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Model type: Wd Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH Body: Closed Off-Road Vehicle From date: 01-09-2014 To date: 01-12-2015 Fuel: Petrol Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Carens Model series: Carens Model type: GDI Size of motor: 2.0 Brand of engine: G4NC Body: MPV From date: 01-06-2016 Fuel: Petrol Approved: Yes
      Kia Model: Carens Model series: Carens Model type: MPi Size of motor: 2.0 Brand of engine: G4NC Body: MPV From date: 01-03-2013 Fuel: Petrol Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: SL Body: SUV Fuel: Petrol Approved: Yes
