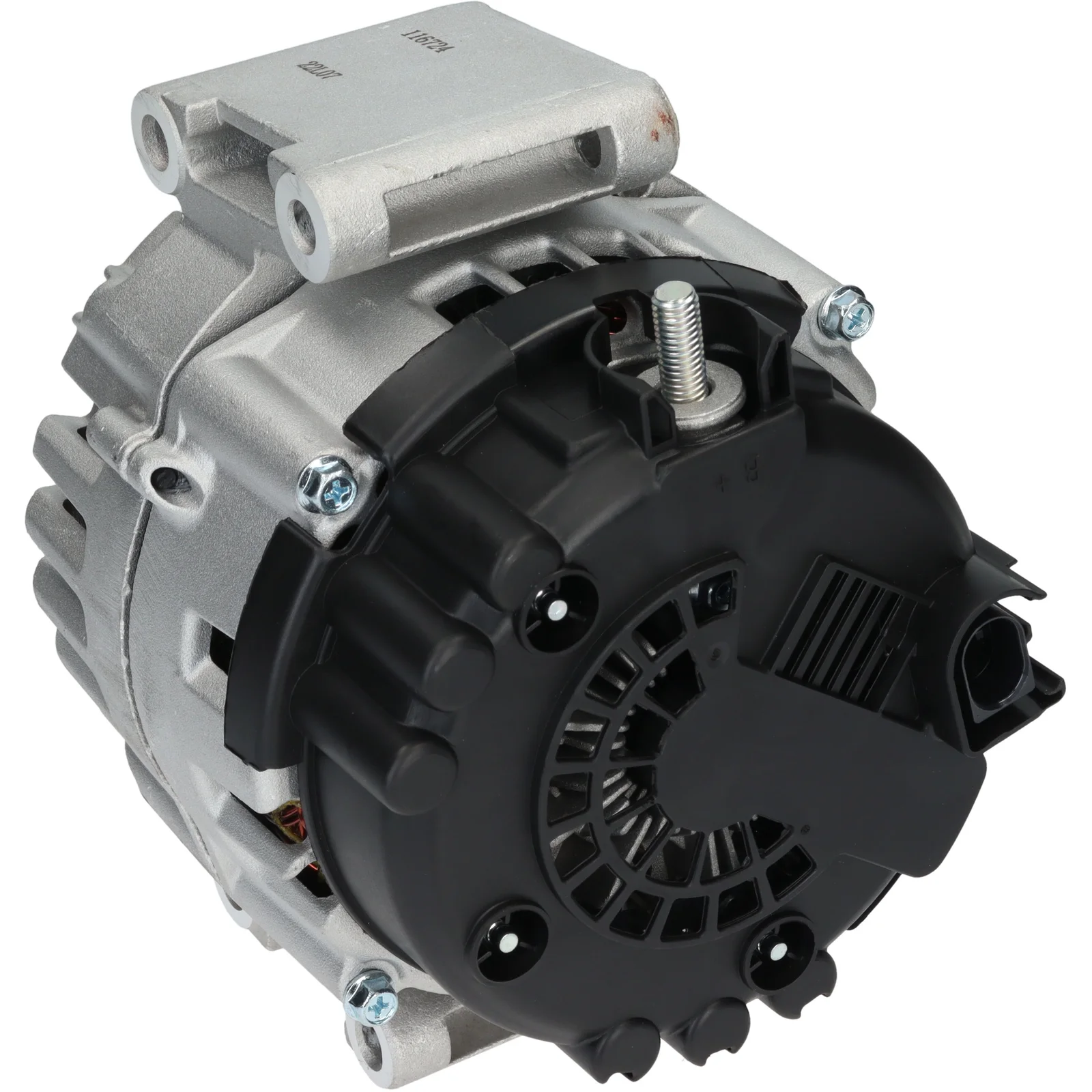

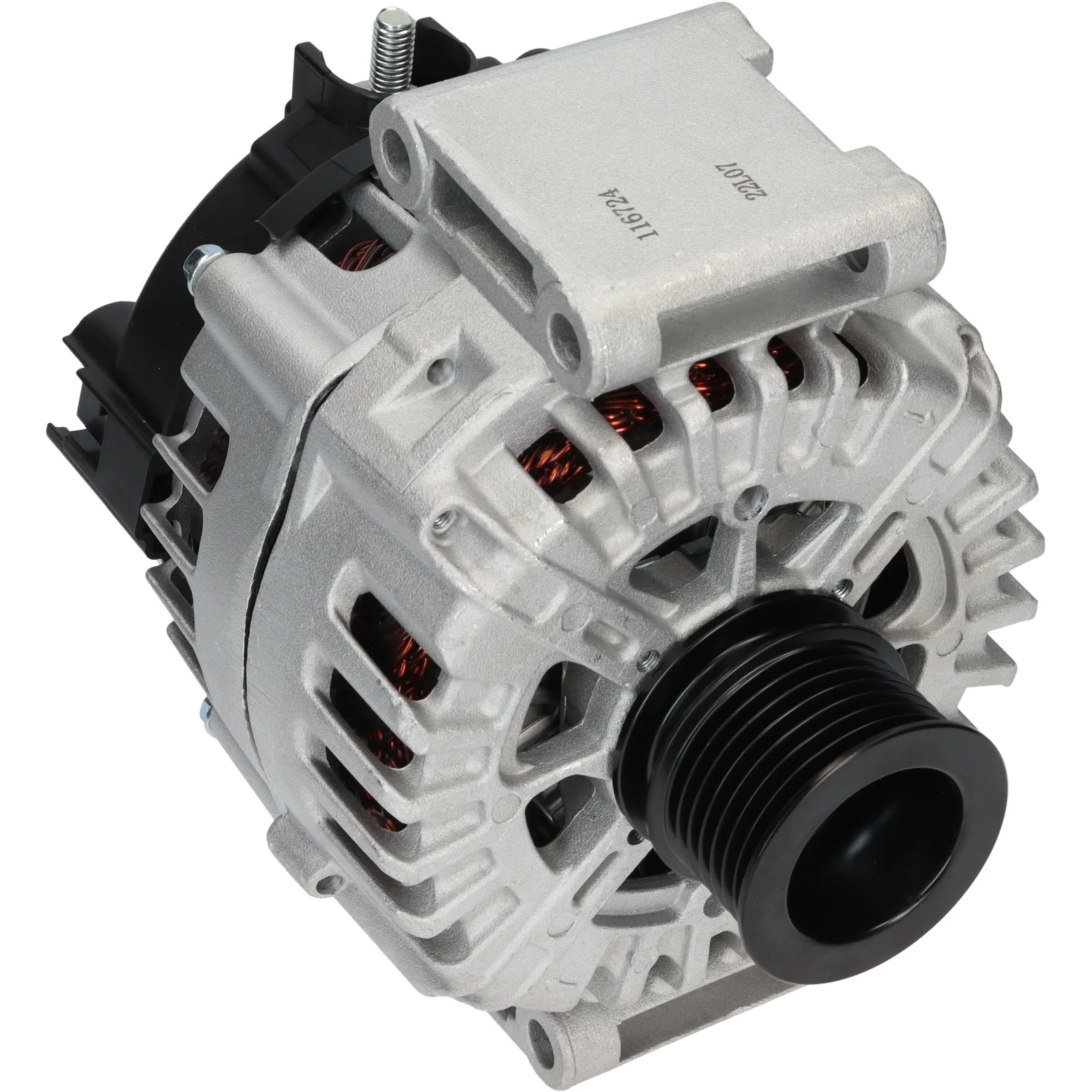

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116724

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 250, Rotation: med uret, Mount. bøjle fordeling: 56,00

Beskrivelse

Spenning: 14
Ampere: 250
Hjuldist.: 31,70
Bredde/beslag arm: 70,00
Monteringsbeslag dist.: 56,00
Beslagshul: 9,00
Bælte. just. beslag hul 1: 9,20
Bælte. just. beslag hul 2: 8,50
Hjul dia.: 50,00
Riller/hjul: 7
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 30
Rotation: CW
Stik nr.: PL181
Samlet længde mm: 187,00
Terminaltype: COM
ID-kode: 89
Kommunikation: LIN
Hjul: SP
Blæser: IF
Regulator-type: IR
Bemærkninger: Dette Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnetheden, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Belt. adj. bracket hole 2 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 30
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.70
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 89
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 70.00
Amp 250

  • OEM
    A0009060903, A0009065307, CG25S035, F032116724, 0009065307

  • Konkurrentreferens
    A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

  • NormaliseratArtNr
    a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

  • Passar modeller
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Ampere: 250
    Hjuldist.: 31,70
    Bredde/beslag arm: 70,00
    Monteringsbeslag dist.: 56,00
    Beslagshul: 9,00
    Bælte. just. beslag hul 1: 9,20
    Bælte. just. beslag hul 2: 8,50
    Hjul dia.: 50,00
    Riller/hjul: 7
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Position/B+ i min.: 30
    Rotation: CW
    Stik nr.: PL181
    Samlet længde mm: 187,00
    Terminaltype: COM
    ID-kode: 89
    Kommunikation: LIN
    Hjul: SP
    Blæser: IF
    Regulator-type: IR
    Bemærkninger: Dette Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnetheden, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.20
    Belt. adj. bracket hole 2 8.50
    Plug no. PL181
    Bracket hole 9.00
    Position/B+ in min. 30
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 31.70
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    ID Code 89
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 70.00
    Amp 250
  • Køretøjsmatchning

    • OEM
      A0009060903, A0009065307, CG25S035, F032116724, 0009065307

    • Konkurrentreferens
      A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

    • NormaliseratArtNr
      a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

    • Passar modeller
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      1 / 4
