HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116725

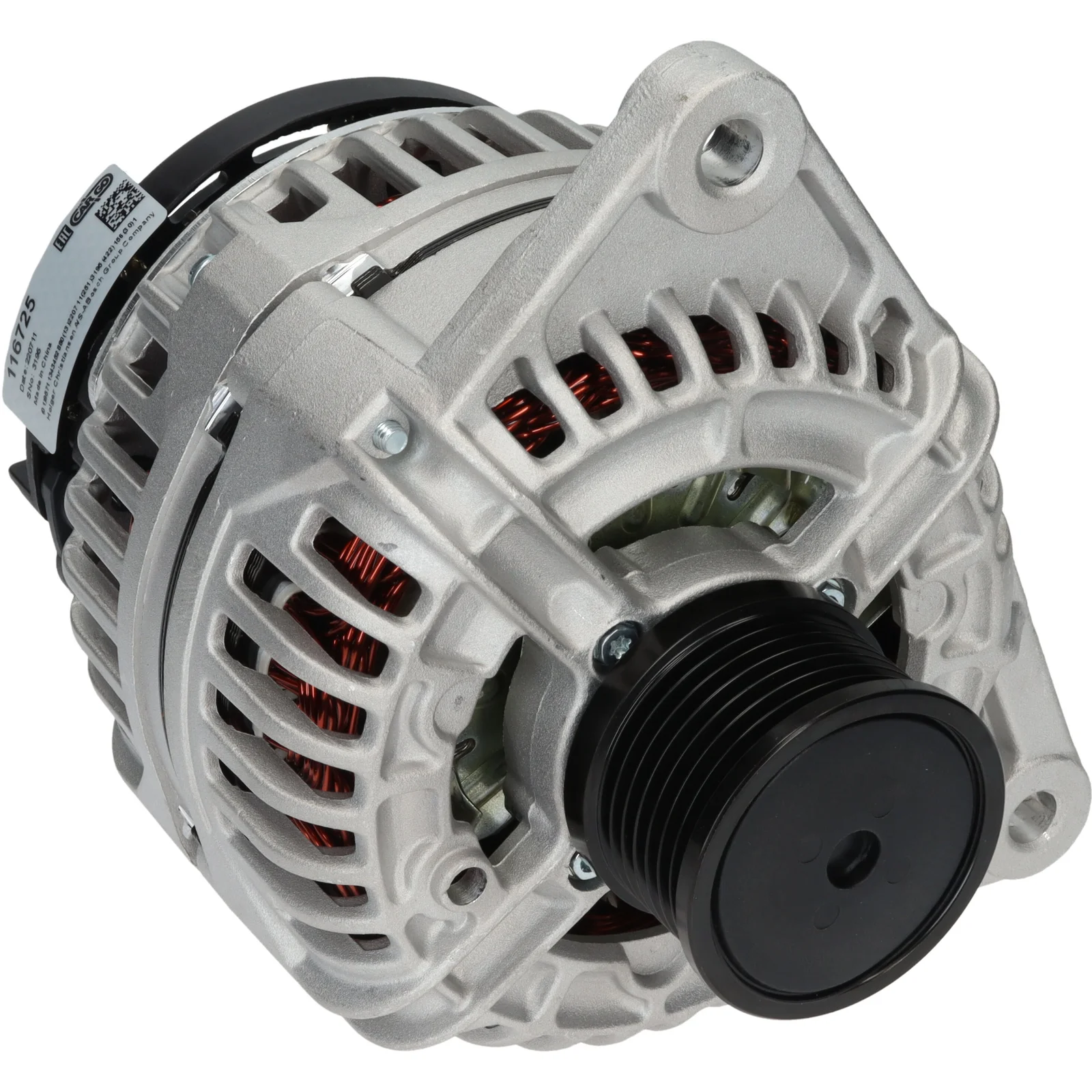

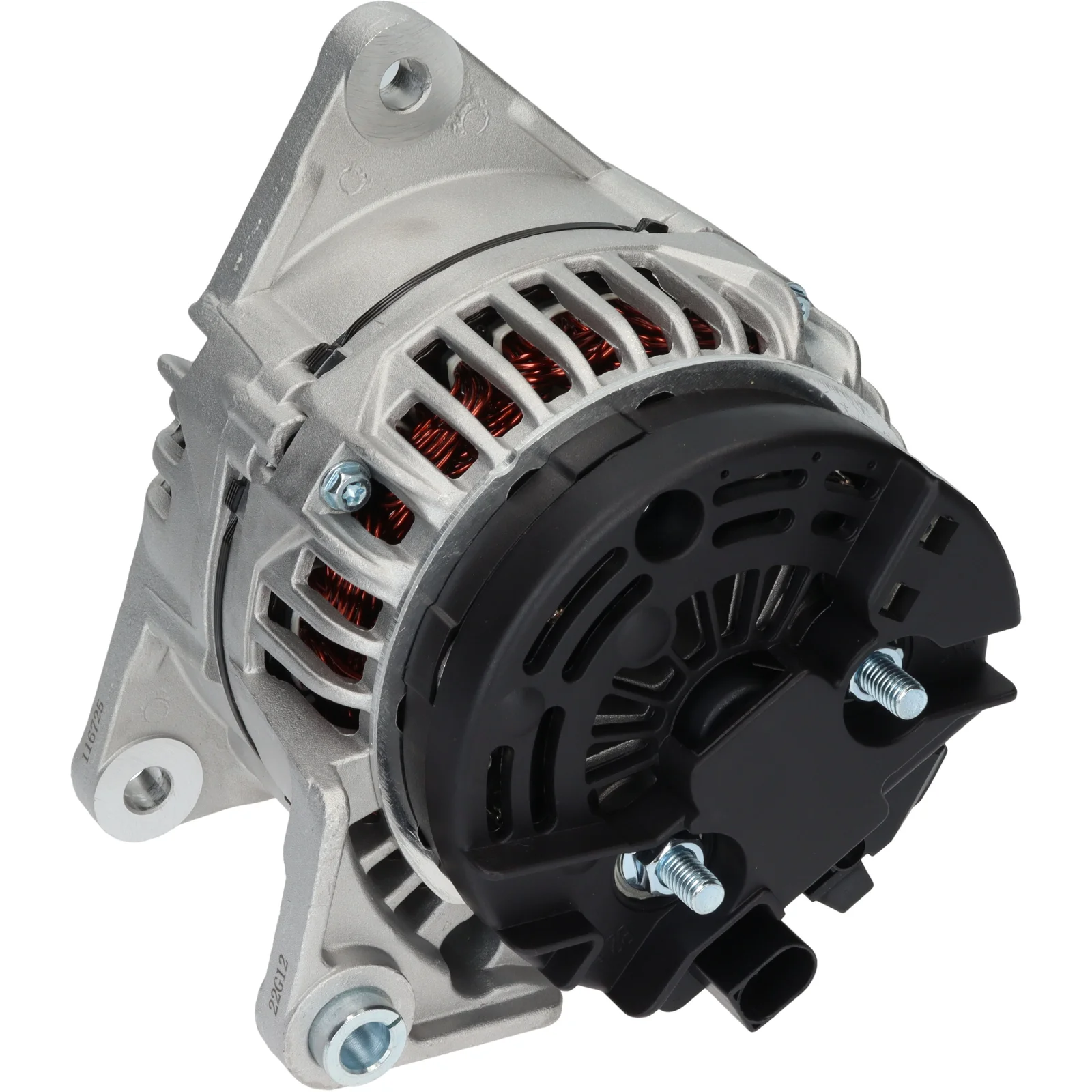

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag forfordelingshuset: 79,50

Beskrivelse

Spænding: 14
Amp: 140
Remskive dist.: 38.00
Bredde/fæstearmsafstand: 14.00
Montagebeslag afstand.: 79.50
Beslagshul: 10.50
Bæltejust. beslags hul position.: 10
Bæltejust. beslags hul 1: 11.00
Remskive dia.: 55.00
Riller/remskive: 7
Radius: 94.20
Radius 2: 95.80
B+: M8
Position/B+ i min.: 4
D+ Størrelse: Stik
Rotation: CW
Stik nummer: PL87
Samlet længde mm: 193.00
Terminaltype: L
Remskive: SP/FW
Vifter: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 79.50
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 10
Plug no. PL87
Bracket hole 10.50
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.00
Radius 94.20
D+ Size Plug
Radius 2 95.80
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L
Voltage 14
Total length 193.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F032116725, ME230743, MK667725, 1986A00910, 0124525216, 0124525565, 0124525566

  • Konkurrentreferens
    A0816S, LRA04330, 28-7939, 155.913.140, 443405, 444285, 12061248, 0986086050

  • NormaliseratArtNr
    a0816s, f032116725, lra04330, me230743, mk667725, 1986a00910, 287939, 443405, 444285, 12061248, 0124525216, 0124525565, 0124525566, 155913140, 0986086050

  • Passar modeller
    Fuso (Mitsubishi) Model: Canter Model series: 3C13 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3C15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3S13 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3S15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3S18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 615 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 6C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 6S15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 715 Eco-Hybrid Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 715 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Dump Truck From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 7C15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 7C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 815 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 918 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 9C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 413 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 615, 616 Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 615, 616 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 6C18 4X4 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 715 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Dump Truck From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 7C15 EcoHybrid Size of motor: 3.0 Body: Platform / Chassis From date: 01-09-2012 Fuel: Hybrid Approved: Yes
    Mitsubishi Model: Canter Model series: 815, 816 Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 815, 816 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 916, 918 Size of motor: 3.0 Brand of engine: 4P10-7AT6 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 916, 918 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Temsa Model: PRESTIJ Model series: PRESTIJ SD, PRESTIJ CITY Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Bus From date: 01-10-2011 Fuel: Diesel Approved: Yes
