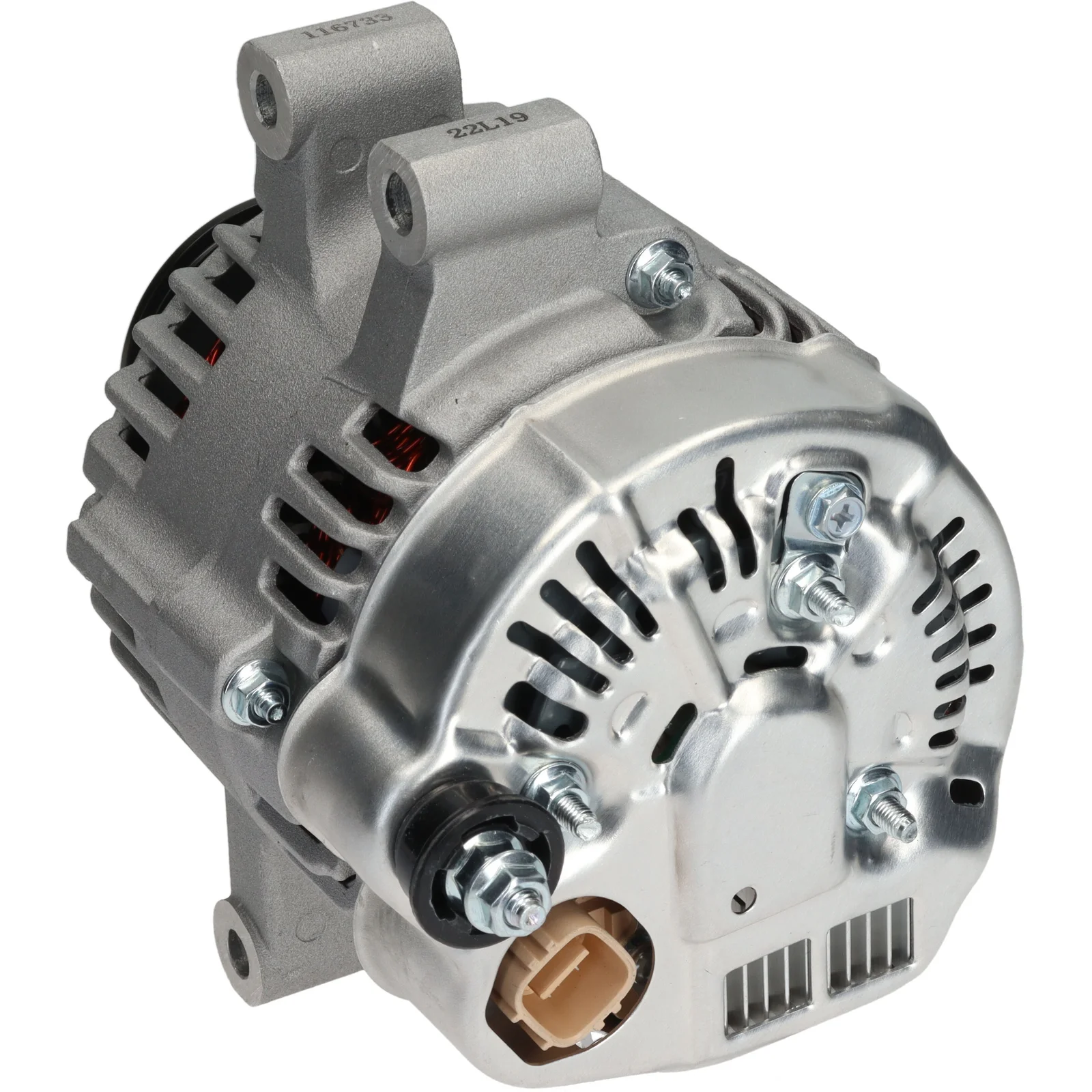

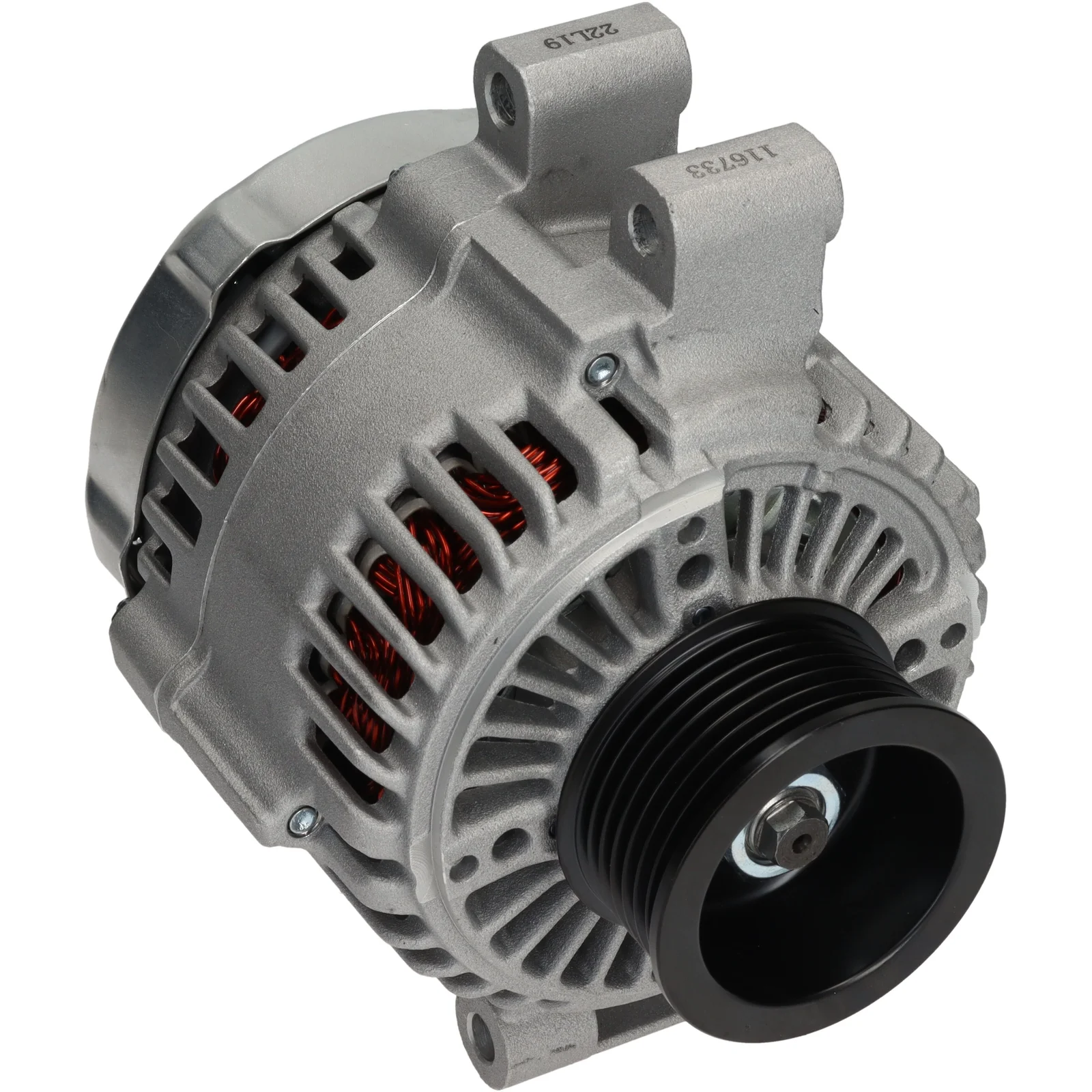

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116733

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag for fordelingshat: 46,00

Beskrivelse

Spænding: 14
Amp: 80
Poulie dist.: 39.00
Bredde/beslag arm: 31.00
Monteringsbeslag dist.: 46.00
Beslagshul: 8.50
Bæltejustering beslagshul 1: 8.50
Poulie dia.: 60.00
Riller/poulie: 7
Radius: 82.50
Radius 2: 79.00
B+: M6
Position/B+ i min.: 15
D+ Størrelse: Kontakt
Rotation: CW
Kontakt nr.: PL60
Samlet længde mm: 190.00
Terminaltype: C-FR-IG-L
Poulie: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 46.00
Belt. adj. bracket hole 1 8.50
Plug no. PL60
Bracket hole 8.50
Position/B+ in min. 15
Pulley SP
Pulley dia. 60.00
Pulley dist. 39.00
Radius 82.50
D+ Size Plug
Radius 2 79.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type C-FR-IG-L
Voltage 14
Total length 190.00 mm
Width/holder arm 31.00
Amp 80

  • OEM
    CJX67, F032116733, 31100-PNF-E01, 31100-PRA-003, 102211-2670, 102211-2870, 102211-9120

  • Konkurrentreferens
    CAL40A18, DRA0791, LRA03274, 28-5886, 125.554.080, 222.160.802, 0986UR0858, 13977R, 113029, 553485RI, 12061160, 89216115

  • NormaliseratArtNr
    cal40a18, cjx67, dra0791, f032116733, lra03274, 0986ur0858, 13977r, 31100pnfe01, 31100pra003, 113029, 285886, 553485ri, 12061160, 89216115, 125554080, 222160802, 1022112670, 1022112870, 1022119120

  • Passar modeller
    Honda Model: Civic Model series: Civic Model type: Sport Type of engine: i Size of motor: 2.0 Brand of engine: K20A3 Type description: EU_,EP_,EV_ Body: Hatchback From date: 01-09-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Model type: Type-R Size of motor: 2.0 Brand of engine: K20A2 Type description: EU_, EP_ Body: Hatchback From date: 01-09-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 2.0 Brand of engine: K20A3 From date: 01-10-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Poulie dist.: 39.00
    Bredde/beslag arm: 31.00
    Monteringsbeslag dist.: 46.00
    Beslagshul: 8.50
    Bæltejustering beslagshul 1: 8.50
    Poulie dia.: 60.00
    Riller/poulie: 7
    Radius: 82.50
    Radius 2: 79.00
    B+: M6
    Position/B+ i min.: 15
    D+ Størrelse: Kontakt
    Rotation: CW
    Kontakt nr.: PL60
    Samlet længde mm: 190.00
    Terminaltype: C-FR-IG-L
    Poulie: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 46.00
    Belt. adj. bracket hole 1 8.50
    Plug no. PL60
    Bracket hole 8.50
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 39.00
    Radius 82.50
    D+ Size Plug
    Radius 2 79.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type C-FR-IG-L
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 31.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      CJX67, F032116733, 31100-PNF-E01, 31100-PRA-003, 102211-2670, 102211-2870, 102211-9120

    • Konkurrentreferens
      CAL40A18, DRA0791, LRA03274, 28-5886, 125.554.080, 222.160.802, 0986UR0858, 13977R, 113029, 553485RI, 12061160, 89216115

    • NormaliseratArtNr
      cal40a18, cjx67, dra0791, f032116733, lra03274, 0986ur0858, 13977r, 31100pnfe01, 31100pra003, 113029, 285886, 553485ri, 12061160, 89216115, 125554080, 222160802, 1022112670, 1022112870, 1022119120

    • Passar modeller
      Honda Model: Civic Model series: Civic Model type: Sport Type of engine: i Size of motor: 2.0 Brand of engine: K20A3 Type description: EU_,EP_,EV_ Body: Hatchback From date: 01-09-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Model type: Type-R Size of motor: 2.0 Brand of engine: K20A2 Type description: EU_, EP_ Body: Hatchback From date: 01-09-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 2.0 Brand of engine: K20A3 From date: 01-10-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
