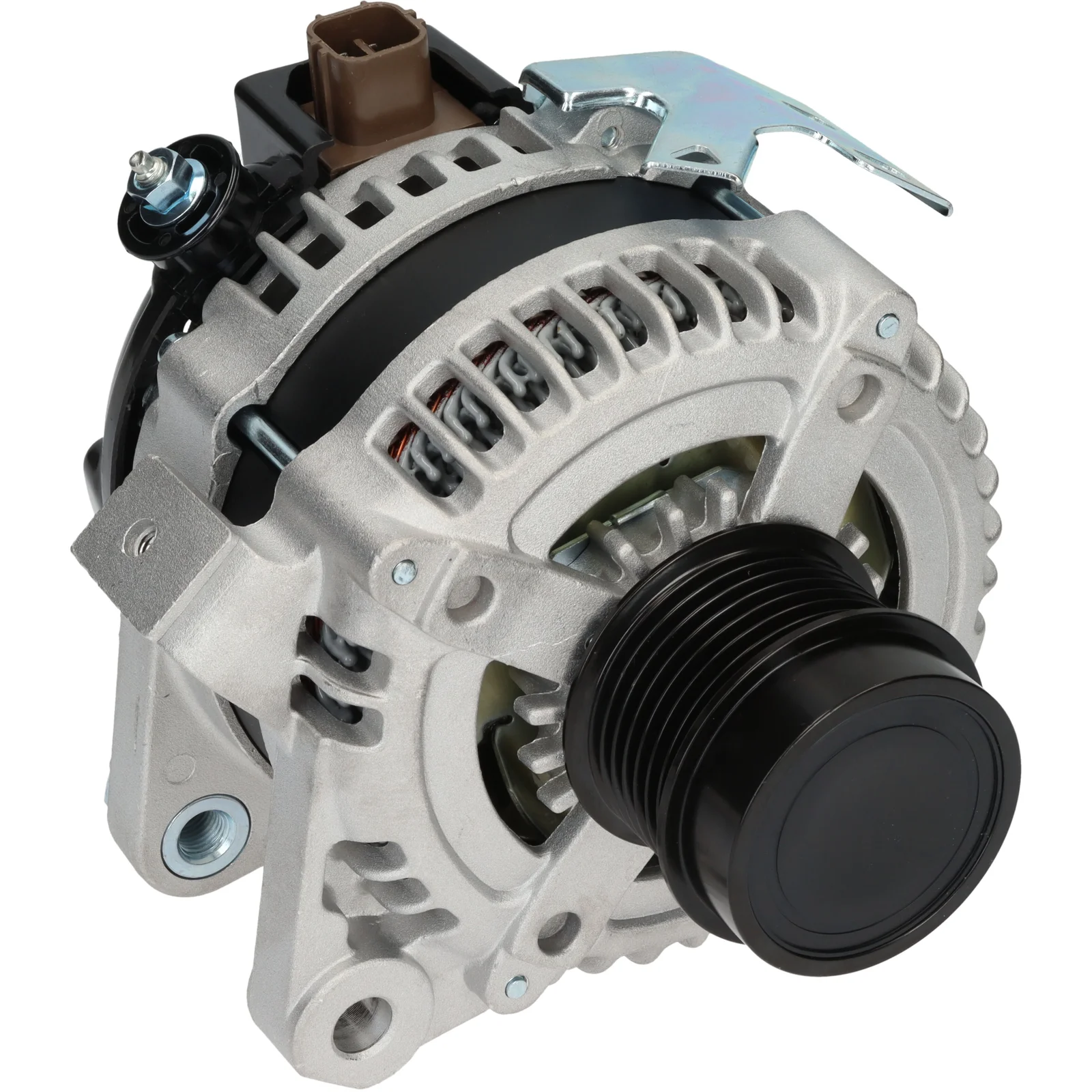

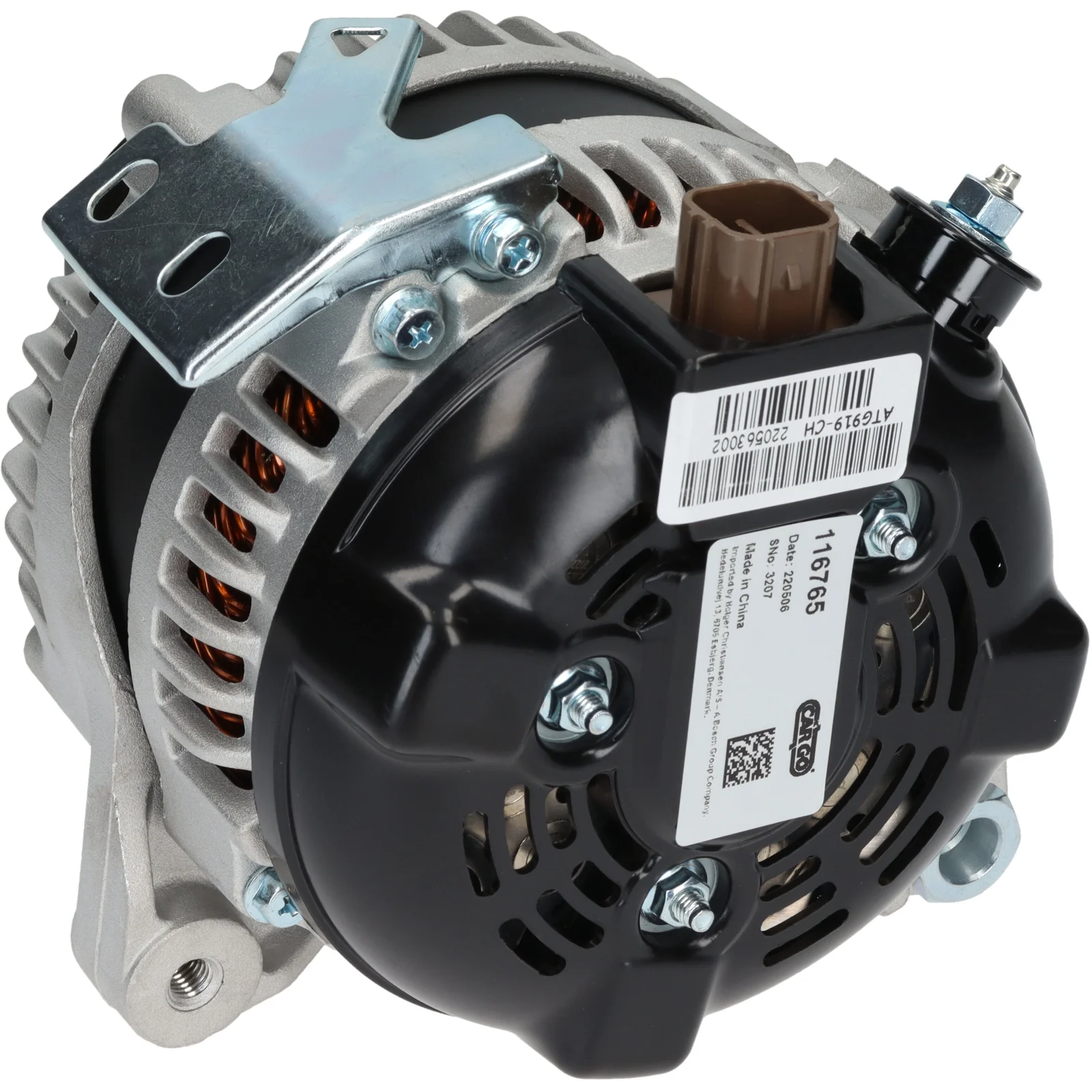

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116765

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 130, Rotation: CW, Monteringsbeslag fordeler: 46.00

Beskrivelse

Spænding: 14
Amp: 130
Drevskive dist.: 35,00
Bredde/holderarm: 18,00
Montagebeslag dist.: 46,00
Beslagshul: 11,00
Bælte. justeringsbeslags hul: 14
Bælte. justeringsbeslags hul 1: M8
Drevskive dia.: 55,00
Riller/drevskive: 7
Radius: 84,00
Radius 2: 86,00
B+: M6
Position/B+ i min.: 15
D+ Størrelse: Propper
Rotation: CW
Propper nr.: PL146
Samlet længde mm: 175,00
Drevskive: SP/FW
Blæser: IF
Regul. type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 46.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 14
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 35.00
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 175.00 mm
Width/holder arm 18.00
Amp 130

  • OEM
    F032116765, 27060-28340, 27060-28341, 104210-4980, 104210-4984, 104210-4985

  • Konkurrentreferens
    A6313, CAL40290, DAN1482, LRA02996, 28-5609, 195.955.130, 23996N, 553614RI, 12060924

  • NormaliseratArtNr
    a6313, cal40290, dan1482, f032116765, lra02996, 23996n, 285609, 553614ri, 12060924, 195955130, 1042104980, 1042104984, 1042104985, 2706028340, 2706028341

  • Passar modeller
    Toyota Model: Alphard / Vellfire Model series: Alphard / Vellfire Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _H2_ Body: MPV From date: 01-04-2008 To date: 01-12-2014 Fuel: Petrol Approved: Yes
    Toyota Model: Alphard Model series: Alphard Model type: 4x4 Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-05-2008 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Alphard Model series: Alphard Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-05-2008 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Tarago Model series: Tarago Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-10-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 130
    Drevskive dist.: 35,00
    Bredde/holderarm: 18,00
    Montagebeslag dist.: 46,00
    Beslagshul: 11,00
    Bælte. justeringsbeslags hul: 14
    Bælte. justeringsbeslags hul 1: M8
    Drevskive dia.: 55,00
    Riller/drevskive: 7
    Radius: 84,00
    Radius 2: 86,00
    B+: M6
    Position/B+ i min.: 15
    D+ Størrelse: Propper
    Rotation: CW
    Propper nr.: PL146
    Samlet længde mm: 175,00
    Drevskive: SP/FW
    Blæser: IF
    Regul. type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 46.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 14
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 35.00
    Radius 84.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 18.00
    Amp 130
  • Køretøjsmatchning

    • OEM
      F032116765, 27060-28340, 27060-28341, 104210-4980, 104210-4984, 104210-4985

    • Konkurrentreferens
      A6313, CAL40290, DAN1482, LRA02996, 28-5609, 195.955.130, 23996N, 553614RI, 12060924

    • NormaliseratArtNr
      a6313, cal40290, dan1482, f032116765, lra02996, 23996n, 285609, 553614ri, 12060924, 195955130, 1042104980, 1042104984, 1042104985, 2706028340, 2706028341

    • Passar modeller
      Toyota Model: Alphard / Vellfire Model series: Alphard / Vellfire Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _H2_ Body: MPV From date: 01-04-2008 To date: 01-12-2014 Fuel: Petrol Approved: Yes
      Toyota Model: Alphard Model series: Alphard Model type: 4x4 Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-05-2008 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Alphard Model series: Alphard Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-05-2008 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Tarago Model series: Tarago Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-10-2005 Fuel: Gasoline Approved: Yes
