HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116793

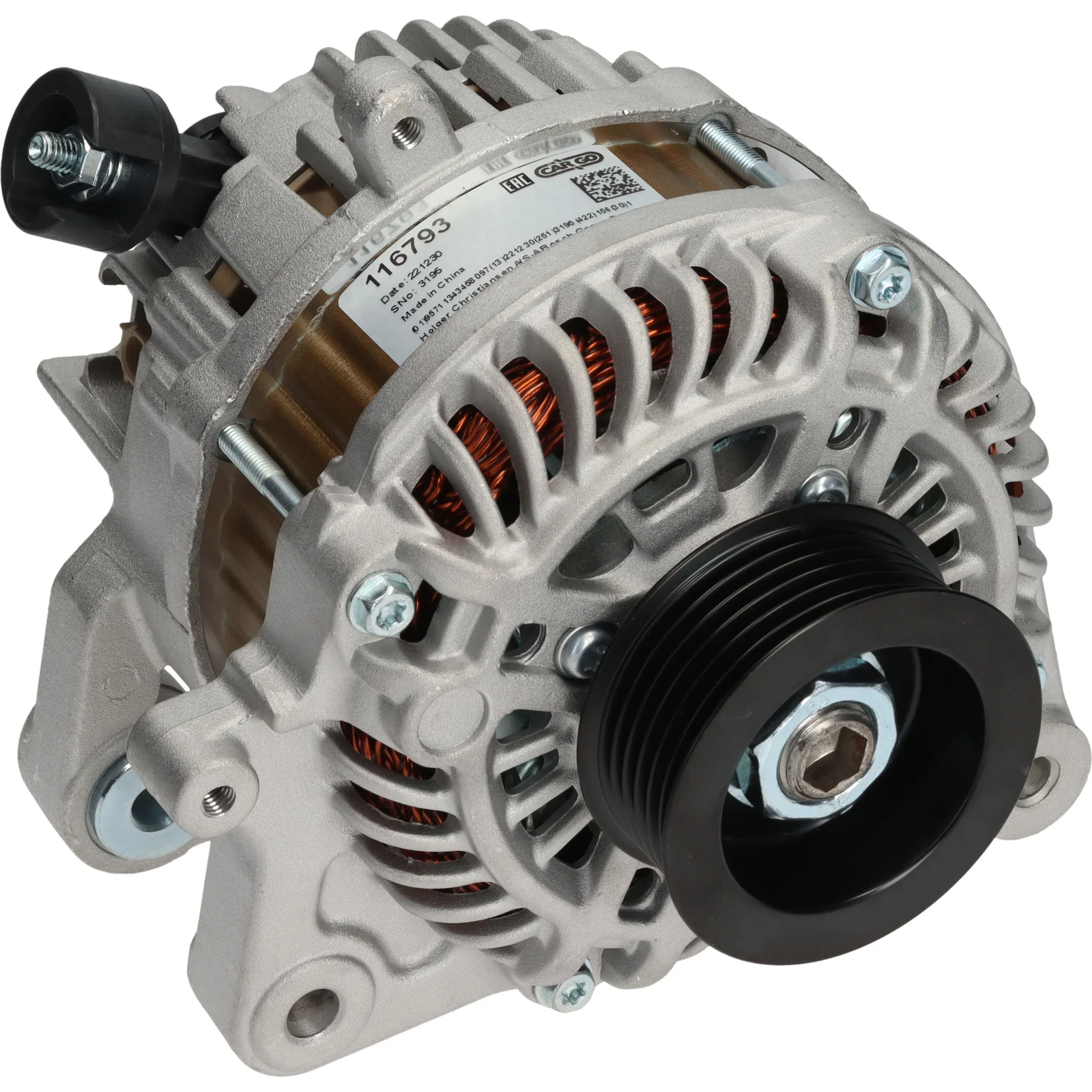

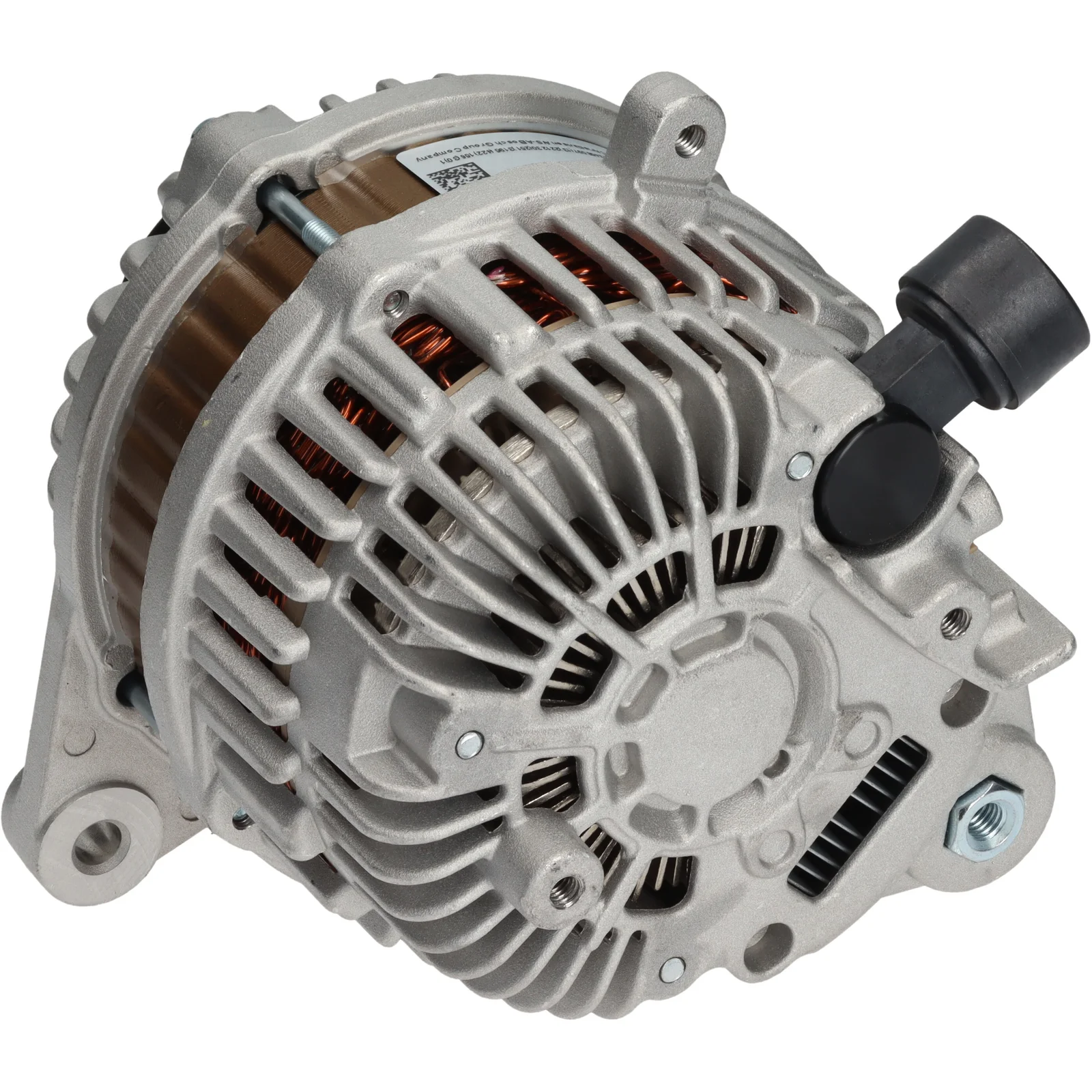

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 95, Rotation: CW, Monteringsbeslag fordeler: 41.00

Beskrivelse

HC-Cargo Generator 12V - 95A, 6gr

Spænding: 14
Ampere: 95
Poulieafstand: 47.00
Bredde/holderarm: 20.00
Monteringsbeslag afstand: 41.00
Beslagshul: 9.00
Bånd. justering. beslags hul position.: 12
Bånd. justering. beslags hul 1: 8.50
Poulie dia.: 60.00
Riller/poulie: 6
Radius: 85.00
Radius 2: 86.50
B+: M6
Position/B+ i min.: 18
Rotation: CW
Stik nr.: PL205
Samlet længde mm: 164.00
Terminaltype: COM
Kommunikation: LIN
Køler: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 41.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 12
Plug no. PL205
Bracket hole 9.00
Position/B+ in min. 18
Pulley dia. 60.00
Pulley dist. 47.00
Radius 85.00
Radius 2 86.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 164.00 mm
Width/holder arm 20.00
Amp 95

  • OEM
    A005TJ0191, A005TJ0191ZD, A005TJ0191ZE, A5T-J0191, A5T-J0191 ZE, A5TJ0191, A5TJ0191AC, A5TJ0191AE, A5TJ0191ZC, A5TJ0191ZD, A5TJ0191ZE, AHGA 81, AHGA81, F032116793, 1986A01581, 27060-35080, 31100-R1A-A01, 116793

  • Konkurrentreferens
    A5117, CAL35369, DRA1081, DRA1081N, 28-7528, 125.581.095, 0986CR6083, 0986UR6083, 11537, 12061022, 0986086730

  • Bilmärken
    Honda

  • NormaliseratArtNr
    a005tj0191, a005tj0191zd, a005tj0191ze, a5117, a5tj0191, a5tj0191ac, a5tj0191ae, a5tj0191zc, a5tj0191zd, a5tj0191ze, ahga81, cal35369, dra1081, dra1081n, f032116793, 0986cr6083, 0986ur6083, 1986a01581, 11537, 31100r1aa01, 116793, 287528, 12061022, 125581095, 0986086730, 2706035080

  • Passar modeller
    Honda Model: Civic Model series: Civic Saloon Model type: LXS Flex One (FB2) Size of motor: 1.8 Brand of engine: R18A1 Type description: FB Body: Saloon From date: 01-01-2012 To date: 01-12-2016 Fuel: Petrol/Ethanol Approved: Yes
    Honda Model: Civic Model series: Civic Saloon Size of motor: 1.6 Brand of engine: R16B1 Type description: FB Body: Saloon From date: 01-09-2011 Fuel: Petrol Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z1 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z4 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: Flexfuel Size of motor: 1.8 Type description: FD From date: 01-11-2006 Fuel: Bi-Fuel Approved: Yes
    Honda Model: Civic Model series: Civic X Saloon Model type: i-VTEC (FC5) Size of motor: 1.6 Brand of engine: R16B1 Type description: FC_ Body: Saloon From date: 01-09-2016 Fuel: Petrol Approved: Yes
    Honda Model: HR-V Model series: HR-V Model type: i-VTEC Flexone Size of motor: 1.8 Brand of engine: R18ZC Type description: RU Body: SUV From date: 01-06-2015 To date: 01-01-2022 Fuel: Petrol/Ethanol Approved: Yes
    Honda Model: HR-V Model series: HR-V Size of motor: 1.8 Brand of engine: R18ZE Type description: RU Body: SUV From date: 01-01-2015 Fuel: Petrol Approved: Yes
    Honda Series: CIVIC IX Sedan Model: 1.6 Engine volume: 1.6 Engine type: R16B1/R16B2 Year: 09.11-12.16
    Honda Series: CIVIC IX Sedan Model: 1.8 Engine volume: 1.8 Engine type: R18A1/R18Z1/R18Z4 Year: 02.12-12.16
    Honda Series: CIVIC X Sedan Model: 1.6 i-VTEC Engine volume: 1.6 Engine type: R16B1/R16B2 Year: 09.16-12.22
