HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116797

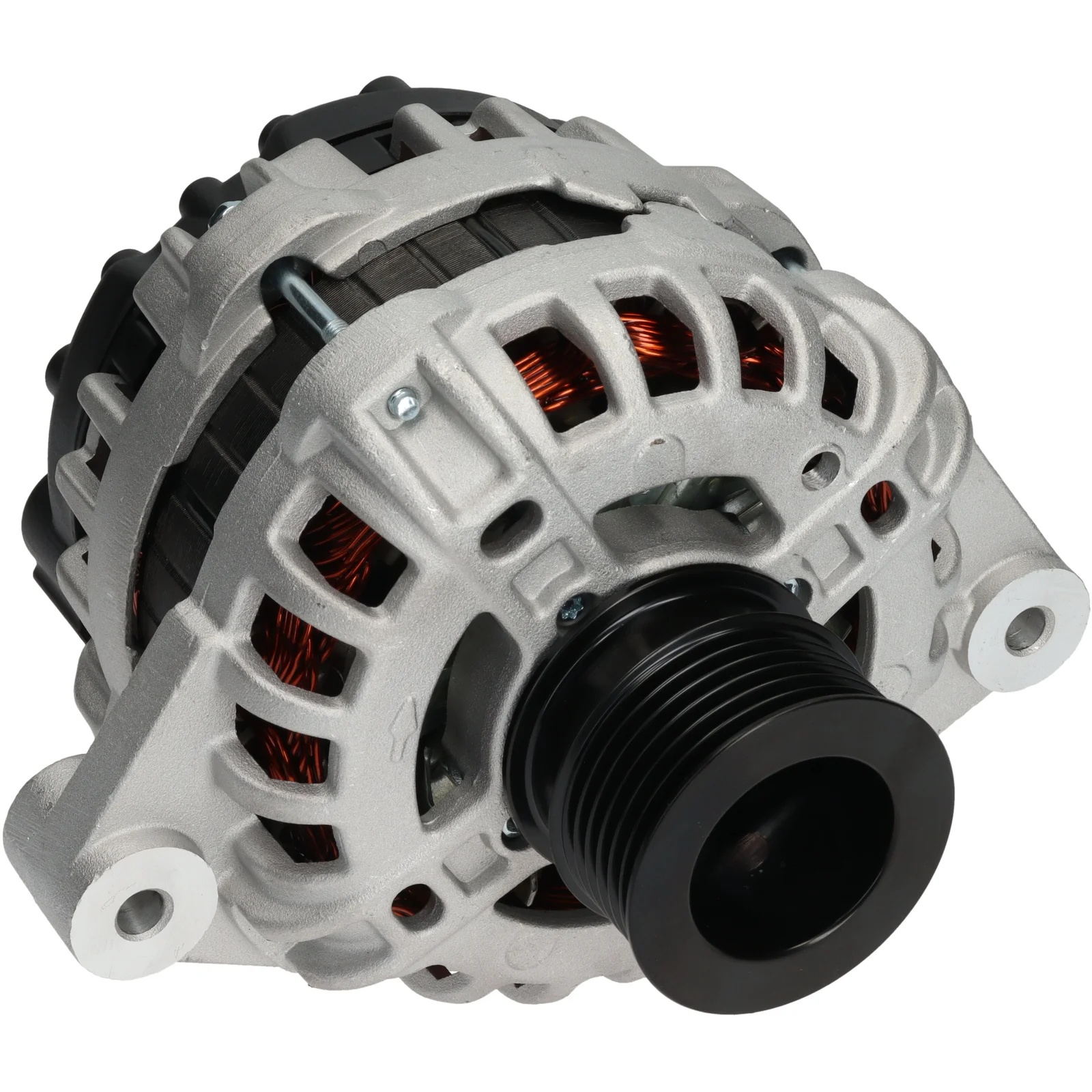

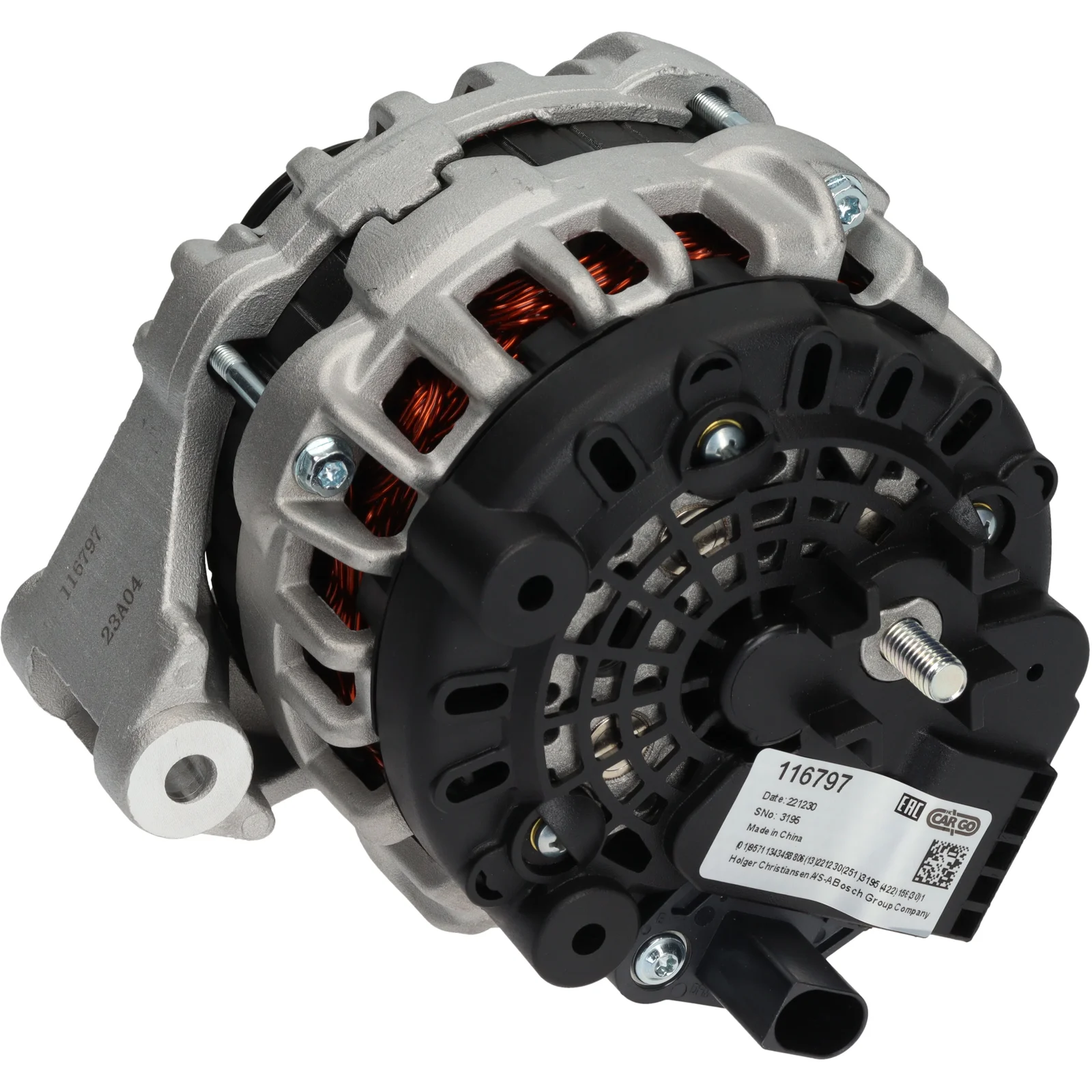

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Remskive dia.: 54.80

Beskrivelse

Spænding: 14
Amp: 110
Remskive dist.: 92,00
Bredde/festearm: 56,00
Bøsninghul: 8,50
Bæltejustering bøsninghul position.: 55
Bæltejustering bøsninghul 1: 8,00
Remskivens diameter: 54,80
Riller/remskive: 6
Radius: 86,00
Radius 2: 86,00
B+ længde mm: 14,50
B+: M8
Position/B+ i min.: 5
Rotation: CW
Hulnummer: PL61
Samlet længde mm: 180,00
Terminaltype: L-DFM
Remskive: SP
Kølevifte: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 55
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP
Pulley dia. 54.80
Pulley dist. 92.00
Radius 86.00
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 180.00 mm
Width/holder arm 56.00
Amp 110
B+ Length 14.50 mm

  • OEM
    A1118, F000BL0652, F000BL06L6, F032116797, 1986A01072, 2170370101013

  • Konkurrentreferens
    A0294, CAL10035, 855.509.110

  • NormaliseratArtNr
    a0294, a1118, cal10035, f000bl0652, f000bl06l6, f032116797, 1986a01072, 855509110, 2170370101013

  • Passar modeller
    Lada Model: Granta Model series: Granta Size of motor: 1.6 Brand of engine: 21127 Type description: 2190_ Body: Saloon From date: 01-07-2013 Fuel: Gasoline Approved: Yes
    Lada Model: Granta Model series: Granta Size of motor: 1.6 Type description: 2190 From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Lada Model: Granta Model series: Granta Size of motor: 1.6 Type description: 2191 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Lada Model: Priora Model series: Priora Size of motor: 1.6 Brand of engine: 21127 Type description: 2171 Body: Estate From date: 01-02-2014 To date: 01-11-2016 Fuel: Gasoline Approved: Yes
    Lada Model: Priora Model series: Priora Size of motor: 1.6 Brand of engine: VAZ-21127 Type description: 2170 From date: 01-02-2014 To date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Lada Model: Priora Model series: Priora Size of motor: 1.6 Brand of engine: VAZ-21127 Type description: 2172 Body: Hatchback From date: 01-02-2014 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 110
    Remskive dist.: 92,00
    Bredde/festearm: 56,00
    Bøsninghul: 8,50
    Bæltejustering bøsninghul position.: 55
    Bæltejustering bøsninghul 1: 8,00
    Remskivens diameter: 54,80
    Riller/remskive: 6
    Radius: 86,00
    Radius 2: 86,00
    B+ længde mm: 14,50
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Hulnummer: PL61
    Samlet længde mm: 180,00
    Terminaltype: L-DFM
    Remskive: SP
    Kølevifte: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 55
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 54.80
    Pulley dist. 92.00
    Radius 86.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-DFM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 56.00
    Amp 110
    B+ Length 14.50 mm
  • Køretøjsmatchning

    • OEM
      A1118, F000BL0652, F000BL06L6, F032116797, 1986A01072, 2170370101013

    • Konkurrentreferens
      A0294, CAL10035, 855.509.110

    • NormaliseratArtNr
      a0294, a1118, cal10035, f000bl0652, f000bl06l6, f032116797, 1986a01072, 855509110, 2170370101013

    • Passar modeller
      Lada Model: Granta Model series: Granta Size of motor: 1.6 Brand of engine: 21127 Type description: 2190_ Body: Saloon From date: 01-07-2013 Fuel: Gasoline Approved: Yes
      Lada Model: Granta Model series: Granta Size of motor: 1.6 Type description: 2190 From date: 01-10-2011 Fuel: Gasoline Approved: Yes
      Lada Model: Granta Model series: Granta Size of motor: 1.6 Type description: 2191 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Lada Model: Priora Model series: Priora Size of motor: 1.6 Brand of engine: 21127 Type description: 2171 Body: Estate From date: 01-02-2014 To date: 01-11-2016 Fuel: Gasoline Approved: Yes
      Lada Model: Priora Model series: Priora Size of motor: 1.6 Brand of engine: VAZ-21127 Type description: 2170 From date: 01-02-2014 To date: 01-07-2018 Fuel: Gasoline Approved: Yes
      Lada Model: Priora Model series: Priora Size of motor: 1.6 Brand of engine: VAZ-21127 Type description: 2172 Body: Hatchback From date: 01-02-2014 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      1 / 2
