HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032110591

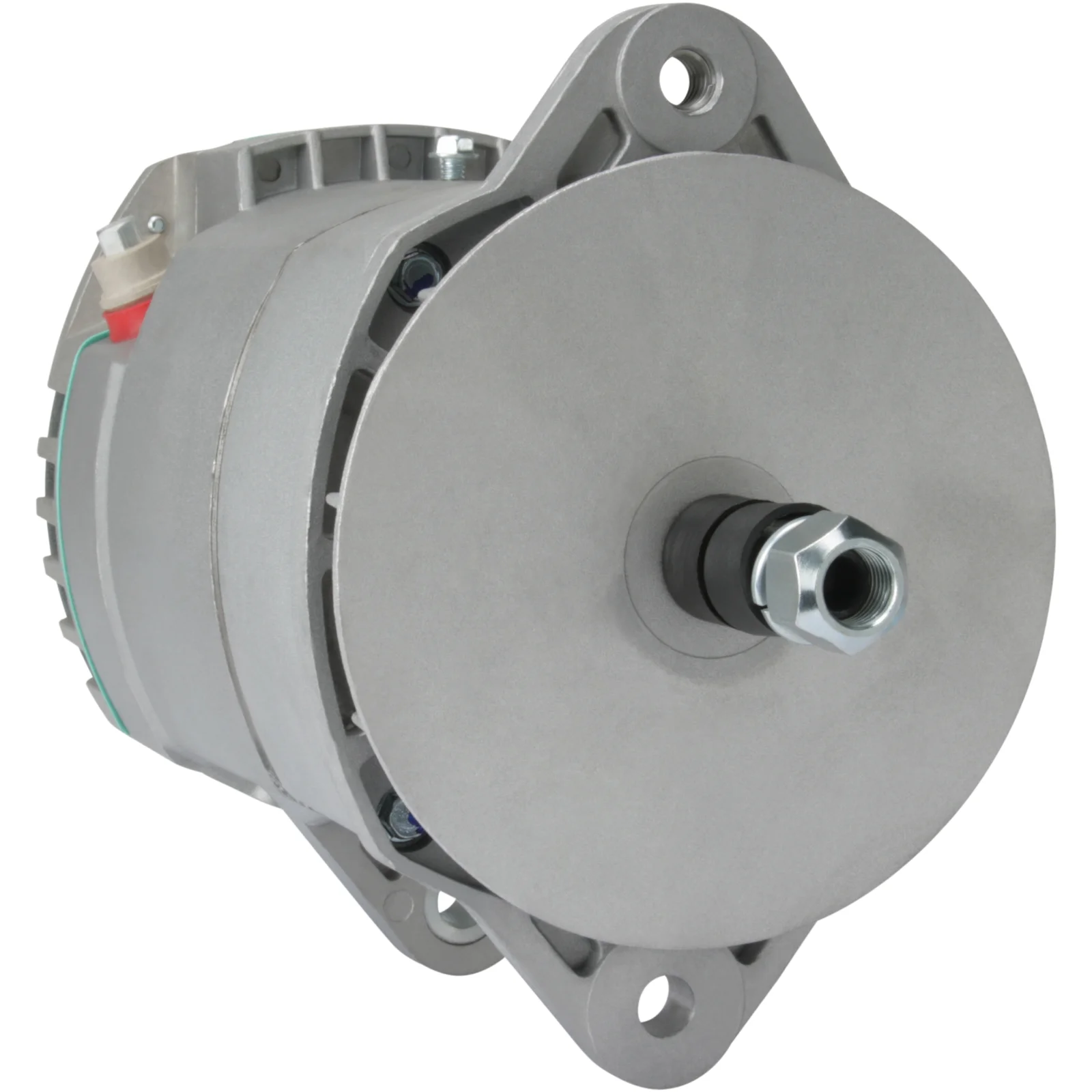

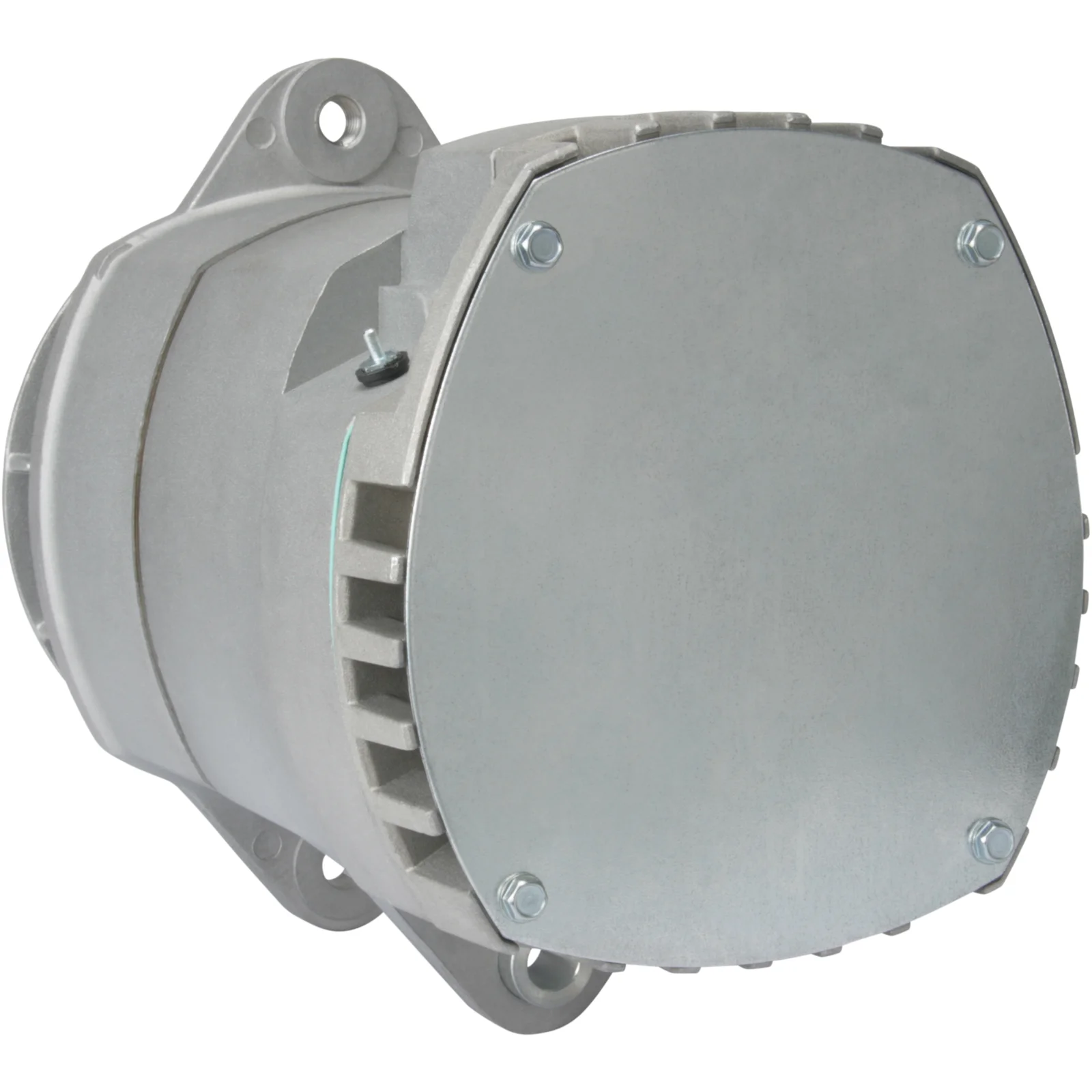

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 75, Rotation: KØR / CCV, Monteringsbøjle afstand: 101,50

Beskrivelse

Spænding: 28
Ampere: 75
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 101,50
Beslagshul: 13,00
Bæltejustering beslaghul position: 60
Bæltejustering beslaghul 1: 1/2" UNC
Radius: 99,00
Radius 2: 99,00
B+: 7/16" UNC
Rotation: CW/CCW
Total længde mm: 306,00
Drevskive: uden
Produktinfo: BN
Service: Caterpillar
Bemærkninger: Udskiftning: 25SI. En-ledningssystem. B+: 7/16".

Filer

Specifikation

B+ 7/16" UNC
Mount. bracket dist. 101.50
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Prod. info BN
Pulley w/o
Radius 99.00
Radius 2 99.00
Remarks Replacing: 25SI. One-wire system. B+: 7/16".
Rotation CW/CCW
Servicing Caterpillar
Voltage 28
Total length 306.00 mm
Width/holder arm 14.00
Amp 75

  • OEM
    0r2415, 0R3615, F032110591, 3E7577, 5z1083, 8n0999, 9g9538, 321-655, 321-697, 214318, 524023C91, 1100078, 1117069, 1117238, 1117249, 1117256, 1117648, 3000347, 3078116, 3604225rx, 10459007, 10459011, 10459062, 10459071, 10459076, 10459148, 19010000, 19010002, 19010008, 19010024

  • Konkurrentreferens
    a-1101, A1064S, A7252, ADR0072, ALT22015, BAO3206, da07252, drz0132, LRA02490, V1114266, 20-178, 20-178-1, 29-1369, 48-2992, 90-01-3099, 90-01-4083, 572.102.754, 572.110.754, 7160, 7252, 7252N, 7252R, 8062, 42753

  • NormaliseratArtNr
    0r2415, 0r3615, a1064s, a1101, a7252, adr0072, alt22015, bao3206, da07252, drz0132, f032110591, lra02490, v1114266, 3e7577, 5z1083, 8n0999, 9g9538, 7160, 7252, 7252n, 7252r, 8062, 20178, 42753, 201781, 214318, 291369, 321655, 321697, 482992, 524023c91, 1100078, 1117069, 1117238, 1117249, 1117256, 1117648, 3000347, 3078116, 3604225rx, 10459007, 10459011, 10459062, 10459071, 10459076, 10459148, 19010000, 19010002, 19010008, 19010024, 90013099, 90014083, 572102754, 572110754

  • Passar modeller
    Caterpillar Model: Engine Model series: 3304 Approved: Yes
    Caterpillar Model: Engine Model series: 3306 Approved: Yes
    Caterpillar Model: Engine Model series: 3406 Approved: Yes
    Caterpillar Model: Engine Model series: 3412 Approved: Yes
    Caterpillar Model: Engine Model series: 3508 Approved: Yes
    Caterpillar Model: Engine Model series: 3512 Approved: Yes
    Caterpillar Model: Engine Model series: 3516 Approved: Yes
    Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 28
    Ampere: 75
    Bredde/holderarm: 14,00
    Monteringsbeslag afstand: 101,50
    Beslagshul: 13,00
    Bæltejustering beslaghul position: 60
    Bæltejustering beslaghul 1: 1/2" UNC
    Radius: 99,00
    Radius 2: 99,00
    B+: 7/16" UNC
    Rotation: CW/CCW
    Total længde mm: 306,00
    Drevskive: uden
    Produktinfo: BN
    Service: Caterpillar
    Bemærkninger: Udskiftning: 25SI. En-ledningssystem. B+: 7/16".

    Filer

  • Specifikation
    B+ 7/16" UNC
    Mount. bracket dist. 101.50
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Prod. info BN
    Pulley w/o
    Radius 99.00
    Radius 2 99.00
    Remarks Replacing: 25SI. One-wire system. B+: 7/16".
    Rotation CW/CCW
    Servicing Caterpillar
    Voltage 28
    Total length 306.00 mm
    Width/holder arm 14.00
    Amp 75
  • Køretøjsmatchning

    • OEM
      0r2415, 0R3615, F032110591, 3E7577, 5z1083, 8n0999, 9g9538, 321-655, 321-697, 214318, 524023C91, 1100078, 1117069, 1117238, 1117249, 1117256, 1117648, 3000347, 3078116, 3604225rx, 10459007, 10459011, 10459062, 10459071, 10459076, 10459148, 19010000, 19010002, 19010008, 19010024

    • Konkurrentreferens
      a-1101, A1064S, A7252, ADR0072, ALT22015, BAO3206, da07252, drz0132, LRA02490, V1114266, 20-178, 20-178-1, 29-1369, 48-2992, 90-01-3099, 90-01-4083, 572.102.754, 572.110.754, 7160, 7252, 7252N, 7252R, 8062, 42753

    • NormaliseratArtNr
      0r2415, 0r3615, a1064s, a1101, a7252, adr0072, alt22015, bao3206, da07252, drz0132, f032110591, lra02490, v1114266, 3e7577, 5z1083, 8n0999, 9g9538, 7160, 7252, 7252n, 7252r, 8062, 20178, 42753, 201781, 214318, 291369, 321655, 321697, 482992, 524023c91, 1100078, 1117069, 1117238, 1117249, 1117256, 1117648, 3000347, 3078116, 3604225rx, 10459007, 10459011, 10459062, 10459071, 10459076, 10459148, 19010000, 19010002, 19010008, 19010024, 90013099, 90014083, 572102754, 572110754

    • Passar modeller
      Caterpillar Model: Engine Model series: 3304 Approved: Yes
      Caterpillar Model: Engine Model series: 3306 Approved: Yes
      Caterpillar Model: Engine Model series: 3406 Approved: Yes
      Caterpillar Model: Engine Model series: 3412 Approved: Yes
      Caterpillar Model: Engine Model series: 3508 Approved: Yes
      Caterpillar Model: Engine Model series: 3512 Approved: Yes
      Caterpillar Model: Engine Model series: 3516 Approved: Yes
      Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes
      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      1 / 2
