Vare nr.: F032112210

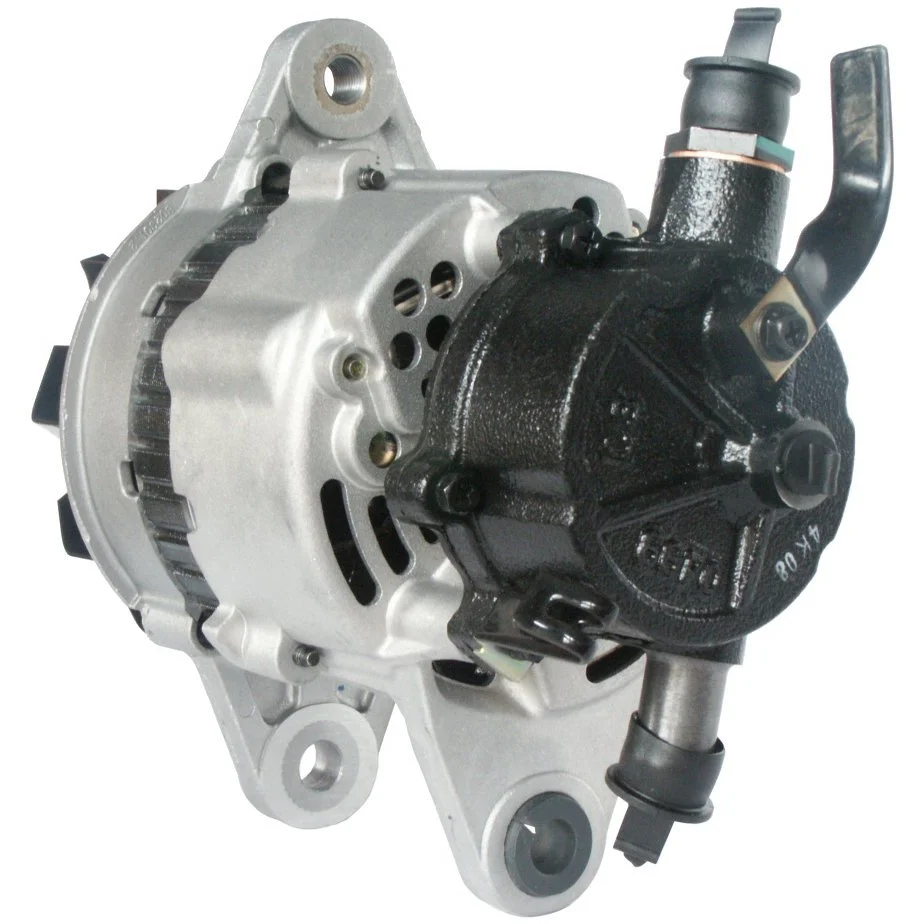

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 30, Rotation: CW, Monteringsbeslag fordeler: 81.00

Beskrivelse

Spænding: 28
Amp: 30
Remskive dist.: 44.00
Bredde/bærearm: 13.30
Fastgørelsesbeslag dist.: 81.00
Beslagshul: 12.60
Bæltespændingsbeslag hulpos.: 60
Bæltespændingsbeslag hul 1: M12
Remskive dia.: 84.30
Riller/remskive: 1
Radius: 90.00
Radius 2: 85.00
B+: M5
Position/B+ i min.: 7
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL09
Samlet længde mm: 229.50
Remskive: P
Regulator type: IR
Kølepumpe: Ja
Produktinfo: BN
Service: Mitsubishi

Specifikation

B+ M5
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M12
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 12.60
Position/B+ in min. 7
Prod. info BN
Pulley P
Pulley dia. 84.30
Pulley dist. 44.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 28
Total length 229.50 mm
Width/holder arm 13.30
Amp 30
  • OEM

    A002T72383, a2t72383, F032112210, ja1427ir, me017562
  • Konkurrentreferens

    A5278, dra3189, DRA3874, LRA02421, 8EL012584-421, 8el737720-001, 48-0710, 226.114.304, 5805, 12551N, 119839, 401427RI, 12060154, 0986080160
  • NormaliseratArtNr

    a002t72383, a2t72383, a5278, dra3189, dra3874, f032112210, ja1427ir, lra02421, me017562, 8el012584421, 8el737720001, 5805, 12551n, 119839, 401427ri, 480710, 12060154, 226114304, 0986080160
  • Passar modeller

    Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Dump Truck From date: 01-07-1986 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Platform / Chassis From date: 01-07-1986 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 30
    Remskive dist.: 44.00
    Bredde/bærearm: 13.30
    Fastgørelsesbeslag dist.: 81.00
    Beslagshul: 12.60
    Bæltespændingsbeslag hulpos.: 60
    Bæltespændingsbeslag hul 1: M12
    Remskive dia.: 84.30
    Riller/remskive: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M5
    Position/B+ i min.: 7
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL09
    Samlet længde mm: 229.50
    Remskive: P
    Regulator type: IR
    Kølepumpe: Ja
    Produktinfo: BN
    Service: Mitsubishi
  • Specifikation
    B+ M5
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M12
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 12.60
    Position/B+ in min. 7
    Prod. info BN
    Pulley P
    Pulley dia. 84.30
    Pulley dist. 44.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 28
    Total length 229.50 mm
    Width/holder arm 13.30
    Amp 30
  • Køretøjsmatchning
    • OEM

      A002T72383, a2t72383, F032112210, ja1427ir, me017562
    • Konkurrentreferens

      A5278, dra3189, DRA3874, LRA02421, 8EL012584-421, 8el737720-001, 48-0710, 226.114.304, 5805, 12551N, 119839, 401427RI, 12060154, 0986080160
    • NormaliseratArtNr

      a002t72383, a2t72383, a5278, dra3189, dra3874, f032112210, ja1427ir, lra02421, me017562, 8el012584421, 8el737720001, 5805, 12551n, 119839, 401427ri, 480710, 12060154, 226114304, 0986080160
    • Passar modeller

      Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Dump Truck From date: 01-07-1986 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Platform / Chassis From date: 01-07-1986 Fuel: Diesel Approved: Yes
