Vare nr.: F032112265

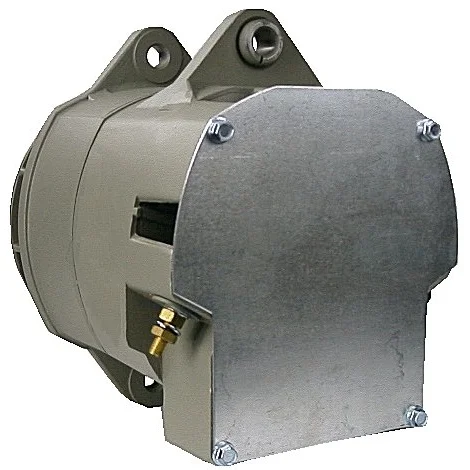

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 100, Rotation: CW, Mont. bøjle for fordeling: 101,00

Beskrivelse

Spænding: 28
Ampere: 100
Bredde/holder arm: 13,80
Monteringsbeslag afstand: 101,00
Beslagshul: 13,00
Bælte just. beslagshul pos.: 60
Bælte just. beslagshul 1: 1/2" UNC
Radie: 98,00
Radie 2: 98,00
B+: 1/4" UNF
Positon/B+ i min.: 12
Rotation: med uret
Total længde mm: 268,00
Remskive: uden
Producentinfo: BN
Service: Cummins
Bemærkninger: Udskiftning: 30SI. Negativ jordforbindelse.

Filer

Specifikation

B+ 1/4" UNF
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 12
Prod. info BN
Pulley w/o
Radius 98.00
Radius 2 98.00
Remarks Replacing: 30SI. Negative grounding.
Rotation CW
Servicing Cummins
Voltage 28
Total length 268.00 mm
Width/holder arm 13.80
Amp 100

  • OEM
    F032112265, 9X7803, 10R-8755, 10R8755, 316-7251, 1117817, 1117828, 1117836, 3000347, 3056492, 3072483, 3604687RX, 10459057, 10461238

  • Konkurrentreferens
    A9044, ALT22010, ALT22011, BAX1441026, CAL60603, F042205241, LRA04507, 20-132, 20-132-1, 48-8616, 7965, 7965N, 7965R, 7975, 7975N, 42735, 119759

  • NormaliseratArtNr
    a9044, alt22010, alt22011, bax1441026, cal60603, f032112265, f042205241, lra04507, 9x7803, 10r8755, 7965, 7965n, 7965r, 7975, 7975n, 20132, 42735, 119759, 201321, 488616, 1117817, 1117828, 1117836, 3000347, 3056492, 3072483, 3167251, 3604687rx, 10459057, 10461238

  • Passar modeller
    Caterpillar Model: Engine Model series: 3176 Approved: Yes
    Cummins Model: B Series Model series: Engine Approved: Yes
    Cummins Model: C Series Model series: Engine Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
    Cummins Model: K Series Model series: Engine Approved: Yes
    Cummins Model: L Series Model series: Engine Size of motor: 10.0 Approved: Yes
    Cummins Model: L Series Model series: Engine Size of motor: 14.0 Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 28
    Ampere: 100
    Bredde/holder arm: 13,80
    Monteringsbeslag afstand: 101,00
    Beslagshul: 13,00
    Bælte just. beslagshul pos.: 60
    Bælte just. beslagshul 1: 1/2" UNC
    Radie: 98,00
    Radie 2: 98,00
    B+: 1/4" UNF
    Positon/B+ i min.: 12
    Rotation: med uret
    Total længde mm: 268,00
    Remskive: uden
    Producentinfo: BN
    Service: Cummins
    Bemærkninger: Udskiftning: 30SI. Negativ jordforbindelse.

    Filer

  • Specifikation
    B+ 1/4" UNF
    Mount. bracket dist. 101.00
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 12
    Prod. info BN
    Pulley w/o
    Radius 98.00
    Radius 2 98.00
    Remarks Replacing: 30SI. Negative grounding.
    Rotation CW
    Servicing Cummins
    Voltage 28
    Total length 268.00 mm
    Width/holder arm 13.80
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032112265, 9X7803, 10R-8755, 10R8755, 316-7251, 1117817, 1117828, 1117836, 3000347, 3056492, 3072483, 3604687RX, 10459057, 10461238

    • Konkurrentreferens
      A9044, ALT22010, ALT22011, BAX1441026, CAL60603, F042205241, LRA04507, 20-132, 20-132-1, 48-8616, 7965, 7965N, 7965R, 7975, 7975N, 42735, 119759

    • NormaliseratArtNr
      a9044, alt22010, alt22011, bax1441026, cal60603, f032112265, f042205241, lra04507, 9x7803, 10r8755, 7965, 7965n, 7965r, 7975, 7975n, 20132, 42735, 119759, 201321, 488616, 1117817, 1117828, 1117836, 3000347, 3056492, 3072483, 3167251, 3604687rx, 10459057, 10461238

    • Passar modeller
      Caterpillar Model: Engine Model series: 3176 Approved: Yes
      Cummins Model: B Series Model series: Engine Approved: Yes
      Cummins Model: C Series Model series: Engine Approved: Yes
      Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
      Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
      Cummins Model: K Series Model series: Engine Approved: Yes
      Cummins Model: L Series Model series: Engine Size of motor: 10.0 Approved: Yes
      Cummins Model: L Series Model series: Engine Size of motor: 14.0 Approved: Yes
