HC-Cargo Generator

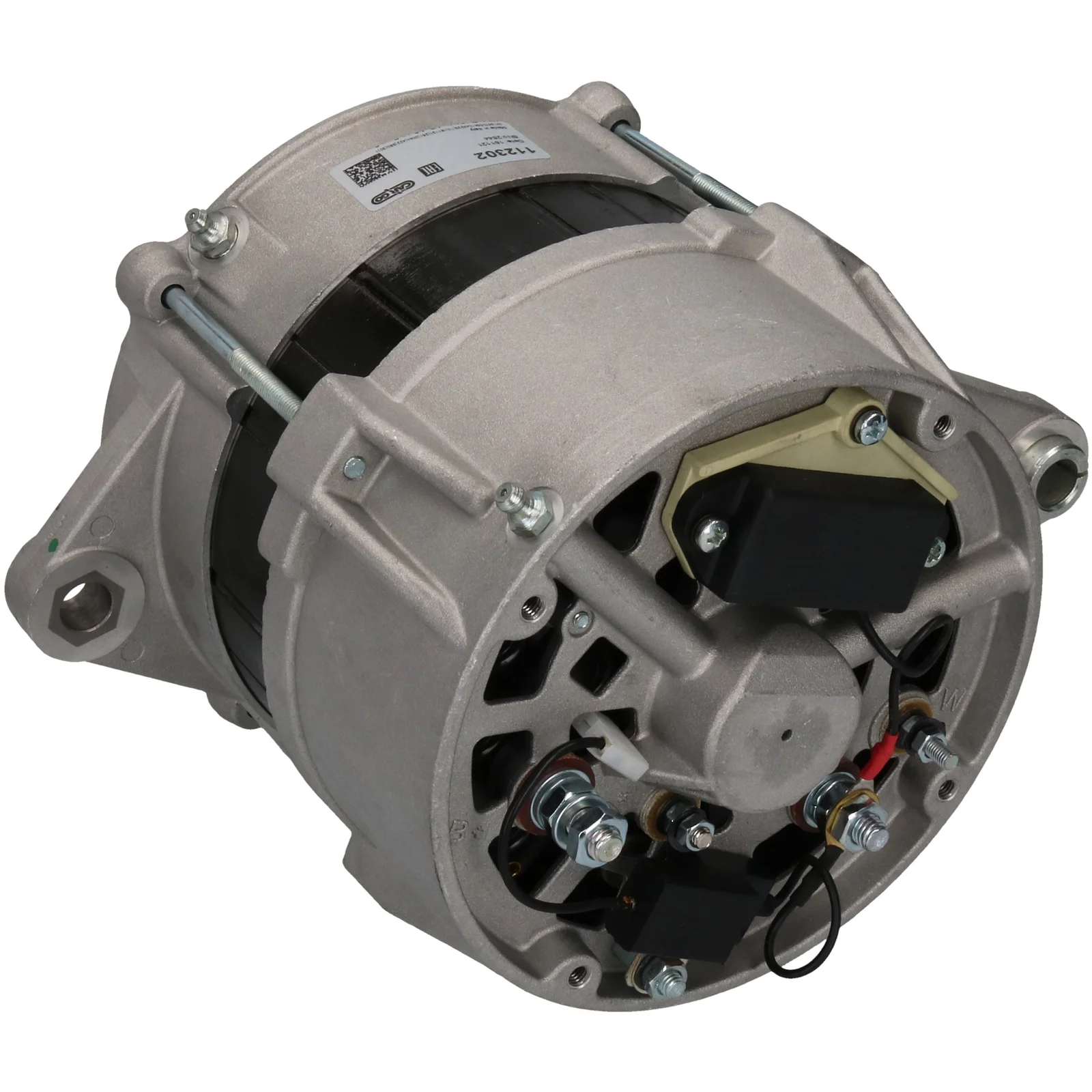

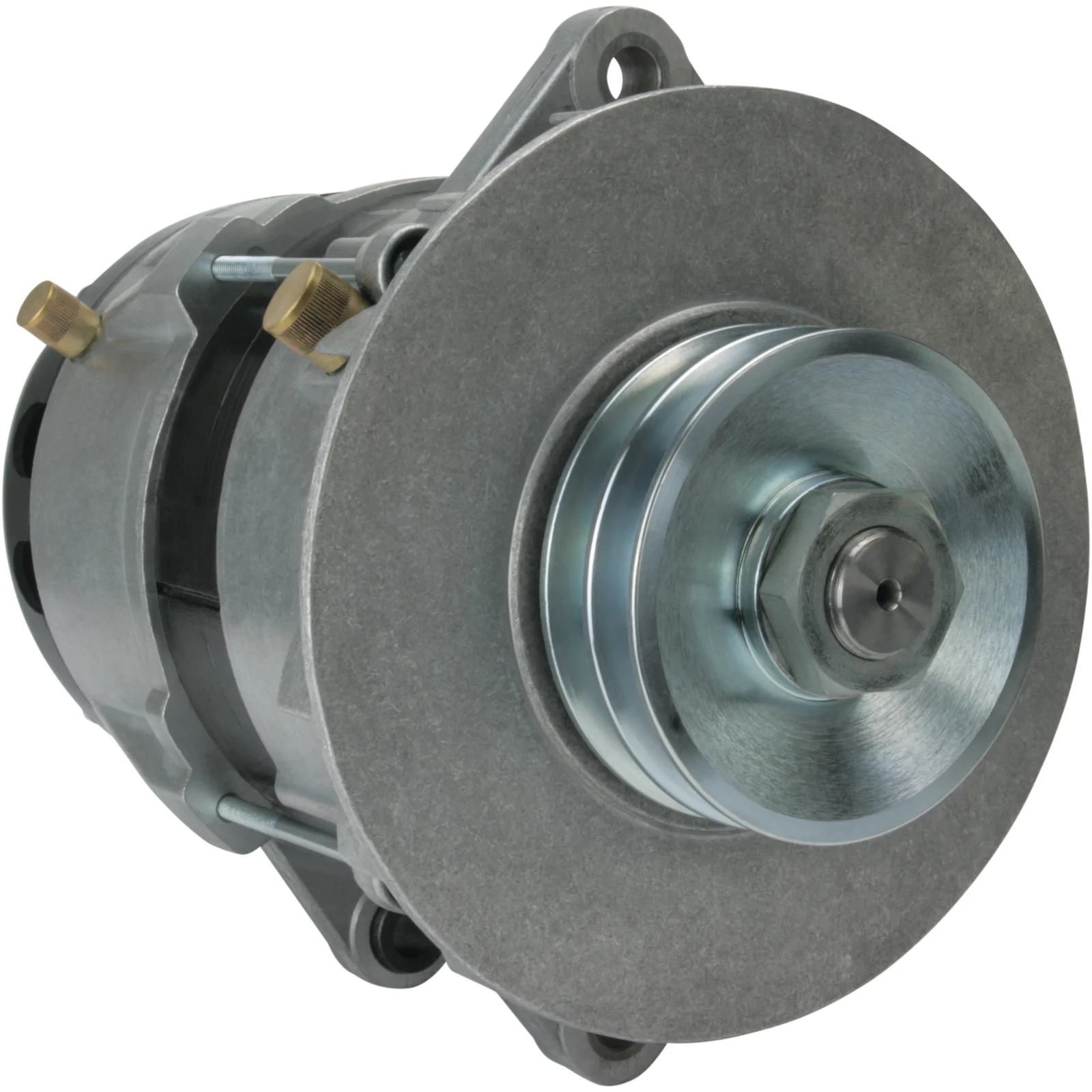

HC-Cargo Generator
Vare nr.: F032112302

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 120, Rotation: CW, Monteringsbeslag afstand: 86.00

Beskrivelse

Spænding: 28
Ampere: 120
Isoleret returtænding: Ja
Terminal: W
Bredde/holder arm: 16.00
Monteringsbeslag dist.: 86.00
Beslags hul: 13.40
Bælte justering beslag hul position: 60
Bælte justering beslag hul 1: 13.50
Radius: 108.00
Radius 2: 108.00
B+: M8
Position/B+ i min.: 60
D+ Størrelse: M5
Rotation: med uret
W stik type: M6
Samlet længde mm: 313.00
Remskive: uden
Regulator type: IR
Produktion info: BN
Service: Iveco
Bemærkninger: B-: M8.

Filer

Specifikation

B+ M8
Mount. bracket dist. 86.00
Belt. adj. bracket hole 1 13.50
Belt. adj. brackethole pos. 60
Bracket hole 13.40
Position/B+ in min. 60
Prod. info BN
Pulley w/o
Radius 108.00
D+ Size M5
Radius 2 108.00
Regulator type IR
Remarks B-: M8.
Rotation CW
Servicing Iveco
Terminal W
Insulated return Yes
Voltage 28
W plug type M6
Total length 313.00 mm
Width/holder arm 16.00
Amp 120

  • OEM
    A0121544702, A0121545002, aat1385, DLT609101, F032112302, 11.209.448, 1986A00010, 108922, 4775918, 4798922, 4831585, 42575000, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 7421356000

  • Konkurrentreferens
    A0024, ALT10161, ALT10162, CAL10631, CAL10665, CAL10709, DRA0502, LRA02526, 506.004.120, 119928, 210292, 210292A, 553042RI, 063536895, 063536895380

  • NormaliseratArtNr
    a0024, a0121544702, a0121545002, aat1385, alt10161, alt10162, cal10631, cal10665, cal10709, dlt609101, dra0502, f032112302, lra02526, 1986a00010, 108922, 119928, 210292, 210292a, 553042ri, 4775918, 4798922, 4831585, 11209448, 42575000, 063536895, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 506004120, 7421356000, 063536895380

  • Passar modeller
    Iveco Model: EuroCargo Model series: 170 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Iveco Model: EuroCargo Model series: 180 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Iveco Model: EuroCargo Model series: 320 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417 Type description: EuroCargo Body: Semi-Trailer From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 180 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1993 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 180 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 180 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 180 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 190 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 190 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 190 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 190 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Iveco Model: TurboCity Model series: 480.10.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: TurboCity Model series: 480.12.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: TurboCity Model series: 480.9.21, 480.10.21, 480.12.21, 580.10.21, 580.12. Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: TurboCity Model series: 580.10.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: TurboCity Model series: 580.12.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: TurboCity Model series: 680.12.24 Size of motor: 9.5 Type description: TurboCity Body: Bus From date: 01-01-1991 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 28
    Ampere: 120
    Isoleret returtænding: Ja
    Terminal: W
    Bredde/holder arm: 16.00
    Monteringsbeslag dist.: 86.00
    Beslags hul: 13.40
    Bælte justering beslag hul position: 60
    Bælte justering beslag hul 1: 13.50
    Radius: 108.00
    Radius 2: 108.00
    B+: M8
    Position/B+ i min.: 60
    D+ Størrelse: M5
    Rotation: med uret
    W stik type: M6
    Samlet længde mm: 313.00
    Remskive: uden
    Regulator type: IR
    Produktion info: BN
    Service: Iveco
    Bemærkninger: B-: M8.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 86.00
    Belt. adj. bracket hole 1 13.50
    Belt. adj. brackethole pos. 60
    Bracket hole 13.40
    Position/B+ in min. 60
    Prod. info BN
    Pulley w/o
    Radius 108.00
    D+ Size M5
    Radius 2 108.00
    Regulator type IR
    Remarks B-: M8.
    Rotation CW
    Servicing Iveco
    Terminal W
    Insulated return Yes
    Voltage 28
    W plug type M6
    Total length 313.00 mm
    Width/holder arm 16.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      A0121544702, A0121545002, aat1385, DLT609101, F032112302, 11.209.448, 1986A00010, 108922, 4775918, 4798922, 4831585, 42575000, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 7421356000

    • Konkurrentreferens
      A0024, ALT10161, ALT10162, CAL10631, CAL10665, CAL10709, DRA0502, LRA02526, 506.004.120, 119928, 210292, 210292A, 553042RI, 063536895, 063536895380

    • NormaliseratArtNr
      a0024, a0121544702, a0121545002, aat1385, alt10161, alt10162, cal10631, cal10665, cal10709, dlt609101, dra0502, f032112302, lra02526, 1986a00010, 108922, 119928, 210292, 210292a, 553042ri, 4775918, 4798922, 4831585, 11209448, 42575000, 063536895, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 506004120, 7421356000, 063536895380

    • Passar modeller
      Iveco Model: EuroCargo Model series: 170 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1994 Fuel: Diesel Approved: Yes
      Iveco Model: EuroCargo Model series: 180 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1994 Fuel: Diesel Approved: Yes
      Iveco Model: EuroCargo Model series: 320 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417 Type description: EuroCargo Body: Semi-Trailer From date: 01-01-1992 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 180 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1993 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 180 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 180 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 180 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 190 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 190 E 24 Size of motor: 7.7 Brand of engine: 8360.46R.416TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 190 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Dump Truck From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 190 E 27 Size of motor: 7.7 Brand of engine: 8360.46.417TCA Type description: EuroTech Body: Platform / Chassis From date: 01-01-1997 To date: 01-08-1998 Fuel: Diesel Approved: Yes
      Iveco Model: TurboCity Model series: 480.10.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: TurboCity Model series: 480.12.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: TurboCity Model series: 480.9.21, 480.10.21, 480.12.21, 580.10.21, 580.12. Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: TurboCity Model series: 580.10.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: TurboCity Model series: 580.12.21 Size of motor: 9.5 Brand of engine: 8460.21.611 Type description: TurboCity Body: Bus From date: 01-01-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Iveco Model: TurboCity Model series: 680.12.24 Size of motor: 9.5 Type description: TurboCity Body: Bus From date: 01-01-1991 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      1 / 4
