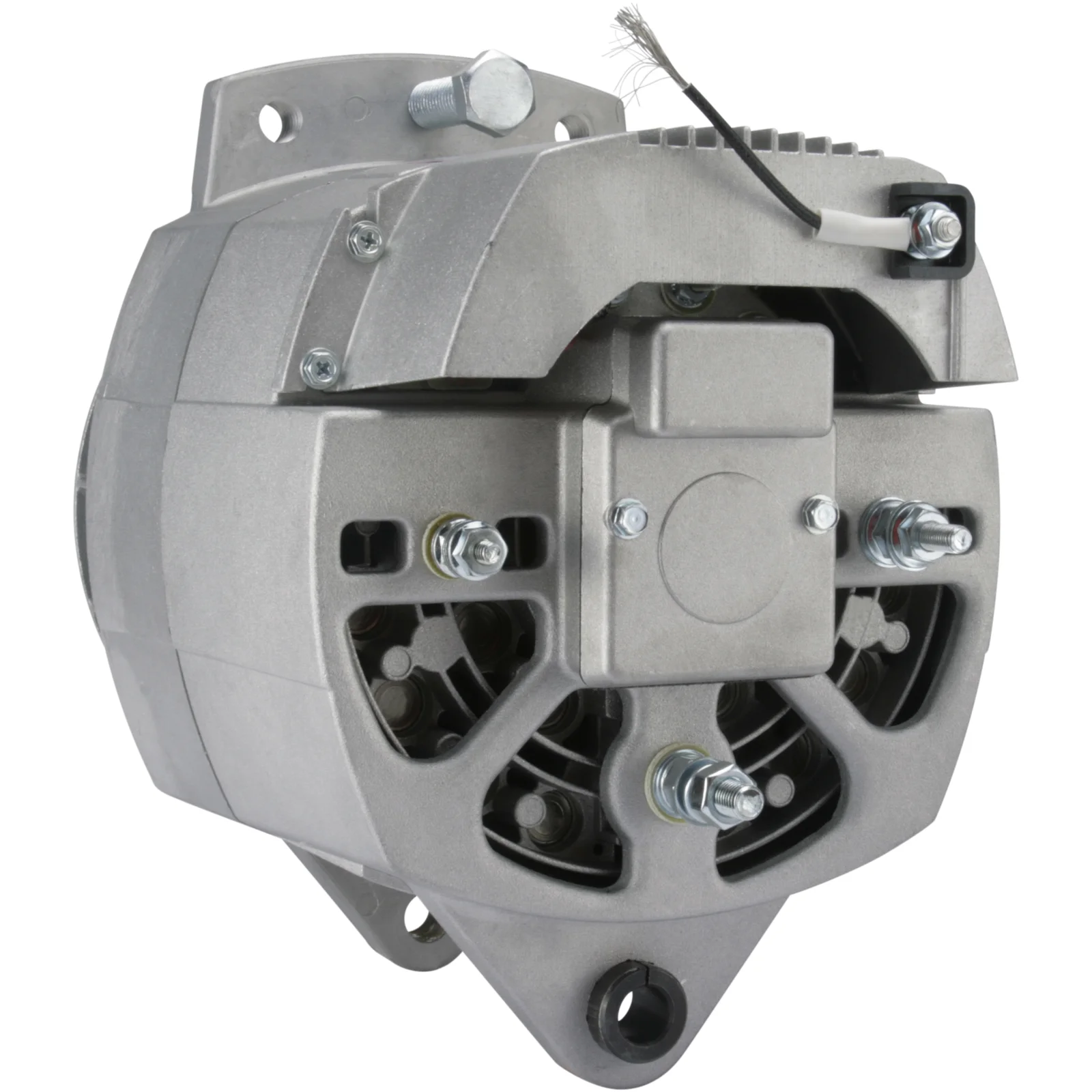

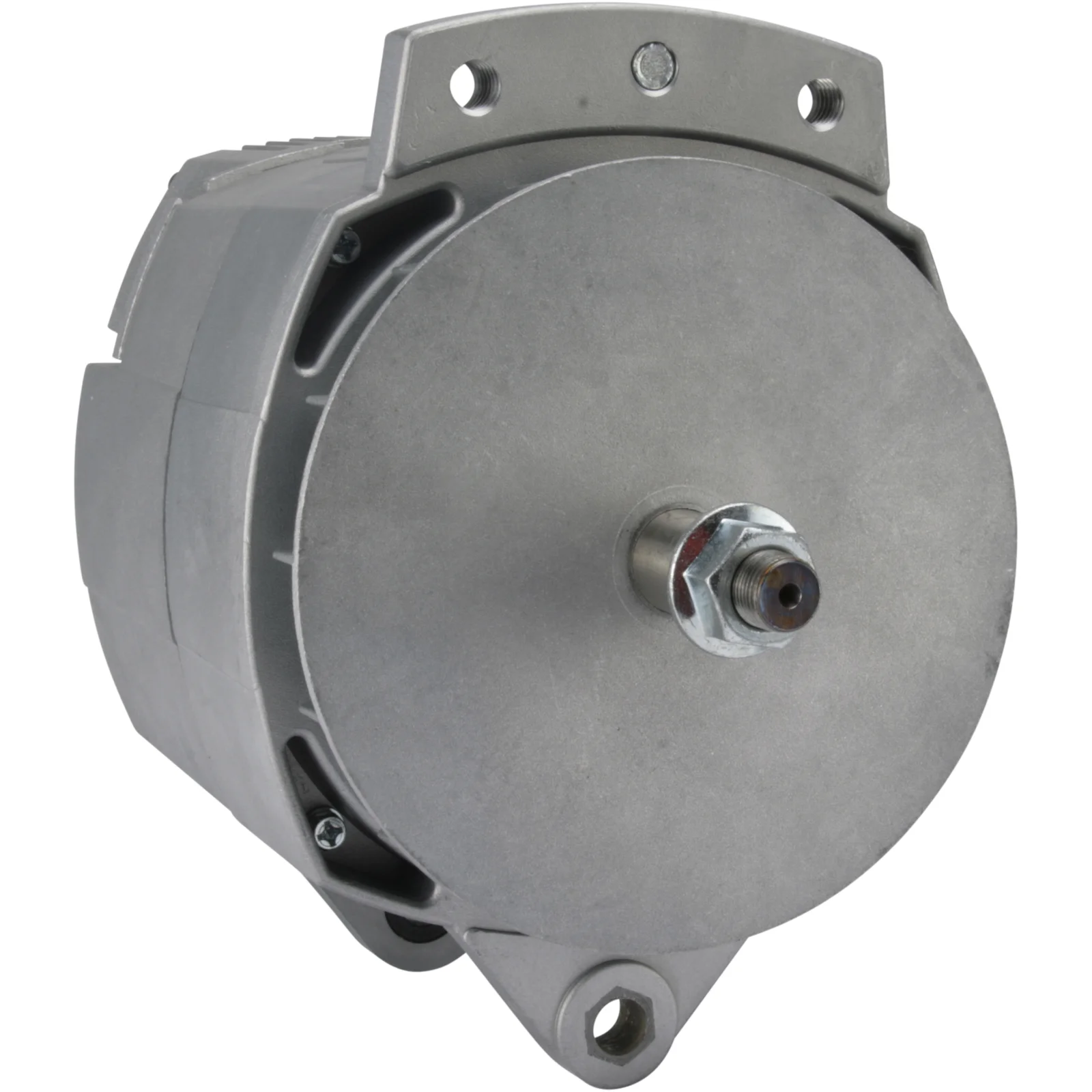

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114348

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 150, Rotation: CW, Mount. bøsning dist.: 102,20

Beskrivelse

Tension: 28
Amp: 150
Bredde/holder arm: 13,00
Monteringsbeslag dist.: 102,20
Beslagshul: 13,00
Bæltejusteringsbeslag hul 1: 1/2" UNC
Radius: 108,00
Radius 2: 103,00
B+: 5/16" UNC
Position/B+ i min.: 30
Rotation: med uret
W stiktype: 10-24 UNC
Total længde mm: 266,50
Drev: uden
Regulator type: IR
Produktoplys: BN
Bemærkninger: Til batteriløst system

Filer

Specifikation

B+ 5/16" UNC
Mount. bracket dist. 102.20
Belt. adj. bracket hole 1 1/2" UNC
Bracket hole 13.00
Position/B+ in min. 30
Prod. info BN
Pulley w/o
Radius 108.00
Radius 2 103.00
Regulator type IR
Remarks For batteryless system
Rotation CW
Voltage 28
W plug type 10-24 UNC
Total length 266.50 mm
Width/holder arm 13.00
Amp 150

  • OEM
    ATS92905, F032114348, L8SC3110VC, 8SC3110V, 8SC3110VC, 8SC3110VC09, 8SC3110VC111, 8SC3110VC117, 8SC3110VC118, 8SC3110VC120, 8SC3110VC120E, 8SC3110VC17, 8SC3110VC18, 8SC3110VC23, 8SC3110VC37, 8SC3110VC39, 8SC3110VC40, 8SC3110VC42, 8SC3110VC43, 8SC3110VC64, 8SC3110VC65, 8SC3110VC79, 8SC3110VC80, 8SC3110VC81S, 8SC3110VC83, 8SC3110VC91, 8SC3110VC94, 8SC3110VC98, 8SC3110VCH114, 8SC3150VC, 8SC3150VC30, 8SC3150VC30A, 8SC3150VC95, 8SC3151VCA49, 8SC3151VCA59, 8SC3151VCA7, 8SC3151VCA77, 8SC3151VCB7, 8SC3200V, 110-568, 37018000002

  • Konkurrentreferens
    A9302S, ALT-0191, CAL11611, CAL11636, DRA0268, F042308016, F042308017, F042A08016, 553809RI

  • NormaliseratArtNr
    a9302s, alt0191, ats92905, cal11611, cal11636, dra0268, f032114348, f042308016, f042308017, f042a08016, l8sc3110vc, 8sc3110v, 8sc3110vc, 8sc3110vc09, 8sc3110vc111, 8sc3110vc117, 8sc3110vc118, 8sc3110vc120, 8sc3110vc120e, 8sc3110vc17, 8sc3110vc18, 8sc3110vc23, 8sc3110vc37, 8sc3110vc39, 8sc3110vc40, 8sc3110vc42, 8sc3110vc43, 8sc3110vc64, 8sc3110vc65, 8sc3110vc79, 8sc3110vc80, 8sc3110vc81s, 8sc3110vc83, 8sc3110vc91, 8sc3110vc94, 8sc3110vc98, 8sc3110vch114, 8sc3150vc, 8sc3150vc30, 8sc3150vc30a, 8sc3150vc95, 8sc3151vca49, 8sc3151vca59, 8sc3151vca7, 8sc3151vca77, 8sc3151vcb7, 8sc3200v, 110568, 553809ri, 37018000002

  • Passar modeller
    Thermo King Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Tension: 28
    Amp: 150
    Bredde/holder arm: 13,00
    Monteringsbeslag dist.: 102,20
    Beslagshul: 13,00
    Bæltejusteringsbeslag hul 1: 1/2" UNC
    Radius: 108,00
    Radius 2: 103,00
    B+: 5/16" UNC
    Position/B+ i min.: 30
    Rotation: med uret
    W stiktype: 10-24 UNC
    Total længde mm: 266,50
    Drev: uden
    Regulator type: IR
    Produktoplys: BN
    Bemærkninger: Til batteriløst system

    Filer

  • Specifikation
    B+ 5/16" UNC
    Mount. bracket dist. 102.20
    Belt. adj. bracket hole 1 1/2" UNC
    Bracket hole 13.00
    Position/B+ in min. 30
    Prod. info BN
    Pulley w/o
    Radius 108.00
    Radius 2 103.00
    Regulator type IR
    Remarks For batteryless system
    Rotation CW
    Voltage 28
    W plug type 10-24 UNC
    Total length 266.50 mm
    Width/holder arm 13.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      ATS92905, F032114348, L8SC3110VC, 8SC3110V, 8SC3110VC, 8SC3110VC09, 8SC3110VC111, 8SC3110VC117, 8SC3110VC118, 8SC3110VC120, 8SC3110VC120E, 8SC3110VC17, 8SC3110VC18, 8SC3110VC23, 8SC3110VC37, 8SC3110VC39, 8SC3110VC40, 8SC3110VC42, 8SC3110VC43, 8SC3110VC64, 8SC3110VC65, 8SC3110VC79, 8SC3110VC80, 8SC3110VC81S, 8SC3110VC83, 8SC3110VC91, 8SC3110VC94, 8SC3110VC98, 8SC3110VCH114, 8SC3150VC, 8SC3150VC30, 8SC3150VC30A, 8SC3150VC95, 8SC3151VCA49, 8SC3151VCA59, 8SC3151VCA7, 8SC3151VCA77, 8SC3151VCB7, 8SC3200V, 110-568, 37018000002

    • Konkurrentreferens
      A9302S, ALT-0191, CAL11611, CAL11636, DRA0268, F042308016, F042308017, F042A08016, 553809RI

    • NormaliseratArtNr
      a9302s, alt0191, ats92905, cal11611, cal11636, dra0268, f032114348, f042308016, f042308017, f042a08016, l8sc3110vc, 8sc3110v, 8sc3110vc, 8sc3110vc09, 8sc3110vc111, 8sc3110vc117, 8sc3110vc118, 8sc3110vc120, 8sc3110vc120e, 8sc3110vc17, 8sc3110vc18, 8sc3110vc23, 8sc3110vc37, 8sc3110vc39, 8sc3110vc40, 8sc3110vc42, 8sc3110vc43, 8sc3110vc64, 8sc3110vc65, 8sc3110vc79, 8sc3110vc80, 8sc3110vc81s, 8sc3110vc83, 8sc3110vc91, 8sc3110vc94, 8sc3110vc98, 8sc3110vch114, 8sc3150vc, 8sc3150vc30, 8sc3150vc30a, 8sc3150vc95, 8sc3151vca49, 8sc3151vca59, 8sc3151vca7, 8sc3151vca77, 8sc3151vcb7, 8sc3200v, 110568, 553809ri, 37018000002

    • Passar modeller
      Thermo King Model: Various Models Model series: Various Models Approved: Yes
