HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115602

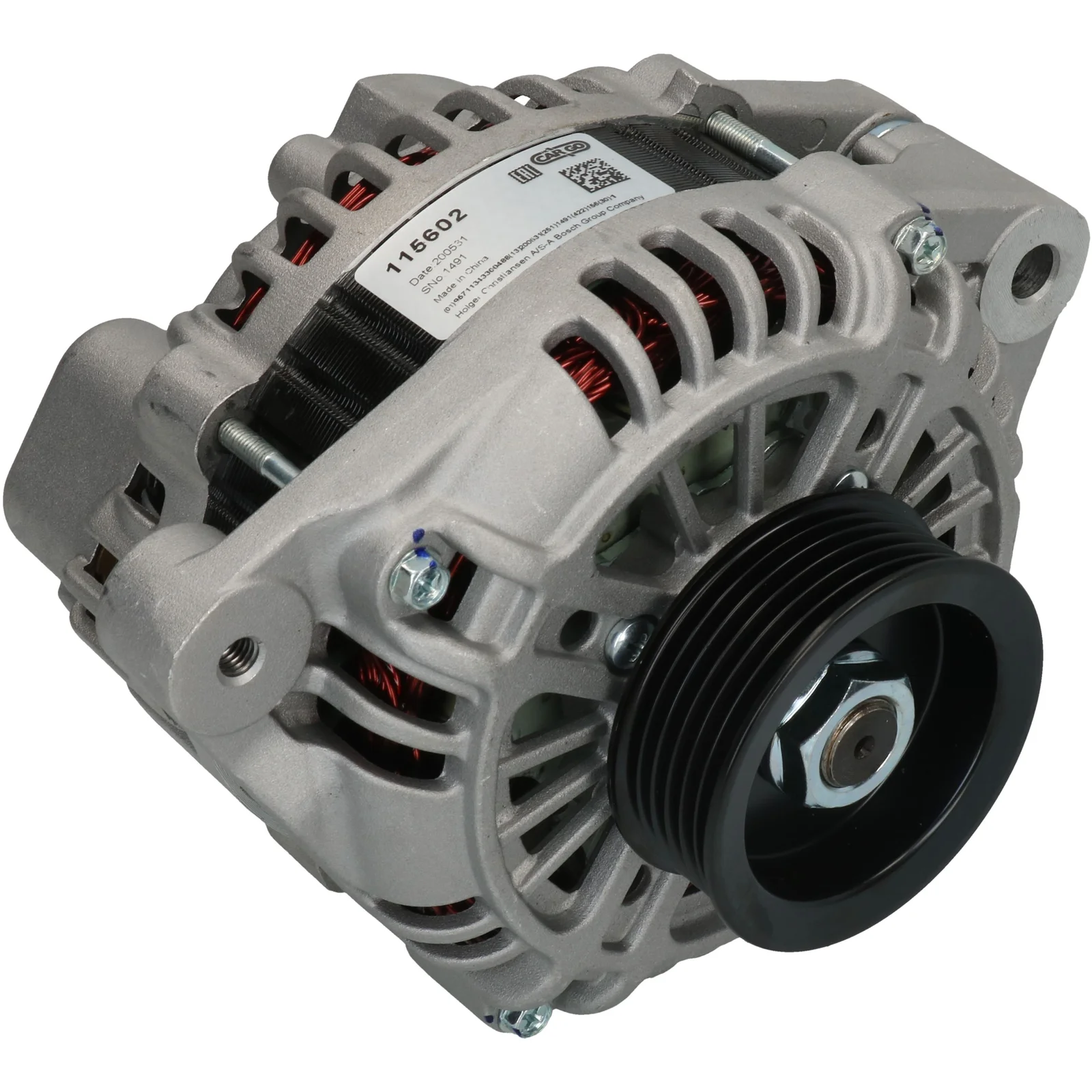

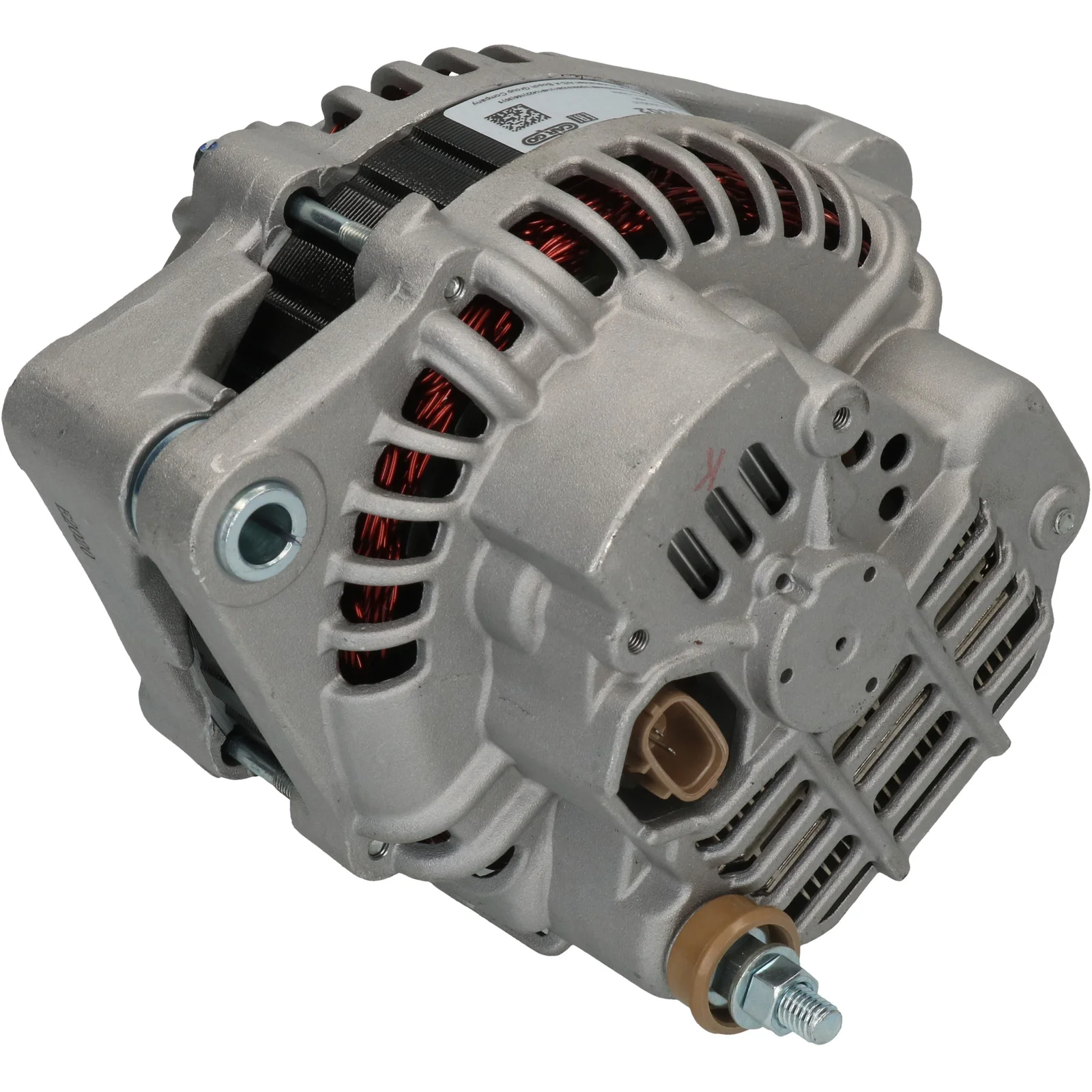

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 90, Rotation: med uret, Radius: 88,50

Beskrivelse

Spænding: 28
Ampere: 90
Bredde/bøsning arm: 59.00
Bøsning hul: 11.00
Bæltespændingsregulator bøsning pos.: 7
Bæltespændingsregulator bøsning hul 1: M8
Spor/Remskive: 6
Radius: 88,50
Radius 2: 89,00
B+: M8
Position/B+ i min.: 58
D+ Størrelse: Stik
Rotationsretning: CW
Stik nr.: PL42
Total længde mm: 198,00
Terminaltype: L-IG-S
Lysrørstype: Aktiv
Remskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL42
Bracket hole 11.00
Position/B+ in min. 58
Prod. info BN
Pulley SP
Radius 88.50
D+ Size Plug
Radius 2 89.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Lamp type Active
Terminal type L-IG-S
Voltage 28
Total length 198.00 mm
Width/holder arm 59.00
Amp 90

  • OEM
    A004TA0594, A004TA8494, A4TA0594, A4TA8494, A4TA8494AM, F032115602, 504282333

  • Konkurrentreferens
    alt-3531, CAL35612, DRA0815, DRA0815N, F042303088, F042A03088, lra02517, 48-4557, 506.504.090, 111962, 210909, 210909A

  • NormaliseratArtNr
    a004ta0594, a004ta8494, a4ta0594, a4ta8494, a4ta8494am, alt3531, cal35612, dra0815, dra0815n, f032115602, f042303088, f042a03088, lra02517, 111962, 210909, 210909a, 484557, 504282333, 506504090

  • Passar modeller
    Iveco Model: EuroStar Model series: 190 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroStar Body: Platform / Chassis From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: EuroStar Model series: 190 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Platform / Chassis From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: EuroStar Model series: 260 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroStar Body: Platform / Chassis From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: EuroStar Model series: 260 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Platform / Chassis From date: 01-01-1993 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: EuroStar Model series: 440 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Semi-Trailer From date: 01-01-1993 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: EuroStar Model series: 440 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Semi-Trailer From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 190 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroTech Body: Platform / Chassis From date: 01-11-1999 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 190 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroTech Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 260 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroTech Body: Platform / Chassis From date: 01-11-1999 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTech Model series: 260 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroTech Body: Platform / Chassis From date: 01-11-1999 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 190 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 190 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Dump Truck From date: 01-09-2000 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 190 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-09-2000 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 260 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 260 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 260 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 260 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-01-2000 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 260 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 340 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Concrete Mixer From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 340 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 340 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 340 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Concrete Mixer From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 340 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: EuroTrakker Model series: 340 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
    Iveco Model: Stralis Model series: 260 S 40 Size of motor: 10.3 Brand of engine: F3AE0681B Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: Stralis Model series: 260 S 40 Size of motor: 10.3 Brand of engine: F3AE0681H Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: Stralis Model series: 260 S 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
    Iveco Model: Stralis Model series: 260 S 54 Size of motor: 12.9 Brand of engine: F3BE0681A Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Spænding: 28
    Ampere: 90
    Bredde/bøsning arm: 59.00
    Bøsning hul: 11.00
    Bæltespændingsregulator bøsning pos.: 7
    Bæltespændingsregulator bøsning hul 1: M8
    Spor/Remskive: 6
    Radius: 88,50
    Radius 2: 89,00
    B+: M8
    Position/B+ i min.: 58
    D+ Størrelse: Stik
    Rotationsretning: CW
    Stik nr.: PL42
    Total længde mm: 198,00
    Terminaltype: L-IG-S
    Lysrørstype: Aktiv
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL42
    Bracket hole 11.00
    Position/B+ in min. 58
    Prod. info BN
    Pulley SP
    Radius 88.50
    D+ Size Plug
    Radius 2 89.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Lamp type Active
    Terminal type L-IG-S
    Voltage 28
    Total length 198.00 mm
    Width/holder arm 59.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      A004TA0594, A004TA8494, A4TA0594, A4TA8494, A4TA8494AM, F032115602, 504282333

    • Konkurrentreferens
      alt-3531, CAL35612, DRA0815, DRA0815N, F042303088, F042A03088, lra02517, 48-4557, 506.504.090, 111962, 210909, 210909A

    • NormaliseratArtNr
      a004ta0594, a004ta8494, a4ta0594, a4ta8494, a4ta8494am, alt3531, cal35612, dra0815, dra0815n, f032115602, f042303088, f042a03088, lra02517, 111962, 210909, 210909a, 484557, 504282333, 506504090

    • Passar modeller
      Iveco Model: EuroStar Model series: 190 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroStar Body: Platform / Chassis From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: EuroStar Model series: 190 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Platform / Chassis From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: EuroStar Model series: 260 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroStar Body: Platform / Chassis From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: EuroStar Model series: 260 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Platform / Chassis From date: 01-01-1993 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: EuroStar Model series: 440 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Semi-Trailer From date: 01-01-1993 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: EuroStar Model series: 440 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroStar Body: Semi-Trailer From date: 01-11-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 190 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroTech Body: Platform / Chassis From date: 01-11-1999 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 190 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroTech Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 260 E 39 Size of motor: 10.3 Brand of engine: F3AE0681E Type description: EuroTech Body: Platform / Chassis From date: 01-11-1999 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTech Model series: 260 E 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: EuroTech Body: Platform / Chassis From date: 01-11-1999 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 190 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 190 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Dump Truck From date: 01-09-2000 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 190 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-09-2000 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 260 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 260 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 260 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 260 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-01-2000 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 260 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 340 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Concrete Mixer From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 340 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 340 E 38 Size of motor: 12.9 Brand of engine: F3BE0681G Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 340 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Concrete Mixer From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 340 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Dump Truck From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: EuroTrakker Model series: 340 E 44 Size of motor: 12.9 Brand of engine: F3BE0681C Type description: Cursor Body: Platform / Chassis From date: 01-01-2001 To date: 01-11-2004 Fuel: Diesel Approved: Yes
      Iveco Model: Stralis Model series: 260 S 40 Size of motor: 10.3 Brand of engine: F3AE0681B Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: Stralis Model series: 260 S 40 Size of motor: 10.3 Brand of engine: F3AE0681H Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: Stralis Model series: 260 S 43 Size of motor: 10.3 Brand of engine: F3AE0681D Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
      Iveco Model: Stralis Model series: 260 S 54 Size of motor: 12.9 Brand of engine: F3BE0681A Type description: Cursor Body: Platform / Chassis From date: 01-02-2002 Fuel: Diesel Approved: Yes
