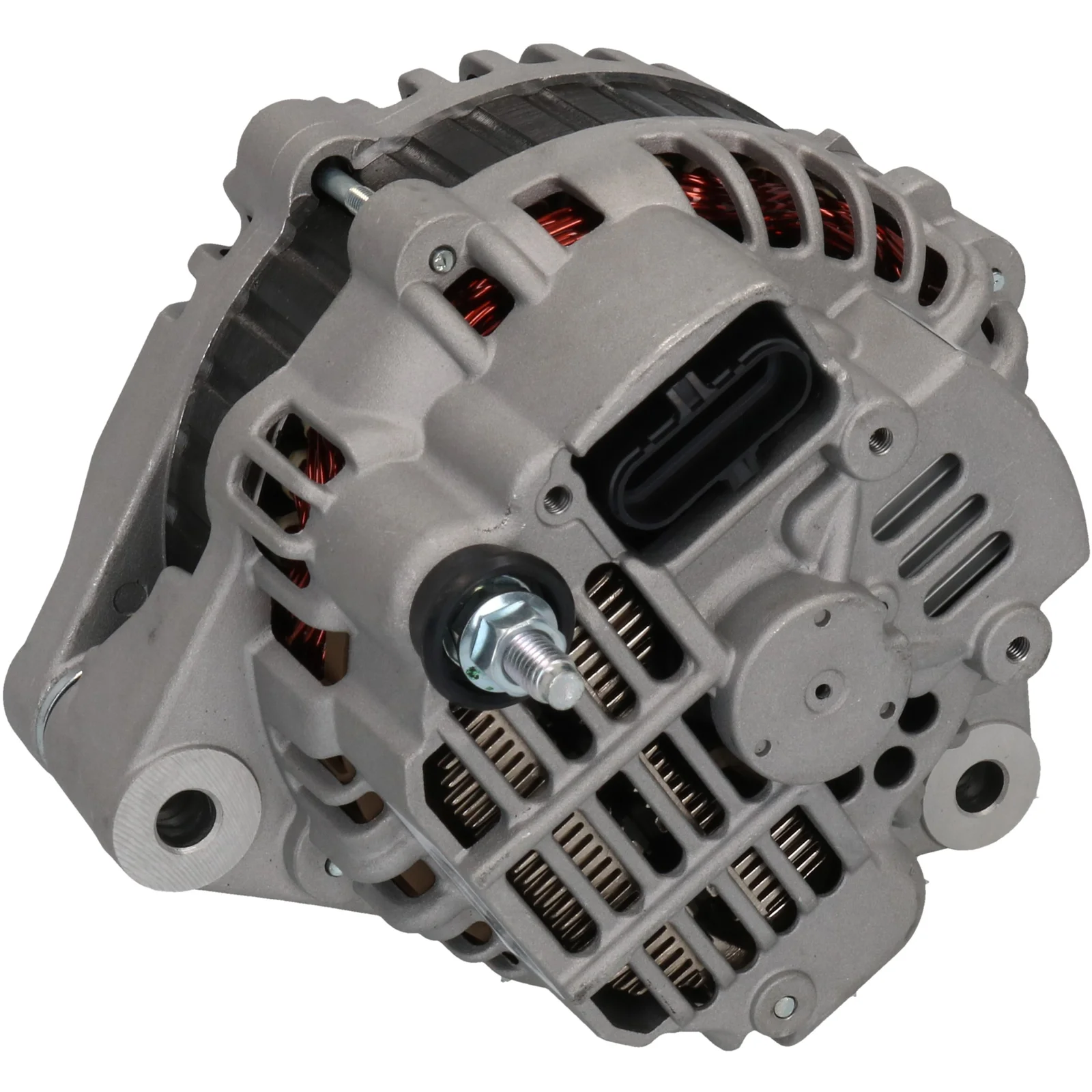

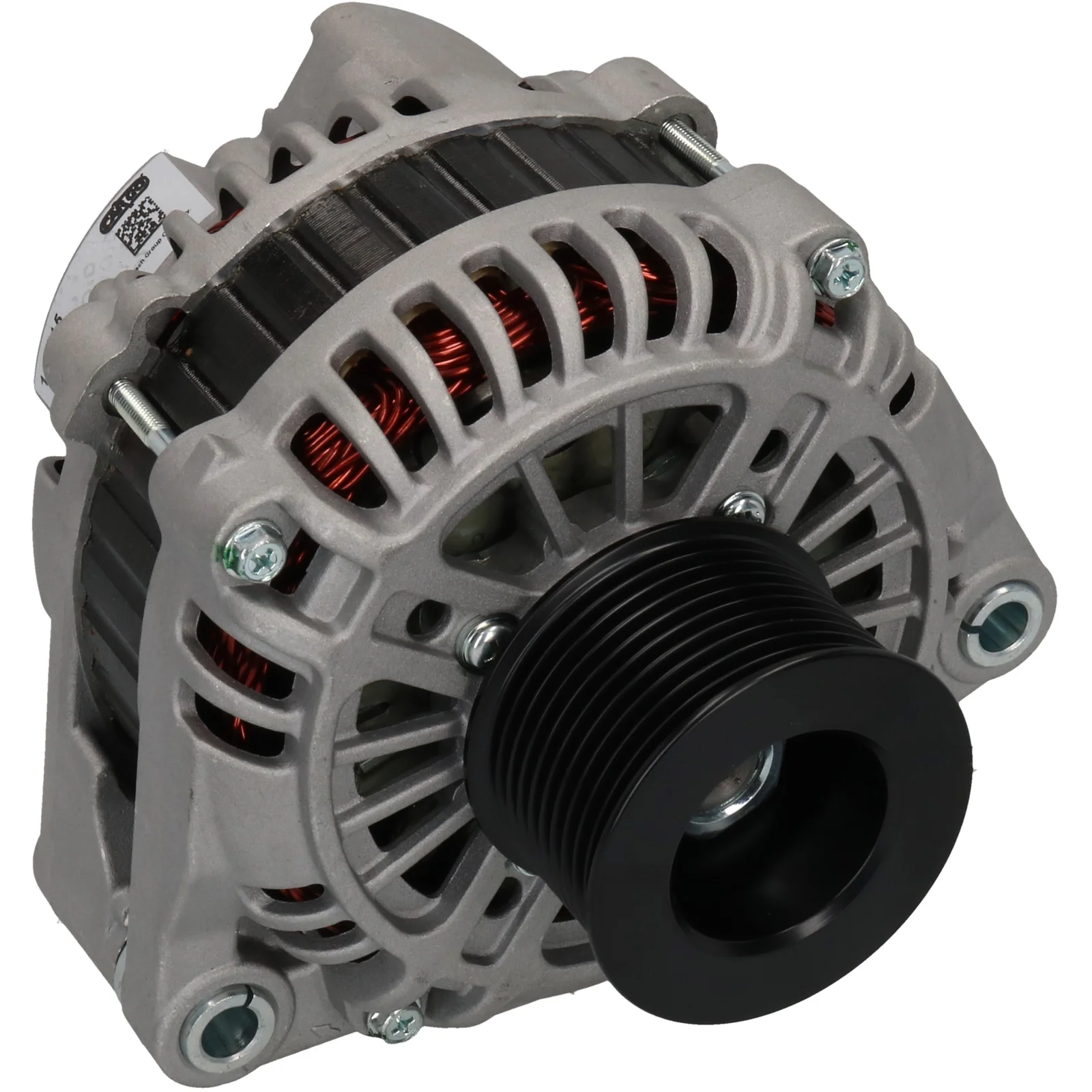

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116015

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 80, Rotation: CW, Remskive diameter: 64.00

Beskrivelse

Spænding: 28
Amp: 80
Bøsning fordeler: 82,60
Bredde/holder arm: 55,70
Bøsning til holder: 10,40
Bæltejustering bøsning position: 10
Bæltejustering bøsning 1: 10,40
Bælte: 64,00
Spor/bæltehjul: 10
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 55
Rotation: med uret
Stik nr.: PL82
Total længde mm: 197,00
Terminaltype: W-L-15-S-DFM
Hjulet: SP
Spændingsregulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 10.40
Belt. adj. brackethole pos. 10
Plug no. PL82
Bracket hole 10.40
Position/B+ in min. 55
Pulley SP
Pulley dia. 64.00
Pulley dist. 82.60
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 10
Terminal type W-L-15-S-DFM
Voltage 28
Total length 197.00 mm
Width/holder arm 55.70
Amp 80

  • OEM
    A003TA8791, A3TA8791, F032116015, 01182763, 1182763, 5001868231, 5010589136

  • Konkurrentreferens
    A5293, CAL35635, DRA1379, LRA03675, 48-6815, 500.177.804, 566.501.080

  • NormaliseratArtNr
    a003ta8791, a3ta8791, a5293, cal35635, dra1379, f032116015, lra03675, 486815, 01182763, 1182763, 500177804, 566501080, 5001868231, 5010589136

  • Passar modeller
    Renault V.I. Model: Midlum Model series: 160.08 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 160.10 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 160.12 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.08 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.10 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.12 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: General Purpose Vehicle From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.12 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.13 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.14 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 190.16 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 220.08 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 220.10 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 220.12 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 220.13 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 220.14 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 220.16 Size of motor: 4.8 Brand of engine: DXi5 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 240.12 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 240.13 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 240.14 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 240.15 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: General Purpose Vehicle From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 240.16 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 240.18 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 280.12 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 280.13 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 280.14 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 280.16 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midlum Model series: 280.18 Size of motor: 7.2 Brand of engine: DXi7 Type description: Midlum Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium 2 Model series: 310.19 Size of motor: 7.2 Brand of engine: DXi7 Type description: Lander Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium 2 Model series: Lander 280.18 Size of motor: 7.2 Type description: Premium 2 Body: Platform / Chassis From date: 01-06-2008 To date: 01-04-2013 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium 2 Model series: Lander 320.18 Size of motor: 7.2 Type description: Premium 2 Body: Platform / Chassis From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium Model series: 240.18 Size of motor: 7.2 Brand of engine: DXi7 Type description: Distribution Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium Model series: 280.18 Size of motor: 7.2 Brand of engine: DXi7 Type description: Distribution Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium Model series: 280.26 Size of motor: 7.2 Brand of engine: DXi7 Type description: Distribution Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium Model series: 320.18 Size of motor: 7.2 Brand of engine: DXi7 Type description: Distribution Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium Model series: 320.18 Size of motor: 7.2 Brand of engine: DXi7 Type description: Distribution Body: Semi-Trailer From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Premium Model series: 320.26 Size of motor: 7.2 Brand of engine: DXi7 Type description: Distribution Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
