Vare nr.: F032116023

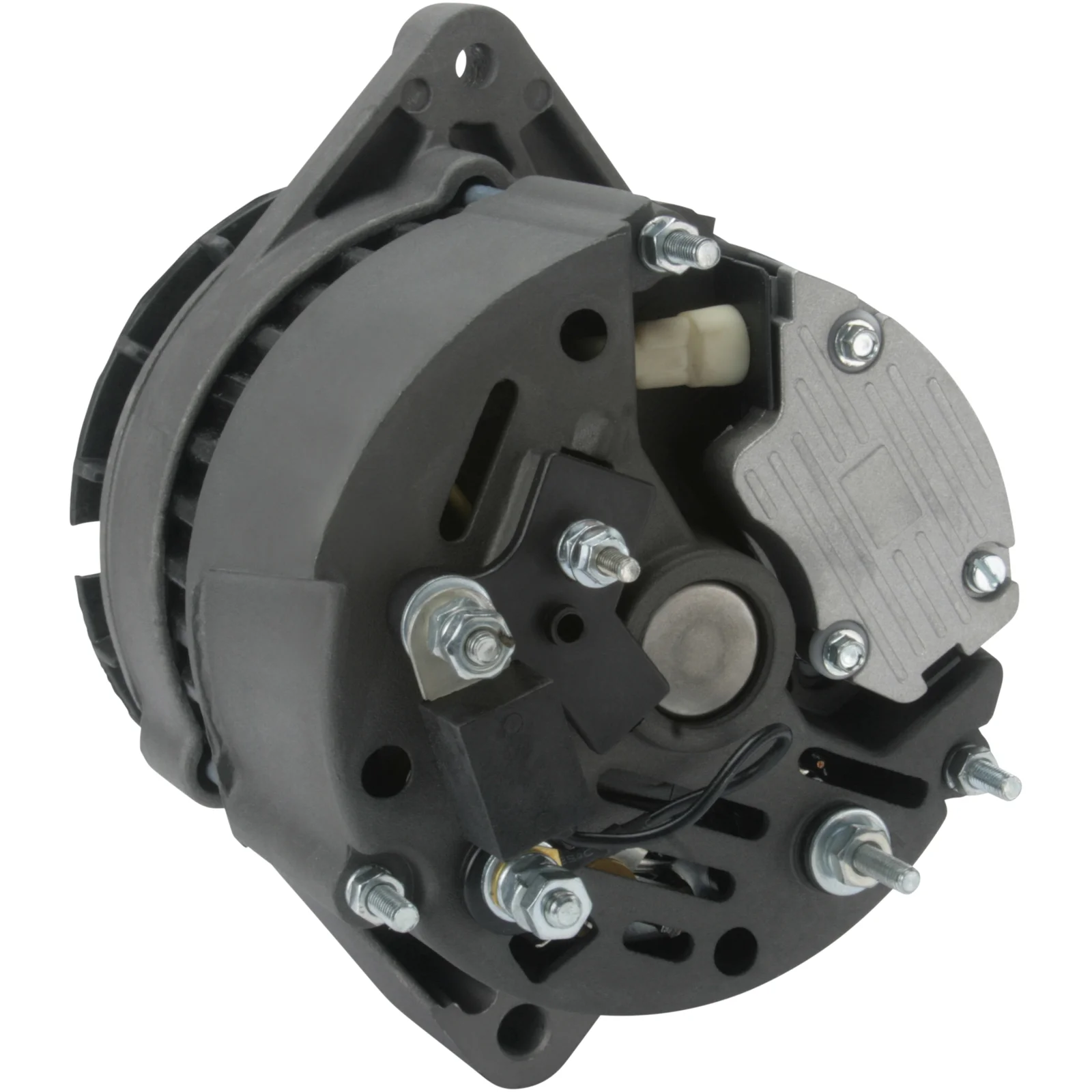

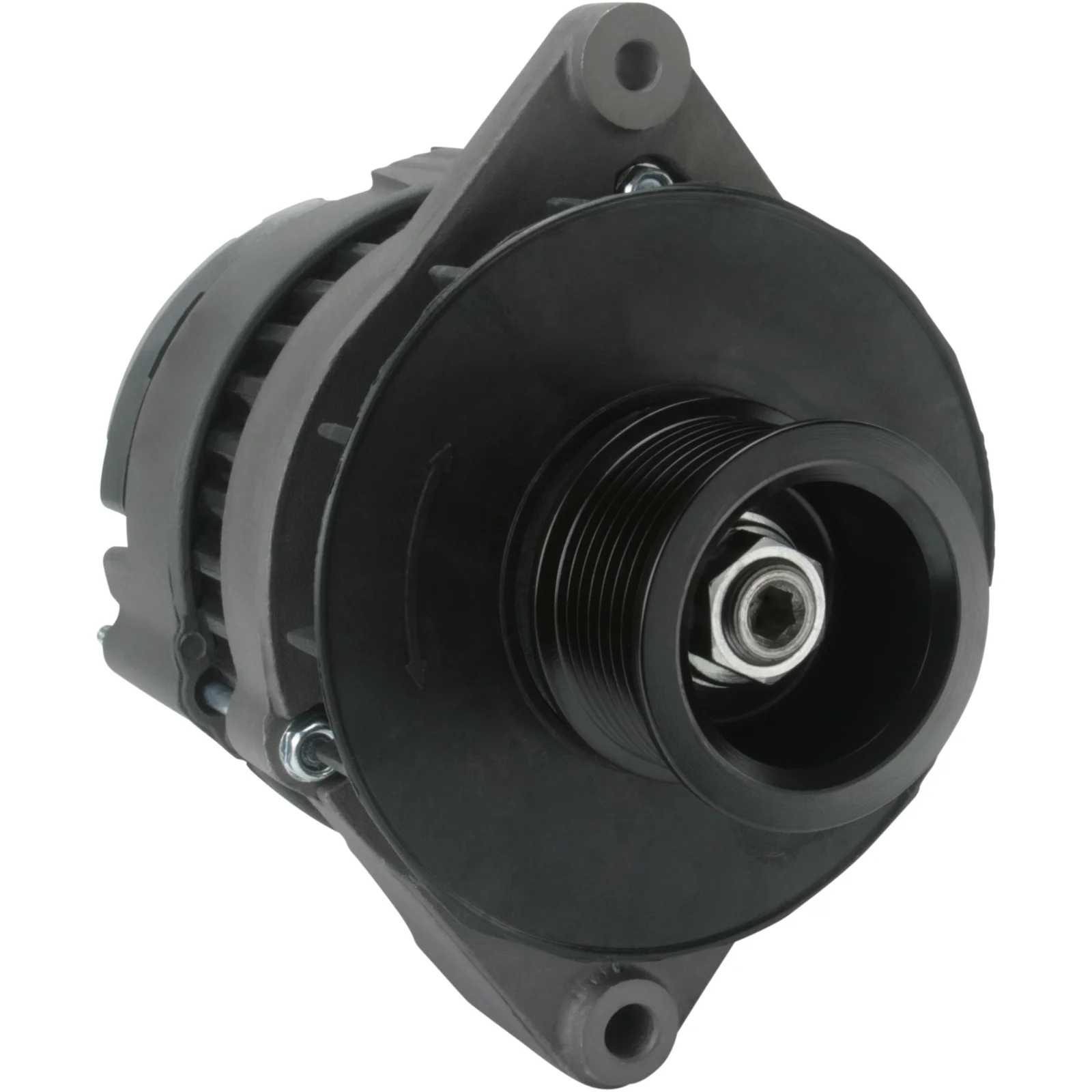

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 50, Rotation: CW, Remskive dia.: 59,80

Beskrivelse

Spænding: 28
Amp: 50
Isoleret returnering: Ja
Terminal: W
Remskive dist.: 79,00
Bredde/beslag arm: 51,00
Bøjlehull: 10,00
Bæltesjustering bøjlehullens position.: 60
Bæltesjustering bøjlehull: 8,20
Remskivens diameter: 59,80
Riller/remskive: 8
Radius: 85,00
Radius 2: 87,50
B+: M6
Position/B+ i min.: 38
D+ Størrelse: M4
Rotation: CW
W stiktype: M5
Total længde mm: 188,00
Remskive: SP
Regulator type: IR
Bemærkninger: Støvbeskyttet

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Bracket hole 10.00
Position/B+ in min. 38
Pulley SP
Pulley dia. 59.80
Pulley dist. 79.00
Radius 85.00
D+ Size M4
Radius 2 87.50
Regulator type IR
Remarks Dustproof
Rotation CW
Grooves/pulley 8
Terminal W
Insulated return Yes
Voltage 28
W plug type M5
Total length 188.00 mm
Width/holder arm 51.00
Amp 50
  • OEM

    AAK4335, AAK4362, F032116023, RE525690, RE540413, 11.203.369, 11.203.461, 01912362
  • Konkurrentreferens

    CAL21609, LEA0482, lea0772, LRA03540, MG322, 48-6650, 586.117.504, 706.009.050, 12823
  • NormaliseratArtNr

    aak4335, aak4362, cal21609, f032116023, lea0482, lea0772, lra03540, mg322, re525690, re540413, 12823, 486650, 01912362, 11203369, 11203461, 586117504, 706009050
  • Passar modeller

    John Deere Model: Engine Brand of engine: 4045DFM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068DFM Approved: Yes
    John Deere Model: Engine Brand of engine: 6068FM50 Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 50
    Isoleret returnering: Ja
    Terminal: W
    Remskive dist.: 79,00
    Bredde/beslag arm: 51,00
    Bøjlehull: 10,00
    Bæltesjustering bøjlehullens position.: 60
    Bæltesjustering bøjlehull: 8,20
    Remskivens diameter: 59,80
    Riller/remskive: 8
    Radius: 85,00
    Radius 2: 87,50
    B+: M6
    Position/B+ i min.: 38
    D+ Størrelse: M4
    Rotation: CW
    W stiktype: M5
    Total længde mm: 188,00
    Remskive: SP
    Regulator type: IR
    Bemærkninger: Støvbeskyttet
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Bracket hole 10.00
    Position/B+ in min. 38
    Pulley SP
    Pulley dia. 59.80
    Pulley dist. 79.00
    Radius 85.00
    D+ Size M4
    Radius 2 87.50
    Regulator type IR
    Remarks Dustproof
    Rotation CW
    Grooves/pulley 8
    Terminal W
    Insulated return Yes
    Voltage 28
    W plug type M5
    Total length 188.00 mm
    Width/holder arm 51.00
    Amp 50
  • Køretøjsmatchning
    • OEM

      AAK4335, AAK4362, F032116023, RE525690, RE540413, 11.203.369, 11.203.461, 01912362
    • Konkurrentreferens

      CAL21609, LEA0482, lea0772, LRA03540, MG322, 48-6650, 586.117.504, 706.009.050, 12823
    • NormaliseratArtNr

      aak4335, aak4362, cal21609, f032116023, lea0482, lea0772, lra03540, mg322, re525690, re540413, 12823, 486650, 01912362, 11203369, 11203461, 586117504, 706009050
    • Passar modeller

      John Deere Model: Engine Brand of engine: 4045DFM50 Approved: Yes
      John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
      John Deere Model: Engine Brand of engine: 6068DFM Approved: Yes
      John Deere Model: Engine Brand of engine: 6068FM50 Approved: Yes
