HC-Cargo Generator

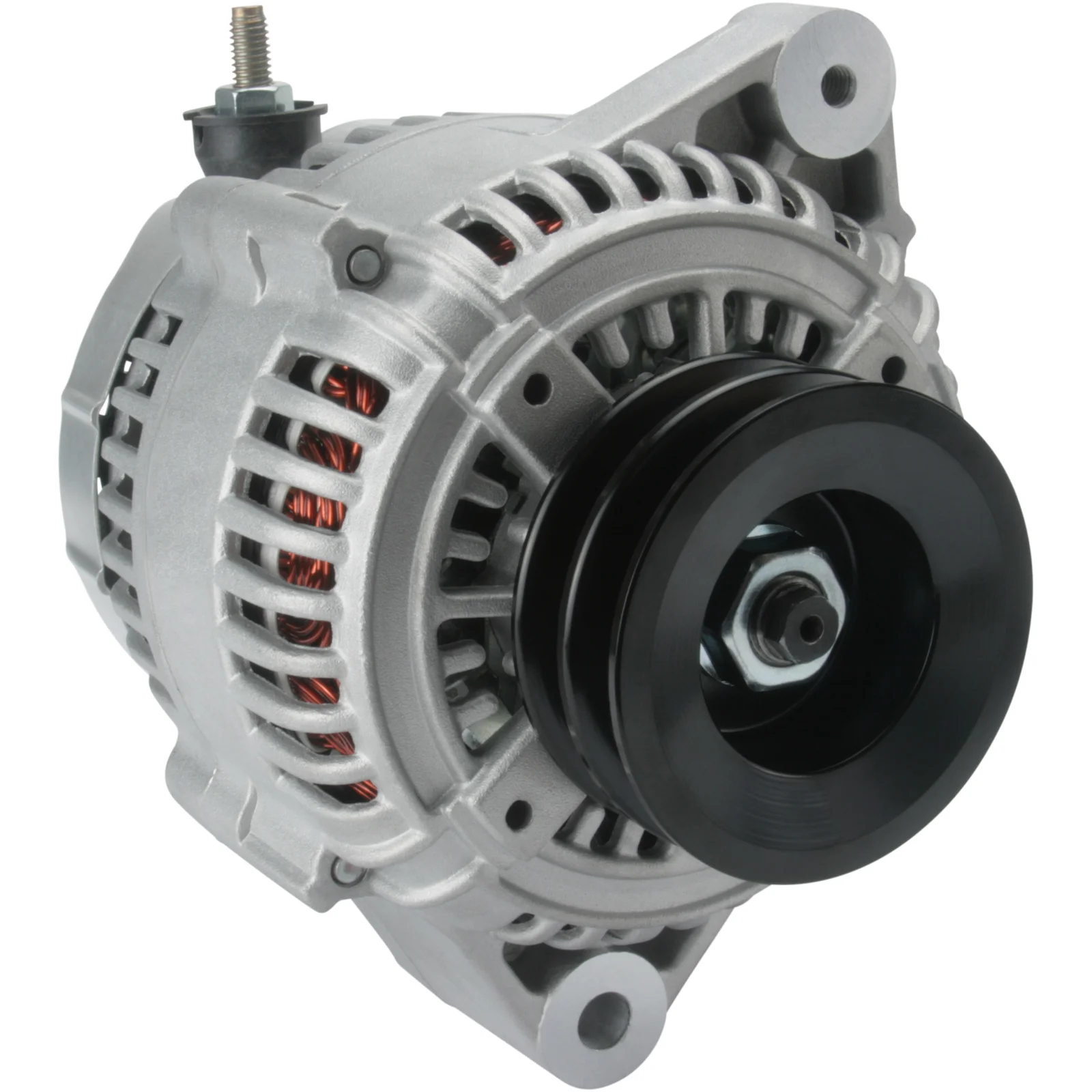

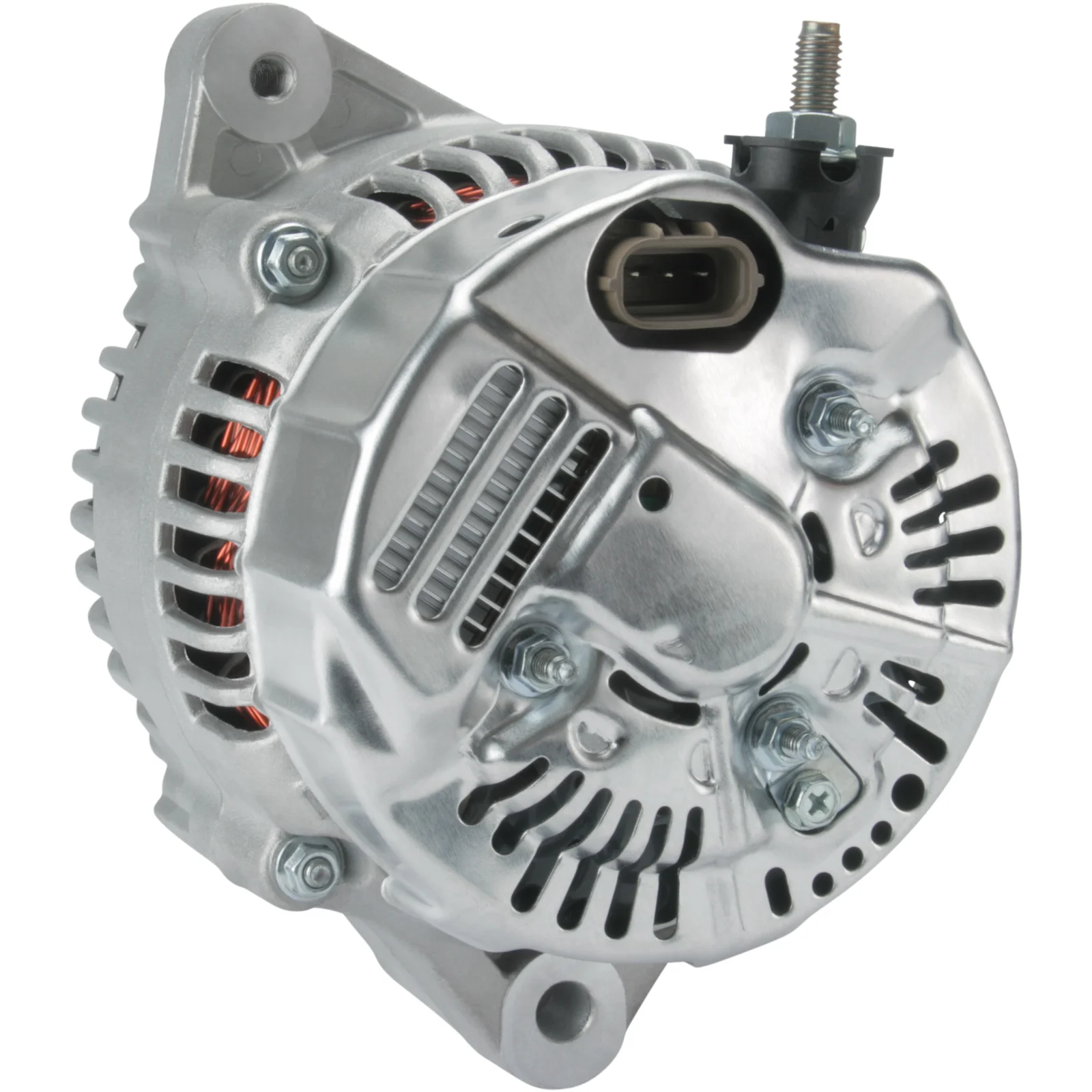

HC-Cargo Generator
Vare nr.: F032116029

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 60, Rotation: CW, Remskive dia.: 76,00

Beskrivelse

Spænding: 28
Amp: 60
Remskive dist.: 92.00
Bredde/beslag arm: 58.00
Bøjlehull: 10.50
Bælte. regul. bøjlehull position.: 4
Bælte. regul. bøjlehull 1: M8
Remskive dia.: 76.00
Riller/remskive: 2
Radius: 83.00
Radius 2: 86.00
B+: M8
Position/B+ i min.: 3
D+ Størrelse: Støpselektoor
Rotation: med uret
Støpselektoor nr.: PL42
Samlet længde mm: 174.00
Terminaltype: L-IG-S
Lampen type: Inaktiv
Remskive: DP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 3
Prod. info BN
Pulley DP
Pulley dia. 76.00
Pulley dist. 92.00
Radius 83.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Lamp type Inactive
Terminal type L-IG-S
Voltage 28
Total length 174.00 mm
Width/holder arm 58.00
Amp 60

  • OEM
    F032116029, 27060-17120, 27060-17240, 27060-58150, 27060-58230, 100211-6240, 100211-6250, 100211-6260, 102211-0451

  • Konkurrentreferens
    A6004, alt-6183, CAL40625, F042302143, F042A02143, 196.507.060, 23934N

  • NormaliseratArtNr
    a6004, alt6183, cal40625, f032116029, f042302143, f042a02143, 23934n, 196507060, 1002116240, 1002116250, 1002116260, 1022110451, 2706017120, 2706017240, 2706058150, 2706058230

  • Passar modeller
    Toyota Model: Coaster Model series: Coaster Model type: LPG Size of motor: 4.1 Type description: ZB4_, ZB5_, HZ_ Body: Bus From date: 01-11-2003 Fuel: Bi-Fuel Approved: Yes
    Toyota Model: Coaster Model series: Coaster Size of motor: 4.0 Brand of engine: N04C-UP Type description: HZ_ Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Coaster Model series: Coaster Size of motor: 4.0 Brand of engine: N04C-VF Type description: HZ_ Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Coaster Model series: Coaster Type of engine: Diesel Size of motor: 4.1 Type description: HZ_ Body: Bus From date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Coaster Model series: Coaster Type of engine: TD Size of motor: 4.2 Body: Bus From date: 01-01-1993 To date: 01-10-2003 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 60
    Remskive dist.: 92.00
    Bredde/beslag arm: 58.00
    Bøjlehull: 10.50
    Bælte. regul. bøjlehull position.: 4
    Bælte. regul. bøjlehull 1: M8
    Remskive dia.: 76.00
    Riller/remskive: 2
    Radius: 83.00
    Radius 2: 86.00
    B+: M8
    Position/B+ i min.: 3
    D+ Størrelse: Støpselektoor
    Rotation: med uret
    Støpselektoor nr.: PL42
    Samlet længde mm: 174.00
    Terminaltype: L-IG-S
    Lampen type: Inaktiv
    Remskive: DP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 3
    Prod. info BN
    Pulley DP
    Pulley dia. 76.00
    Pulley dist. 92.00
    Radius 83.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Lamp type Inactive
    Terminal type L-IG-S
    Voltage 28
    Total length 174.00 mm
    Width/holder arm 58.00
    Amp 60
  • Køretøjsmatchning

    • OEM
      F032116029, 27060-17120, 27060-17240, 27060-58150, 27060-58230, 100211-6240, 100211-6250, 100211-6260, 102211-0451

    • Konkurrentreferens
      A6004, alt-6183, CAL40625, F042302143, F042A02143, 196.507.060, 23934N

    • NormaliseratArtNr
      a6004, alt6183, cal40625, f032116029, f042302143, f042a02143, 23934n, 196507060, 1002116240, 1002116250, 1002116260, 1022110451, 2706017120, 2706017240, 2706058150, 2706058230

    • Passar modeller
      Toyota Model: Coaster Model series: Coaster Model type: LPG Size of motor: 4.1 Type description: ZB4_, ZB5_, HZ_ Body: Bus From date: 01-11-2003 Fuel: Bi-Fuel Approved: Yes
      Toyota Model: Coaster Model series: Coaster Size of motor: 4.0 Brand of engine: N04C-UP Type description: HZ_ Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Coaster Model series: Coaster Size of motor: 4.0 Brand of engine: N04C-VF Type description: HZ_ Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Coaster Model series: Coaster Type of engine: Diesel Size of motor: 4.1 Type description: HZ_ Body: Bus From date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Coaster Model series: Coaster Type of engine: TD Size of motor: 4.2 Body: Bus From date: 01-01-1993 To date: 01-10-2003 Fuel: Diesel Approved: Yes
