Vare nr.: F032116108

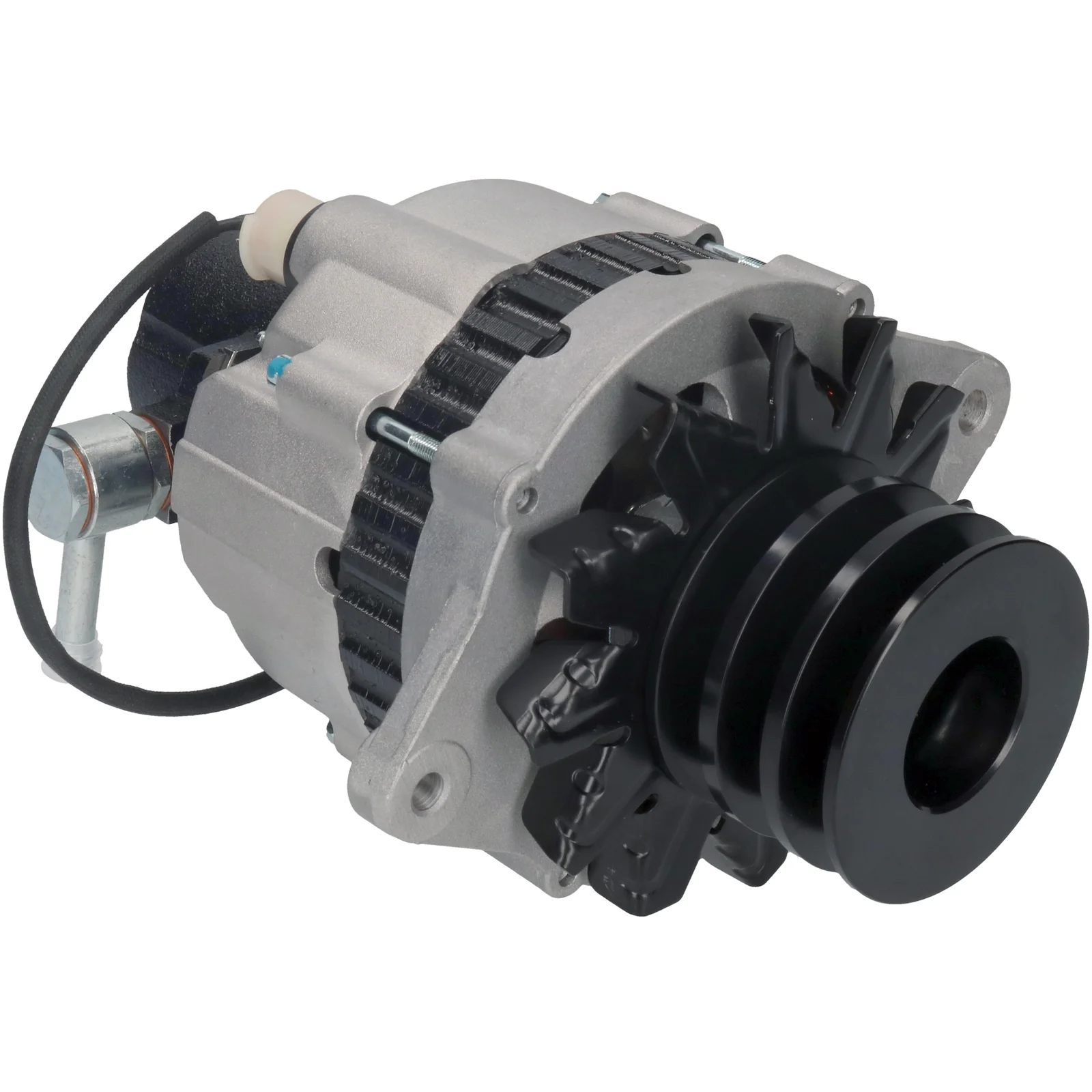

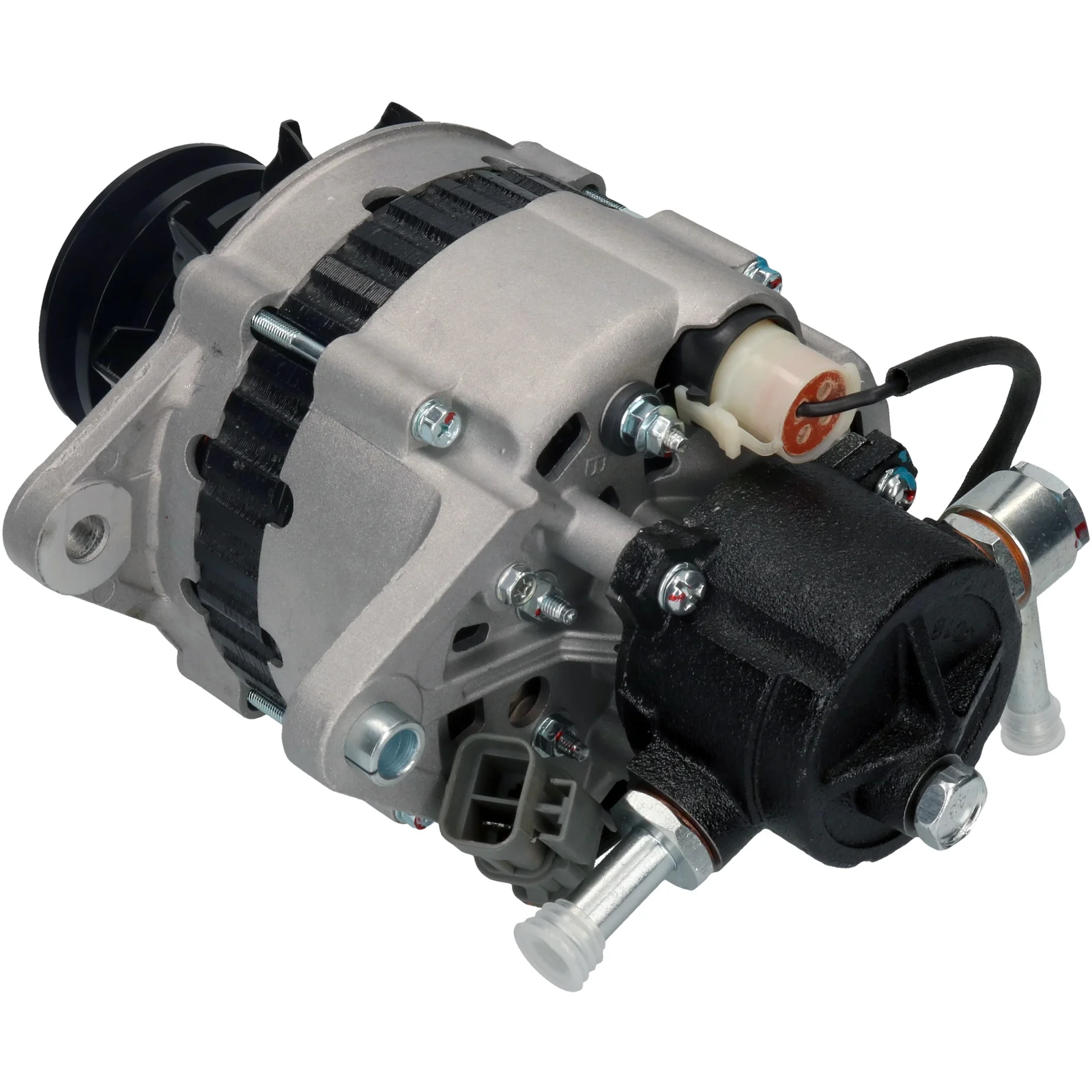

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 50, Rotation: CW, Monteringsbeslag fordelingsdæksel: 81,30

Beskrivelse

Spænding: 28
Amp: 50
Remskive afstand: 42.00
Bredde/fæstearm: 13.00
Monteringsbeslag afstand: 81.30
Beslagshul: 10.50
Bæltejustering beslaghul pos.: 60
Bæltejustering beslaghul 1: 8.50
Remskive dia.: 82.00
Riller/remskive: 3
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ i min.: 8
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL100
Samlet længde mm: 164.00
Remskive: Trippel remskive
Regulator type: IR
Vakuumpumpe: Ja

Specifikation

B+ M6
Mount. bracket dist. 81.30
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 10.50
Position/B+ in min. 8
Pulley Triple Pulley
Pulley dia. 82.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 3
Vac. pump Yes
Voltage 28
Total length 164.00 mm
Width/holder arm 13.00
Amp 50
  • OEM

    F032116108, lr250-511, lr250-511b, 8971865511
  • Konkurrentreferens

    A2045
  • NormaliseratArtNr

    a2045, f032116108, lr250511, lr250511b, 8971865511
  • Passar modeller

    Isuzu Model: N-Serie Model series: NKR 66 E Size of motor: 4.3 Brand of engine: 4HF1-II Body: Platform / Chassis Fuel: Diesel Approved: Yes
    Isuzu Model: N-Serie Model series: NKR 77, NPR 77 Size of motor: 2.9 Brand of engine: 4JH1-X Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 50
    Remskive afstand: 42.00
    Bredde/fæstearm: 13.00
    Monteringsbeslag afstand: 81.30
    Beslagshul: 10.50
    Bæltejustering beslaghul pos.: 60
    Bæltejustering beslaghul 1: 8.50
    Remskive dia.: 82.00
    Riller/remskive: 3
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ i min.: 8
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL100
    Samlet længde mm: 164.00
    Remskive: Trippel remskive
    Regulator type: IR
    Vakuumpumpe: Ja
  • Specifikation
    B+ M6
    Mount. bracket dist. 81.30
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL100
    Bracket hole 10.50
    Position/B+ in min. 8
    Pulley Triple Pulley
    Pulley dia. 82.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 3
    Vac. pump Yes
    Voltage 28
    Total length 164.00 mm
    Width/holder arm 13.00
    Amp 50
  • Køretøjsmatchning
    • OEM

      F032116108, lr250-511, lr250-511b, 8971865511
    • Konkurrentreferens

      A2045
    • NormaliseratArtNr

      a2045, f032116108, lr250511, lr250511b, 8971865511
    • Passar modeller

      Isuzu Model: N-Serie Model series: NKR 66 E Size of motor: 4.3 Brand of engine: 4HF1-II Body: Platform / Chassis Fuel: Diesel Approved: Yes
      Isuzu Model: N-Serie Model series: NKR 77, NPR 77 Size of motor: 2.9 Brand of engine: 4JH1-X Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
