HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116164

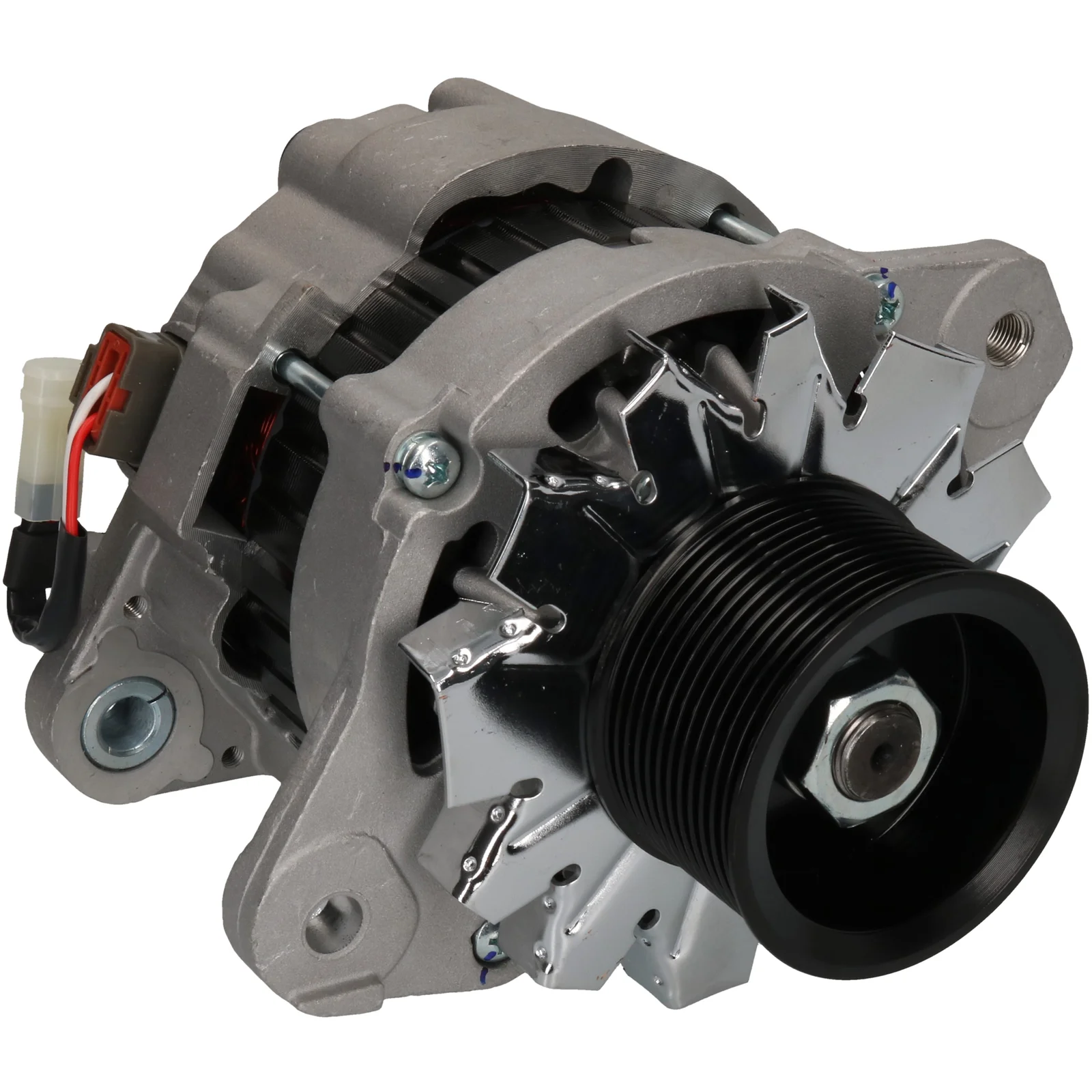

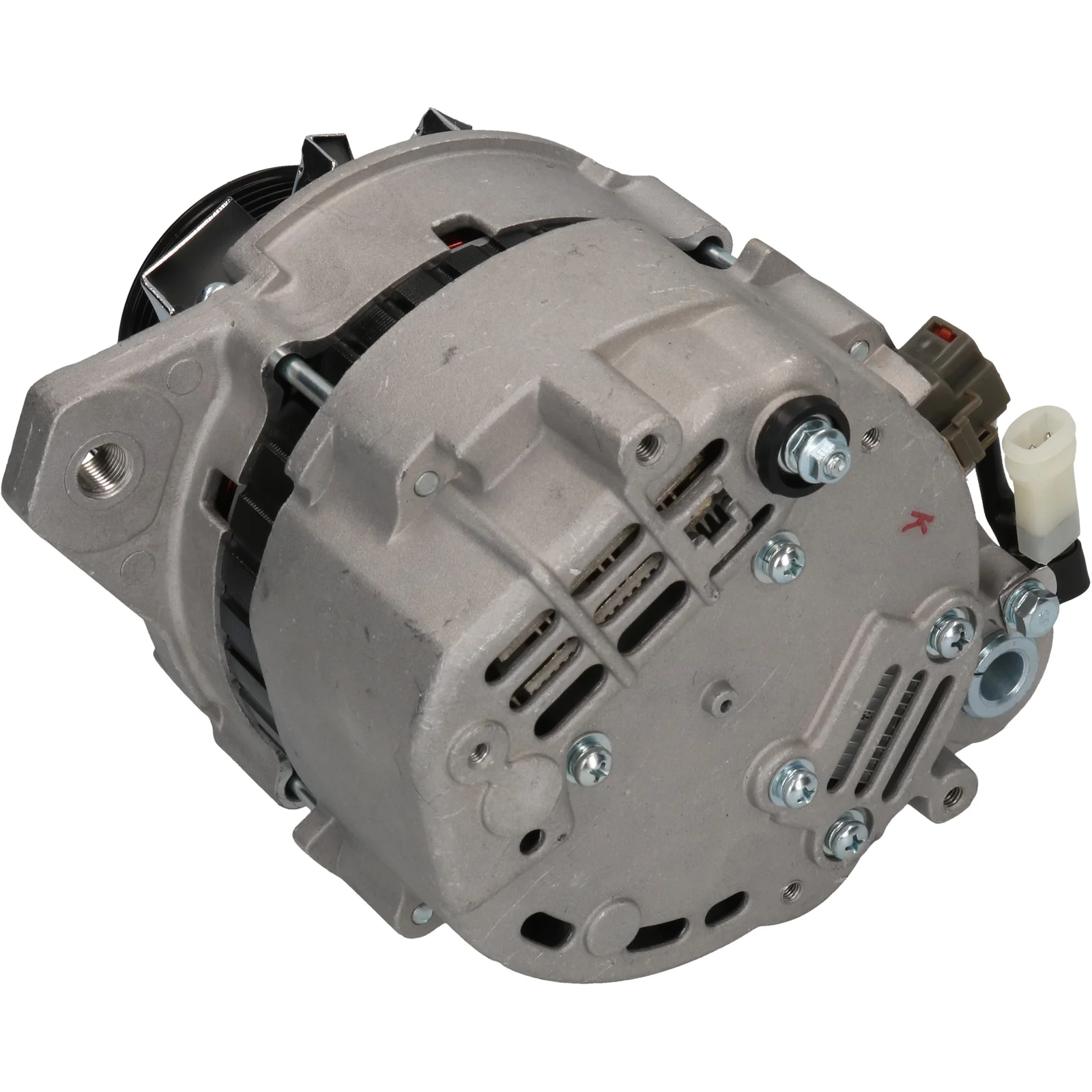

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 50, Rotation: CW, Monteringsbeslag dist.: 80.50

Beskrivelse

Spænding: 28
Amp: 50
Remskive afstand: 40,30
Bredde/holderarm: 13,50
Montagebeslag afstand: 80,50
Beslaghul: 12,50
Bæltejust. brækesteds hulpos.: 60
Bæltejust. beslaghul 1: M12-1,25
Remskive diameter: 80,50
Riller/remskive: 12
Radius: 95,00
Radius 2: 95,00
B+: M6
Position/B+ i min.: 12
D+ Størrelse: Proppe
Rotation: CW
Proppe nr.: PL89
Samlet længde mm: 221,00
Remskive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M12-1.25
Belt. adj. brackethole pos. 60
Plug no. PL89
Bracket hole 12.50
Position/B+ in min. 12
Pulley SP/FW
Pulley dia. 80.50
Pulley dist. 40.30
Radius 95.00
D+ Size Plug
Radius 2 95.00
Regulator type IR
Rotation CW
Grooves/pulley 12
Voltage 28
Total length 221.00 mm
Width/holder arm 13.50
Amp 50

  • OEM
    A004TU3599, a4tu3599, F032116164, 10R7561, 212-8561, 34368-03800

  • Konkurrentreferens
    A5158, amt0279, CAL35622, 646.034.050, 20111, 20111N, 112825, 554381RI

  • NormaliseratArtNr
    a004tu3599, a4tu3599, a5158, amt0279, cal35622, f032116164, 10r7561, 20111, 20111n, 112825, 554381ri, 2128561, 646034050, 3436803800

  • Passar modeller
    Caterpillar Model: 320 Model series: 320 Model type: Excavators Brand of engine: 3066T Approved: Yes
    Caterpillar Model: 320C SERIES Model series: 320C SERIES Model type: Excavators Brand of engine: 3066T Approved: Yes
    Caterpillar Model: Excavator Model series: 320B, 320C Size of motor: 6.7 Brand of engine: 3066T From date: 01-01-1996 Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 50
    Remskive afstand: 40,30
    Bredde/holderarm: 13,50
    Montagebeslag afstand: 80,50
    Beslaghul: 12,50
    Bæltejust. brækesteds hulpos.: 60
    Bæltejust. beslaghul 1: M12-1,25
    Remskive diameter: 80,50
    Riller/remskive: 12
    Radius: 95,00
    Radius 2: 95,00
    B+: M6
    Position/B+ i min.: 12
    D+ Størrelse: Proppe
    Rotation: CW
    Proppe nr.: PL89
    Samlet længde mm: 221,00
    Remskive: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M12-1.25
    Belt. adj. brackethole pos. 60
    Plug no. PL89
    Bracket hole 12.50
    Position/B+ in min. 12
    Pulley SP/FW
    Pulley dia. 80.50
    Pulley dist. 40.30
    Radius 95.00
    D+ Size Plug
    Radius 2 95.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 12
    Voltage 28
    Total length 221.00 mm
    Width/holder arm 13.50
    Amp 50
  • Køretøjsmatchning

    • OEM
      A004TU3599, a4tu3599, F032116164, 10R7561, 212-8561, 34368-03800

    • Konkurrentreferens
      A5158, amt0279, CAL35622, 646.034.050, 20111, 20111N, 112825, 554381RI

    • NormaliseratArtNr
      a004tu3599, a4tu3599, a5158, amt0279, cal35622, f032116164, 10r7561, 20111, 20111n, 112825, 554381ri, 2128561, 646034050, 3436803800

    • Passar modeller
      Caterpillar Model: 320 Model series: 320 Model type: Excavators Brand of engine: 3066T Approved: Yes
      Caterpillar Model: 320C SERIES Model series: 320C SERIES Model type: Excavators Brand of engine: 3066T Approved: Yes
      Caterpillar Model: Excavator Model series: 320B, 320C Size of motor: 6.7 Brand of engine: 3066T From date: 01-01-1996 Approved: Yes
