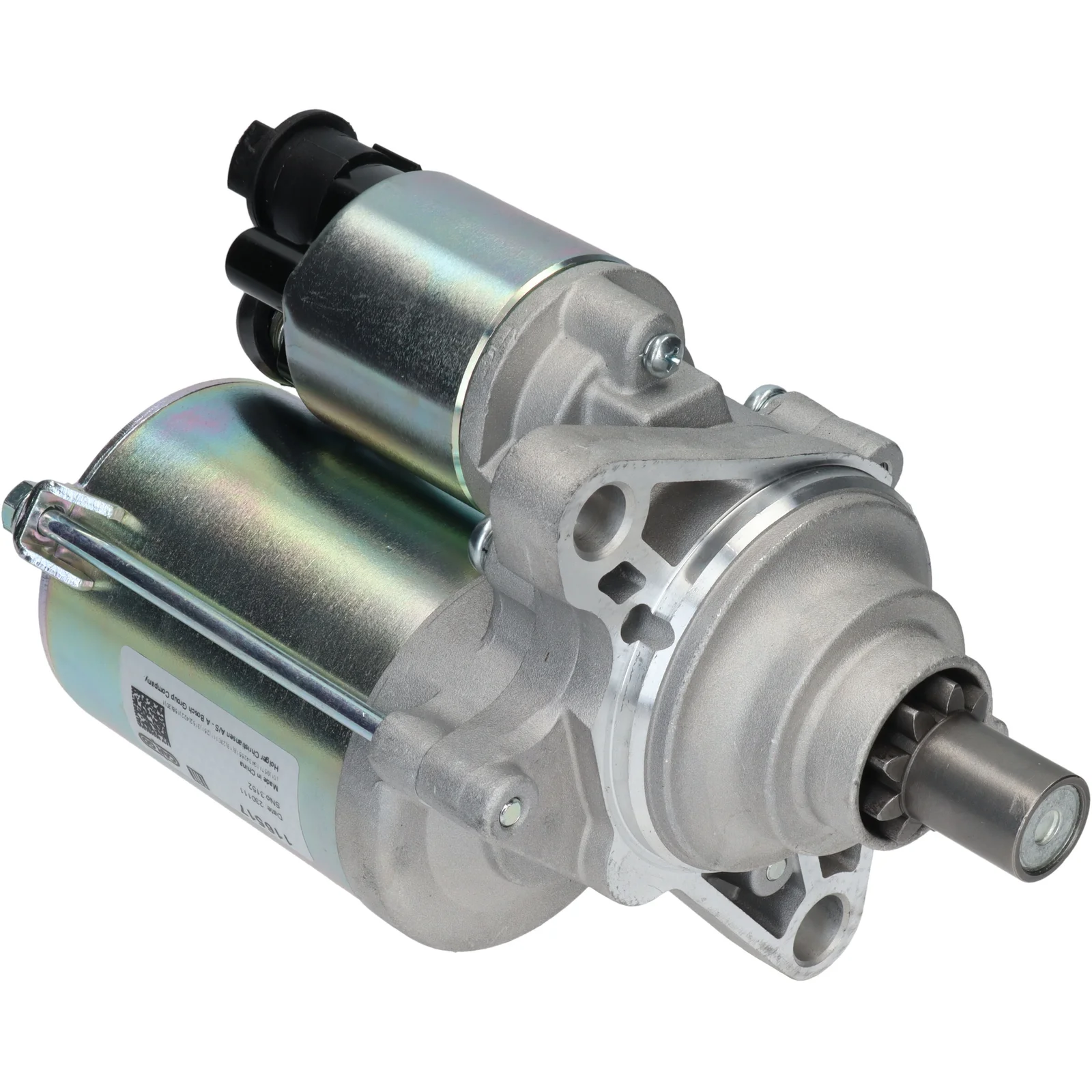

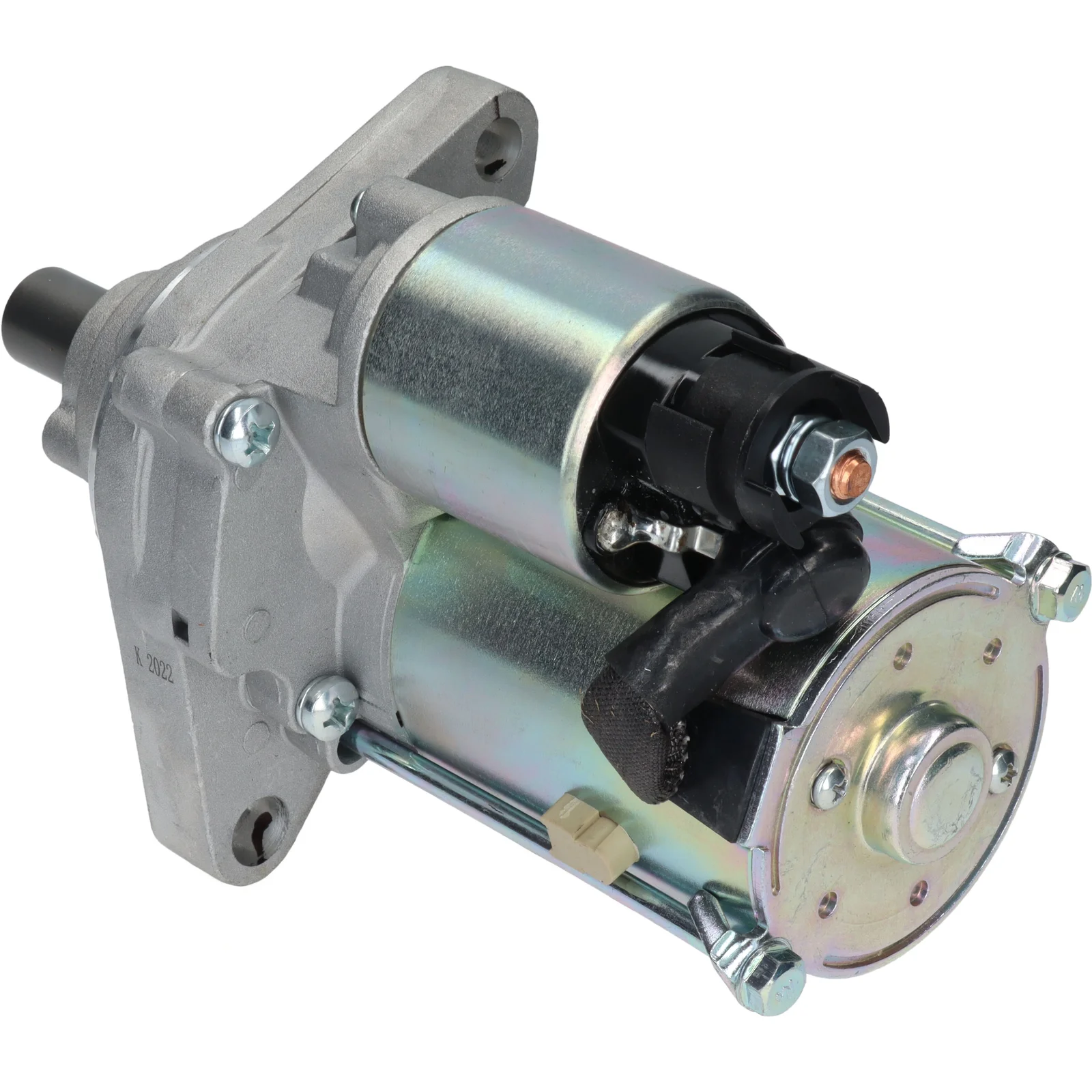

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116517

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.0
Monteringsflange: 75.00
Driveafstand: 40.00
Monteringshul 2 mm: 11.50
Monteringshul 1 mm: 13.50
Afstand/bag: 139.00
Afstand/front: 64.00
Antal/tænder: 9
B+: M8
Position/B+: 10
Position/50: 50
Terminal 50: 6.30
Gear type: GR
Afstand mm: 129.00
Rotation: CW
Total længde mm: 203.00
Antal/montagehuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 50
Position/B+ 10
Rotation CW
Dist./back 139.00
Dist./front 64.00
Drive dist. 40.00
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 203.00 mm
Dist. 129.00 mm
Mount. hole 2 11.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032116517, SM442-25, sm44225, sm442252B, 31200-pel-004, 31200-PEL-014

  • Konkurrentreferens
    DRS0281, 25-3427, 0986jr0847, 33256R, 106591, 11040887, 0986020481

  • NormaliseratArtNr
    drs0281, f032116517, sm44225, sm442252b, 0986jr0847, 31200pel004, 31200pel014, 33256r, 106591, 253427, 11040887, 0986020481

  • Passar modeller
    Honda Model: HR-V Model series: HR-V Model type: 4WD Type of engine: 16V Size of motor: 1.6 Brand of engine: D16W1 From date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Honda Model: HR-V Model series: HR-V Model type: 4WD Type of engine: 16V Size of motor: 1.6 Brand of engine: D16W5 Type description: GH From date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Honda Model: HR-V Model series: HR-V Type of engine: 16V Size of motor: 1.6 Brand of engine: D16W1 Type description: GH From date: 01-03-1999 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.0
    Monteringsflange: 75.00
    Driveafstand: 40.00
    Monteringshul 2 mm: 11.50
    Monteringshul 1 mm: 13.50
    Afstand/bag: 139.00
    Afstand/front: 64.00
    Antal/tænder: 9
    B+: M8
    Position/B+: 10
    Position/50: 50
    Terminal 50: 6.30
    Gear type: GR
    Afstand mm: 129.00
    Rotation: CW
    Total længde mm: 203.00
    Antal/montagehuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 50
    Position/B+ 10
    Rotation CW
    Dist./back 139.00
    Dist./front 64.00
    Drive dist. 40.00
    Gear type GR
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 203.00 mm
    Dist. 129.00 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 13.50 mm
  • Køretøjsmatchning

    • OEM
      F032116517, SM442-25, sm44225, sm442252B, 31200-pel-004, 31200-PEL-014

    • Konkurrentreferens
      DRS0281, 25-3427, 0986jr0847, 33256R, 106591, 11040887, 0986020481

    • NormaliseratArtNr
      drs0281, f032116517, sm44225, sm442252b, 0986jr0847, 31200pel004, 31200pel014, 33256r, 106591, 253427, 11040887, 0986020481

    • Passar modeller
      Honda Model: HR-V Model series: HR-V Model type: 4WD Type of engine: 16V Size of motor: 1.6 Brand of engine: D16W1 From date: 01-03-1999 Fuel: Gasoline Approved: Yes
      Honda Model: HR-V Model series: HR-V Model type: 4WD Type of engine: 16V Size of motor: 1.6 Brand of engine: D16W5 Type description: GH From date: 01-10-1999 Fuel: Gasoline Approved: Yes
      Honda Model: HR-V Model series: HR-V Type of engine: 16V Size of motor: 1.6 Brand of engine: D16W1 Type description: GH From date: 01-03-1999 Fuel: Gasoline Approved: Yes
