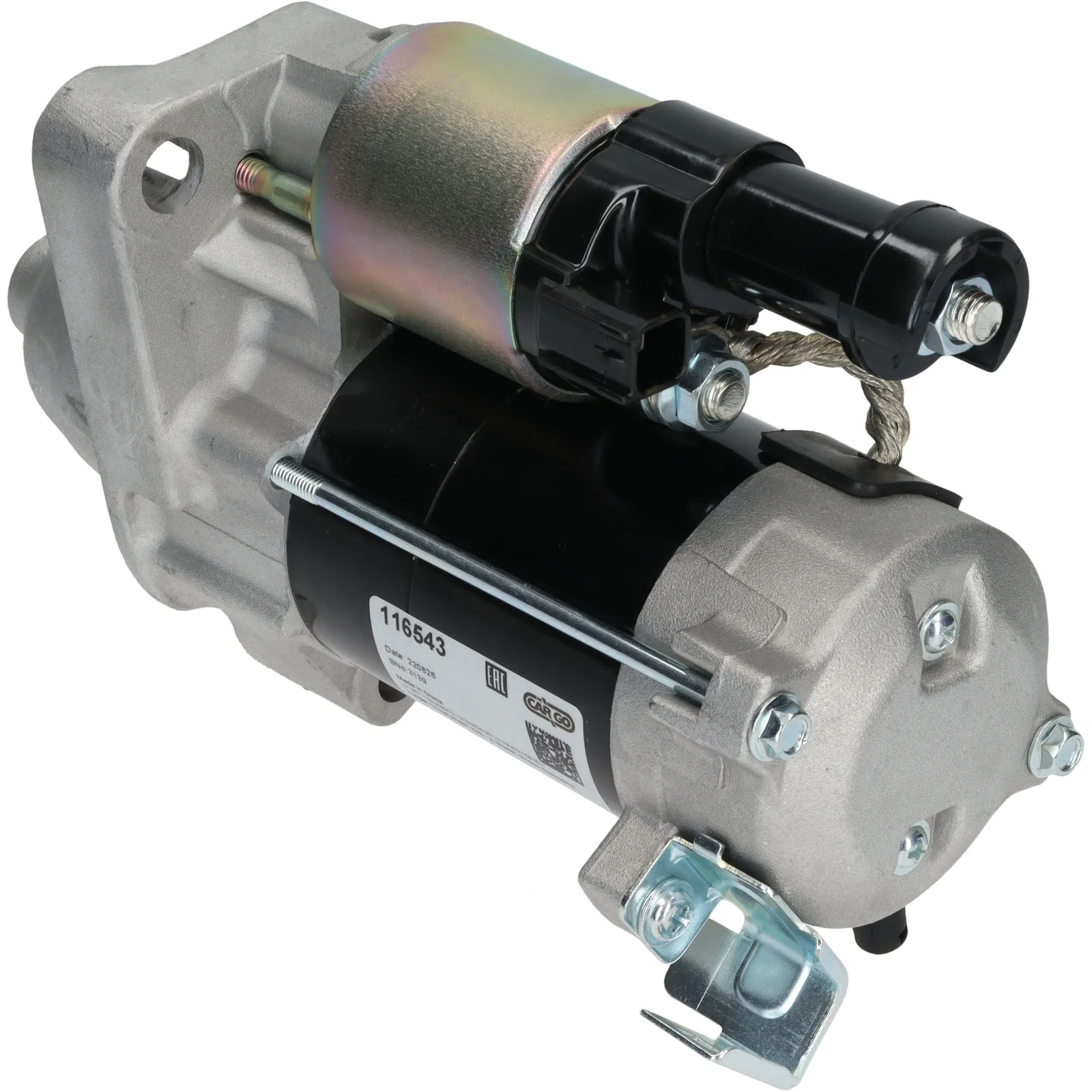

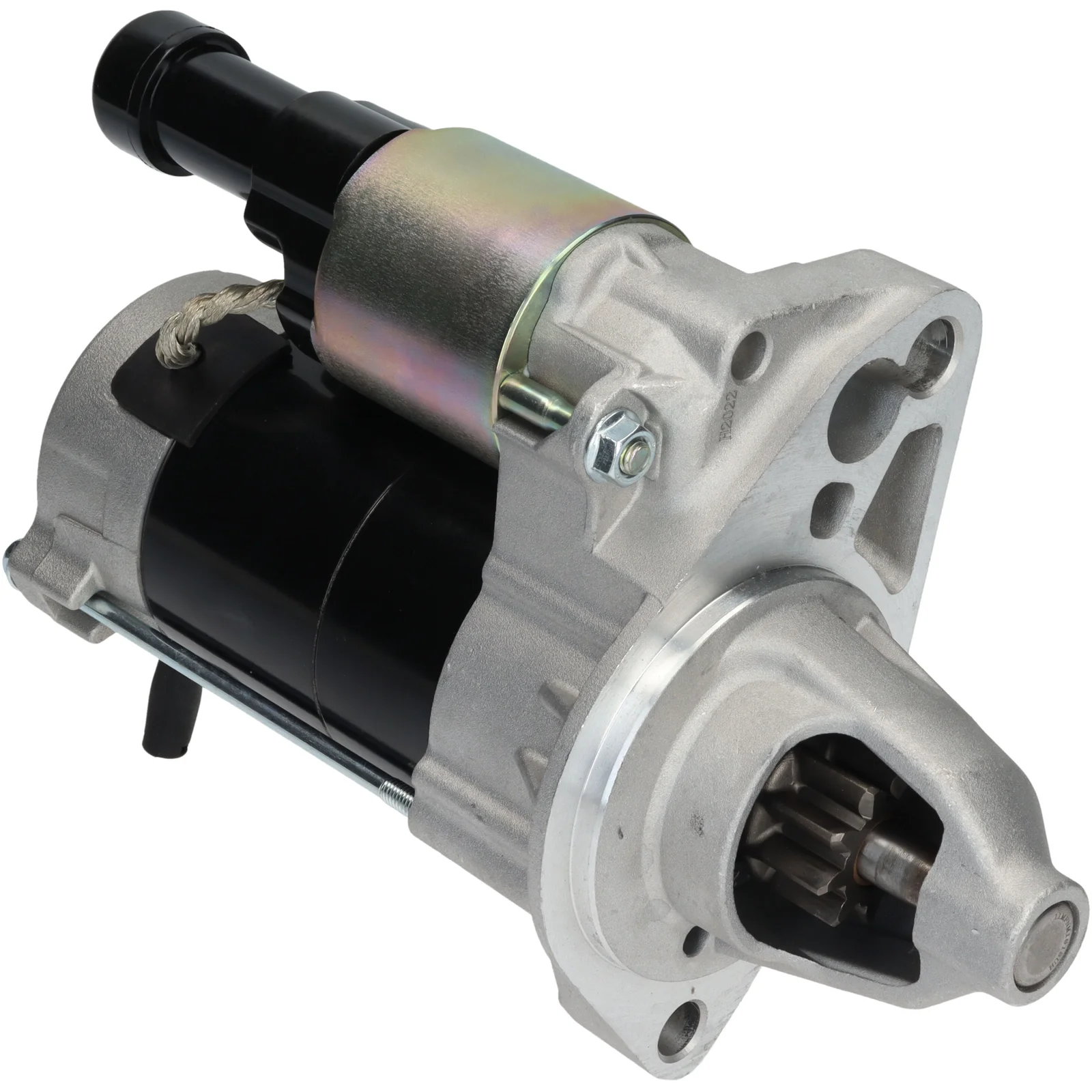

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116543

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.2, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.2
Monteringsflange: 75.00
Driveafstand: 32.50
Monteringshul 2 mm: 10.50
Monteringshul 1 mm: 13.00
Afstand/bag: 157.00
Afstand/forskudt: 66.50
Antal/tenner: 9
B+: M8
Position/B+: 60
Position/50: 43
Terminal 50: 4.80
Gear type: GR
Rotation: CW
Total længde mm: 224.00
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 43
Position/B+ 60
Rotation CW
Dist./back 157.00
Dist./front 66.50
Drive dist. 32.50
Gear type GR
kW 1.2
Terminal 50 4.80
Voltage 12
Total length 224.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 13.00 mm

  • OEM
    DS4R7, F032116543, 31200-RZP-G01, 428000-4540, 428000-4541

  • Konkurrentreferens
    DRS0639, DSN1390, LRS04347, S6175, S6300S, 25-5509, 438423, 458842, 11041020

  • NormaliseratArtNr
    drs0639, ds4r7, dsn1390, f032116543, lrs04347, s6175, s6300s, 31200rzpg01, 255509, 438423, 458842, 11041020, 4280004540, 4280004541

  • Passar modeller
    Guangzhou Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-03-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accordi Model type: i-VTEC (CP1) Size of motor: 2.0 Brand of engine: R20A3 Type description: CP Body: Saloon From date: 01-07-2008 To date: 01-09-2012 Fuel: Petrol Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-VTEC Size of motor: 2.0 Brand of engine: R20A2 Body: SUV From date: 01-10-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.2
    Monteringsflange: 75.00
    Driveafstand: 32.50
    Monteringshul 2 mm: 10.50
    Monteringshul 1 mm: 13.00
    Afstand/bag: 157.00
    Afstand/forskudt: 66.50
    Antal/tenner: 9
    B+: M8
    Position/B+: 60
    Position/50: 43
    Terminal 50: 4.80
    Gear type: GR
    Rotation: CW
    Total længde mm: 224.00
    Antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 43
    Position/B+ 60
    Rotation CW
    Dist./back 157.00
    Dist./front 66.50
    Drive dist. 32.50
    Gear type GR
    kW 1.2
    Terminal 50 4.80
    Voltage 12
    Total length 224.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      DS4R7, F032116543, 31200-RZP-G01, 428000-4540, 428000-4541

    • Konkurrentreferens
      DRS0639, DSN1390, LRS04347, S6175, S6300S, 25-5509, 438423, 458842, 11041020

    • NormaliseratArtNr
      drs0639, ds4r7, dsn1390, f032116543, lrs04347, s6175, s6300s, 31200rzpg01, 255509, 438423, 458842, 11041020, 4280004540, 4280004541

    • Passar modeller
      Guangzhou Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-03-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accordi Model type: i-VTEC (CP1) Size of motor: 2.0 Brand of engine: R20A3 Type description: CP Body: Saloon From date: 01-07-2008 To date: 01-09-2012 Fuel: Petrol Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i-VTEC Size of motor: 2.0 Brand of engine: R20A2 Body: SUV From date: 01-10-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
