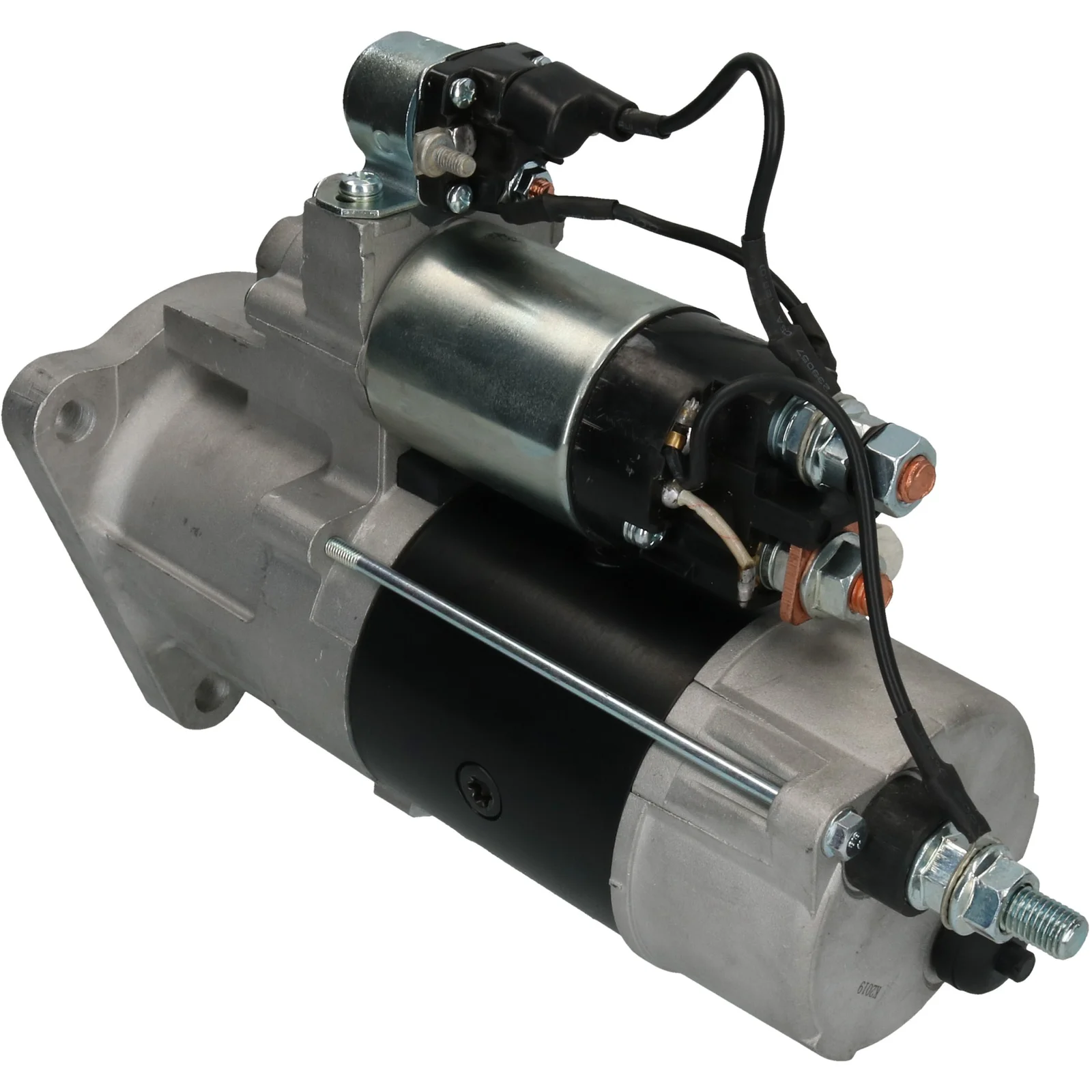

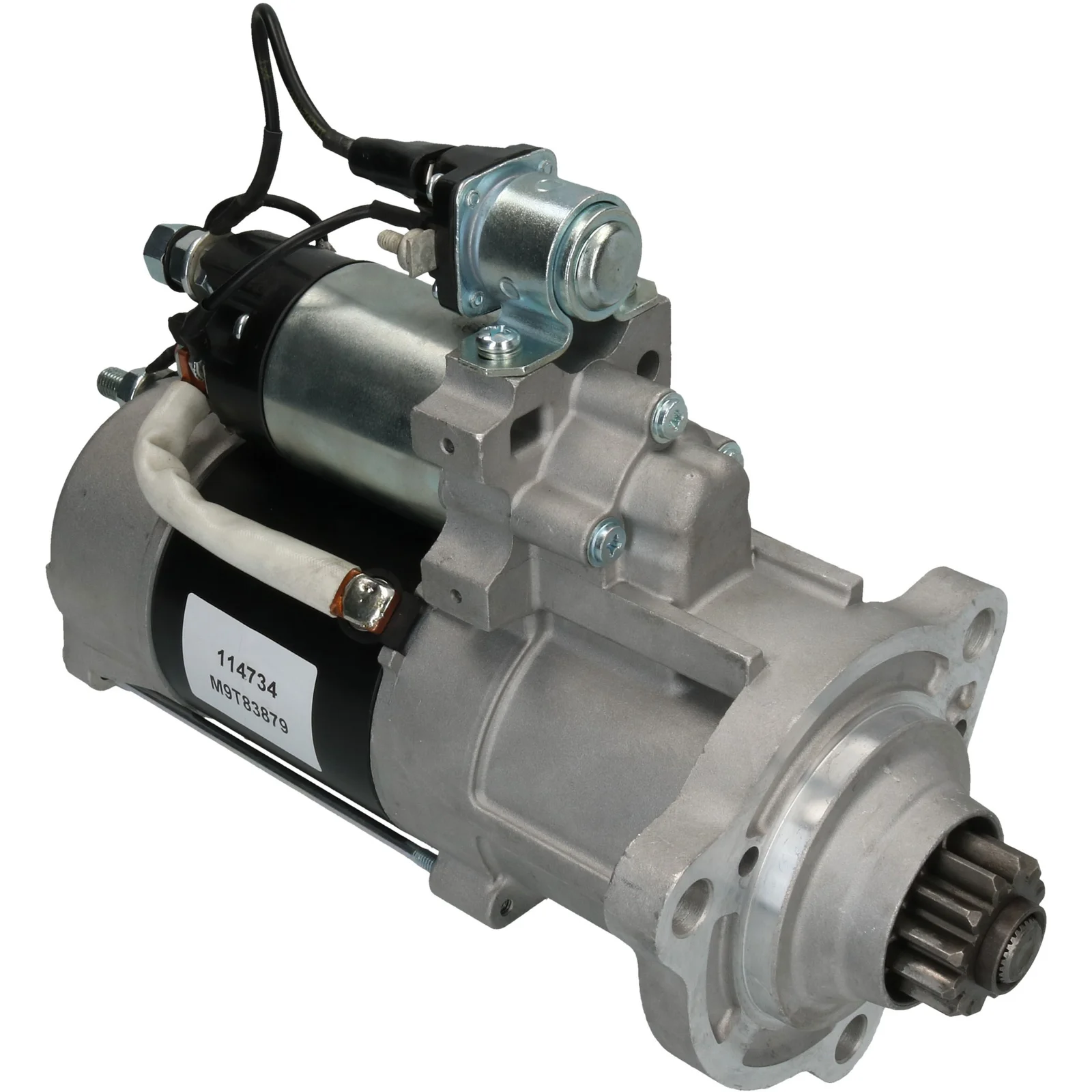

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114734

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 7.0, No./tænder: 12, Rotation: med uret

Beskrivelse

Spænding: 24
kW: 7.0
Isoleret retur: Ja
Monteringsflange: 92.00
Driveafstand: 47.50
Monteringshuls 3 mm: 14.50
Monteringshuls 2 mm: 14.50
Monteringshuls 1 mm: 14.50
Afstand/bag: 348.00
Afstand/forside: 56.00
Nummer/tænder: 12
B+: M12
Position/B+: 60
Gidemål mm: 43.50
Terminal 50: M6
Kuglelagertype: GR
Afstand 2: 126.00
Afstand 3: 126.00
Afstand mm: 126.00
Rotation: med uret
Position/b-: 52
B-: M12
Samlet længde mm: 404.00
Nummer/monteringshuller: 3 (0)

Filer

Specifikation

B+ M12
B- M12
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/b- 52
Position/B+ 60
Dist. 2 126.00
Dist. 3 126.00
Rotation CW
Dist./back 348.00
Dist./front 56.00
Drive dist. 47.50
Gear type GR
Insulated return Yes
kW 7.0
Terminal 50 M6
Voltage 24
Total length 404.00 mm
Dist. 126.00 mm
Thread length 43.50 mm
Mount. hole 3 14.50 mm
Mount. hole 2 14.50 mm
Mount. hole 1 14.50 mm

  • OEM
    F032114734, M9T83879, 3801289, 3803838, 21103722

  • Konkurrentreferens
    CST35642, DRS0547, MITM9T83879, S5062, S5204, 107133, 220573, 220573A, 254471

  • NormaliseratArtNr
    cst35642, drs0547, f032114734, m9t83879, mitm9t83879, s5062, s5204, 107133, 220573, 220573a, 254471, 3801289, 3803838, 21103722

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-A MH Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-B MH Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-C MH Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 7.0
    Isoleret retur: Ja
    Monteringsflange: 92.00
    Driveafstand: 47.50
    Monteringshuls 3 mm: 14.50
    Monteringshuls 2 mm: 14.50
    Monteringshuls 1 mm: 14.50
    Afstand/bag: 348.00
    Afstand/forside: 56.00
    Nummer/tænder: 12
    B+: M12
    Position/B+: 60
    Gidemål mm: 43.50
    Terminal 50: M6
    Kuglelagertype: GR
    Afstand 2: 126.00
    Afstand 3: 126.00
    Afstand mm: 126.00
    Rotation: med uret
    Position/b-: 52
    B-: M12
    Samlet længde mm: 404.00
    Nummer/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M12
    B- M12
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/b- 52
    Position/B+ 60
    Dist. 2 126.00
    Dist. 3 126.00
    Rotation CW
    Dist./back 348.00
    Dist./front 56.00
    Drive dist. 47.50
    Gear type GR
    Insulated return Yes
    kW 7.0
    Terminal 50 M6
    Voltage 24
    Total length 404.00 mm
    Dist. 126.00 mm
    Thread length 43.50 mm
    Mount. hole 3 14.50 mm
    Mount. hole 2 14.50 mm
    Mount. hole 1 14.50 mm
  • Køretøjsmatchning

    • OEM
      F032114734, M9T83879, 3801289, 3803838, 21103722

    • Konkurrentreferens
      CST35642, DRS0547, MITM9T83879, S5062, S5204, 107133, 220573, 220573A, 254471

    • NormaliseratArtNr
      cst35642, drs0547, f032114734, m9t83879, mitm9t83879, s5062, s5204, 107133, 220573, 220573a, 254471, 3801289, 3803838, 21103722

    • Passar modeller
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-A MH Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-B MH Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-C MH Approved: Yes
