HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114124

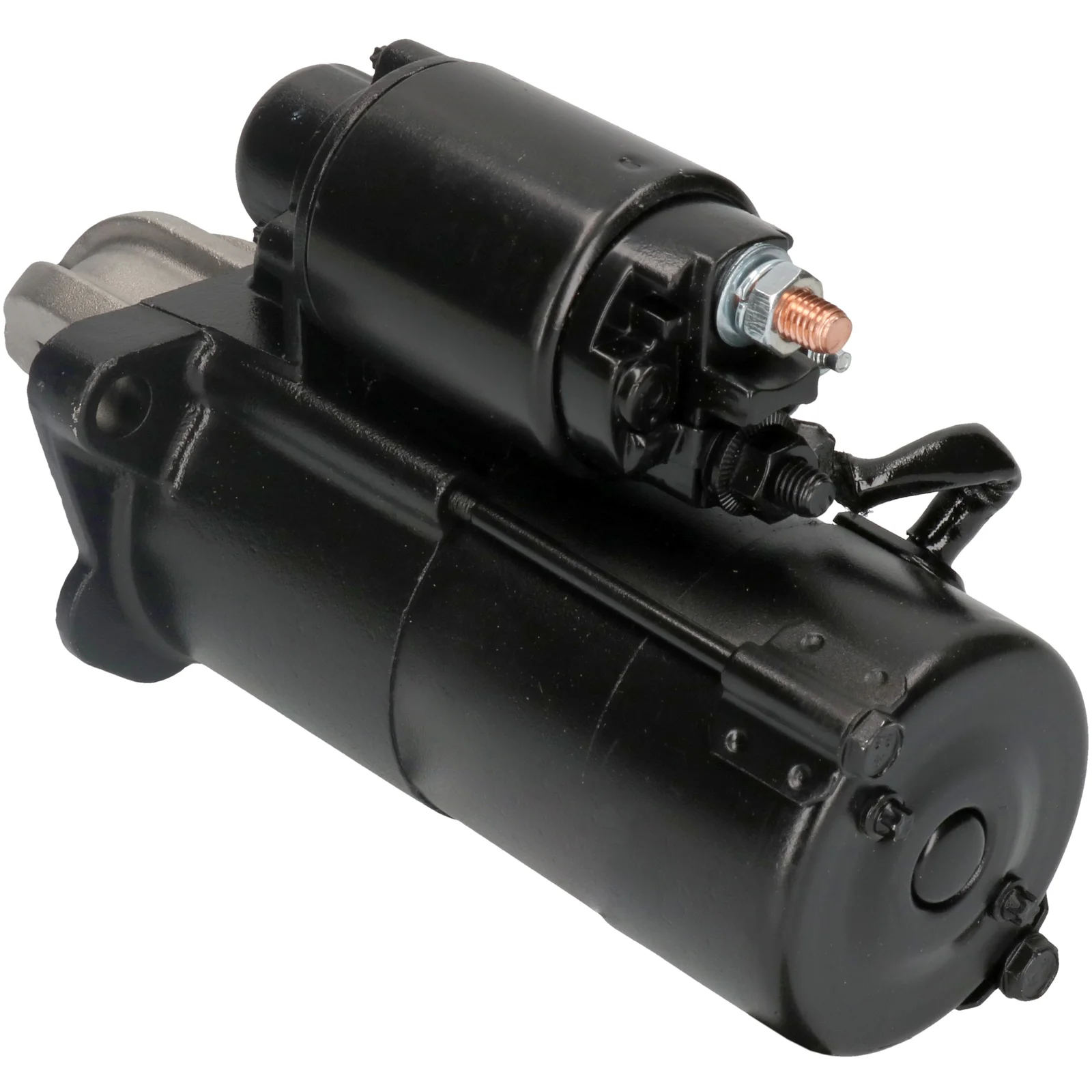

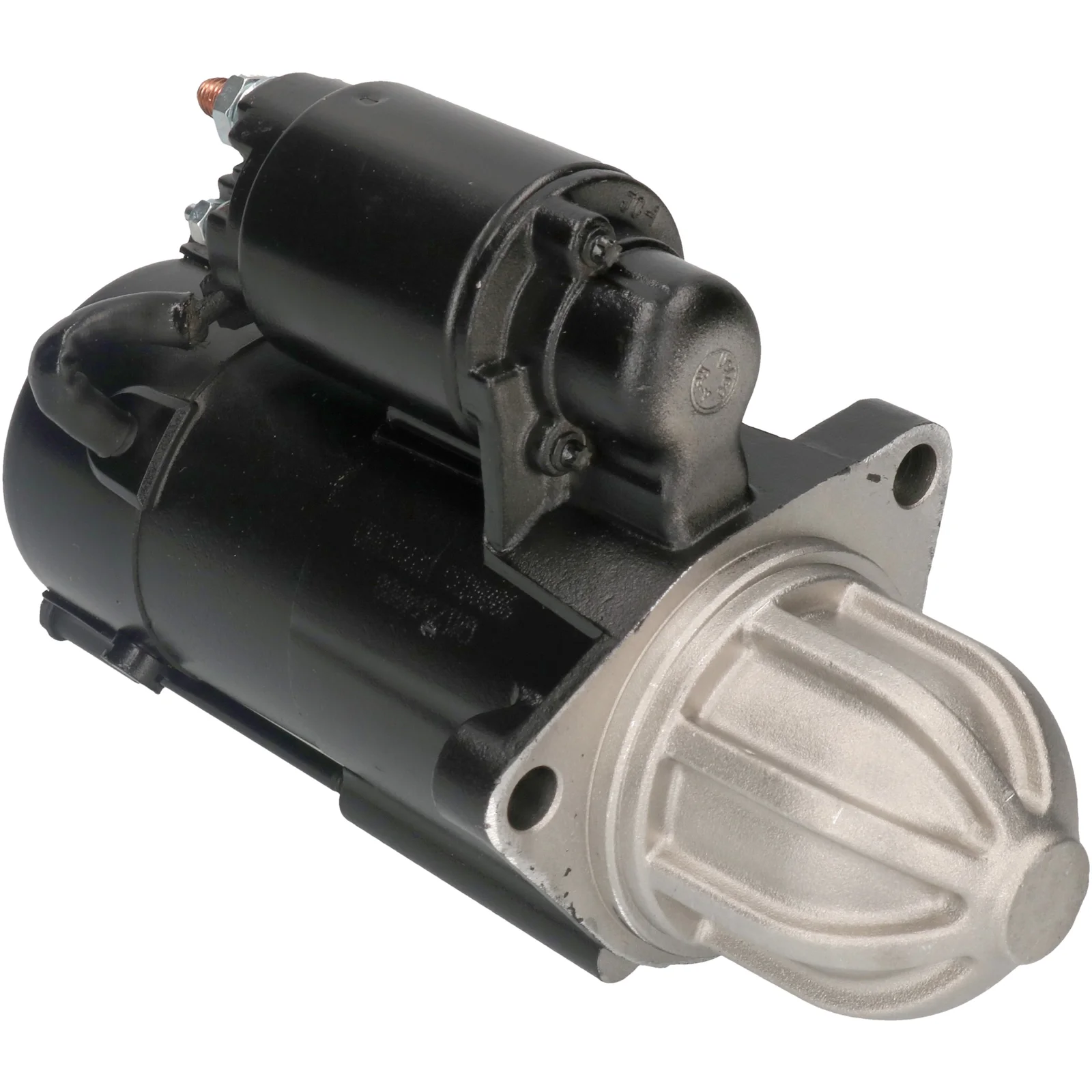

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, Kvalitet: 1,8, No./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.8
Monteringsflange: 75,00
Driveafstand: 29,00
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Afstand/ryg: 168,00
Afstand/for: 68,00
Nr./tænder: 11
B+: M8
Position/50: 15
Terminal 50: M6
Geartype: GR
Afstand mm: 94,00
Rotation: CW
Samlet længde mm: 236,00
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 15
Rotation CW
Dist./back 168.00
Dist./front 68.00
Drive dist. 29.00
Gear type GR
kW 1.8
Terminal 50 M6
Voltage 12
Total length 236.00 mm
Dist. 94.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1291, F032114124, R1540016, RGO 114124, 1986S00069, 1202088, 04896421AA, 4896421AA, 6202004, 6202022, 6202044, 6202090, 8000321, 9000835, 9000889, 9000936, 9000952, 9000965, 9512772, 12564088, 12568931, 24454144, 53350543, 55350543, 55352105, 55353966, 55353996, 93175890, 93175908

  • Konkurrentreferens
    CST60100, CST60101, DRS3803, DRS3803N, LRS01686, S1154S, S1221S, S1226S, 8EA012527-861, 8EA012528-391, 25-3232, 130.528.112, 328.049.112, 6493N, 6493R, 6755N, 6755R, 101291, 105442, 220438, 220438A, 458728, 460272, 8080210, 11090073, 42019840, 063523803, 0986019841, 0986019843, 0986021433, 0986023250, 063523803010, 944280801880, 944280802100

  • NormaliseratArtNr
    cs1291, cst60100, cst60101, drs3803, drs3803n, f032114124, lrs01686, r1540016, rgo114124, s1154s, s1221s, s1226s, 8ea012527861, 8ea012528391, 1986s00069, 6493n, 6493r, 6755n, 6755r, 101291, 105442, 220438, 220438a, 253232, 458728, 460272, 1202088, 04896421aa, 4896421aa, 6202004, 6202022, 6202044, 6202090, 8000321, 8080210, 9000835, 9000889, 9000936, 9000952, 9000965, 9512772, 11090073, 12564088, 12568931, 24454144, 42019840, 53350543, 55350543, 55352105, 55353966, 55353996, 063523803, 93175890, 93175908, 130528112, 328049112, 0986019841, 0986019843, 0986021433, 0986023250, 063523803010, 944280801880, 944280802100

  • Passar modeller
    Fiat Model: Croma Model series: Croma Type of engine: 16V Size of motor: 2.2 Brand of engine: 194A1.000 Body: Estate From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Holden Model: Zafira Model series: Zafira Size of motor: 2.2 Brand of engine: Z22SE Body: MPV From date: 01-06-2001 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Opel Model: Signum Model series: Signum Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-05-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Signum Model series: Signum Type of engine: Turbo Size of motor: 2.0 Brand of engine: Z20NET Body: Hatchback From date: 01-05-2003 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Model type: BioPower Size of motor: 1.8 Brand of engine: B207E Body: Estate From date: 01-01-2007 To date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207E Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-09-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207E Type description: E50 Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Petrol Approved: Yes Manufacture type: Estate
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207L Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Vauxhall Model: Vectra Model series: Vectra Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: Z20NET Body: Estate From date: 01-10-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: estate
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 1.8
    Monteringsflange: 75,00
    Driveafstand: 29,00
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Afstand/ryg: 168,00
    Afstand/for: 68,00
    Nr./tænder: 11
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Geartype: GR
    Afstand mm: 94,00
    Rotation: CW
    Samlet længde mm: 236,00
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 15
    Rotation CW
    Dist./back 168.00
    Dist./front 68.00
    Drive dist. 29.00
    Gear type GR
    kW 1.8
    Terminal 50 M6
    Voltage 12
    Total length 236.00 mm
    Dist. 94.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      cs1291, F032114124, R1540016, RGO 114124, 1986S00069, 1202088, 04896421AA, 4896421AA, 6202004, 6202022, 6202044, 6202090, 8000321, 9000835, 9000889, 9000936, 9000952, 9000965, 9512772, 12564088, 12568931, 24454144, 53350543, 55350543, 55352105, 55353966, 55353996, 93175890, 93175908

    • Konkurrentreferens
      CST60100, CST60101, DRS3803, DRS3803N, LRS01686, S1154S, S1221S, S1226S, 8EA012527-861, 8EA012528-391, 25-3232, 130.528.112, 328.049.112, 6493N, 6493R, 6755N, 6755R, 101291, 105442, 220438, 220438A, 458728, 460272, 8080210, 11090073, 42019840, 063523803, 0986019841, 0986019843, 0986021433, 0986023250, 063523803010, 944280801880, 944280802100

    • NormaliseratArtNr
      cs1291, cst60100, cst60101, drs3803, drs3803n, f032114124, lrs01686, r1540016, rgo114124, s1154s, s1221s, s1226s, 8ea012527861, 8ea012528391, 1986s00069, 6493n, 6493r, 6755n, 6755r, 101291, 105442, 220438, 220438a, 253232, 458728, 460272, 1202088, 04896421aa, 4896421aa, 6202004, 6202022, 6202044, 6202090, 8000321, 8080210, 9000835, 9000889, 9000936, 9000952, 9000965, 9512772, 11090073, 12564088, 12568931, 24454144, 42019840, 53350543, 55350543, 55352105, 55353966, 55353996, 063523803, 93175890, 93175908, 130528112, 328049112, 0986019841, 0986019843, 0986021433, 0986023250, 063523803010, 944280801880, 944280802100

    • Passar modeller
      Fiat Model: Croma Model series: Croma Type of engine: 16V Size of motor: 2.2 Brand of engine: 194A1.000 Body: Estate From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Holden Model: Zafira Model series: Zafira Size of motor: 2.2 Brand of engine: Z22SE Body: MPV From date: 01-06-2001 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
      Opel Model: Signum Model series: Signum Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-05-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Opel Model: Signum Model series: Signum Type of engine: Turbo Size of motor: 2.0 Brand of engine: Z20NET Body: Hatchback From date: 01-05-2003 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Model type: BioPower Size of motor: 1.8 Brand of engine: B207E Body: Estate From date: 01-01-2007 To date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207E Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-09-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207E Type description: E50 Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Petrol Approved: Yes Manufacture type: Estate
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207L Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Vauxhall Model: Vectra Model series: Vectra Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: Z20NET Body: Estate From date: 01-10-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: estate
      1 / 2
