Vare nr.: F032111189

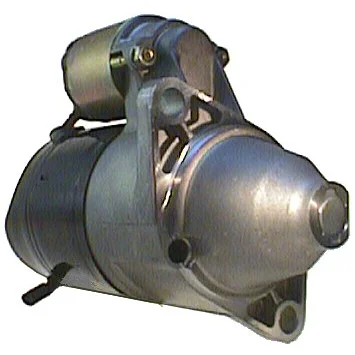

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.8, Antal/tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 0.8
Montering. flanger: 74.00
Drevafstand: 20.00
Montering. hul 2 mm: 11.20
Montering. hul 1 mm: 11.20
Afstand/bag: 172.50
Afstand/front: 57.50
Nr./tænder: 9
B+: M8
Position/B+: 55
Position/50: 45
Terminal 50: 6.30
Koblingstype: DD
Afstand mm: 115.00
Rotation: CW
Samlet længde mm: 231.50
Drevtype: Steel
Prod. info: BN
Vandtæt: Nej
Olieforsynet: Nej
Nr./montering. huller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Position/B+ 55
Prod. info BN
Rotation CW
Dist./back 172.50
Dist./front 57.50
Drive dist. 20.00
Drive type Steel
Gear type DD
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 231.50 mm
Waterproof No
Dist. 115.00 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    F032111189, 28100-23800-71, 128000-8130

  • Konkurrentreferens
    CST40243, LRS01287, SR4301X, STR30044, 8ea737134-001, 25-2004, 170.517.092, 635.015.092, 4345, 18183, 18183N, 20933

  • NormaliseratArtNr
    cst40243, f032111189, lrs01287, sr4301x, str30044, 8ea737134001, 4345, 18183, 18183n, 20933, 252004, 170517092, 635015092, 1280008130, 281002380071

  • Passar modeller
    Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
    Toyota Model: 5FG Model series: 5FG10 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG14 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG15 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG18 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL10 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL14 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL15 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL18 From date: 01-01-1986 Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 0.8
    Montering. flanger: 74.00
    Drevafstand: 20.00
    Montering. hul 2 mm: 11.20
    Montering. hul 1 mm: 11.20
    Afstand/bag: 172.50
    Afstand/front: 57.50
    Nr./tænder: 9
    B+: M8
    Position/B+: 55
    Position/50: 45
    Terminal 50: 6.30
    Koblingstype: DD
    Afstand mm: 115.00
    Rotation: CW
    Samlet længde mm: 231.50
    Drevtype: Steel
    Prod. info: BN
    Vandtæt: Nej
    Olieforsynet: Nej
    Nr./montering. huller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Position/B+ 55
    Prod. info BN
    Rotation CW
    Dist./back 172.50
    Dist./front 57.50
    Drive dist. 20.00
    Drive type Steel
    Gear type DD
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 231.50 mm
    Waterproof No
    Dist. 115.00 mm
    Mount. hole 2 11.20 mm
    Mount. hole 1 11.20 mm
  • Køretøjsmatchning

    • OEM
      F032111189, 28100-23800-71, 128000-8130

    • Konkurrentreferens
      CST40243, LRS01287, SR4301X, STR30044, 8ea737134-001, 25-2004, 170.517.092, 635.015.092, 4345, 18183, 18183N, 20933

    • NormaliseratArtNr
      cst40243, f032111189, lrs01287, sr4301x, str30044, 8ea737134001, 4345, 18183, 18183n, 20933, 252004, 170517092, 635015092, 1280008130, 281002380071

    • Passar modeller
      Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
      Toyota Model: 5FG Model series: 5FG10 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG14 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG15 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG18 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL10 From date: 01-01-1986 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL14 From date: 01-01-1986 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL15 From date: 01-01-1986 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL18 From date: 01-01-1986 Approved: Yes
