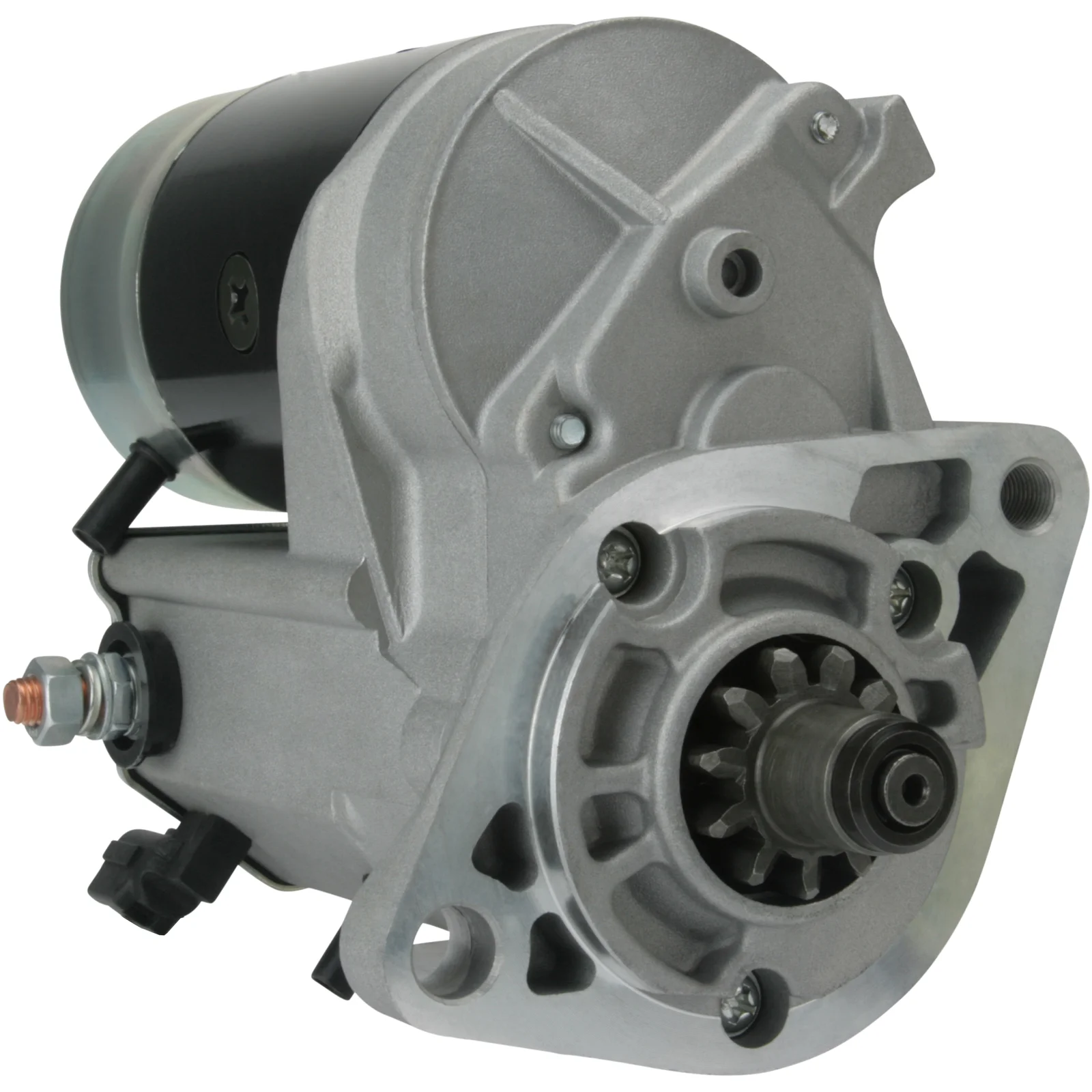

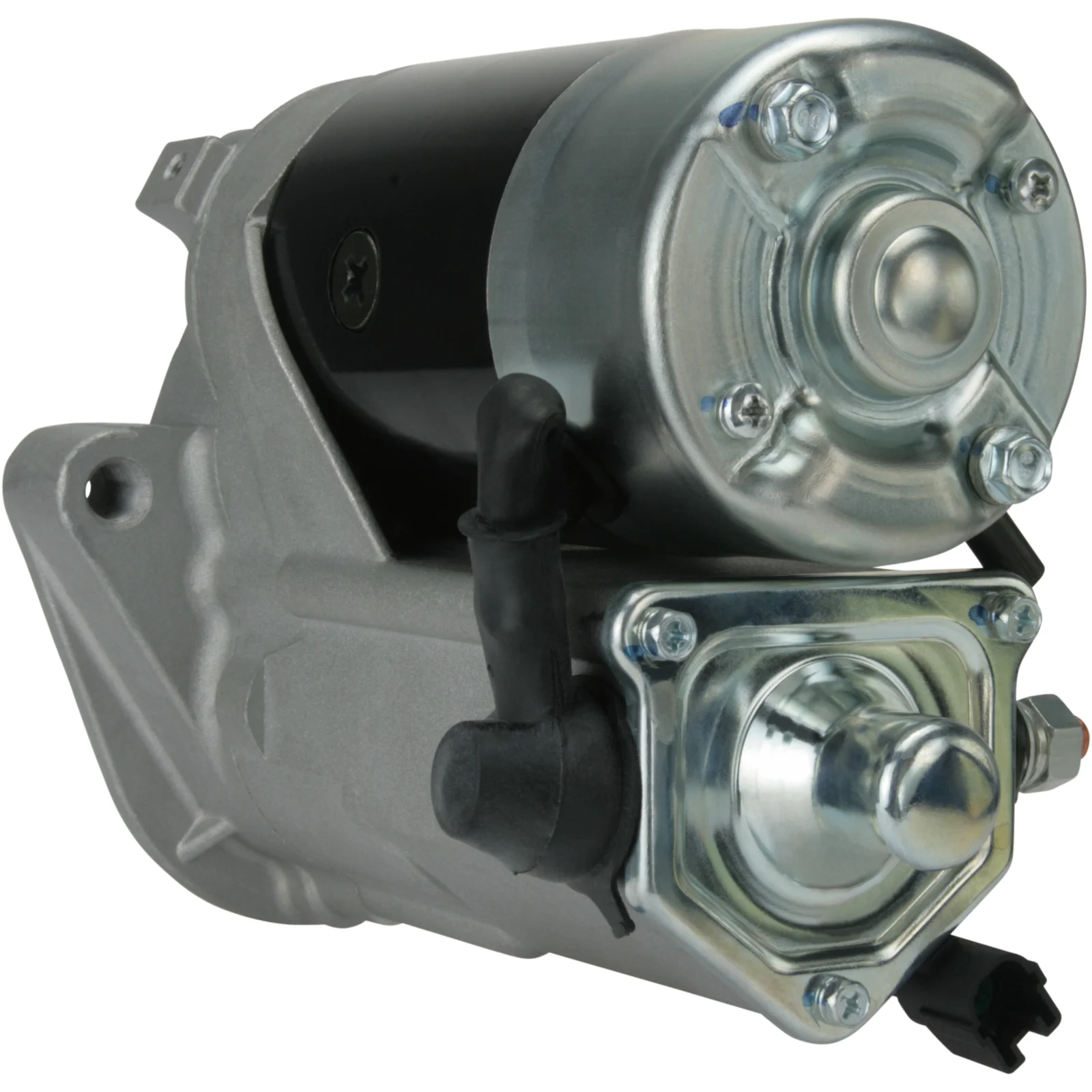

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114853

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,7, Nr./tænder: 11, Rotation: CW

Beskrivelse

Toyota Hilux Startm. 12V-2.7kW 12V - 2.7kW, 11k A - 82,5mm, B - 18mm Til Yourex produktbestilling 91-555-4263

Voltage: 12
kW: 2,7
Monteringsflange: 82,50
Driveafstand: 18,00
Monteringshull 2 mm: 13,50
Monteringshull 1 mm: M12-1,25
Afstand/bag: 190,00
Afstand/forside: 43,50
Antal/tænder: 11
B+: M10
Position/B+: 15
Position/50: 22
Terminal 50: Hunplug
Geartype: GR
Afstand mm: 129,50
Rotation: CW
Total længde mm: 259,00
Produktsinfo: BN
Antal/monteringshuller: 2 (1)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 82.50
No./mount. holes 2 (1)
Position/50 22
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 190.00
Dist./front 43.50
Drive dist. 18.00
Gear type GR
kW 2.7
Terminal 50 Plug
Voltage 12
Total length 259.00 mm
Dist. 129.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    cs1448, F032114853, RGO 114853, TG4280002631, 1986S00590, 28100-0L050, 28100-0l050, 28100-0L051, 28100-0L052, 28100-54451, 114853, 428000-2630, 428000-2631, 428000-2632, 428000-2633

  • Konkurrentreferens
    CST40325, DRS0449, DSN1371, LRS02287, S6059, STR70343, 8EA011612-431, 25-3458, 190.585.112, 335.220.112, 9755, 33287N, 101448, 107260, 11040810, 0986026030

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    cs1448, cst40325, drs0449, dsn1371, f032114853, lrs02287, rgo114853, s6059, str70343, tg4280002631, 8ea011612431, 1986s00590, 9755, 33287n, 101448, 107260, 114853, 253458, 281000l050, 281000l051, 281000l052, 11040810, 190585112, 335220112, 0986026030, 2810054451, 4280002630, 4280002631, 4280002632, 4280002633

  • Passar modeller
    Toyota Model: Fortuner Model series: Fortuner Model type: D 4x4 (GUN156) Type of engine: Diesel Size of motor: 2.8 Brand of engine: 1GD-FTV Type description: _N15_, _N16_ Body: SUV From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: Diesel Size of motor: 2.8 Brand of engine: 1GD-FTV Type description: _N1_ Body: Pickup From date: 01-06-2020 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: N25 Body: Pick Up From date: 01-12-2007 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-06-2006 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: D (GUN112_, GUN122_, GUN1 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2GD-FTV Type description: _N1_ Body: Pickup Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: D-4D 4WD (KUN26) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2GD-FTV Type description: _N1_ Body: Pickup From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_ Body: Pickup From date: 01-05-2015 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: D-4D (KUN15) Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2GD-FTV Type description: _N1_ Body: Pickup From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-05-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: TGN1_, GGN2_, GGN1_, KUN2_, KU Body: Pick Up From date: 01-01-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.8 Brand of engine: 1GD-FTV Type description: GUN1_ Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Series: HiLux Pick-up Model: 2.5 D-4D 4WD Engine volume: 2.5 Engine type: 2KD-FTV Year: 12.07-
    Toyota Series: HiLux Pick-up Model: 2.5 D-4D Engine volume: 2.5 Engine type: 2KD-FTV Year: 07.05-09.08
    Toyota Series: HiLux Pick-up Model: 2.5 D-4D Engine volume: 2.5 Engine type: 2KD-FTV Year: 08.06-03.12
    Toyota Series: HiLux Pick-up Model: 2.5 D-4D Engine volume: 2.5 Engine type: 2KD-FTV Year: 12.07-
    Toyota Series: HiLux Pick-up Model: 3.0 D-4D Engine volume: 3.0 Engine type: 1KD-FTV Year: 10-06-07.11
    Toyota Series: HiLux Pick-up Model: 2.5 D-4D 4WD Engine volume: 1.5 Engine type: 2KD-FTV Year: 10.08-
    Toyota Series: HILUX VIII Pick-up Model: 2.4 D 4WD Engine volume: 2.4 Engine type: 2GD-FTV Year: 05.15-
    Toyota Series: HILUX VIII Pick-up Model: 2.4 D Engine volume: 2.4 Engine type: 2GD-FTV Year: 05.15-
    Toyota Series: HILUX VIII Pick-up Model: 2.8 D 4WD Engine volume: 2.8 Engine type: 1GD-FTV Year: 06.15-
    1 / 6
  • Beskrivelse
    Toyota Hilux Startm. 12V-2.7kW 12V - 2.7kW, 11k A - 82,5mm, B - 18mm Til Yourex produktbestilling 91-555-4263

    Voltage: 12
    kW: 2,7
    Monteringsflange: 82,50
    Driveafstand: 18,00
    Monteringshull 2 mm: 13,50
    Monteringshull 1 mm: M12-1,25
    Afstand/bag: 190,00
    Afstand/forside: 43,50
    Antal/tænder: 11
    B+: M10
    Position/B+: 15
    Position/50: 22
    Terminal 50: Hunplug
    Geartype: GR
    Afstand mm: 129,50
    Rotation: CW
    Total længde mm: 259,00
    Produktsinfo: BN
    Antal/monteringshuller: 2 (1)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 82.50
    No./mount. holes 2 (1)
    Position/50 22
    Position/B+ 15
    Prod. info BN
    Rotation CW
    Dist./back 190.00
    Dist./front 43.50
    Drive dist. 18.00
    Gear type GR
    kW 2.7
    Terminal 50 Plug
    Voltage 12
    Total length 259.00 mm
    Dist. 129.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 M12-1.25 mm
  • Køretøjsmatchning

    • OEM
      cs1448, F032114853, RGO 114853, TG4280002631, 1986S00590, 28100-0L050, 28100-0l050, 28100-0L051, 28100-0L052, 28100-54451, 114853, 428000-2630, 428000-2631, 428000-2632, 428000-2633

    • Konkurrentreferens
      CST40325, DRS0449, DSN1371, LRS02287, S6059, STR70343, 8EA011612-431, 25-3458, 190.585.112, 335.220.112, 9755, 33287N, 101448, 107260, 11040810, 0986026030

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      cs1448, cst40325, drs0449, dsn1371, f032114853, lrs02287, rgo114853, s6059, str70343, tg4280002631, 8ea011612431, 1986s00590, 9755, 33287n, 101448, 107260, 114853, 253458, 281000l050, 281000l051, 281000l052, 11040810, 190585112, 335220112, 0986026030, 2810054451, 4280002630, 4280002631, 4280002632, 4280002633

    • Passar modeller
      Toyota Model: Fortuner Model series: Fortuner Model type: D 4x4 (GUN156) Type of engine: Diesel Size of motor: 2.8 Brand of engine: 1GD-FTV Type description: _N15_, _N16_ Body: SUV From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: Diesel Size of motor: 2.8 Brand of engine: 1GD-FTV Type description: _N1_ Body: Pickup From date: 01-06-2020 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: N25 Body: Pick Up From date: 01-12-2007 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-06-2006 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: D (GUN112_, GUN122_, GUN1 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2GD-FTV Type description: _N1_ Body: Pickup Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: D-4D 4WD (KUN26) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2GD-FTV Type description: _N1_ Body: Pickup From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_ Body: Pickup From date: 01-05-2015 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Model type: D-4D (KUN15) Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2GD-FTV Type description: _N1_ Body: Pickup From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-05-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: TGN1_, GGN2_, GGN1_, KUN2_, KU Body: Pick Up From date: 01-01-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.8 Brand of engine: 1GD-FTV Type description: GUN1_ Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Series: HiLux Pick-up Model: 2.5 D-4D 4WD Engine volume: 2.5 Engine type: 2KD-FTV Year: 12.07-
      Toyota Series: HiLux Pick-up Model: 2.5 D-4D Engine volume: 2.5 Engine type: 2KD-FTV Year: 07.05-09.08
      Toyota Series: HiLux Pick-up Model: 2.5 D-4D Engine volume: 2.5 Engine type: 2KD-FTV Year: 08.06-03.12
      Toyota Series: HiLux Pick-up Model: 2.5 D-4D Engine volume: 2.5 Engine type: 2KD-FTV Year: 12.07-
      Toyota Series: HiLux Pick-up Model: 3.0 D-4D Engine volume: 3.0 Engine type: 1KD-FTV Year: 10-06-07.11
      Toyota Series: HiLux Pick-up Model: 2.5 D-4D 4WD Engine volume: 1.5 Engine type: 2KD-FTV Year: 10.08-
      Toyota Series: HILUX VIII Pick-up Model: 2.4 D 4WD Engine volume: 2.4 Engine type: 2GD-FTV Year: 05.15-
      Toyota Series: HILUX VIII Pick-up Model: 2.4 D Engine volume: 2.4 Engine type: 2GD-FTV Year: 05.15-
      Toyota Series: HILUX VIII Pick-up Model: 2.8 D 4WD Engine volume: 2.8 Engine type: 1GD-FTV Year: 06.15-
