- Startmotor
-

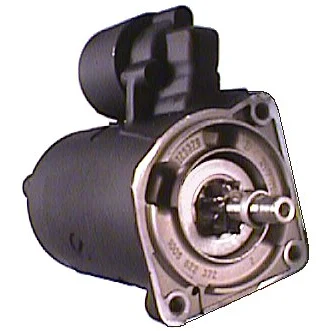

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Vare nr.: F032110865
HC-Cargo Startmotor
Spænding: 12, kW: 0,95, No./tænder: 9, Rotation: med uret
Beskrivelse
Audi/VW Startmotor 12V-0,95kW 12V - 0,95kW, 9k Obs! Automat på visse modeller! For Yourex produktbestilling 91-620-1347
Spænding: 12
kW: 0,95
Fastgørelsesflange: 82,50
Driveafstand: 15,00
Fastgørelseshul 3 mm: M8
Afstand/tilbagetog: 164,00
Afstand/frem: 50,50
Antal/tænder: 9
B+: M8
Position/50: 15
Terminal 50: 6,30
Geartype: DD/GR
Afstand 2: 74,50
Afstand 3: 105,00
Afstand mm: 74,50
Rotation: CW
Samlet længde mm: 220,00
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Bemærkninger: Bøsning D.E. (koblingshus): HC-CARGO 140500.
Antal/fastgørelseshuller: 3 (3)
Spænding: 12
kW: 0,95
Fastgørelsesflange: 82,50
Driveafstand: 15,00
Fastgørelseshul 3 mm: M8
Afstand/tilbagetog: 164,00
Afstand/frem: 50,50
Antal/tænder: 9
B+: M8
Position/50: 15
Terminal 50: 6,30
Geartype: DD/GR
Afstand 2: 74,50
Afstand 3: 105,00
Afstand mm: 74,50
Rotation: CW
Samlet længde mm: 220,00
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Bemærkninger: Bøsning D.E. (koblingshus): HC-CARGO 140500.
Antal/fastgørelseshuller: 3 (3)
Filer
Specifikation
| B+ | M8 |
|---|---|
| No./teeth | 9 |
| Mount. flange | 82.50 |
| Oil sealed | No |
| No./mount. holes | 3 (3) |
| Position/50 | 15 |
| Prod. info | BN |
| Dist. 2 | 74.50 |
| Remarks | Bushing D.E. (clutch house): HC-CARGO 140500. |
| Dist. 3 | 105.00 |
| Rotation | CW |
| Dist./back | 164.00 |
| Dist./front | 50.50 |
| Drive dist. | 15.00 |
| Drive type | Steel |
| Gear type | DD/GR |
| kW | 0.95 |
| Terminal 50 | 6.30 |
| Voltage | 12 |
| Total length | 220.00 mm |
| Waterproof | No |
| Dist. | 74.50 mm |
| Mount. hole 3 | M8 mm |
-
OEM
b001180009, cs297, D9E 136, d9e136, F032110865, LRS 648, M003T80571, m3t80571, RGO 110865, ZBC911023, 0001 208 247, 0001 208 709, 0001 208 710, 0001 208 711, 0001 211 504, 0001 211 505, 0986 012 360, 0986 013 470, 23300-V4171, 48764, 110865, 622727, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 026911023, 026911023b, 026911023BX, 026911023x, 049911023g, 049911023GX, 049911023h, 0269110233, 9000082050, 9000082059 -
Konkurrentreferens
CST10012, drs0460, drs2360, drs3470, F042S0H012, FRS142, lrs00206, lrs00521, lrs00648, lrs00919, MS57, QS1451, S0050, SR0406X, SR16X, STR-H012, STR50085, STR50120, vs278, 2-1360-BO, 2-1460-BO, 8EA012527-011, 8ea726056-001, 25-1082, 26-0012, 26-1168, 41-10.460, 41-13.470, 311.104.092, 311.105.092, 1240, 10297, 11124, 11125, 11530, 16408, 16408N, 16408R, 103202, 432606, 433016, 433264, 436016, 8010460, 8013470, 11010460, 11013470, 42013470, 943251434, 943251619, 943251686, 0986010460, 0986010468, 0986010500, 0986012360, 0986013470, 0986013478, 0986019357, 943251686010 -
Bilmärken
Audi, VW -
NormaliseratArtNr
b001180009, cs297, cst10012, d9e136, drs0460, drs2360, drs3470, f032110865, f042s0h012, frs142, lrs00206, lrs00521, lrs00648, lrs00919, lrs648, m003t80571, m3t80571, ms57, qs1451, rgo110865, s0050, sr0406x, sr16x, str50085, str50120, strh012, vs278, zbc911023, 8ea012527011, 8ea726056001, 1240, 10297, 11124, 11125, 11530, 16408, 16408n, 16408r, 21360bo, 21460bo, 23300v4171, 48764, 103202, 110865, 251082, 260012, 261168, 432606, 433016, 433264, 436016, 622727, 0001208247, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 4110460, 4113470, 8010460, 8013470, 11010460, 11013470, 026911023, 026911023b, 026911023bx, 026911023x, 42013470, 049911023g, 049911023gx, 049911023h, 0269110233, 311104092, 311105092, 943251434, 943251619, 943251686, 0986010460, 0986010468, 0986010500, 0986012360, 0986013470, 0986013478, 0986019357, 9000082050, 9000082059, 943251686010 -
Passar modeller
Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: JW Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: JW Body: Estate From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: JW From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: NP Body: Estate From date: 01-08-1985 To date: 01-10-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: NP Body: Estate From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: NP From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: PH Body: Estate From date: 01-08-1985 To date: 01-10-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: PH From date: 01-08-1985 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: SH Body: Estate From date: 01-08-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: SH From date: 01-08-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.6 Brand of engine: YV Body: Estate From date: 01-07-1977 To date: 01-02-1983 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DR Body: Estate From date: 01-08-1982 To date: 01-12-1987 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DR From date: 01-08-1982 To date: 01-12-1987 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DS Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DS From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: JW From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: NP Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: PH Body: Estate From date: 01-03-1985 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: PH Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: PH From date: 01-03-1985 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: RS From date: 01-08-1982 To date: 01-12-1987 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: SH Body: Estate From date: 01-02-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: SH From date: 01-02-1986 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Type description: C1 Body: Saloon From date: 01-11-1968 To date: 01-12-1971 Fuel: Petrol Approved: Yes Audi Model: 4000 Model series: 4000 Size of motor: 1.7 Brand of engine: WT From date: 01-01-1981 To date: 01-01-1983 Fuel: Gasoline Approved: Yes Audi Model: 4000 Model series: 4000 Type of engine: S Size of motor: 1.8 Brand of engine: JN From date: 01-01-1984 Fuel: Gasoline Approved: Yes Audi Model: 4000 Model series: 4000 Type of engine: S Size of motor: 1.8 Brand of engine: MG From date: 01-01-1985 To date: 01-01-1987 Fuel: Gasoline Approved: Yes Audi Model: 4000 Model series: 4000 Type of engine: S Size of motor: 1.8 Brand of engine: MG From date: 01-01-1987 Fuel: Gasoline Approved: Yes Audi Model: 80 B3 Model series: 80 B3 Saloon Model type: E Size of motor: 2.0 Brand of engine: AAD Type description: 893, 894, 8A2 Body: Saloon From date: 01-08-1990 To date: 01-10-1991 Fuel: Petrol Approved: Yes Audi Model: 80 B3 Model series: 80 B3 Size of motor: 1.8 Brand of engine: SD Type description: 893, 894, 8A2 From date: 01-08-1988 To date: 01-12-1988 Fuel: Petrol Approved: Yes Audi Model: 80 Model series: 80 B2 Saloon Size of motor: 1.7 Brand of engine: WT Type description: 811, 813, 814, 819, 853 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 1.8 Brand of engine: JN From date: 01-08-1985 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 1.8 Brand of engine: JV From date: 01-08-1984 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Type of engine: GTE Size of motor: 1.8 Brand of engine: DZ From date: 01-08-1984 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Type of engine: GTE Size of motor: 1.8 Brand of engine: PV From date: 01-03-1985 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.3 Brand of engine: EP From date: 01-09-1978 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.6 Brand of engine: ABB Type description: 89,89Q,8A,B3 From date: 01-08-1990 To date: 01-10-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.6 Brand of engine: WV From date: 01-08-1978 To date: 01-03-1987 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: JN From date: 01-08-1983 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: JV From date: 01-01-1983 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: RU From date: 01-10-1986 To date: 01-01-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: SF From date: 01-02-1986 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.0 Brand of engine: 3A From date: 01-01-1988 To date: 01-01-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.0 Brand of engine: 3A From date: 01-01-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.0 Brand of engine: AAD From date: 01-10-1990 To date: 01-08-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: E Size of motor: 1.8 Brand of engine: DZ From date: 01-06-1986 To date: 01-08-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: E Size of motor: 2.0 Brand of engine: 3A From date: 01-08-1988 To date: 01-10-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: GTE Size of motor: 1.8 Brand of engine: DZ From date: 01-10-1984 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: GTE Size of motor: 1.8 Brand of engine: PV From date: 01-08-1985 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: S Size of motor: 1.8 Brand of engine: PM From date: 01-09-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 B2 Model series: 90 B2 Model type: Gt Size of motor: 1.8 Type description: 813, 814, 853 Body: Saloon From date: 01-01-1985 To date: 01-07-1988 Fuel: Petrol Approved: Yes Audi Model: 90 Model series: 90 Size of motor: 2.0 Brand of engine: 3A From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Size of motor: 2.0 Brand of engine: PS From date: 01-07-1988 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: GT Size of motor: 1.8 Brand of engine: DZ Type description: 81,85 Body: Coupe From date: 01-12-1984 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 1.6 Brand of engine: YN Body: Coupe From date: 01-07-1980 To date: 01-08-1981 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 1.8 Brand of engine: DD Body: Coupe From date: 01-08-1981 To date: 01-07-1983 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.0 Brand of engine: 3A Type description: 89,8B Body: Coupe From date: 01-03-1990 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.0 Brand of engine: 3A Type description: 89,8B Body: Coupe From date: 01-05-1989 To date: 01-03-1990 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.0 Brand of engine: AAD Body: Coupe From date: 01-05-1989 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: DZ Body: Coupe From date: 01-08-1986 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: JN Body: Coupe From date: 01-01-1985 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: JV Body: Coupe From date: 01-09-1982 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: PV Body: Coupe From date: 01-08-1986 To date: 01-10-1987 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: SF Body: Coupe From date: 01-04-1986 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Various Models Model series: Various Models Approved: Yes Audi Series: 100 (C3) Avant Model: 1.8 Ch.nr.-->44.J.200 099 Engine volume: 1.8 Engine type: JW Year: 08.83-12.87 Audi Series: 100 (C3) Model: 1.8 Ch.nr:>44.J.200 099 Engine volume: 1.8 Engine type: DS / JW Year: 08.82-12.87 Audi Series: 100 (C3) Model: 1.8 KAT Ch.nr:>44.J.200 099 Engine volume: 1.8 Engine type: PH Year: 04.85-12.87 Audi Series: 100 (C3) Model: 1.8 Quattro Engine volume: 1.8 Year: 08.85-07.87 Audi Series: 80 (B1) Model: 1.3 Engine volume: 1.3 Year: 05.72-07.78 Audi Series: 80 (B1) Model: 1.6 Engine volume: 1.6 Year: 07.72-07.78 Audi Series: 80 (B2) Model: 1.3 Engine volume: 1.3 Year: 09.78-08.86 Audi Series: 80 (B2) Model: 1.6 Engine volume: 1.6 Year: 08.78-07.86 Audi Series: 80 (B2) Model: 1.8 CC Quattro Engine volume: 1.8 Engine type: JV / NE Year: 08.84-08.86 Audi Series: 80 (B2) Model: 1.8 Engine volume: 1.8 Engine type: DS / JV Year: 01.83-08.86 Audi Series: 80 (B2) Model: 1.8 GTE Engine volume: 1.8 Engine type: DZ Year: 10.84-08.86 Audi Series: 80 (B2) Model: 1.8 GTE Quattro Engine volume: 1.8 Engine type: PV Year: 03.85-08.86 Audi Series: 80 (B2) Model: 1.8 Quattro Engine volume: 1.8 Year: 08.84-08.86 Audi Series: 80 (B3) Model: 1.8 AUT Engine volume: 1.8 Engine type: SD Year: 02.87-07.88 Audi Series: 80 (B3) Model: 1.8 S AUT Engine volume: 1.8 Engine type: PM / JN / NE Year: 09.86-10.91 Audi Series: 80 (B3) Model: 2.0 AUT Engine volume: 2.0 Engine type: AAD Year: 10.90-08.91 Audi Series: 80 (B3) Model: 2.0 E AUT Engine volume: 2.0 Engine type: 3A Year: 08.88-10.90 Audi Series: Coupe (81; 85) Model: 1.6 Engine volume: 1.6 Engine type: YN Year: 04.81-07.84 Audi Series: Coupe (81; 85) Model: 1.8 Engine volume: 1.8 Year: 08.81-10.88 Audi Series: Coupe (89; 8B) Model: 2.0 AUT Engine volume: 2.0 Engine type: AAD Year: 08.90-07.91 Ford EU Series: Galaxy Model: 2.0i Engine volume: 2.0 Year: 05.92- VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: ABG From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: JN From date: 01-01-1987 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: JN From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: UM From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Sport Size of motor: 1.8 Brand of engine: JN From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Sport Size of motor: 1.8 Brand of engine: JN From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: ABG From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: JN From date: 01-01-1987 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: JN From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: UM From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 1.8 Brand of engine: DS Body: Estate From date: 01-01-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 1.8 Brand of engine: JN Body: Estate From date: 01-01-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Size of motor: 1.3 Brand of engine: EU Type description: 31B Body: Estate From date: 01-08-1980 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.3 Brand of engine: EU Type description: 32B Body: Hatchback From date: 01-08-1980 To date: 01-07-1986 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Body: Estate From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Body: Hatchback From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Type description: 32B Body: Estate From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Type description: 32B Body: Hatchback From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: JU Body: Hatchback From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: PP Body: Estate From date: 01-08-1987 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: PP From date: 01-08-1987 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RF From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RL Body: Estate From date: 01-02-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RL Body: Hatchback From date: 01-02-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RL From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: WV Body: Estate From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: YP Body: Estate From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: YP Body: Hatchback From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DS Body: Estate From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DS Body: Hatchback From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DS From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DZ Body: Estate From date: 01-12-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DZ Body: Hatchback From date: 01-12-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: JN Body: Estate From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: JN Body: Hatchback From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: JN From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RM Body: Estate From date: 01-05-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RM Body: Hatchback From date: 01-05-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RM From date: 01-05-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Quantum Model series: Quantum Model type: Custom Size of motor: 1.7 Brand of engine: WT From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes VW Model: Quantum Model series: Quantum Model type: DLX Size of motor: 1.7 Brand of engine: WT From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes VW Model: Santana Model series: Santana Size of motor: 1.6 Brand of engine: DT Type description: 32B From date: 01-08-1981 To date: 01-12-1984 Fuel: Gasoline Approved: Yes VW Model: Santana Model series: Santana Size of motor: 1.8 Brand of engine: DS From date: 01-01-1983 To date: 01-12-1984 Fuel: Gasoline Approved: Yes VW Model: Santana Model series: Santana Type of engine: i Size of motor: 1.8 Brand of engine: AFE From date: 01-01-1995 To date: 01-09-2012 Fuel: Gasoline Approved: Yes VW Series: Passat (32/33) Model: 1.3 Engine volume: 1.3 Engine type: ZA / ZF Year: 07.73-01.78 VW Series: Passat (32/33) Model: 1.5 Engine volume: 1.5 Year: 07.73-12.77 VW Series: Passat (32/33) Model: 1.6 Engine volume: 1.6 Year: 09.75-07.80 VW Series: Passat (32B) Model: 1.6 Engine volume: 1.6 Engine type: DT; DTA; RL Year: 08.83-03.88 VW Series: Passat (32B) Model: 1.8 Engine volume: 1.8 Engine type: DS / JN Year: 01.85-03.88 VW Series: Passat (32B) Model: 1.8 Engine volume: 1.8 Engine type: DS/JN/JV Year: 01.83-03.88 VW Series: Passat (32B) Model: 1.8 Syncro Engine volume: 1.8 Engine type: DS / JN Year: 01.86-03.88 VW Series: Passat (32B) Variant Model: 1.8 Engine volume: 1.8 Engine type: DS / JN Year: 01.83-03.88 VW Series: Santana Model: 1.3 Engine volume: 1.3 Engine type: FZ Year: 08.81-07.83 VW Series: Santana Model: 1.6 Engine volume: 1.6 Year: 06.83-12.84 VW Series: Santana Model: 1.8 Engine volume: 1.8 Engine type: ds Year: 01.83-12.84 VW Series: Santana Model: 1.8, 2.0 Engine volume: 1.8 Year: 06.85- 1 / 29
-
Beskrivelse
Audi/VW Startmotor 12V-0,95kW 12V - 0,95kW, 9k Obs! Automat på visse modeller! For Yourex produktbestilling 91-620-1347
Spænding: 12
kW: 0,95
Fastgørelsesflange: 82,50
Driveafstand: 15,00
Fastgørelseshul 3 mm: M8
Afstand/tilbagetog: 164,00
Afstand/frem: 50,50
Antal/tænder: 9
B+: M8
Position/50: 15
Terminal 50: 6,30
Geartype: DD/GR
Afstand 2: 74,50
Afstand 3: 105,00
Afstand mm: 74,50
Rotation: CW
Samlet længde mm: 220,00
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Bemærkninger: Bøsning D.E. (koblingshus): HC-CARGO 140500.
Antal/fastgørelseshuller: 3 (3)Filer
-
Specifikation
B+ M8 No./teeth 9 Mount. flange 82.50 Oil sealed No No./mount. holes 3 (3) Position/50 15 Prod. info BN Dist. 2 74.50 Remarks Bushing D.E. (clutch house): HC-CARGO 140500. Dist. 3 105.00 Rotation CW Dist./back 164.00 Dist./front 50.50 Drive dist. 15.00 Drive type Steel Gear type DD/GR kW 0.95 Terminal 50 6.30 Voltage 12 Total length 220.00 mm Waterproof No Dist. 74.50 mm Mount. hole 3 M8 mm -
Køretøjsmatchning
-
OEM
b001180009, cs297, D9E 136, d9e136, F032110865, LRS 648, M003T80571, m3t80571, RGO 110865, ZBC911023, 0001 208 247, 0001 208 709, 0001 208 710, 0001 208 711, 0001 211 504, 0001 211 505, 0986 012 360, 0986 013 470, 23300-V4171, 48764, 110865, 622727, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 026911023, 026911023b, 026911023BX, 026911023x, 049911023g, 049911023GX, 049911023h, 0269110233, 9000082050, 9000082059 -
Konkurrentreferens
CST10012, drs0460, drs2360, drs3470, F042S0H012, FRS142, lrs00206, lrs00521, lrs00648, lrs00919, MS57, QS1451, S0050, SR0406X, SR16X, STR-H012, STR50085, STR50120, vs278, 2-1360-BO, 2-1460-BO, 8EA012527-011, 8ea726056-001, 25-1082, 26-0012, 26-1168, 41-10.460, 41-13.470, 311.104.092, 311.105.092, 1240, 10297, 11124, 11125, 11530, 16408, 16408N, 16408R, 103202, 432606, 433016, 433264, 436016, 8010460, 8013470, 11010460, 11013470, 42013470, 943251434, 943251619, 943251686, 0986010460, 0986010468, 0986010500, 0986012360, 0986013470, 0986013478, 0986019357, 943251686010 -
Bilmärken
Audi, VW -
NormaliseratArtNr
b001180009, cs297, cst10012, d9e136, drs0460, drs2360, drs3470, f032110865, f042s0h012, frs142, lrs00206, lrs00521, lrs00648, lrs00919, lrs648, m003t80571, m3t80571, ms57, qs1451, rgo110865, s0050, sr0406x, sr16x, str50085, str50120, strh012, vs278, zbc911023, 8ea012527011, 8ea726056001, 1240, 10297, 11124, 11125, 11530, 16408, 16408n, 16408r, 21360bo, 21460bo, 23300v4171, 48764, 103202, 110865, 251082, 260012, 261168, 432606, 433016, 433264, 436016, 622727, 0001208247, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 4110460, 4113470, 8010460, 8013470, 11010460, 11013470, 026911023, 026911023b, 026911023bx, 026911023x, 42013470, 049911023g, 049911023gx, 049911023h, 0269110233, 311104092, 311105092, 943251434, 943251619, 943251686, 0986010460, 0986010468, 0986010500, 0986012360, 0986013470, 0986013478, 0986019357, 9000082050, 9000082059, 943251686010 -
Passar modeller
Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: JW Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: JW Body: Estate From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: JW From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: NP Body: Estate From date: 01-08-1985 To date: 01-10-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: NP Body: Estate From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: NP From date: 01-10-1984 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: PH Body: Estate From date: 01-08-1985 To date: 01-10-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: PH From date: 01-08-1985 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: SH Body: Estate From date: 01-08-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 1.8 Brand of engine: SH From date: 01-08-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.6 Brand of engine: YV Body: Estate From date: 01-07-1977 To date: 01-02-1983 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DR Body: Estate From date: 01-08-1982 To date: 01-12-1987 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DR From date: 01-08-1982 To date: 01-12-1987 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DS Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: DS From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: JW From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: NP Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: PH Body: Estate From date: 01-03-1985 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: PH Body: Estate From date: 01-08-1983 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: PH From date: 01-03-1985 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: RS From date: 01-08-1982 To date: 01-12-1987 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: SH Body: Estate From date: 01-02-1986 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 1.8 Brand of engine: SH From date: 01-02-1986 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 1.8 Type description: C1 Body: Saloon From date: 01-11-1968 To date: 01-12-1971 Fuel: Petrol Approved: Yes Audi Model: 4000 Model series: 4000 Size of motor: 1.7 Brand of engine: WT From date: 01-01-1981 To date: 01-01-1983 Fuel: Gasoline Approved: Yes Audi Model: 4000 Model series: 4000 Type of engine: S Size of motor: 1.8 Brand of engine: JN From date: 01-01-1984 Fuel: Gasoline Approved: Yes Audi Model: 4000 Model series: 4000 Type of engine: S Size of motor: 1.8 Brand of engine: MG From date: 01-01-1985 To date: 01-01-1987 Fuel: Gasoline Approved: Yes Audi Model: 4000 Model series: 4000 Type of engine: S Size of motor: 1.8 Brand of engine: MG From date: 01-01-1987 Fuel: Gasoline Approved: Yes Audi Model: 80 B3 Model series: 80 B3 Saloon Model type: E Size of motor: 2.0 Brand of engine: AAD Type description: 893, 894, 8A2 Body: Saloon From date: 01-08-1990 To date: 01-10-1991 Fuel: Petrol Approved: Yes Audi Model: 80 B3 Model series: 80 B3 Size of motor: 1.8 Brand of engine: SD Type description: 893, 894, 8A2 From date: 01-08-1988 To date: 01-12-1988 Fuel: Petrol Approved: Yes Audi Model: 80 Model series: 80 B2 Saloon Size of motor: 1.7 Brand of engine: WT Type description: 811, 813, 814, 819, 853 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 1.8 Brand of engine: JN From date: 01-08-1985 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 1.8 Brand of engine: JV From date: 01-08-1984 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Type of engine: GTE Size of motor: 1.8 Brand of engine: DZ From date: 01-08-1984 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Type of engine: GTE Size of motor: 1.8 Brand of engine: PV From date: 01-03-1985 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.3 Brand of engine: EP From date: 01-09-1978 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.6 Brand of engine: ABB Type description: 89,89Q,8A,B3 From date: 01-08-1990 To date: 01-10-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.6 Brand of engine: WV From date: 01-08-1978 To date: 01-03-1987 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: JN From date: 01-08-1983 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: JV From date: 01-01-1983 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: RU From date: 01-10-1986 To date: 01-01-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 1.8 Brand of engine: SF From date: 01-02-1986 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.0 Brand of engine: 3A From date: 01-01-1988 To date: 01-01-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.0 Brand of engine: 3A From date: 01-01-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.0 Brand of engine: AAD From date: 01-10-1990 To date: 01-08-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: E Size of motor: 1.8 Brand of engine: DZ From date: 01-06-1986 To date: 01-08-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: E Size of motor: 2.0 Brand of engine: 3A From date: 01-08-1988 To date: 01-10-1990 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: GTE Size of motor: 1.8 Brand of engine: DZ From date: 01-10-1984 To date: 01-08-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: GTE Size of motor: 1.8 Brand of engine: PV From date: 01-08-1985 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Type of engine: S Size of motor: 1.8 Brand of engine: PM From date: 01-09-1986 To date: 01-10-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 B2 Model series: 90 B2 Model type: Gt Size of motor: 1.8 Type description: 813, 814, 853 Body: Saloon From date: 01-01-1985 To date: 01-07-1988 Fuel: Petrol Approved: Yes Audi Model: 90 Model series: 90 Size of motor: 2.0 Brand of engine: 3A From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Size of motor: 2.0 Brand of engine: PS From date: 01-07-1988 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: GT Size of motor: 1.8 Brand of engine: DZ Type description: 81,85 Body: Coupe From date: 01-12-1984 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 1.6 Brand of engine: YN Body: Coupe From date: 01-07-1980 To date: 01-08-1981 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 1.8 Brand of engine: DD Body: Coupe From date: 01-08-1981 To date: 01-07-1983 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.0 Brand of engine: 3A Type description: 89,8B Body: Coupe From date: 01-03-1990 To date: 01-07-1990 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.0 Brand of engine: 3A Type description: 89,8B Body: Coupe From date: 01-05-1989 To date: 01-03-1990 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.0 Brand of engine: AAD Body: Coupe From date: 01-05-1989 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: DZ Body: Coupe From date: 01-08-1986 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: JN Body: Coupe From date: 01-01-1985 To date: 01-07-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: JV Body: Coupe From date: 01-09-1982 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: PV Body: Coupe From date: 01-08-1986 To date: 01-10-1987 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: GT Size of motor: 1.8 Brand of engine: SF Body: Coupe From date: 01-04-1986 To date: 01-10-1988 Fuel: Gasoline Approved: Yes Audi Model: Various Models Model series: Various Models Approved: Yes Audi Series: 100 (C3) Avant Model: 1.8 Ch.nr.-->44.J.200 099 Engine volume: 1.8 Engine type: JW Year: 08.83-12.87 Audi Series: 100 (C3) Model: 1.8 Ch.nr:>44.J.200 099 Engine volume: 1.8 Engine type: DS / JW Year: 08.82-12.87 Audi Series: 100 (C3) Model: 1.8 KAT Ch.nr:>44.J.200 099 Engine volume: 1.8 Engine type: PH Year: 04.85-12.87 Audi Series: 100 (C3) Model: 1.8 Quattro Engine volume: 1.8 Year: 08.85-07.87 Audi Series: 80 (B1) Model: 1.3 Engine volume: 1.3 Year: 05.72-07.78 Audi Series: 80 (B1) Model: 1.6 Engine volume: 1.6 Year: 07.72-07.78 Audi Series: 80 (B2) Model: 1.3 Engine volume: 1.3 Year: 09.78-08.86 Audi Series: 80 (B2) Model: 1.6 Engine volume: 1.6 Year: 08.78-07.86 Audi Series: 80 (B2) Model: 1.8 CC Quattro Engine volume: 1.8 Engine type: JV / NE Year: 08.84-08.86 Audi Series: 80 (B2) Model: 1.8 Engine volume: 1.8 Engine type: DS / JV Year: 01.83-08.86 Audi Series: 80 (B2) Model: 1.8 GTE Engine volume: 1.8 Engine type: DZ Year: 10.84-08.86 Audi Series: 80 (B2) Model: 1.8 GTE Quattro Engine volume: 1.8 Engine type: PV Year: 03.85-08.86 Audi Series: 80 (B2) Model: 1.8 Quattro Engine volume: 1.8 Year: 08.84-08.86 Audi Series: 80 (B3) Model: 1.8 AUT Engine volume: 1.8 Engine type: SD Year: 02.87-07.88 Audi Series: 80 (B3) Model: 1.8 S AUT Engine volume: 1.8 Engine type: PM / JN / NE Year: 09.86-10.91 Audi Series: 80 (B3) Model: 2.0 AUT Engine volume: 2.0 Engine type: AAD Year: 10.90-08.91 Audi Series: 80 (B3) Model: 2.0 E AUT Engine volume: 2.0 Engine type: 3A Year: 08.88-10.90 Audi Series: Coupe (81; 85) Model: 1.6 Engine volume: 1.6 Engine type: YN Year: 04.81-07.84 Audi Series: Coupe (81; 85) Model: 1.8 Engine volume: 1.8 Year: 08.81-10.88 Audi Series: Coupe (89; 8B) Model: 2.0 AUT Engine volume: 2.0 Engine type: AAD Year: 08.90-07.91 Ford EU Series: Galaxy Model: 2.0i Engine volume: 2.0 Year: 05.92- VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: ABG From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: JN From date: 01-01-1987 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: JN From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Size of motor: 1.8 Brand of engine: UM From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Sport Size of motor: 1.8 Brand of engine: JN From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Model type: GL Sport Size of motor: 1.8 Brand of engine: JN From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: ABG From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: JN From date: 01-01-1987 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: JN From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes VW Model: Fox Model series: Fox Size of motor: 1.8 Brand of engine: UM From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 1.8 Brand of engine: DS Body: Estate From date: 01-01-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 1.8 Brand of engine: JN Body: Estate From date: 01-01-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Size of motor: 1.3 Brand of engine: EU Type description: 31B Body: Estate From date: 01-08-1980 To date: 01-07-1986 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.3 Brand of engine: EU Type description: 32B Body: Hatchback From date: 01-08-1980 To date: 01-07-1986 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Body: Estate From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Body: Hatchback From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Type description: 32B Body: Estate From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: DT Type description: 32B Body: Hatchback From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: JU Body: Hatchback From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: PP Body: Estate From date: 01-08-1987 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: PP From date: 01-08-1987 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RF From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RL Body: Estate From date: 01-02-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RL Body: Hatchback From date: 01-02-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RL From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: WV Body: Estate From date: 01-08-1980 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: YP Body: Estate From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: YP Body: Hatchback From date: 01-01-1981 To date: 01-02-1983 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DS Body: Estate From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DS Body: Hatchback From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DS From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DZ Body: Estate From date: 01-12-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: DZ Body: Hatchback From date: 01-12-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: JN Body: Estate From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: JN Body: Hatchback From date: 01-01-1983 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: JN From date: 01-01-1985 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RM Body: Estate From date: 01-05-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes Manufacture type: variant VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RM Body: Hatchback From date: 01-05-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RM From date: 01-05-1986 To date: 01-03-1988 Fuel: Gasoline Approved: Yes VW Model: Quantum Model series: Quantum Model type: Custom Size of motor: 1.7 Brand of engine: WT From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes VW Model: Quantum Model series: Quantum Model type: DLX Size of motor: 1.7 Brand of engine: WT From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes VW Model: Santana Model series: Santana Size of motor: 1.6 Brand of engine: DT Type description: 32B From date: 01-08-1981 To date: 01-12-1984 Fuel: Gasoline Approved: Yes VW Model: Santana Model series: Santana Size of motor: 1.8 Brand of engine: DS From date: 01-01-1983 To date: 01-12-1984 Fuel: Gasoline Approved: Yes VW Model: Santana Model series: Santana Type of engine: i Size of motor: 1.8 Brand of engine: AFE From date: 01-01-1995 To date: 01-09-2012 Fuel: Gasoline Approved: Yes VW Series: Passat (32/33) Model: 1.3 Engine volume: 1.3 Engine type: ZA / ZF Year: 07.73-01.78 VW Series: Passat (32/33) Model: 1.5 Engine volume: 1.5 Year: 07.73-12.77 VW Series: Passat (32/33) Model: 1.6 Engine volume: 1.6 Year: 09.75-07.80 VW Series: Passat (32B) Model: 1.6 Engine volume: 1.6 Engine type: DT; DTA; RL Year: 08.83-03.88 VW Series: Passat (32B) Model: 1.8 Engine volume: 1.8 Engine type: DS / JN Year: 01.85-03.88 VW Series: Passat (32B) Model: 1.8 Engine volume: 1.8 Engine type: DS/JN/JV Year: 01.83-03.88 VW Series: Passat (32B) Model: 1.8 Syncro Engine volume: 1.8 Engine type: DS / JN Year: 01.86-03.88 VW Series: Passat (32B) Variant Model: 1.8 Engine volume: 1.8 Engine type: DS / JN Year: 01.83-03.88 VW Series: Santana Model: 1.3 Engine volume: 1.3 Engine type: FZ Year: 08.81-07.83 VW Series: Santana Model: 1.6 Engine volume: 1.6 Year: 06.83-12.84 VW Series: Santana Model: 1.8 Engine volume: 1.8 Engine type: ds Year: 01.83-12.84 VW Series: Santana Model: 1.8, 2.0 Engine volume: 1.8 Year: 06.85- 1 / 29
-
