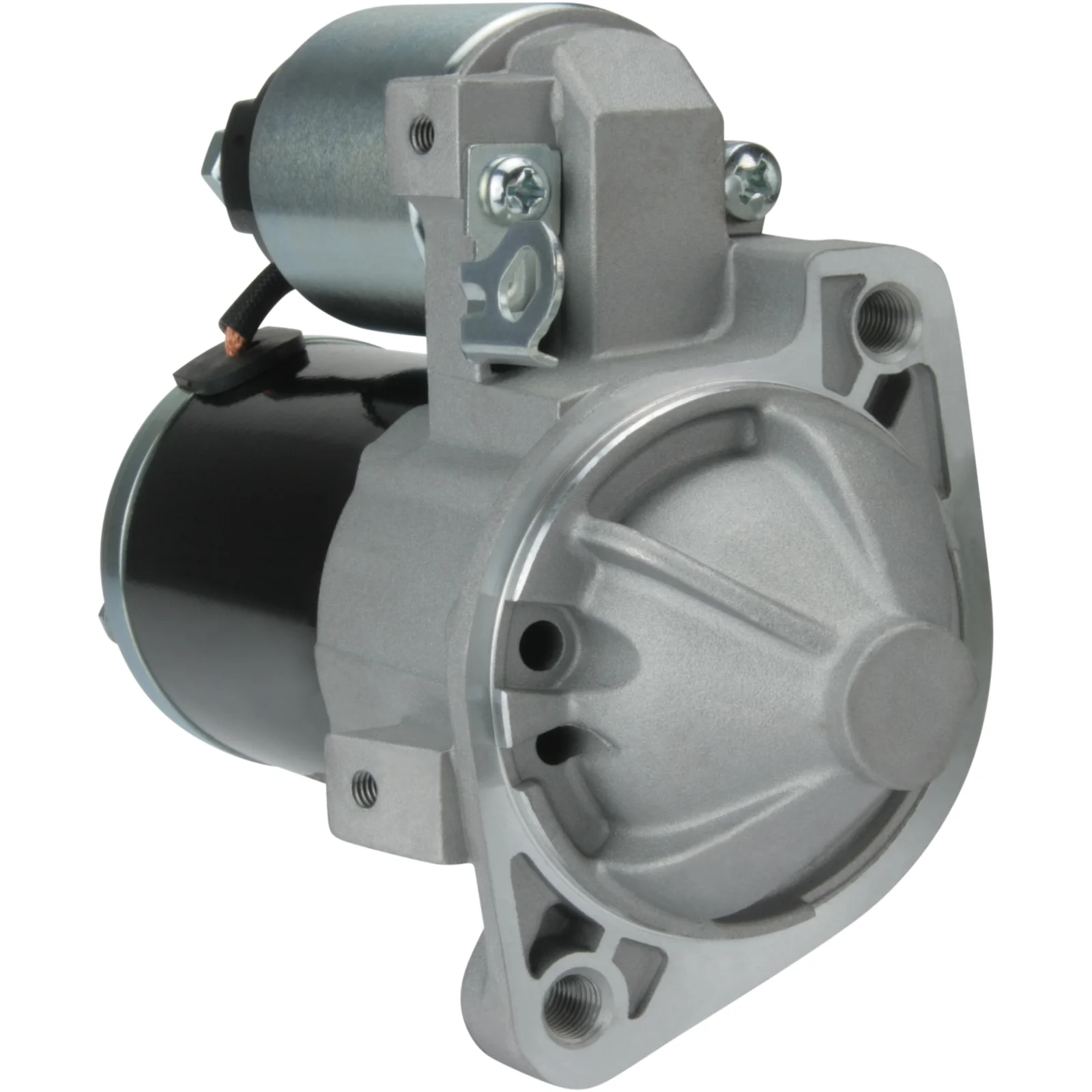

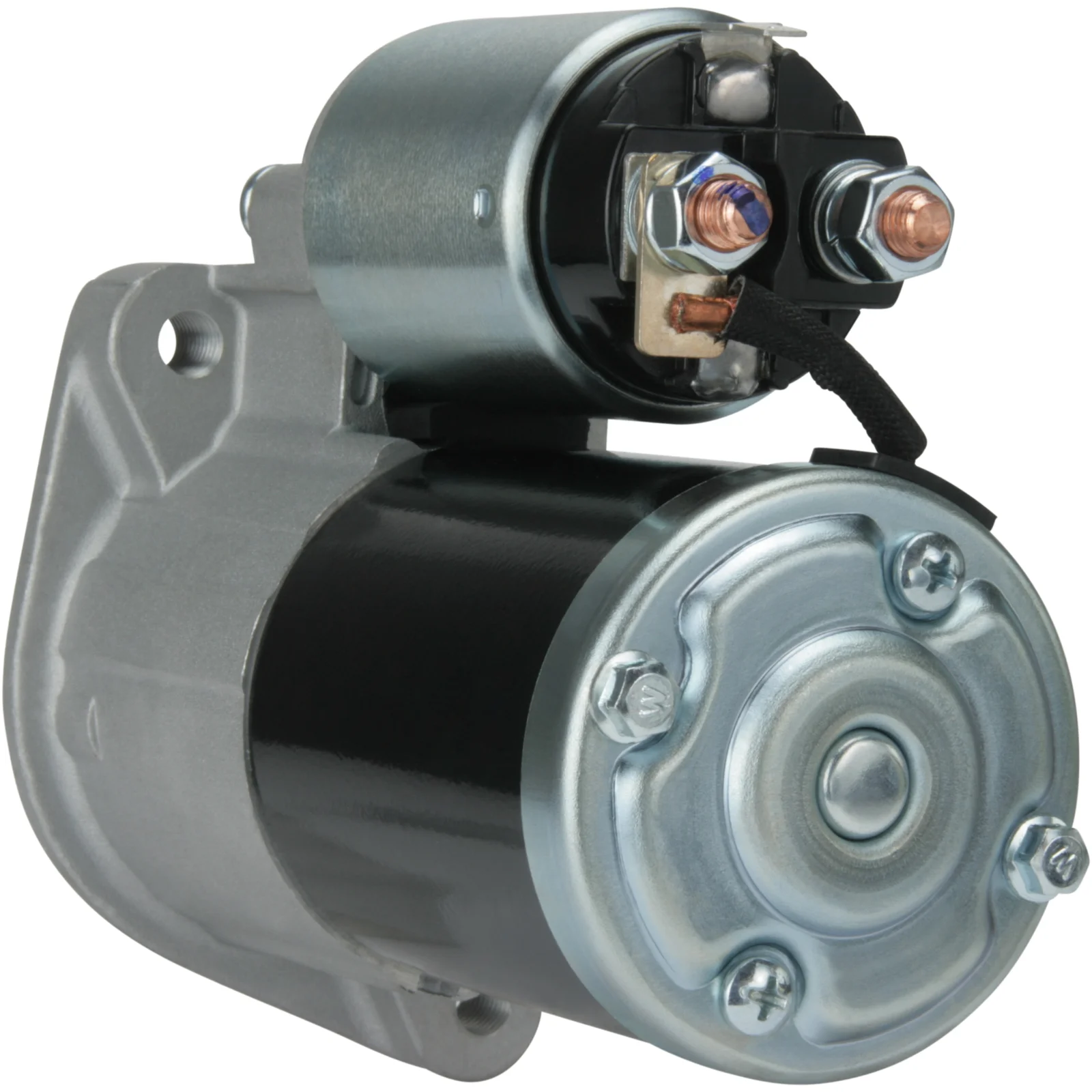

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115359

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.2, No./tænder: 8, Rotation: CW

Beskrivelse

Mitsubishi Startmotor 12V-1.4kW 12V - 1.4kW, 8k A - 77mm, B - 10mm Til Yourex produktbestilling 91-380-2067

Viden: 12
kW: 1.2
Monteringsflange: 77.00
Drevafstand: 10.00
Afstand/tilbage: 147.00
Afstand/frem: 42.00
Antal/tænder: 8
B+: M8
Position/50: 60
Terminal 50: 6.30
Geartype: GR
Monteringsbeslag: w/
Afstand mm: 105.00
Rotation: CW
Total længde mm: 189.00
Produktinfo: BN
Antal/monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. bracket w/
Mount. flange 77.00
No./mount. holes 2 (2)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 147.00
Dist./front 42.00
Drive dist. 10.00
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 189.00 mm
Dist. 105.00 mm

  • OEM
    F032115359, M000T20671, M000T20672, M0T-20671, M0T-20672, M0T20671, m0t20672, MN 153444, MN153444, RGO 115359, 1810A001, 1810a001, 1986S01137, 115359

  • Konkurrentreferens
    CST35267, DRS0809, J5215050, LRS02578, S5249S, 25-4250, 326.051.082, 326.063.082, 0986UR1324, 17931, 105359, 458680, 8020411, 11040768

  • Bilmärken
    Mitsubishi

  • NormaliseratArtNr
    cst35267, drs0809, f032115359, j5215050, lrs02578, m000t20671, m000t20672, m0t20671, m0t20672, mn153444, rgo115359, s5249s, 0986ur1324, 1810a001, 1986s01137, 17931, 105359, 115359, 254250, 458680, 8020411, 11040768, 326051082, 326063082

  • Passar modeller
    Mitsubishi Model: Grandis Model series: Grandis Size of motor: 2.4 Brand of engine: 4G69 Body: MPV From date: 01-04-2004 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_A From date: 01-12-2003 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_W Body: Estate From date: 01-09-2003 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.0 Brand of engine: 4G63 Body: SUV From date: 01-01-2002 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.4 Brand of engine: 4G64(SOHC16V) Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.4 Brand of engine: 4G69 Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Series: Grandis Model: 2.4 Engine volume: 2.4 Engine type: 4G 69 Year: 04.04-
    Mitsubishi Series: Outlander Model: 2.0 4WD Engine volume: 2.0 Engine type: 4 G 63 Year: 05.03-10.06
    Mitsubishi Series: Outlander Model: 2.0 Engine volume: 2.0 Engine type: 4G63 Year: 05.03-
    Mitsubishi Series: Outlander Model: 2.0 Turbo 4 WD Engine volume: 2.0 Engine type: 4 G 63T Year: 02.03-12.05
    1 / 3
  • Beskrivelse
    Mitsubishi Startmotor 12V-1.4kW 12V - 1.4kW, 8k A - 77mm, B - 10mm Til Yourex produktbestilling 91-380-2067

    Viden: 12
    kW: 1.2
    Monteringsflange: 77.00
    Drevafstand: 10.00
    Afstand/tilbage: 147.00
    Afstand/frem: 42.00
    Antal/tænder: 8
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Geartype: GR
    Monteringsbeslag: w/
    Afstand mm: 105.00
    Rotation: CW
    Total længde mm: 189.00
    Produktinfo: BN
    Antal/monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. bracket w/
    Mount. flange 77.00
    No./mount. holes 2 (2)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 147.00
    Dist./front 42.00
    Drive dist. 10.00
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 189.00 mm
    Dist. 105.00 mm
  • Køretøjsmatchning

    • OEM
      F032115359, M000T20671, M000T20672, M0T-20671, M0T-20672, M0T20671, m0t20672, MN 153444, MN153444, RGO 115359, 1810A001, 1810a001, 1986S01137, 115359

    • Konkurrentreferens
      CST35267, DRS0809, J5215050, LRS02578, S5249S, 25-4250, 326.051.082, 326.063.082, 0986UR1324, 17931, 105359, 458680, 8020411, 11040768

    • Bilmärken
      Mitsubishi

    • NormaliseratArtNr
      cst35267, drs0809, f032115359, j5215050, lrs02578, m000t20671, m000t20672, m0t20671, m0t20672, mn153444, rgo115359, s5249s, 0986ur1324, 1810a001, 1986s01137, 17931, 105359, 115359, 254250, 458680, 8020411, 11040768, 326051082, 326063082

    • Passar modeller
      Mitsubishi Model: Grandis Model series: Grandis Size of motor: 2.4 Brand of engine: 4G69 Body: MPV From date: 01-04-2004 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_A From date: 01-12-2003 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_W Body: Estate From date: 01-09-2003 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.0 Brand of engine: 4G63 Body: SUV From date: 01-01-2002 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.4 Brand of engine: 4G64(SOHC16V) Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.4 Brand of engine: 4G69 Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Series: Grandis Model: 2.4 Engine volume: 2.4 Engine type: 4G 69 Year: 04.04-
      Mitsubishi Series: Outlander Model: 2.0 4WD Engine volume: 2.0 Engine type: 4 G 63 Year: 05.03-10.06
      Mitsubishi Series: Outlander Model: 2.0 Engine volume: 2.0 Engine type: 4G63 Year: 05.03-
      Mitsubishi Series: Outlander Model: 2.0 Turbo 4 WD Engine volume: 2.0 Engine type: 4 G 63T Year: 02.03-12.05
