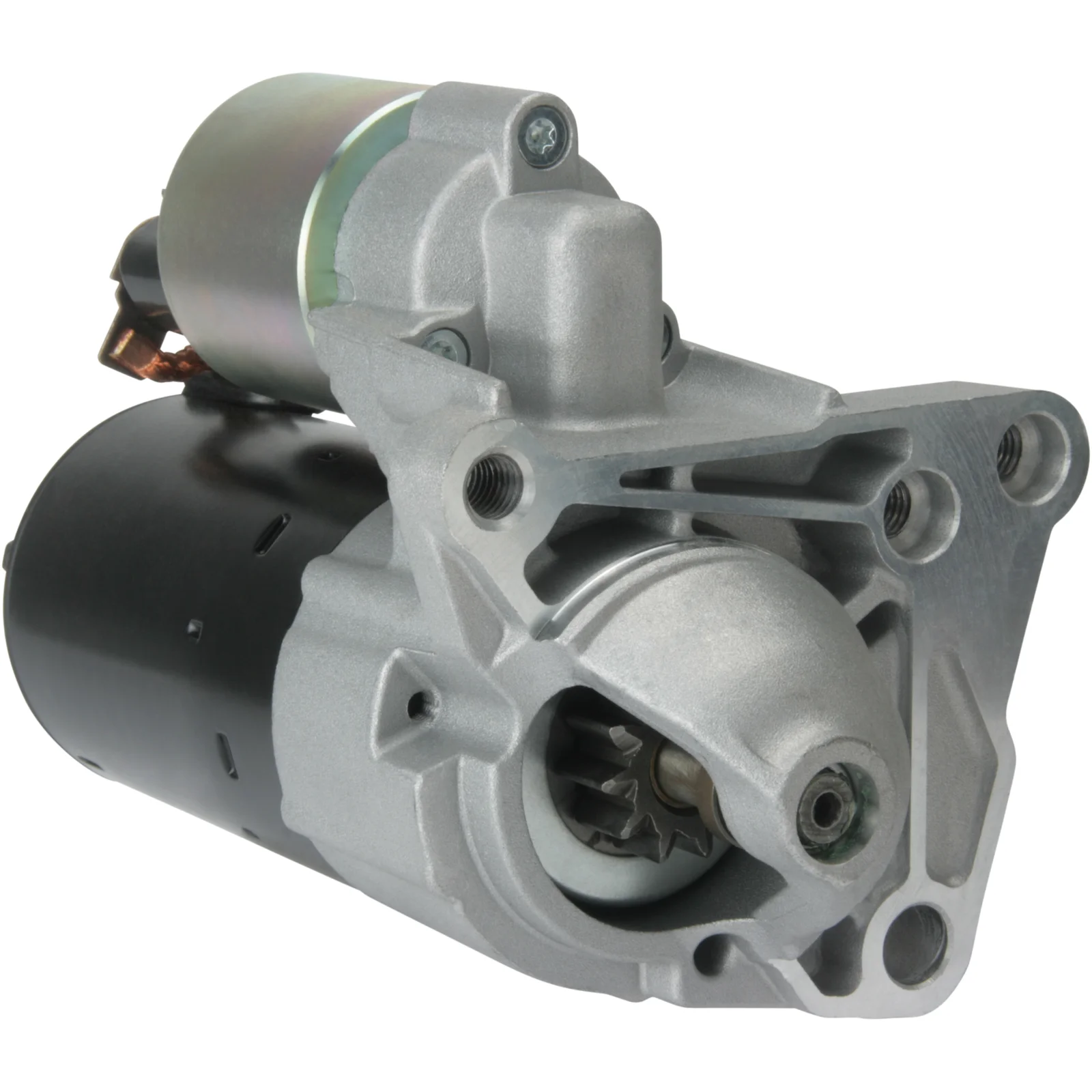

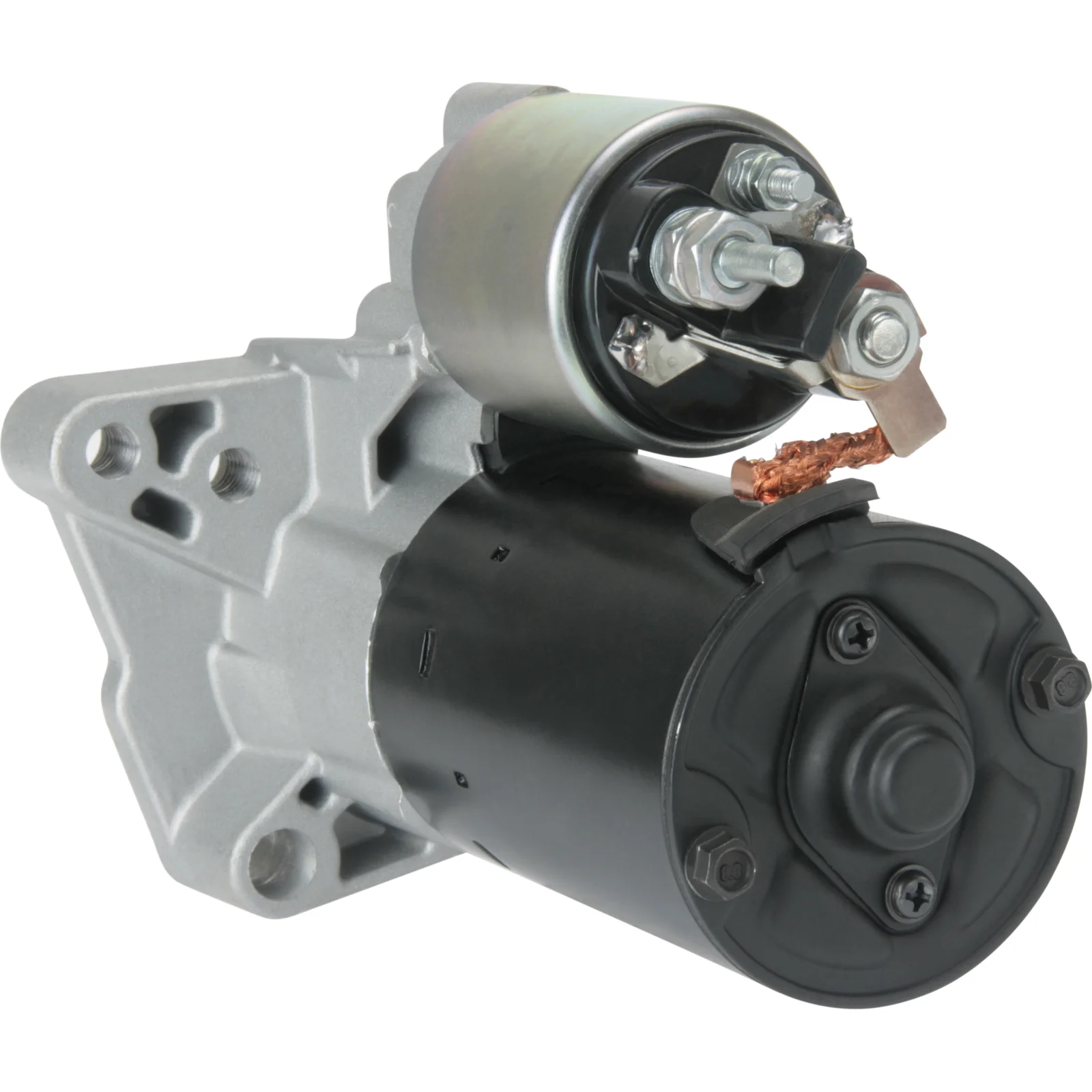

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115698

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.1, No./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.1
Monteringsflange: 66.00
Driveafstand: 0.00
Monteringshul 4 mm: M10
Monteringshul 3 mm: 12.00
Afstand/ryg: 158.00
Afstand/forrest: 34.00
Nr./tandhjul: 11
B+: M8
Position/50: 5
Terminal 50: M5
Gear type: GR
Afstand 2: 74.00
Afstand 3: 104.50
Afstand 4: 73.00
Afstand mm: 22.00
Rotation: med uret
Samlet længde mm: 200.00
Produktinfo: BN
Nr./monteringshuller: 4 (3)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 66.00
No./mount. holes 4 (3)
Position/50 5
Prod. info BN
Dist. 2 74.00
Dist. 3 104.50
Dist. 4 73.00
Rotation CW
Dist./back 158.00
Dist./front 34.00
Drive dist. 0.00
Gear type GR
kW 1.1
Terminal 50 M5
Voltage 12
Total length 200.00 mm
Dist. 22.00 mm
Mount. hole 4 M10 mm
Mount. hole 3 12.00 mm

  • OEM
    F032115698, RGO 115698, TS1281, 1986S00679, 0001107476, 0001107477, 8200792969

  • Konkurrentreferens
    CST10482, DRS0233, LRS02490, S0741S, 25-4162, 330.062.112, 570.564.114, 3088, 30500N-OS, 31279N, 438399, 438501, 11025390, 42025390, 0986025390

  • NormaliseratArtNr
    cst10482, drs0233, f032115698, lrs02490, rgo115698, s0741s, ts1281, 1986s00679, 3088, 30500nos, 31279n, 254162, 438399, 438501, 0001107476, 0001107477, 11025390, 42025390, 330062112, 570564114, 0986025390, 8200792969

  • Passar modeller
    Renault Model: Clio Model series: Clio Model type: Sport Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R830 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Model type: Sport Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R830 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Duster Model series: Duster Model type: 4WD Size of motor: 2.0 Brand of engine: F4R410 Type description: HM_ Body: SUV From date: 01-11-2021 Fuel: Petrol Approved: Yes
    Renault Model: Duster Model series: Duster Model type: 4x4 Size of motor: 2.0 Body: SUV From date: 01-01-2011 Fuel: Gasoline Approved: Yes
    Renault Model: Duster Model series: Duster Model type: 4x4 Size of motor: 2.0 Brand of engine: F4R From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Duster Model series: Duster Model type: Flex (HSML, HSJJ) Size of motor: 2.0 Brand of engine: F4R405 Type description: HS_ Body: SUV From date: 01-01-2016 To date: 01-03-2020 Fuel: Petrol/Ethanol Approved: Yes
    Renault Model: Duster Model series: Duster Model type: Flex 4x4 (HSAR, HSJJ) Size of motor: 2.0 Brand of engine: F4R408 Type description: HS_ Body: SUV From date: 01-01-2016 To date: 01-12-2020 Fuel: Petrol/Ethanol Approved: Yes
    Renault Model: Duster Model series: Duster Model type: Flex Size of motor: 2.0 From date: 01-01-2011 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Duster Model series: Duster Size of motor: 2.0 Body: SUV From date: 01-01-2011 Fuel: Gasoline Approved: Yes
    Renault Model: Duster Model series: Duster Size of motor: 2.0 From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R796 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R797 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R896 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R897 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Fluence Model series: Fluence Size of motor: 2.0 Brand of engine: F4R872 Type description: L30_ From date: 01-02-2011 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Model type: GT Size of motor: 2.0 Brand of engine: F4R800 Body: Coupe From date: 01-09-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Model type: GT Size of motor: 2.0 Brand of engine: F4R800 Type description: BT0/1 Body: Hatchback From date: 01-03-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Size of motor: 2.0 Brand of engine: F4R800 Type description: KT0/1 Body: Estate From date: 01-03-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4R811 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4R811 Type description: DTO/1 Body: Coupe From date: 01-09-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4R811 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4Rt811 Type description: DTO/1 Body: Coupe From date: 01-09-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane CC Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R870 Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane CC Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Model type: R.S. Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-07-2014 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Model type: TCe 220 Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: BZ0_ Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Model type: TCe 220 Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Saloon Size of motor: 2.0 Brand of engine: F4R770 Type description: LM0/1_ Body: Saloon From date: 01-04-2006 To date: 01-11-2010 Fuel: Petrol Approved: Yes
    Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R770 From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R771 From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R770 Type description: BM0_, CM0_ Body: Hatchback From date: 01-11-2002 To date: 01-02-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Coupe From date: 01-11-2008 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R872 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Type description: BZ0_ Body: Hatchback From date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Type description: DZ0/1_ Body: Coupe From date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Type description: KZ0/1 Body: Estate From date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: KZ0/1 Body: Estate From date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Trafic Model series: Trafic Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R820 Type description: FL Body: Van From date: 01-08-2006 Fuel: Gasoline Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R820 Type description: JL Body: Bus From date: 01-08-2006 Fuel: Gasoline Approved: Yes
    1 / 9
  • Beskrivelse
    Spænding: 12
    kW: 1.1
    Monteringsflange: 66.00
    Driveafstand: 0.00
    Monteringshul 4 mm: M10
    Monteringshul 3 mm: 12.00
    Afstand/ryg: 158.00
    Afstand/forrest: 34.00
    Nr./tandhjul: 11
    B+: M8
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Afstand 2: 74.00
    Afstand 3: 104.50
    Afstand 4: 73.00
    Afstand mm: 22.00
    Rotation: med uret
    Samlet længde mm: 200.00
    Produktinfo: BN
    Nr./monteringshuller: 4 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 66.00
    No./mount. holes 4 (3)
    Position/50 5
    Prod. info BN
    Dist. 2 74.00
    Dist. 3 104.50
    Dist. 4 73.00
    Rotation CW
    Dist./back 158.00
    Dist./front 34.00
    Drive dist. 0.00
    Gear type GR
    kW 1.1
    Terminal 50 M5
    Voltage 12
    Total length 200.00 mm
    Dist. 22.00 mm
    Mount. hole 4 M10 mm
    Mount. hole 3 12.00 mm
  • Køretøjsmatchning

    • OEM
      F032115698, RGO 115698, TS1281, 1986S00679, 0001107476, 0001107477, 8200792969

    • Konkurrentreferens
      CST10482, DRS0233, LRS02490, S0741S, 25-4162, 330.062.112, 570.564.114, 3088, 30500N-OS, 31279N, 438399, 438501, 11025390, 42025390, 0986025390

    • NormaliseratArtNr
      cst10482, drs0233, f032115698, lrs02490, rgo115698, s0741s, ts1281, 1986s00679, 3088, 30500nos, 31279n, 254162, 438399, 438501, 0001107476, 0001107477, 11025390, 42025390, 330062112, 570564114, 0986025390, 8200792969

    • Passar modeller
      Renault Model: Clio Model series: Clio Model type: Sport Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R830 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-02-2006 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Model type: Sport Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R830 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Duster Model series: Duster Model type: 4WD Size of motor: 2.0 Brand of engine: F4R410 Type description: HM_ Body: SUV From date: 01-11-2021 Fuel: Petrol Approved: Yes
      Renault Model: Duster Model series: Duster Model type: 4x4 Size of motor: 2.0 Body: SUV From date: 01-01-2011 Fuel: Gasoline Approved: Yes
      Renault Model: Duster Model series: Duster Model type: 4x4 Size of motor: 2.0 Brand of engine: F4R From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Duster Model series: Duster Model type: Flex (HSML, HSJJ) Size of motor: 2.0 Brand of engine: F4R405 Type description: HS_ Body: SUV From date: 01-01-2016 To date: 01-03-2020 Fuel: Petrol/Ethanol Approved: Yes
      Renault Model: Duster Model series: Duster Model type: Flex 4x4 (HSAR, HSJJ) Size of motor: 2.0 Brand of engine: F4R408 Type description: HS_ Body: SUV From date: 01-01-2016 To date: 01-12-2020 Fuel: Petrol/Ethanol Approved: Yes
      Renault Model: Duster Model series: Duster Model type: Flex Size of motor: 2.0 From date: 01-01-2011 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Duster Model series: Duster Size of motor: 2.0 Body: SUV From date: 01-01-2011 Fuel: Gasoline Approved: Yes
      Renault Model: Duster Model series: Duster Size of motor: 2.0 From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R796 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R797 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R896 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Espace Model series: Espace Size of motor: 2.0 Brand of engine: F4R897 Type description: JK0_ Body: MPV From date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Fluence Model series: Fluence Size of motor: 2.0 Brand of engine: F4R872 Type description: L30_ From date: 01-02-2011 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Model type: GT Size of motor: 2.0 Brand of engine: F4R800 Body: Coupe From date: 01-09-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Model type: GT Size of motor: 2.0 Brand of engine: F4R800 Type description: BT0/1 Body: Hatchback From date: 01-03-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Size of motor: 2.0 Brand of engine: F4R800 Type description: KT0/1 Body: Estate From date: 01-03-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4R811 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4R811 Type description: DTO/1 Body: Coupe From date: 01-09-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4R811 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Turbo Size of motor: 2.0 Brand of engine: F4Rt811 Type description: DTO/1 Body: Coupe From date: 01-09-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane CC Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R870 Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane CC Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Model type: R.S. Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-07-2014 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Model type: TCe 220 Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: BZ0_ Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Model type: TCe 220 Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Saloon Size of motor: 2.0 Brand of engine: F4R770 Type description: LM0/1_ Body: Saloon From date: 01-04-2006 To date: 01-11-2010 Fuel: Petrol Approved: Yes
      Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R770 From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R771 From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R770 Type description: BM0_, CM0_ Body: Hatchback From date: 01-11-2002 To date: 01-02-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Coupe From date: 01-11-2008 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R872 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Type description: BZ0_ Body: Hatchback From date: 01-06-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Type description: DZ0/1_ Body: Coupe From date: 01-06-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R872 Type description: KZ0/1 Body: Estate From date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: DZ0/1_ Body: Coupe From date: 01-05-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: TCe Size of motor: 2.0 Brand of engine: F4R874 Type description: KZ0/1 Body: Estate From date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Trafic Model series: Trafic Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R820 Type description: FL Body: Van From date: 01-08-2006 Fuel: Gasoline Approved: Yes
      Renault Model: Trafic Model series: Trafic Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R820 Type description: JL Body: Bus From date: 01-08-2006 Fuel: Gasoline Approved: Yes
