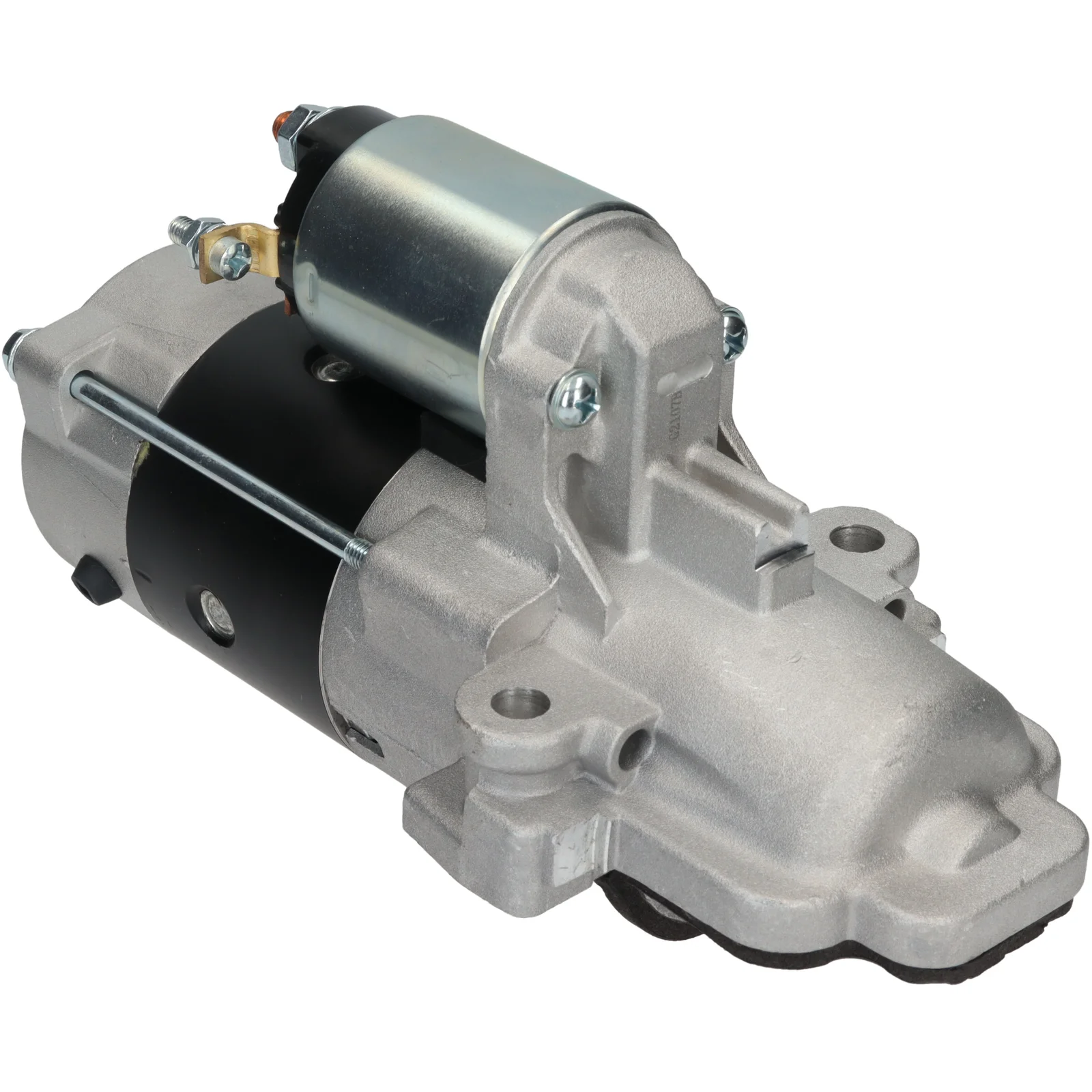

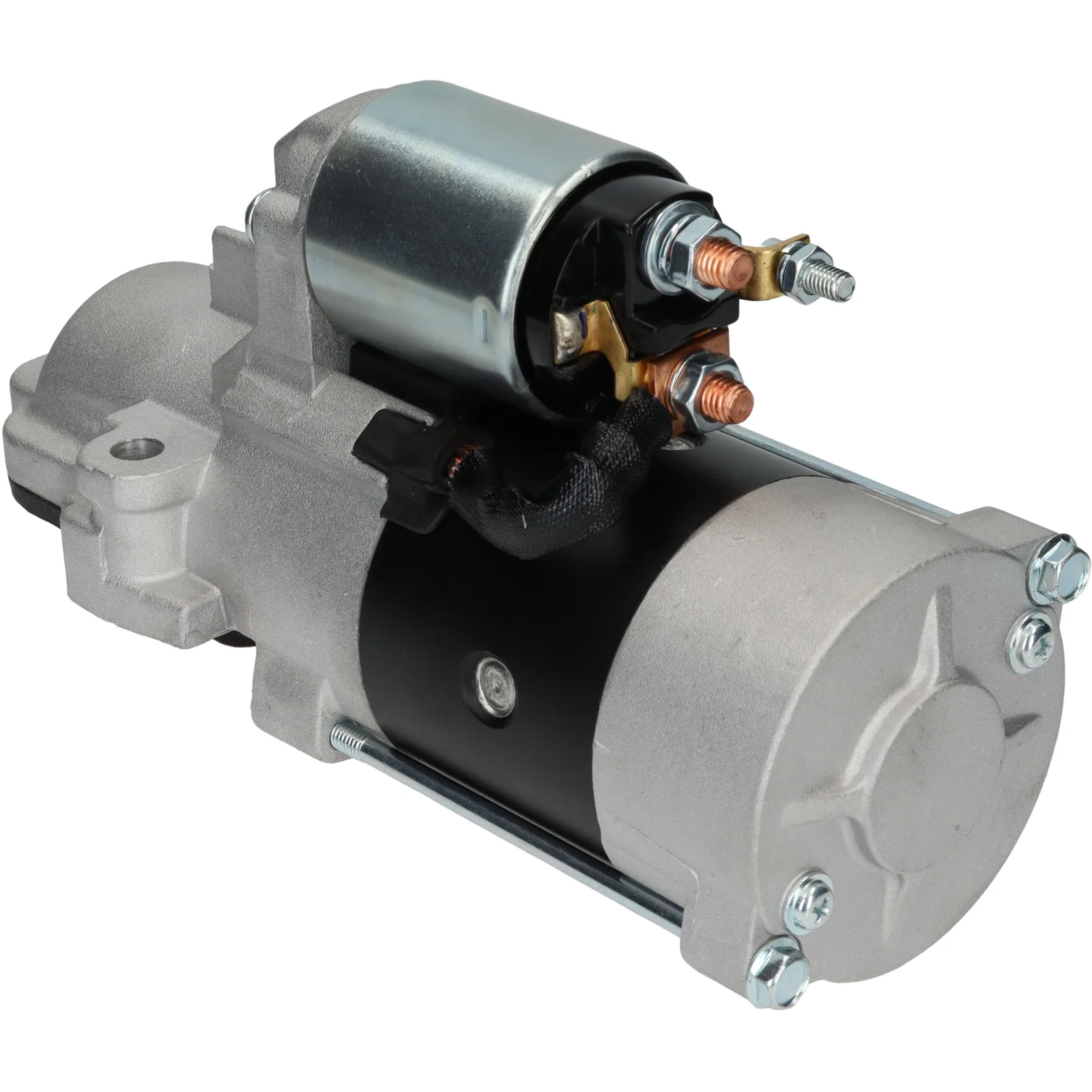

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116645

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,5, Antal./tænder: 12, Rotation: med uret

Beskrivelse

Startmotor 12V-2,5kW til Ford 12V - 2,5kW, 12k For Yourex produkt bestilling 91-180-5971

Spænding: 12
kW: 2,5
Montageflange: 89,00
Drevafstand: 35,00
Montagehul 2 mm: 10,50
Montagehul 1 mm: 10,50
Afstand/bag: 182,50
Afstand/forside: 66,50
Nummer/tænder: 12
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M6
Geartype: GR
Afstand mm: 89,00
Rotation: CW
Samlet længde mm: 249,00
Antal/montagehuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 89.00
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 182.50
Dist./front 66.50
Drive dist. 35.00
Gear type GR
kW 2.5
Terminal 50 M6
Voltage 12
Total length 249.00 mm
Dist. 89.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    AB39-11000AA, AB3911000AA, F032116645, M002T85971, M002T85971ZT, M002T8597ZT, M2T-85971, M2T-85971ZT, M2T85971, M2T85971ZE, M2T85971ZT, RGO 116645, RMAB39-11000AA, 1986S01100, 116645, 438360, 1720325, 2415034

  • Konkurrentreferens
    CST35391, LRS03830, S5251S, 8EA011612-111, 25-5003, 590.580.122, 220865, 220865A, 255422, 458926, 11090492, 0986027200

  • Bilmärken
    Ford EU, Ford Europe Trucks & Vans

  • NormaliseratArtNr
    ab3911000aa, cst35391, f032116645, lrs03830, m002t85971, m002t85971zt, m002t8597zt, m2t85971, m2t85971ze, m2t85971zt, rgo116645, rmab3911000aa, s5251s, 8ea011612111, 1986s01100, 116645, 220865, 220865a, 255003, 255422, 438360, 458926, 1720325, 2415034, 11090492, 590580122, 0986027200

  • Passar modeller
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Platform / Chassis From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 3.2 Type description: PX Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi 4x4 Engine volume: 2.2 Engine type: GBV AJQJ Year: 04.11-
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi 4x4 Engine volume: 2.2 Engine type: GBV AJQW Year: 04.11-
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi 4x4 Engine volume: 2.2 Year: 05.15-
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Engine type: GBV AJQW Year: 04.11-
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Engine type: GBVAJPF Year: 04.11-
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Year: 05.15-
    Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Year: 05.15-02.19
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDdi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Startmotor 12V-2,5kW til Ford 12V - 2,5kW, 12k For Yourex produkt bestilling 91-180-5971

    Spænding: 12
    kW: 2,5
    Montageflange: 89,00
    Drevafstand: 35,00
    Montagehul 2 mm: 10,50
    Montagehul 1 mm: 10,50
    Afstand/bag: 182,50
    Afstand/forside: 66,50
    Nummer/tænder: 12
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Geartype: GR
    Afstand mm: 89,00
    Rotation: CW
    Samlet længde mm: 249,00
    Antal/montagehuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 89.00
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 182.50
    Dist./front 66.50
    Drive dist. 35.00
    Gear type GR
    kW 2.5
    Terminal 50 M6
    Voltage 12
    Total length 249.00 mm
    Dist. 89.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Køretøjsmatchning

    • OEM
      AB39-11000AA, AB3911000AA, F032116645, M002T85971, M002T85971ZT, M002T8597ZT, M2T-85971, M2T-85971ZT, M2T85971, M2T85971ZE, M2T85971ZT, RGO 116645, RMAB39-11000AA, 1986S01100, 116645, 438360, 1720325, 2415034

    • Konkurrentreferens
      CST35391, LRS03830, S5251S, 8EA011612-111, 25-5003, 590.580.122, 220865, 220865A, 255422, 458926, 11090492, 0986027200

    • Bilmärken
      Ford EU, Ford Europe Trucks & Vans

    • NormaliseratArtNr
      ab3911000aa, cst35391, f032116645, lrs03830, m002t85971, m002t85971zt, m002t8597zt, m2t85971, m2t85971ze, m2t85971zt, rgo116645, rmab3911000aa, s5251s, 8ea011612111, 1986s01100, 116645, 220865, 220865a, 255003, 255422, 438360, 458926, 1720325, 2415034, 11090492, 590580122, 0986027200

    • Passar modeller
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Platform / Chassis From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 3.2 Type description: PX Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi 4x4 Engine volume: 2.2 Engine type: GBV AJQJ Year: 04.11-
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi 4x4 Engine volume: 2.2 Engine type: GBV AJQW Year: 04.11-
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi 4x4 Engine volume: 2.2 Year: 05.15-
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Engine type: GBV AJQW Year: 04.11-
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Engine type: GBVAJPF Year: 04.11-
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Year: 05.15-
      Ford Europe Trucks & Vans Series: Ranger (TKE) Model: 2.2 TDCi Engine volume: 2.2 Year: 05.15-02.19
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDdi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
