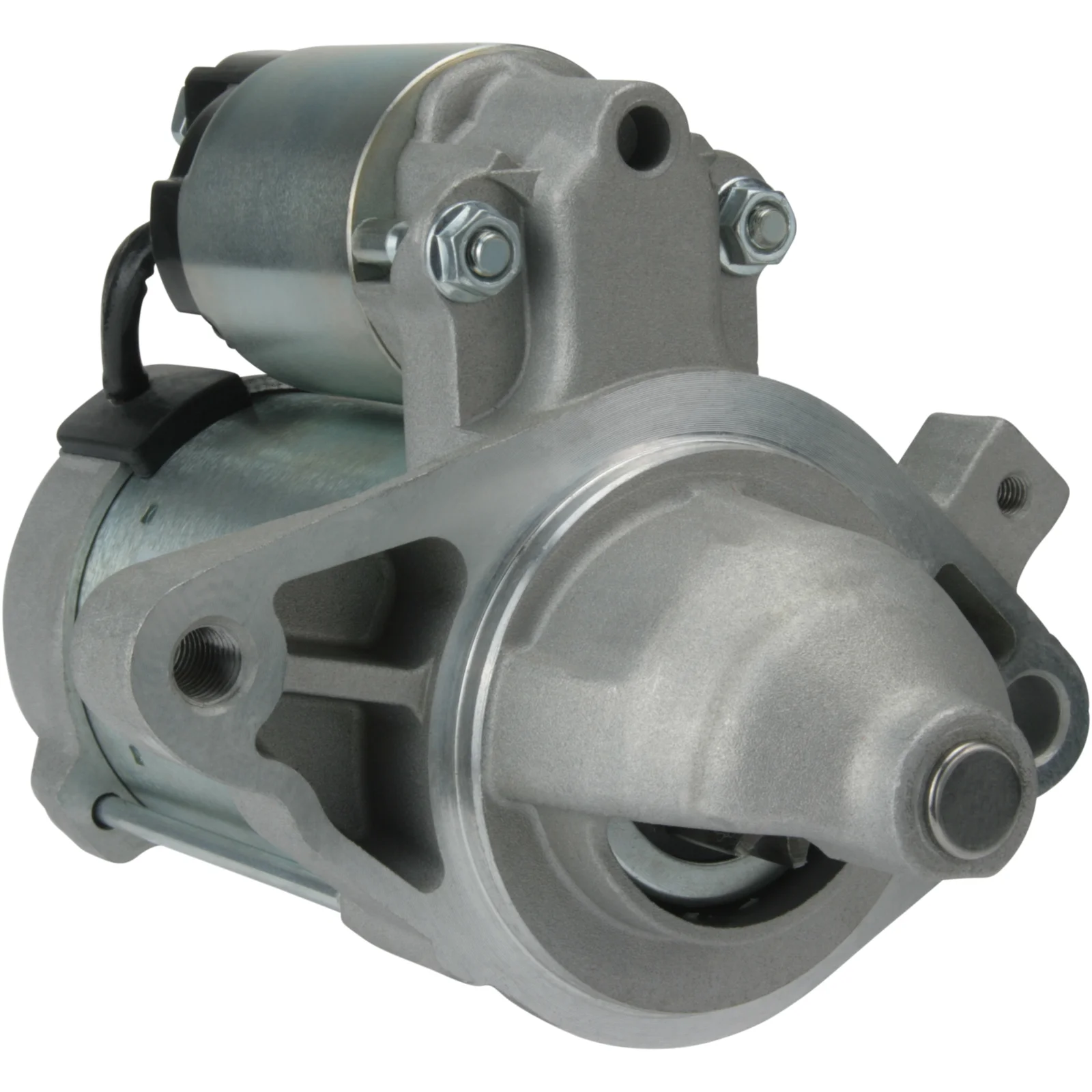

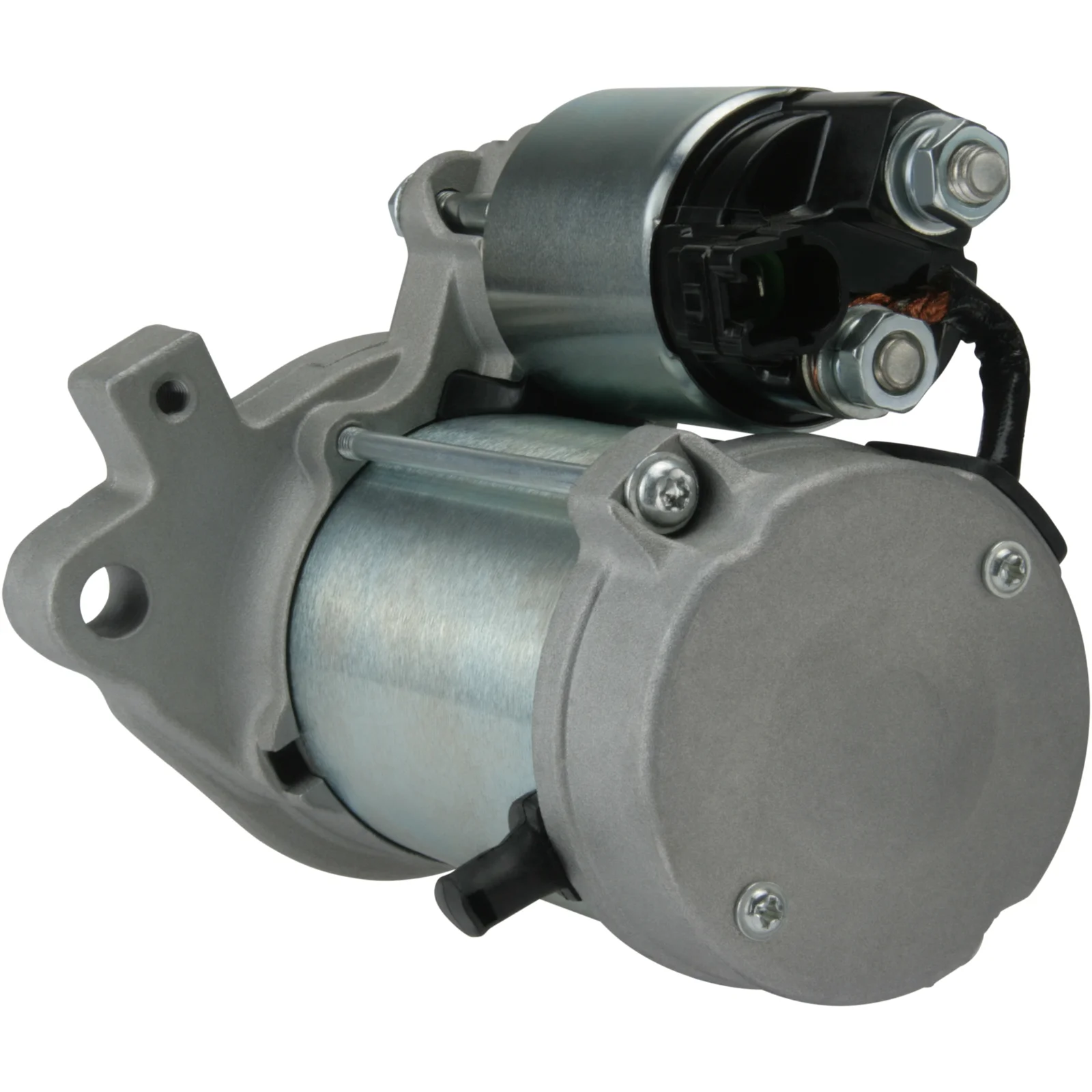

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114661

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.3, No./tænder: 9, Rotation: CW

Beskrivelse

Toyota Yaris Startmotor 12V-1,3kW 12V - 1,3kW, 9k A - 74mm, B - 26mm 12V - 1,3kW, 9k For Yourexpress produkt bestilling 91-555-4336

Spænding: 12
kW: 1,3
Montering flange: 74,00
Drev afstand: 25,50
Montering hul 1 mm: 11,50
Afstand/bag: 130,00
Afstand/forside: 58,00
Antal./tandhjul: 9
B+: M8
Position/50: 40
Terminal 50: Stik
Gear type: GR
Afstand mm: 129,00
Rotation: CW
Total længde mm: 190,00
Prod. info: BN
Antal./montering huller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 130.00
Dist./front 58.00
Drive dist. 25.50
Gear type GR
kW 1.3
Terminal 50 Plug
Voltage 12
Total length 190.00 mm
Dist. 129.00 mm
Mount. hole 1 11.50 mm

  • OEM
    cs1531, F032114661, RGO 114661, 1986S00989, 28100-0Q041, 28100-0q041, 28100-0Q050, 114661, 428000-3360, 428000-3361, 428000-4560, 428000-4561

  • Konkurrentreferens
    CST40320, DRS0473, DSN948, LRS02276, S6099, S6099(DENSO), 8EA011611-601, 25-3447, 190.903.092, 335.218.092, 33276, 33276R, 33277N, 220677, 220677A, 254409, 458949, 458965, 11040815, 0986025680, 063280075010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    cs1531, cst40320, drs0473, dsn948, f032114661, lrs02276, rgo114661, s6099, s6099denso, 8ea011611601, 1986s00989, 33276, 33276r, 33277n, 114661, 220677, 220677a, 253447, 254409, 281000q041, 281000q050, 458949, 458965, 11040815, 190903092, 335218092, 0986025680, 4280003360, 4280003361, 4280004560, 4280004561, 063280075010

  • Passar modeller
    Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
    Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-
    Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-01.07
    1 / 2
  • Beskrivelse
    Toyota Yaris Startmotor 12V-1,3kW 12V - 1,3kW, 9k A - 74mm, B - 26mm 12V - 1,3kW, 9k For Yourexpress produkt bestilling 91-555-4336

    Spænding: 12
    kW: 1,3
    Montering flange: 74,00
    Drev afstand: 25,50
    Montering hul 1 mm: 11,50
    Afstand/bag: 130,00
    Afstand/forside: 58,00
    Antal./tandhjul: 9
    B+: M8
    Position/50: 40
    Terminal 50: Stik
    Gear type: GR
    Afstand mm: 129,00
    Rotation: CW
    Total længde mm: 190,00
    Prod. info: BN
    Antal./montering huller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 130.00
    Dist./front 58.00
    Drive dist. 25.50
    Gear type GR
    kW 1.3
    Terminal 50 Plug
    Voltage 12
    Total length 190.00 mm
    Dist. 129.00 mm
    Mount. hole 1 11.50 mm
  • Køretøjsmatchning

    • OEM
      cs1531, F032114661, RGO 114661, 1986S00989, 28100-0Q041, 28100-0q041, 28100-0Q050, 114661, 428000-3360, 428000-3361, 428000-4560, 428000-4561

    • Konkurrentreferens
      CST40320, DRS0473, DSN948, LRS02276, S6099, S6099(DENSO), 8EA011611-601, 25-3447, 190.903.092, 335.218.092, 33276, 33276R, 33277N, 220677, 220677A, 254409, 458949, 458965, 11040815, 0986025680, 063280075010

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      cs1531, cst40320, drs0473, dsn948, f032114661, lrs02276, rgo114661, s6099, s6099denso, 8ea011611601, 1986s00989, 33276, 33276r, 33277n, 114661, 220677, 220677a, 253447, 254409, 281000q041, 281000q050, 458949, 458965, 11040815, 190903092, 335218092, 0986025680, 4280003360, 4280003361, 4280004560, 4280004561, 063280075010

    • Passar modeller
      Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
      Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-
      Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-01.07
      1 / 2
