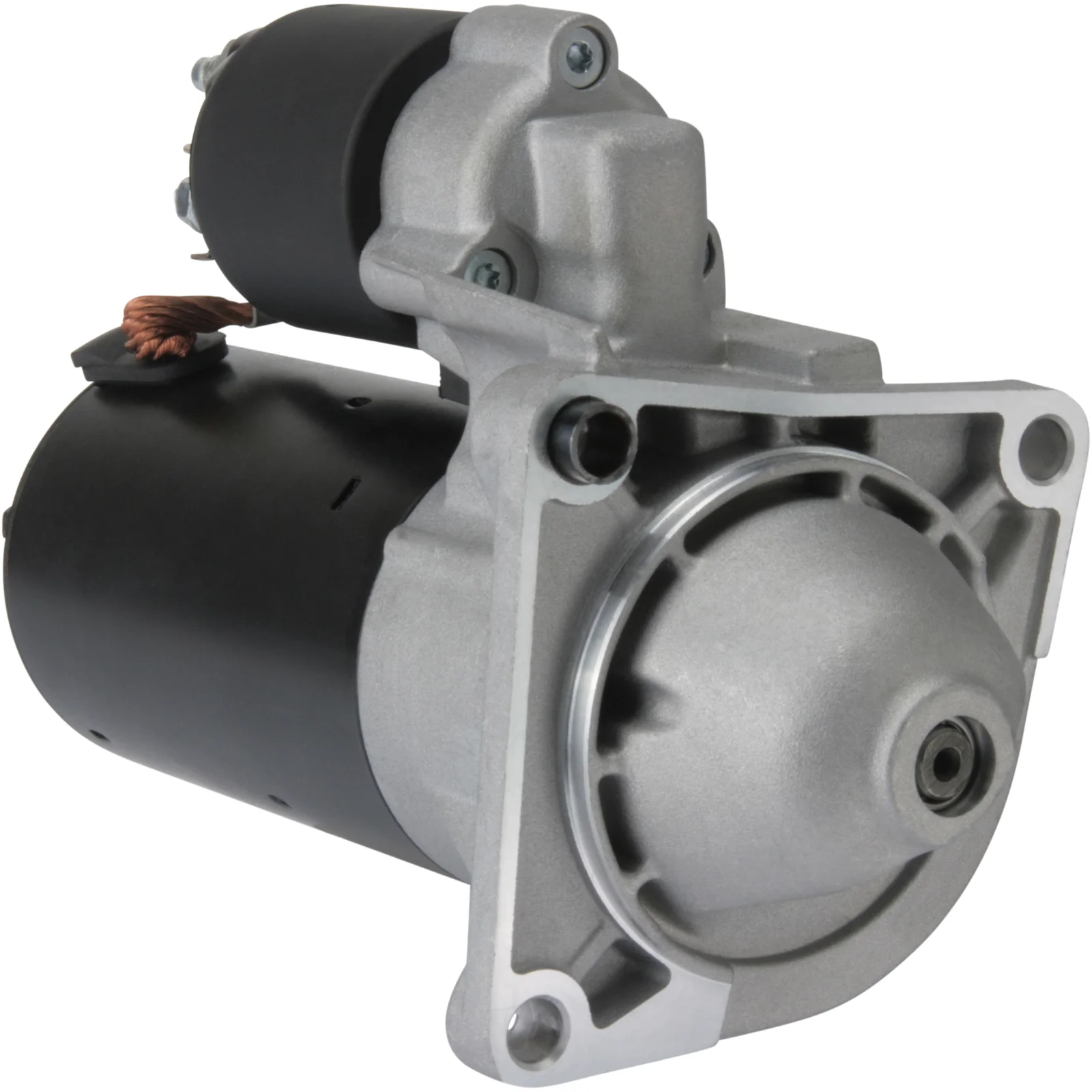

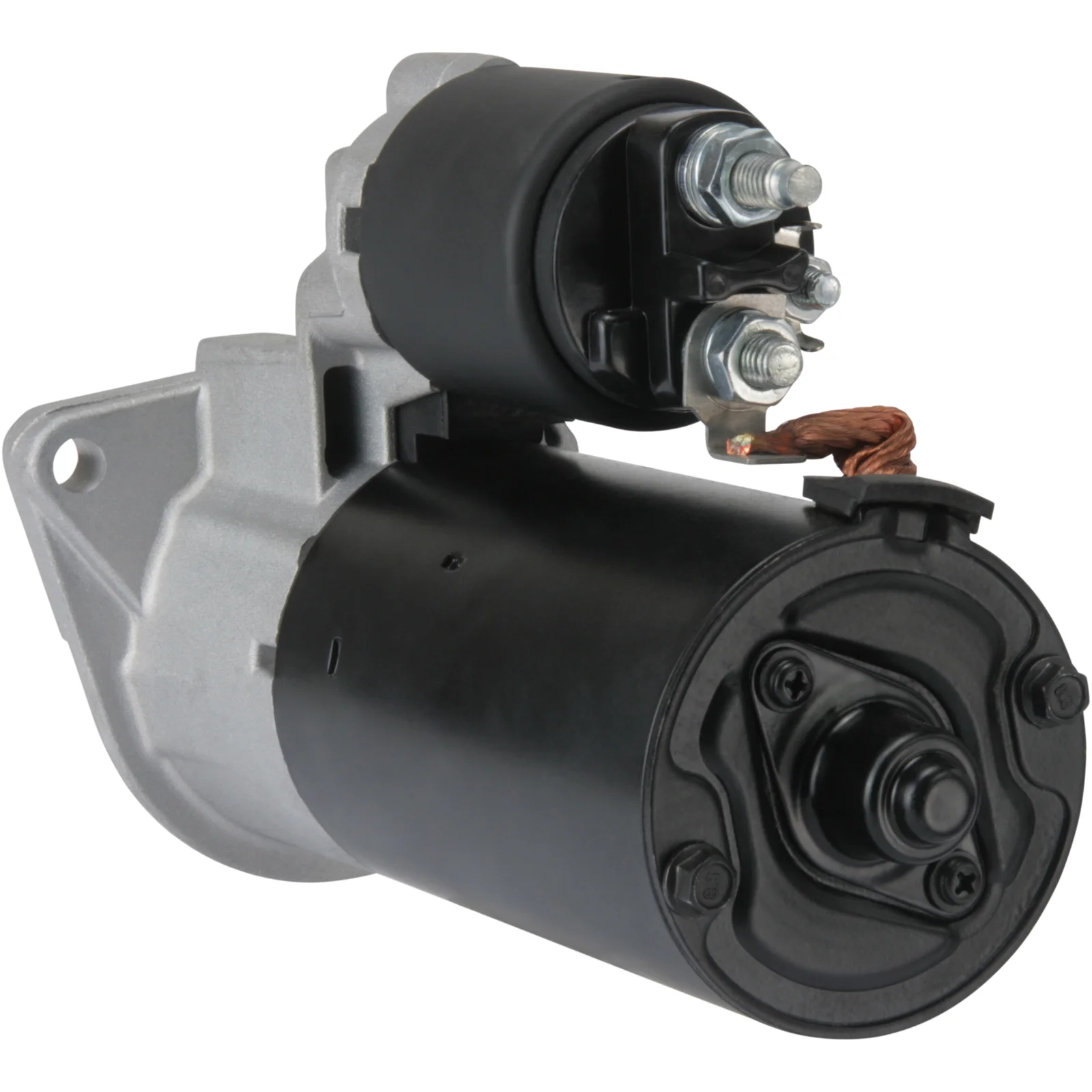

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115399

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.7, Antal/tænder: 11, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.7
Mount. flange: 76,20
Drev afstand: 3,00
Mount. hul 3 mm: 9,00
Mount. hul 2 mm: 9,00
Mount. hul 1 mm: 9,00
Afstand/bag: 176,00
Afstand/frem: 37,00
Num./ tænder: 11
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Afstand 2: 81,00
Afstand 3: 81,00
Afstand mm: 115,00
Rotation: CW
Total længde mm: 227,00
Startermodell: Start/Stop
Antal mount. huller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 76.20
No./mount. holes 3 (0)
Position/50 15
Dist. 2 81.00
Dist. 3 81.00
Rotation CW
Dist./back 176.00
Dist./front 37.00
Drive dist. 3.00
Gear type GR
Starter type Start/Stop
kW 1.7
Terminal 50 M6
Voltage 12
Total length 227.00 mm
Dist. 115.00 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032115399, RGO 115399, 1986S00648, 1986S00830, 31100-55PA0, 31100-62MA0, 0001138009, 0001138010, 0001138071, 0001138072, 0001174400, 0001174401, 0001174406, 51810308, 51916171, 95512513

  • Konkurrentreferens
    CST10447, DRS0309, LRS02610, S0314, 8EA011611-931, 25-4283, 25-5254, 318.222.112, 500.560.093, 500.560.113, 33282N, 220687, 220687A, 458878, 11040997, 11090208, 42025190, 0986025190

  • NormaliseratArtNr
    cst10447, drs0309, f032115399, lrs02610, rgo115399, s0314, 8ea011611931, 1986s00648, 1986s00830, 33282n, 220687, 220687a, 254283, 255254, 458878, 0001138009, 0001138010, 0001138071, 0001138072, 0001174400, 0001174401, 0001174406, 3110055pa0, 3110062ma0, 11040997, 11090208, 42025190, 51810308, 51916171, 95512513, 318222112, 500560093, 500560113, 0986025190

  • Passar modeller
    Alfa Romeo Model: Giulietta Model series: Giuiletta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C1.000 Type description: 940 Body: Hatchback From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C5.000 Type description: 940 Body: Hatchback From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C5.000 Type description: 940 Body: Hatchback From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.6 Brand of engine: 198A2.000 Type description: 145 Body: Hatchback From date: 01-08-2008 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.6 Brand of engine: 955A3.000 Type description: 145 Body: Hatchback From date: 01-08-2008 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.6 Brand of engine: 955A4.000 Body: Hatchback From date: 01-08-2008 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.6 Brand of engine: 199B5.000 Body: Hatchback From date: 01-09-2012 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55260384 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Model type: Cargo Type of engine: 16V Multijet Size of motor: 1.6 Brand of engine: 198A3.000 Type description: 263 Body: Van From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Model type: Cargo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A3.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2011 Fuel: Diesel Approved: Yes Manufacture type: Cargo
    Fiat Model: Doblo Model series: Doblo Model type: Cargo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A4.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2010 Fuel: Diesel Approved: Yes Manufacture type: Cargo
    Fiat Model: Doblo Model series: Doblo Type of engine: 16V Multijet Size of motor: 1.6 Brand of engine: 263A4.000 Type description: 152 Body: MPV From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 198A3.000 Type description: 152 Body: MPV From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 198A3.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A3.000 Type description: 263 Body: Van From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A3.000 Type description: 263_ From date: 01-03-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A4.000 Type description: 263 Body: Van From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A7.000 Type description: 152, 263 Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A7.000 Type description: 263_ Body: Box Body / Estate From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 940C1.000 Type description: 152, 263 Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 940C1.000 Type description: 263_ Body: Platform / Chassis From date: 01-02-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 940C1.000 Type description: 263_ Body: Twin Cab From date: 01-02-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 955A3.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: CRD Size of motor: 1.6 Brand of engine: 55260384,EJJ Type description: BU, B1 Body: Closed Off-Road Vehicle From date: 01-11-2016 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: CRD Size of motor: 1.6 Brand of engine: EJK Type description: BU From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55280444,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.6 Brand of engine: 350A2.000 Body: MPV From date: 01-07-2008 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.6 Brand of engine: 350A2.000 Type description: 350 Body: MPV From date: 01-07-2008 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.6 Brand of engine: 350A3.000 Type description: 350 Body: MPV From date: 01-07-2008 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Opel Model: Combo Model series: Combo Model type: Tour Type of engine: CDTi Size of motor: 1.6 Brand of engine: A16FDL Type description: X12 Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Opel Model: Combo Model series: Combo Type of engine: CDTi Size of motor: 1.6 Brand of engine: A16FDL Type description: X12 Body: Twin Cab From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: DDiS Size of motor: 1.6 Brand of engine: D16AA Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Type of engine: DDiS Size of motor: 1.6 Brand of engine: D16AA Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: DDiS Size of motor: 1.6 Brand of engine: D16AA Type description: LY From date: 01-02-2015 Fuel: Diesel Approved: Yes
    1 / 8
