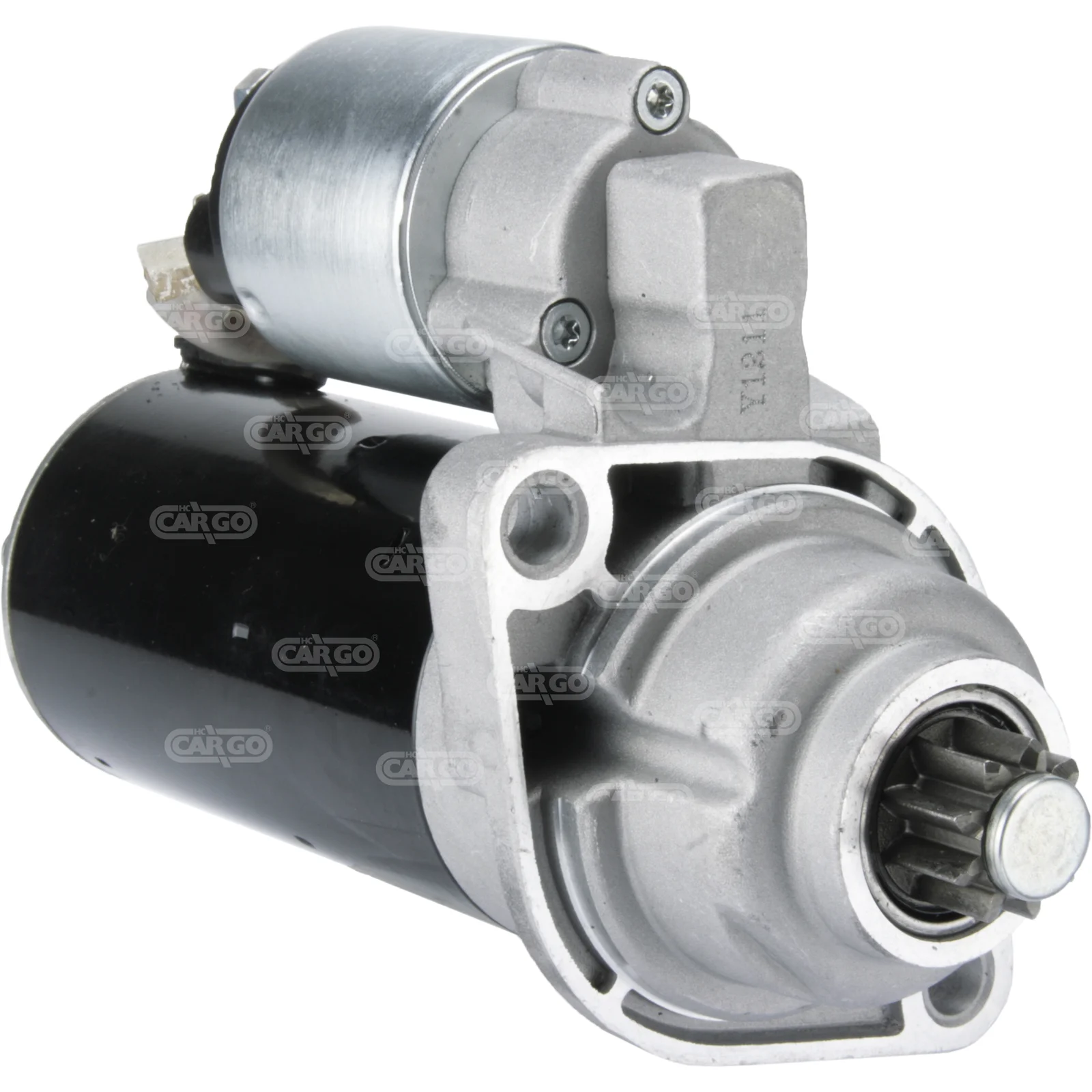

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114316

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.7, Nr./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.7
Monteringsflange: 76,20
Dreven afstening: 53,00
Monteringshuls 2 mm: 11,00
Monteringshuls 1 mm: 11,00
Afstand/bag: 162,50
Afstand/frem: 56,00
Antal/tænder: 9
B+: M8
Terminal 50: M6
Geartype: GR
Afstand mm: 112,00
Rotation: med uret
Samlet længde mm: 232,00
Drevtype: Stål
Antal/monteringshuls: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
No./mount. holes 2 (0)
Rotation CW
Dist./back 162.50
Dist./front 56.00
Drive dist. 53.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 M6
Voltage 12
Total length 232.00 mm
Dist. 112.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    CS1440, CST10323, DRS3896, F032114316, S0289, 8EA012527-871, 25-3121, 311.076.092, 480.508.092, 1986S00806, 17804N, 17804R, 101440, 106239, 106744, 458881, 0001123001, 0001123052, 0001124015, 11022470, 42022470, 0986019487, 0986021777, 0986022470, 0986022473, 996604103AX, 996604103X, 996604104X, 9966041030X, 99609460403E, 99660410300, 99660410301, 99660410302, 99660410400

  • Konkurrentreferens
    CST10323, DRS3896, S0289, 8EA012527-871, 25-3121, 311.076.092, 480.508.092, 17804N, 17804R, 101440, 106239, 106744, 458881, 11022470, 42022470, 0986019487, 0986021777, 0986022470, 0986022473

  • Bilmärken
    PORSCHE

  • NormaliseratArtNr
    cs1440, cst10323, drs3896, f032114316, s0289, 8ea012527871, 1986s00806, 17804n, 17804r, 101440, 106239, 106744, 253121, 458881, 0001123001, 0001123052, 0001124015, 11022470, 42022470, 311076092, 480508092, 0986019487, 0986021777, 0986022470, 0986022473, 996604103ax, 996604103x, 996604104x, 9966041030x, 99609460403e, 99660410300, 99660410301, 99660410302, 99660410400

  • Passar modeller
    PORSCHE 911 (996) 3.4 Carrera 4 Engine volume: 3.4 Engine type: M 96.01, M 96.02 Year: 09.97-07.99
    PORSCHE 911 (996) 3.4 Carrera 4 Engine volume: 3.4 Engine type: M 96.01, M 96.04, M 96.02 Year: 08.97-07.01
    PORSCHE 911 (996) 3.4 Carrera Engine volume: 3.4 Engine type: M 96.01, M 96.02 Year: 08.97-07.99
    PORSCHE 911 (996) 3.4 Carrera Engine volume: 3.4 Engine type: M 96.01, M 96.04, M 96.02 Year: 08.97-07.01
    PORSCHE 911 (996) 3.6 Carrera 4 Engine volume: 3.6 Engine type: M 96.03 Year: 10.01-08.04
    PORSCHE 911 (996) 3.6 Carrera 4S Engine volume: 3.6 Engine type: M 96.03 Year: 02.03-07.04
    PORSCHE 911 (996) 3.6 Carrera Engine volume: 3.6 Engine type: M 96.03 Year: 10.01-08.04
    PORSCHE 911 (996) 3.6 Carrera S Engine volume: 3.6 Engine type: M 96.03 Year: 02.03-08.05
    PORSCHE 911 (996) 3.6 Turbo 4S Engine volume: 3.6 Engine type: M 96.70 Year: 02.03-08.05
    PORSCHE 911 (997) 3.6 Carrera 4 Engine volume: 3.6 Engine type: M 96.05 Year: 07.04-12.08
    PORSCHE 911 (997) 3.6 Carrera Engine volume: 3.6 Engine type: M 96.05 Year: 07.04-12.08
    PORSCHE 911 (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: M 97.01 Year: 07.04-12.08
    PORSCHE 911 (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: M 97.01S Year: 08.05-12.08
    PORSCHE 911 (997) 3.8 Carrera S Engine volume: 3.8 Engine type: M 97.01 Year: 07.04-12.08
    PORSCHE 911 (997) 3.8 Carrera S Engine volume: 3.8 Engine type: M 97.01S Year: 08.05-12.08
    PORSCHE 911 Cabriolet (996) 3.4 Carrera 4 Engine volume: 3.4 Engine type: M 96.01, M 96.02 Year: 08.97-07.99
    PORSCHE 911 Cabriolet (996) 3.4 Carrera 4 Engine volume: 3.4 Engine type: M 96.04, M 96.02 Year: 02.98-09.01
    PORSCHE 911 Cabriolet (996) 3.4 Carrera Engine volume: 3.4 Engine type: M 96.01, M 96.02 Year: 08.97-07.99
    PORSCHE 911 Cabriolet (996) 3.4 Carrera Engine volume: 3.4 Engine type: M 96.01, M 96.04 Year: 02.98-09.01
    PORSCHE 911 Cabriolet (996) 3.6 Carrera 4 Engine volume: 3.6 Engine type: M 96.03 Year: 10.01-08.05
    PORSCHE 911 Cabriolet (996) 3.6 Carrera 4S Engine volume: 3.6 Engine type: M 96.03 Year: 06.02-08.05
    PORSCHE 911 Cabriolet (996) 3.6 Carrera Engine volume: 3.6 Engine type: M 96.03 Year: 10.01-08.05
    PORSCHE 911 Cabriolet (996) 3.6 Carrera S Engine volume: 3.6 Engine type: M 96.03 Year: 06.02-08.05
    PORSCHE 911 Cabriolet (997) 3.6 Carrera 4 Engine volume: 3.6 Engine type: M 96.05 Year: 04.05-12.08
    PORSCHE 911 Cabriolet (997) 3.6 Carrera Engine volume: 3.6 Engine type: M 96.05 Year: 04.05-12.08
    PORSCHE 911 Cabriolet (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: M 97.01 Year: 04.05-12.08
    PORSCHE 911 Cabriolet (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: M 97.01S Year: 08.05-12.08
    PORSCHE 911 Cabriolet (997) 3.8 Carrera S Engine volume: 3.8 Engine type: M 97.01 Year: 04.05-12.08
    PORSCHE 911 Cabriolet (997) 3.8 Carrera S Engine volume: 3.8 Engine type: M 97.01S Year: 08.05-12.08
    PORSCHE 911 Targa (996) 3.6 Engine volume: 3.6 Engine type: M 96.03 Year: 12.01-08.05
    PORSCHE 911 Targa (997) 3.6 Carrera 4 Engine volume: 3.6 Engine type: M 96.05 Year: 07.06-12.08
    PORSCHE 911 Targa (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: M 97.01 Year: 07.06-12.08
    PORSCHE 911 Targa (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: M 97.01S Year: 11.06-12.08
    PORSCHE 911 Targa (997) 3.8 Carrera 4S Engine volume: 3.8 Engine type: MA1.01 Year: 08.09-05.12
    PORSCHE BOXSTER (986) 2.5 Engine volume: 2.5 Engine type: M 96.20 Year: 09.96-08.99
    PORSCHE BOXSTER (986) 2.7 Engine volume: 2.7 Engine type: M 96.22 Year: 08.99-07.02
    PORSCHE BOXSTER (986) 2.7 Engine volume: 2.7 Engine type: M 96.23 Year: 07.02-12.04
    PORSCHE BOXSTER (986) S 3.2 Engine volume: 3.2 Engine type: M 96.21 Year: 08.99-07.02
    PORSCHE BOXSTER (986) S 3.2 Engine volume: 3.2 Engine type: M 96.24 Year: 01.04-12.04
    PORSCHE BOXSTER (986) S 3.2 Engine volume: 3.2 Engine type: M 96.24 Year: 07.02-12.04
    PORSCHE BOXSTER (987) 2.7 Engine volume: 2.7 Engine type: M 96.25 Year: 11.04-12.06
    PORSCHE BOXSTER (987) 2.7 Engine volume: 2.7 Engine type: M 97.20 Year: 07.06-12.09
    PORSCHE BOXSTER (987) S 3.2 Engine volume: 3.2 Engine type: M 96.26 Year: 11.04-12.06
    PORSCHE BOXSTER (987) S 3.4 Engine volume: 3.4 Engine type: M 97.21 Year: 07.06-12.09
    PORSCHE CARRERA GT (980) 5.7 Engine volume: 5.7 Engine type: M 80.01 Year: 07.03-12.06
    PORSCHE CAYMAN (987) 2.7 Engine volume: 2.7 Engine type: M 97.20 Year: 07.06-12.09
    PORSCHE CAYMAN (987) S 3.4 Engine volume: 3.4 Engine type: M 97.21 Year: 11.05-12.09
